SAXSdb — 1w81

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

APICAL MEMBRANE ANTIGEN 1

PLASMODIUM VIVAX

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	IMIDAZOLE × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q9TY14
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–447； UniProt 1–445

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1w81
Deposition date deposition_date	2004-09-15
Structure title title	Crystal structure of apical membrane antigen 1 from Plasmodium vivax
Keywords keywords	PLASMODIUM ANTIGEN, MALARIA VACCINE CANDIDATE, ANTIGEN; ANTIGEN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1w81__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1w81__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

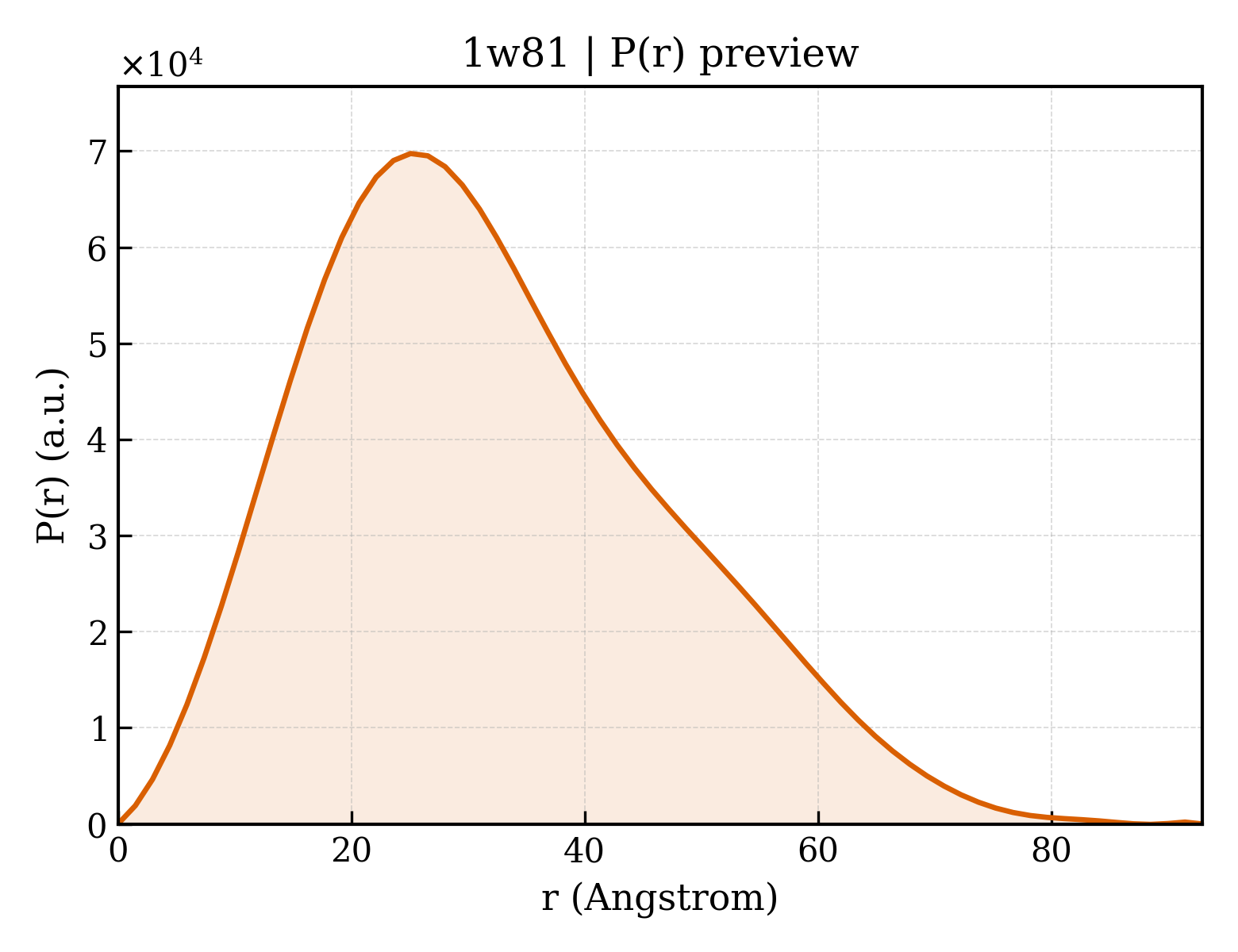

1w81__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	24.79 Å
Rg (electron density)	24.12 Å
Total Rg	24.97 Å
Atom count	2940
Residues	364
Excluded volume	51937 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1w81__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	APICAL MEMBRANE ANTIGEN 1
Molecular weight formula_weight	51597.0 kDa
Mutation mutation	YES
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	3237

SIPTVERSTRMSNPWKAFMEKYDIERTHSSGVRVDLGEDAEVENAKYRIPAGRCPVFGKGIVIENSDVSFLRPVATGDQKLKDGGFAFPNANDHISPMTLANLKERYKDNVEMMKLNDIALCRTHAASFVMAGDQNSNYRHPAVYDEKEKTCHMLYLSAQENMGPRYCSPDAQNRDAVFCFKPDKDESFENLVYLSKNVRNDWDKKCPRKNLGNAKFGLWVDGNCEEIPYVKEVEAEDLRECNRIVFGASASDQPTQYEEEMTDYQKIQQGFRQNNREMIKSAFLPVGAFNSDNFKSKGRGFNWANFDSVKKKCYIFNTKPTCLINDKNFIATTALSHPQEVDLEFPCSIYKDEIEREIKKQSRNMNLYSVDGERIVLPRIFISNDKESIKCPCEPERISQSTCNFYVCNCVEKRAEIKENNQVVIKEEFRDYYENGEEKSNKQMLL

Source Source

Source organism organism	PLASMODIUM VIVAX
NCBI taxonomy ID ncbi_taxonomy_id	5855
Host organism host_organism	PICHIA PASTORIS

Entity 2 Entity 2 non-polymer

Description description	IMIDAZOLE
Molecular weight formula_weight	69.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	288

▼

6. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	1w81A02
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	4 — Hepatocyte Growth Factor
Homologous superfamily homologous superfamily	10 — Hepatocyte Growth Factor

▶

Unit-cell length a length_a	54.097 Å
Unit-cell length b length_b	76.096 Å
Unit-cell length c length_c	103.925 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.010 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.1980
R_work r_work	0.1940
R_free r_free	0.2590
