SAXSdb — 1wa5

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

GTP-binding nuclear protein Ran

Canis lupus familiaris

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain A； UniProt 1–176	Not recorded	SRP1 isoform 1 × 1 （A0A6A5Q590） Importin alpha re-exporter × 1 （P33307） GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.6；291 K；50mM TrisHCl, 200mM NaCl, 5mM Mg(OAc)2, .1mM GTP, 22% PEG3350 and 2% PEG400.	Resolution 2.00 Å R-free 0.216

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1WA5	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1BYU CANINE GDP-RAN Deposited 1998-10-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–216（216 aa） Fragment：ALL Chain B 1–216（216 aa） Fragment：ALL	Not recorded	MG MAGNESIUM ION × 2 GDP GUANOSINE-5'-DIPHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.2；SEE PUBLICATION, pH 7.2	Resolution 2.15 Å R-free 0.243
1QG2 CANINE GDP-RAN R76E MUTANT Deposited 1999-04-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–216（216 aa） Fragment：ALL	Mutation：R76E	MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.2；SEE PUBLICATION, pH 7.20	Resolution 2.50 Å R-free 0.237
1QG4 CANINE GDP-RAN F72Y MUTANT Deposited 1999-04-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–216（216 aa） Fragment：ALL	Mutation：F72Y	MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.2；pH 7.20	Resolution 2.50 Å R-free 0.237
1QG4 CANINE GDP-RAN F72Y MUTANT Deposited 1999-04-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–216（216 aa） Fragment：ALL	Mutation：F72Y	MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.2；pH 7.20	Resolution 2.50 Å R-free 0.237
2BKU Kap95p:RanGTP complex Deposited 2005-02-21	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–177（177 aa） Fragment：RESIDUES 1-177	Not recorded	GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.70 Å R-free 0.279
2BKU Kap95p:RanGTP complex Deposited 2005-02-21	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–177（177 aa） Fragment：RESIDUES 1-177	Not recorded	GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.70 Å R-free 0.279
3A6P Crystal structure of Exportin-5:RanGTP:pre-miRNA complex Deposited 2009-09-07	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 3 PDB declaration: pentameric	Chain C 1–216（216 aa）	Not recorded	GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.92 Å R-free 0.312
3A6P Crystal structure of Exportin-5:RanGTP:pre-miRNA complex Deposited 2009-09-07	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–RNA Heteromer；Protein × 3 PDB declaration: pentameric	Chain H 1–216（216 aa）	Not recorded	GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.92 Å R-free 0.312
3RAN CANINE GDP-RAN Q69L MUTANT Deposited 1998-10-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–216（216 aa）	Mutation：Q69L	MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.2；SEE PUBLICATION, pH 7.2	Resolution 2.15 Å R-free 0.243
3RAN CANINE GDP-RAN Q69L MUTANT Deposited 1998-10-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–216（216 aa）	Mutation：Q69L	MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.2；SEE PUBLICATION, pH 7.2	Resolution 2.15 Å R-free 0.243
3RAN CANINE GDP-RAN Q69L MUTANT Deposited 1998-10-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 1–216（216 aa）	Mutation：Q69L	MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.2；SEE PUBLICATION, pH 7.2	Resolution 2.15 Å R-free 0.243
3RAN CANINE GDP-RAN Q69L MUTANT Deposited 1998-10-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 1–216（216 aa）	Mutation：Q69L	MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.2；SEE PUBLICATION, pH 7.2	Resolution 2.15 Å R-free 0.243
3W3Z Crystal structure of Kap121p bound to RanGTP Deposited 2012-12-28	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–176（176 aa） Fragment：UNP residues 1-176	Not recorded	MG MAGNESIUM ION × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；0.1M MES, 0.2M CaCl2, 10% PEG 20000, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.70 Å R-free 0.298
5BXQ Structure of the NTF2:RanGDP complex Deposited 2015-06-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 1–216（216 aa） Chain D 1–216（216 aa） Chain E 1–216（216 aa）	Not recorded	GDP GUANOSINE-5'-DIPHOSPHATE × 3 MG MAGNESIUM ION × 3 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；0.1 M Li2SO4, 50 mM Na Citrate pH5.6, 15% PEG4000	Resolution 2.50 Å R-free 0.225
5YU6 CRYSTAL STRUCTURE OF EXPORTIN-5:RANGTP COMPLEX Deposited 2017-11-20	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–216（216 aa）	Not recorded	GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；PEG3350, DTT, MgCl2, spermine tetrahydrochloride	Resolution 3.00 Å R-free 0.269
5YU6 CRYSTAL STRUCTURE OF EXPORTIN-5:RANGTP COMPLEX Deposited 2017-11-20	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 1–216（216 aa）	Not recorded	GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；PEG3350, DTT, MgCl2, spermine tetrahydrochloride	Resolution 3.00 Å R-free 0.269

9 other PDB entries and 16 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	RAN_CANLF
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–176； UniProt 1–176

SRP1 isoform 1

Saccharomyces cerevisiae

UniProt A0A6A5Q590

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain B； UniProt 1–530	Not recorded	GTP-binding nuclear protein Ran × 1 （P62825） Importin alpha re-exporter × 1 （P33307） GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.6；291 K；50mM TrisHCl, 200mM NaCl, 5mM Mg(OAc)2, .1mM GTP, 22% PEG3350 and 2% PEG400.	Resolution 2.00 Å R-free 0.216

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

No other PDB entry for the same UniProt protein was found.

View Construct and Data Evidence

UniProt name	A0A6A5Q590_YEASX
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–530； UniProt 1–530

Importin alpha re-exporter

Saccharomyces cerevisiae

UniProt P33307

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain C； UniProt 1–960	Not recorded	GTP-binding nuclear protein Ran × 1 （P62825） SRP1 isoform 1 × 1 （A0A6A5Q590） GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.6；291 K；50mM TrisHCl, 200mM NaCl, 5mM Mg(OAc)2, .1mM GTP, 22% PEG3350 and 2% PEG400.	Resolution 2.00 Å R-free 0.216

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1WA5	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1Z3H The exportin Cse1 in its cargo-free, cytoplasmic state Deposited 2005-03-12	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–960（960 aa）	Not recorded	MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；PEG 8000, MgCl2, glycerol, DTT, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 3.10 Å R-free 0.288
1Z3H The exportin Cse1 in its cargo-free, cytoplasmic state Deposited 2005-03-12	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–960（960 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；PEG 8000, MgCl2, glycerol, DTT, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 3.10 Å R-free 0.288

1 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CSE1_YEAST
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–960； UniProt 1–960

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1wa5
Deposition date deposition_date	2004-10-23
Structure title title	Structure of the Cse1:Imp-alpha:RanGTP complex
Keywords keywords	Cse1, Importin-alpha, RanGTP, nuclear transport, TRANSPORT PROTEIN; TRANSPORT PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	39.57 Å
Radius of gyration Rg (electron density) rg_electron	39.17 Å
Forward intensity I(0) i0	451358000.00
Molecular weight molecular_weight	180460.0 kDa
Excluded volume excluded_volume	229040 Å³
Envelope volume envelope_volume	293740 Å³
Hydration-shell volume shell_volume	62715 Å³
Envelope diameter envelope_diameter	139.2 Å
Shell Rg shell_rg	45.05 Å
Envelope Rg envelope_rg	38.63 Å
Shape Rg shape_rg	39.15 Å
Total Rg total_rg	39.59 Å
Total atoms total_atoms	25639
Residues n_residues	1586
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

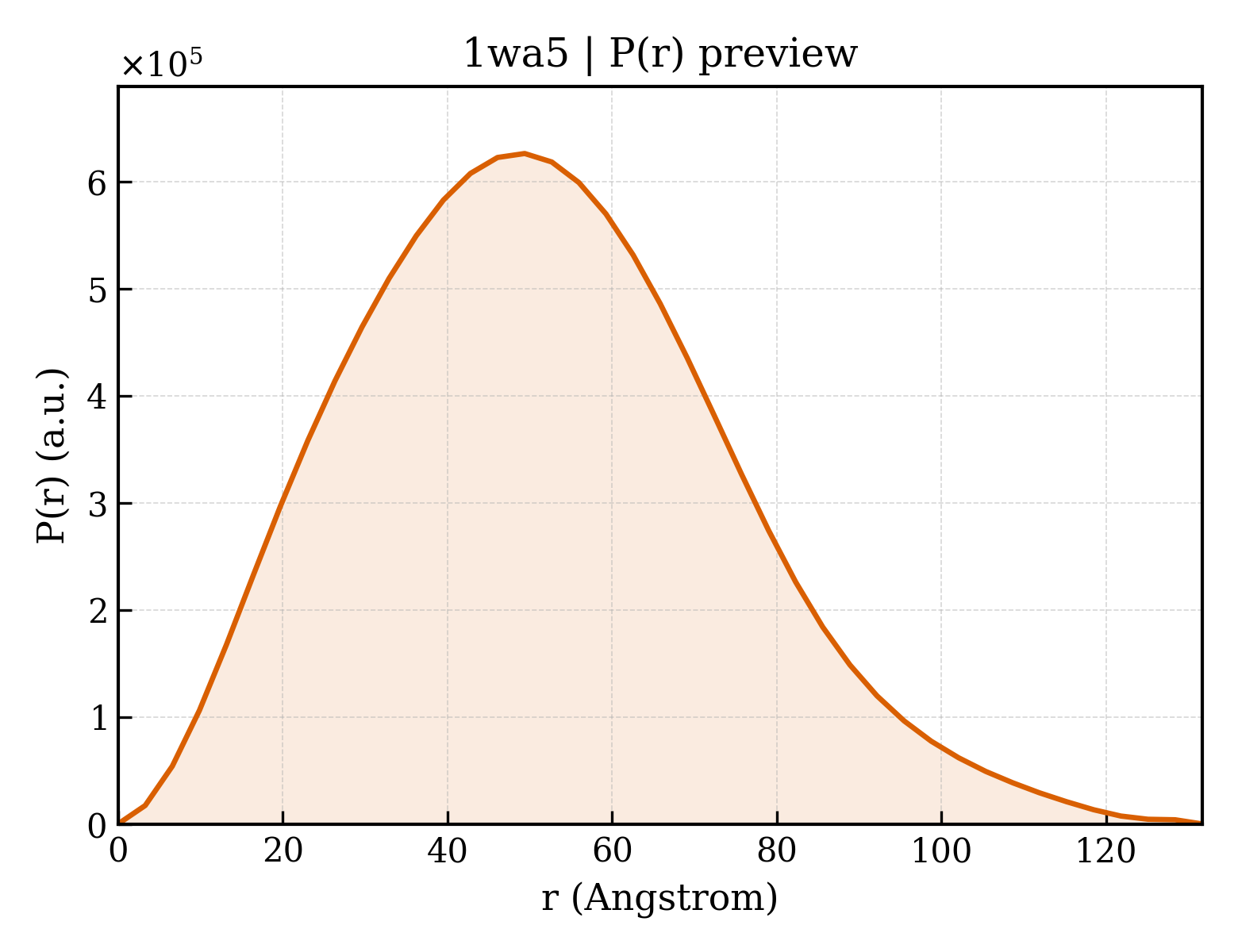

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	131.7 Å
Rg (real space) rg_real	39.54 Å
Rg uncertainty (real space) rg_real_error	0.93 Å
I(0) (real space) i0_real	4.5140e+08
I(0) uncertainty (real space) i0_real_error	7.5530e+06
Rg (reciprocal space) rg_reciprocal	39.56 Å
I(0) (reciprocal space) i0_reciprocal	451400000.0000
Solution quality estimate total_estimate	0.8747
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	49.4 Å
Skewness Skewness skewness	0.354
Kurtosis Kurtosis kurtosis	-0.170
Angular range angular_range	— – 0.2000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	69740000.0000
Real-space data points n_real_points	41
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.851; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.814

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	GTP-binding nuclear protein Ran
Molecular weight formula_weight	20210.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	26541

MAAQGEPQVQFKLVLVGDGGTGKTTFVKRHLTGEFEKKYVATLGVEVHPLVFHTNRGPIKFNVWDTAGQEKFGGLRDGYYIQAQCAIIMFDVTSRVTYKNVPNWHRDLVRVCENIPIVLCGNKVDIKDRKVKAKSIVFHRKKNLQYYDISAKSNYNFEKPFLWLARKLIGDPNLEF

来源 Source

来源生物 organism	Canis lupus familiaris
通用名 common_name	Dog
NCBI Class编号 ncbi_taxonomy_id	9615
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	SRP1 isoform 1
Molecular weight formula_weight	59072.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MDNGTDSSTSKFVPEYRRTNFKNKGRFSADELRRRRDTQQVELRKAKRDEALAKRRNFIPPTDGADSDEEDESSVSADQQFYSQLQQELPQMTQQLNSDDMQEQLSATVKFRQILSQEHRPPIDVVIQAGVVPRLVEFMRENQPEMLQLEAAWALTNIASGTSAQTKVVVDADAVPLFIQLLYTGSVEVKEQAIWALGNVAGDSTDYRDYVLQCNAMEPILGLFNSNKPSLIRTATWTLSNLCRGKKPQPDWSVVSQALPTLAKLIYSMDTETLVDACWAISYLSDGPQEAIQAVIDVRIPKRLVELLSHESTLVQTPALRAVGNIVTGNDLQTQVVINAGVLPALRLLLSSPKENIKKEACWTISNITAGNTEQIQAVIDANLIPPLVKLLEVAEYKTKKEACWAISNASSGGLQRPDIIRYLVSQGCIKPLCDLLEIADNRIIEVTLDALENILKMGEADKEARGLNINENADFIEKAGGMEKIFNCQQNENDKIYEKAYKIIETYFGEEEDAVDETMAPQNAGNTFG

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;Baker's yeast ;
NCBI Class编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Importin alpha re-exporter
Molecular weight formula_weight	109453.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MSDLETVAKFLAESVIASTAKTSERNLRQLETQDGFGLTLLHVIASTNLPLSTRLAGALFFKNFIKRKWVDENGNHLLPANNVELIKKEIVPLMISLPNNLQVQIGEAISSIADSDFPDRWPTLLSDLASRLSNDDMVTNKGVLTVAHSIFKRWRPLFRSDELFLEIKLVLDVFTAPFLNLLKTVDEQITANENNKASLNILFDVLLVLIKLYYDFNCQDIPEFFEDNIQVGMGIFHKYLSYSNPLLEDPDETEHASVLIKVKSSIQELVQLYTTRYEDVFGPMINEFIQITWNLLTSISNQPKYDILVSKSLSFLTAVTRIPKYFEIFNNESAMNNITEQIILPNVTLREEDVELFEDDPIEYIRRDLEGSDTDTRRRACTDFLKELKEKNEVLVTNIFLAHMKGFVDQYMSDPSKNWKFKDLYIYLFTALAINGNITNAGVSSTNNLLNVVDFFTKEIAPDLTSNNIPHIILRVDAIKYIYTFRNQLTKAQLIELMPILATFLQTDEYVVYTYAAITIEKILTIRESNTSPAFIFHKEDISNSTEILLKNLIALILKHGSSPEKLAENEFLMRSIFRVLQTSEDSIQPLFPQLLAQFIEIVTIMAKNPSNPRFTHYTFESIGAILNYTQRQNLPLLVDSMMPTFLTVFSEDIQEFIPYVFQIIAFVVEQSATIPESIKPLAQPLLAPNVWELKGNIPAVTRLLKSFIKTDSSIFPDLVPVLGIFQRLIASKAYEVHGFDLLEHIMLLIDMNRLRPYIKQIAVLLLQRLQNSKTERYVKKLTVFFGLISNKLGSDFLIHFIDEVQDGLFQQIWGNFIITTLPTIGNLLDRKIALIGVLNMVINGQFFQSKYPTLISSTMNSIIETASSQSIANLKNDYVDLDNLEEISTFGSHFSKLVSISEKPFDPLPEIDVNNGVRLYVAEALNKYNAISGNTFLNTILPQLTQENQVKLNQLLVGN

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;Baker's yeast ;
NCBI Class编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Escherichia coli

Entity 4 Entity 4 non-polymer

Description description	GUANOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	523.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	708

▼

7. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d1wa5a_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.8 — G proteins

Domain ID domain_id	d1wa5b_
Class class	a — All alpha proteins
Fold Fold fold	a.118 — alpha-alpha superhelix
Superfamily Superfamily superfamily	a.118.1 — ARM repeat
Family Family family	a.118.1.1 — Armadillo repeat

Domain ID domain_id	d1wa5c_
Class class	a — All alpha proteins
Fold Fold fold	a.118 — alpha-alpha superhelix
Superfamily Superfamily superfamily	a.118.1 — ARM repeat
Family Family family	a.118.1.1 — Armadillo repeat

CATH v4.4 (3 domains)

Domain ID domain_id	1wa5A00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	1wa5B00
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	10 — Leucine-rich Repeat Variant
Homologous superfamily homologous superfamily	10 — Leucine-rich Repeat Variant

Domain ID domain_id	1wa5C00
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	10 — Leucine-rich Repeat Variant
Homologous superfamily homologous superfamily	10 — Leucine-rich Repeat Variant

▶

8. Citations (1)

▶

Unit-cell length a length_a	272.672 Å
Unit-cell length b length_b	72.261 Å
Unit-cell length c length_c	97.640 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	92.57 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	34.923 Å
R factor r_factor	0.1897
R_work r_work	0.1883
R_free r_free	0.2165

fit	/app/data/saxs_computation/wa/1wa5/1wa5.fit
pddf	/app/data/pr_computation/wa/1wa5/1wa5.pr.out
profile	/app/data/saxs_computation/wa/1wa5/1wa5.dat
