SAXSdb — 2bku

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

GTP-BINDING NUCLEAR PROTEIN RAN

CANIS FAMILIARIS

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–177	Fragment：RESIDUES 1-177	IMPORTIN BETA-1 SUBUNIT × 1 （Q06142） GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed experimental conditions	Resolution 2.70 Å R-free 0.279
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain C； UniProt 1–177	Fragment：RESIDUES 1-177	IMPORTIN BETA-1 SUBUNIT × 1 （Q06142） GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed experimental conditions	Resolution 2.70 Å R-free 0.279

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2BKU	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1BYU CANINE GDP-RAN Deposited 1998-10-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–216（216 aa） Fragment：ALL Chain B 1–216（216 aa） Fragment：ALL	Not recorded	MG MAGNESIUM ION × 2 GDP GUANOSINE-5'-DIPHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.2；SEE PUBLICATION, pH 7.2	Resolution 2.15 Å R-free 0.243
1QG2 CANINE GDP-RAN R76E MUTANT Deposited 1999-04-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–216（216 aa） Fragment：ALL	Mutation：R76E	MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.2；SEE PUBLICATION, pH 7.20	Resolution 2.50 Å R-free 0.237
1QG4 CANINE GDP-RAN F72Y MUTANT Deposited 1999-04-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–216（216 aa） Fragment：ALL	Mutation：F72Y	MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.2；pH 7.20	Resolution 2.50 Å R-free 0.237
1QG4 CANINE GDP-RAN F72Y MUTANT Deposited 1999-04-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–216（216 aa） Fragment：ALL	Mutation：F72Y	MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.2；pH 7.20	Resolution 2.50 Å R-free 0.237
1WA5 Structure of the Cse1:Imp-alpha:RanGTP complex Deposited 2004-10-23	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–176（176 aa）	Not recorded	GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.6；291 K；50mM TrisHCl, 200mM NaCl, 5mM Mg(OAc)2, .1mM GTP, 22% PEG3350 and 2% PEG400.	Resolution 2.00 Å R-free 0.216
3A6P Crystal structure of Exportin-5:RanGTP:pre-miRNA complex Deposited 2009-09-07	Different construct Different oligomeric state Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 3 PDB declaration: pentameric	Chain C 1–216（216 aa）	Not recorded	GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.92 Å R-free 0.312
3A6P Crystal structure of Exportin-5:RanGTP:pre-miRNA complex Deposited 2009-09-07	Different construct Different oligomeric state Different structure-quality metrics	Assembly 2 Protein–RNA Heteromer；Protein × 3 PDB declaration: pentameric	Chain H 1–216（216 aa）	Not recorded	GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.92 Å R-free 0.312
3RAN CANINE GDP-RAN Q69L MUTANT Deposited 1998-10-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–216（216 aa）	Mutation：Q69L	MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.2；SEE PUBLICATION, pH 7.2	Resolution 2.15 Å R-free 0.243
3RAN CANINE GDP-RAN Q69L MUTANT Deposited 1998-10-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–216（216 aa）	Mutation：Q69L	MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.2；SEE PUBLICATION, pH 7.2	Resolution 2.15 Å R-free 0.243
3RAN CANINE GDP-RAN Q69L MUTANT Deposited 1998-10-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 1–216（216 aa）	Mutation：Q69L	MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.2；SEE PUBLICATION, pH 7.2	Resolution 2.15 Å R-free 0.243
3RAN CANINE GDP-RAN Q69L MUTANT Deposited 1998-10-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 1–216（216 aa）	Mutation：Q69L	MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.2；SEE PUBLICATION, pH 7.2	Resolution 2.15 Å R-free 0.243
3W3Z Crystal structure of Kap121p bound to RanGTP Deposited 2012-12-28	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–176（176 aa） Fragment：UNP residues 1-176	Not recorded	MG MAGNESIUM ION × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；0.1M MES, 0.2M CaCl2, 10% PEG 20000, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.70 Å R-free 0.298
5BXQ Structure of the NTF2:RanGDP complex Deposited 2015-06-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 1–216（216 aa） Chain D 1–216（216 aa） Chain E 1–216（216 aa）	Not recorded	GDP GUANOSINE-5'-DIPHOSPHATE × 3 MG MAGNESIUM ION × 3 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；0.1 M Li2SO4, 50 mM Na Citrate pH5.6, 15% PEG4000	Resolution 2.50 Å R-free 0.225
5YU6 CRYSTAL STRUCTURE OF EXPORTIN-5:RANGTP COMPLEX Deposited 2017-11-20	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–216（216 aa）	Not recorded	GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；PEG3350, DTT, MgCl2, spermine tetrahydrochloride	Resolution 3.00 Å R-free 0.269
5YU6 CRYSTAL STRUCTURE OF EXPORTIN-5:RANGTP COMPLEX Deposited 2017-11-20	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 1–216（216 aa）	Not recorded	GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；PEG3350, DTT, MgCl2, spermine tetrahydrochloride	Resolution 3.00 Å R-free 0.269

9 other PDB entries and 15 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	RAN_CANFA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–177； UniProt 1–177 Author chain C； PDBConstruct 1–177； UniProt 1–177

IMPORTIN BETA-1 SUBUNIT

SACCHAROMYCES CEREVISIAE

UniProt Q06142

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 1–861	Not recorded	GTP-BINDING NUCLEAR PROTEIN RAN × 1 （P62825） GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed experimental conditions	Resolution 2.70 Å R-free 0.279
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain D； UniProt 1–861	Not recorded	GTP-BINDING NUCLEAR PROTEIN RAN × 1 （P62825） GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed experimental conditions	Resolution 2.70 Å R-free 0.279

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2BKU	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3EA5 Kap95p Binding Induces the Switch Loops of RanGDP to adopt the GTP-bound Conformation: Implications for Nuclear Import Complex Assembly Dynamics Deposited 2008-08-24	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–861（861 aa）	Not recorded	GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.1；298 K；17% PEG 4000 0.1 M MES (pH 6.1) 10 mM MgCl2 125 mM NaCl 12% MPD 5 mg/ml GDP, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.50 Å R-free 0.232
3EA5 Kap95p Binding Induces the Switch Loops of RanGDP to adopt the GTP-bound Conformation: Implications for Nuclear Import Complex Assembly Dynamics Deposited 2008-08-24	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1–861（861 aa）	Not recorded	GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.1；298 K；17% PEG 4000 0.1 M MES (pH 6.1) 10 mM MgCl2 125 mM NaCl 12% MPD 5 mg/ml GDP, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.50 Å R-free 0.232
3ND2 Structure of Yeast Importin-beta (Kap95p) Deposited 2010-06-06	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–861（861 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；20% PEG 4000, 0.1M MES pH 6.5, 20mM MgCl2, 125mM NaCl, 12% MPD, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.40 Å R-free 0.267
5OWU Kap95:Nup1 complex Deposited 2017-09-04	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–861（861 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；5 mg/ml protein in 5 mM Tris-HCl, pH 7.4 equilibrated against 90 mM (NH4)2SO4, 50 mM Na Cacodylate, pH 6.5, 13% PEG 8000	Resolution 2.00 Å R-free 0.219

3 other PDB entries and 4 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	IMB1_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–861； UniProt 1–861 Author chain D； PDBConstruct 1–861； UniProt 1–861

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2bku
Deposition date deposition_date	2005-02-21
Structure title title	Kap95p:RanGTP complex
Keywords keywords	NUCLEAR TRANSPORT, IMPORTIN-BETA, RANGTP, GTP BINDING, PROTEIN TRANSPORT; NUCLEAR TRANSPORT
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	41.65 Å
Radius of gyration Rg (electron density) rg_electron	40.91 Å
Forward intensity I(0) i0	759346000.00
Molecular weight molecular_weight	228250.0 kDa
Excluded volume excluded_volume	286400 Å³
Envelope volume envelope_volume	394120 Å³
Hydration-shell volume shell_volume	77386 Å³
Envelope diameter envelope_diameter	124.5 Å
Shell Rg shell_rg	49.69 Å
Envelope Rg envelope_rg	39.05 Å
Shape Rg shape_rg	40.91 Å
Total Rg total_rg	41.35 Å
Total atoms total_atoms	16042
Residues n_residues	2049
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

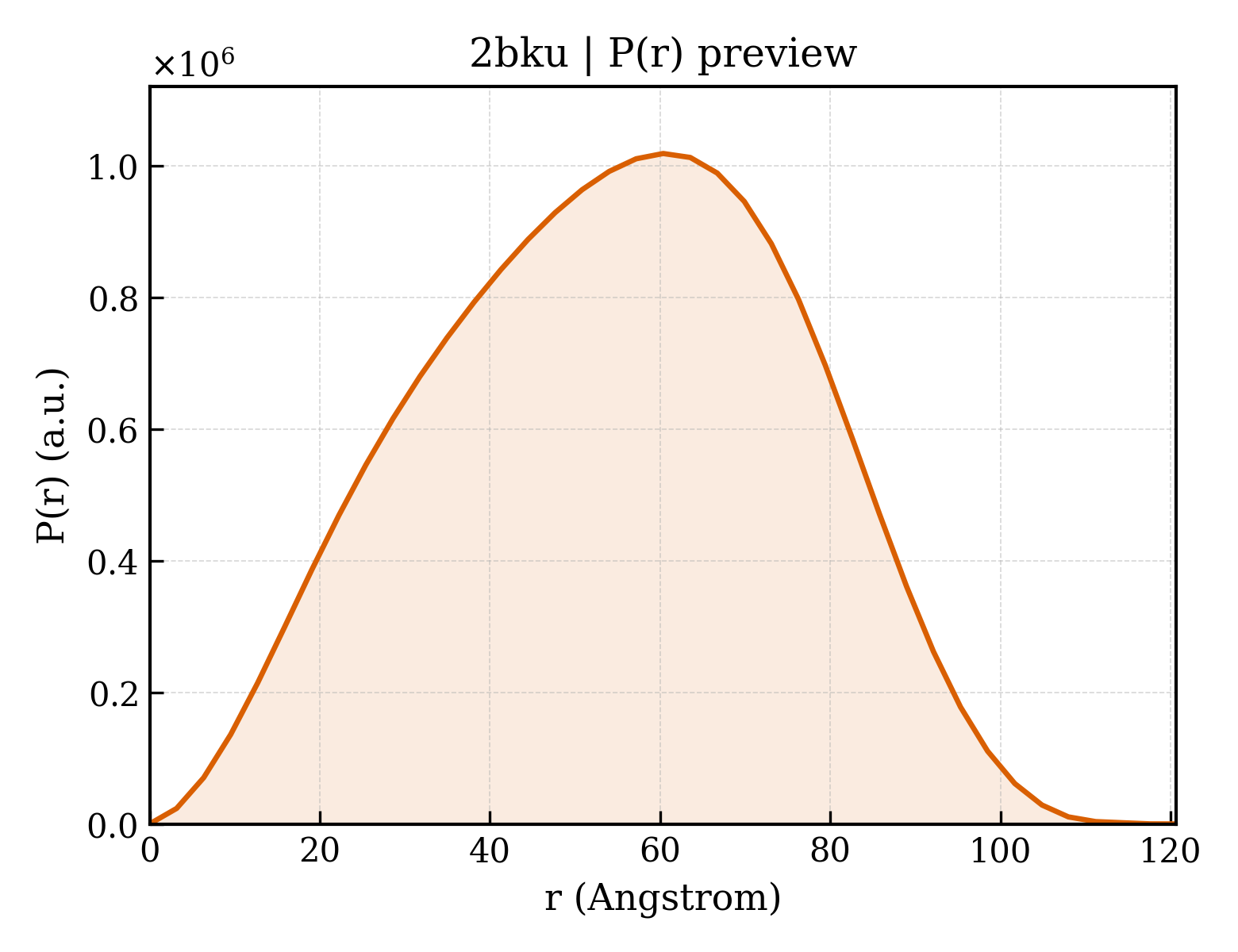

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	120.7 Å
Rg (real space) rg_real	41.35 Å
Rg uncertainty (real space) rg_real_error	0.70 Å
I(0) (real space) i0_real	7.5930e+08
I(0) uncertainty (real space) i0_real_error	1.2870e+07
Rg (reciprocal space) rg_reciprocal	41.65 Å
I(0) (reciprocal space) i0_reciprocal	759600000.0000
Solution quality estimate total_estimate	0.9005
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	60.4 Å
Skewness Skewness skewness	-0.078
Kurtosis Kurtosis kurtosis	-0.683
Angular range angular_range	— – 0.1900 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	97240000.0000
Real-space data points n_real_points	39
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.958; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.983; Smooth: 0.845

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	GTP-BINDING NUCLEAR PROTEIN RAN
Molecular weight formula_weight	20335.6 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	16104

MAAQGEPQVQFKLVLVGDGGTGKTTFVKRHLTGEFEKKYVPTLGVEVHPLVFHTNRGPIKFNVWDTAGQEKFGGLRDGYYIQAQCAIIMFDVTSRVTYKNVPNWHRDLVRVCENIPIVLCGNKVDIKDRKVKAKSIVFHRKKNLQYYDISAKSNYNFEKPFLWLARKLIGDPNLEFV

来源 Source

来源生物 organism	CANIS FAMILIARIS
通用名 common_name	DOG
NCBI Class编号 ncbi_taxonomy_id	9615
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 polymer

Description description	IMPORTIN BETA-1 SUBUNIT
Molecular weight formula_weight	94859.3 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D

MSTAEFAQLLENSILSPDQNIRLTSETQLKKLSNDNFLQFAGLSSQVLIDENTKLEGRILAALTLKNELVSKDSVKTQQFAQRWITQVSPEAKNQIKTNALTALVSIEPRIANAAAQLIAAIADIELPHGAWPELMKIMVDNTGAEQPENVKRASLLALGYMCESADPQSQALVSSSNNILIAIVQGAQSTETSKAVRLAALNALADSLIFIKNNMEREGERNYLMQVVCEATQAEDIEVQAAAFGCLCKIMSKYYTFMKPYMEQALYALTIATMKSPNDKVASMTVEFWSTICEEEIDIAYELAQFPQSPLQSYNFALSSIKDVVPNLLNLLTRQNEDPEDDDWNVSMSAGACLQLFAQNCGNHILEPVLEFVEQNITADNWRNREAAVMAFGSIMDGPDKVQRTYYVHQALPSILNLMNDQSLQVKETTAWCIGRIADSVAESIDPQQHLPGVVQACLIGLQDHPKVATNCSWTIINLVEQLAEATPSPIYNFYPALVDGLIGAANRIDNEFNARASAFSALTTMVEYATDTVAETSASISTFVMDKLGQTMSVDENQLTLEDAQSLQELQSNILTVLAAVIRKSPSSVEPVADMLMGLFFRLLEKKDSAFIEDDVFYAISALAASLGKGFEKYLETFSPYLLKALNQVDSPVSITAVGFIADISNSLEEDFRRYSDAMMNVLAQMISNPNARRELKPAVLSVFGDIASNIGADFIPYLNDIMALCVAAQNTKPENGTLEALDYQIKVLEAVLDAYVGIVAGLHDKPEALFPYVGTIFQFIAQVAEDPQLYSEDATSRAAVGLIGDIAAMFPDGSIKQFYGQDWVIDYIKRTRSGQLFSQATKDTARWAREQQKRQLSL

来源 Source

来源生物 organism	SACCHAROMYCES CEREVISIAE
通用名 common_name	BAKERS YEAST
NCBI Class编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	ESCHERICHIA COLI

Entity 3 Entity 3 non-polymer

Description description	GUANOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	523.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	62

▼

7. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d2bkua_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.8 — G proteins

Domain ID domain_id	d2bkub1
Class class	a — All alpha proteins
Fold Fold fold	a.118 — alpha-alpha superhelix
Superfamily Superfamily superfamily	a.118.1 — ARM repeat
Family Family family	a.118.1.1 — Armadillo repeat

Domain ID domain_id	d2bkuc_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.8 — G proteins

Domain ID domain_id	d2bkud_
Class class	a — All alpha proteins
Fold Fold fold	a.118 — alpha-alpha superhelix
Superfamily Superfamily superfamily	a.118.1 — ARM repeat
Family Family family	a.118.1.0 — automated matches

CATH v4.4 (4 domains)

Domain ID domain_id	2bkuA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	2bkuB00
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	10 — Leucine-rich Repeat Variant
Homologous superfamily homologous superfamily	10 — Leucine-rich Repeat Variant

Domain ID domain_id	2bkuC00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	2bkuD00
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	10 — Leucine-rich Repeat Variant
Homologous superfamily homologous superfamily	10 — Leucine-rich Repeat Variant

▶

8. Citations (1)

▶

Unit-cell length a length_a	107.021 Å
Unit-cell length b length_b	127.879 Å
Unit-cell length c length_c	161.741 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.700 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2260
R_work r_work	0.2230
R_free r_free	0.2790

fit	/app/data/saxs_computation/bk/2bku/2bku.fit
pddf	/app/data/pr_computation/bk/2bku/2bku.pr.out
profile	/app/data/saxs_computation/bk/2bku/2bku.dat
