1wbq

ZnMg substituted aminopeptidase P from E. coli

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

XAA-PRO AMINOPEPTIDASE

ESCHERICHIA COLI

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	ZINC ION × 4 MAGNESIUM ION × 6 CHLORIDE ION × 4 water × 4	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 4	ZINC ION × 4 MAGNESIUM ION × 6 CHLORIDE ION × 4 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	AMPP_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–440； UniProt 1–440 Author chain B； PDBConstruct 1–440； UniProt 1–440 Author chain C； PDBConstruct 1–440； UniProt 1–440 Author chain D； PDBConstruct 1–440； UniProt 1–440

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1wbq
Deposition date deposition_date	2004-11-05
Structure title title	ZnMg substituted aminopeptidase P from E. coli
Keywords keywords	HYDROLASE, PROLINE-SPECIFIC PEPTIDASE, METALLOENZYME, PITA-BREAD FOLD, DINUCLEAR HYDROLASE, METAL BINDING PROTEIN; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1wbq__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1wbq__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

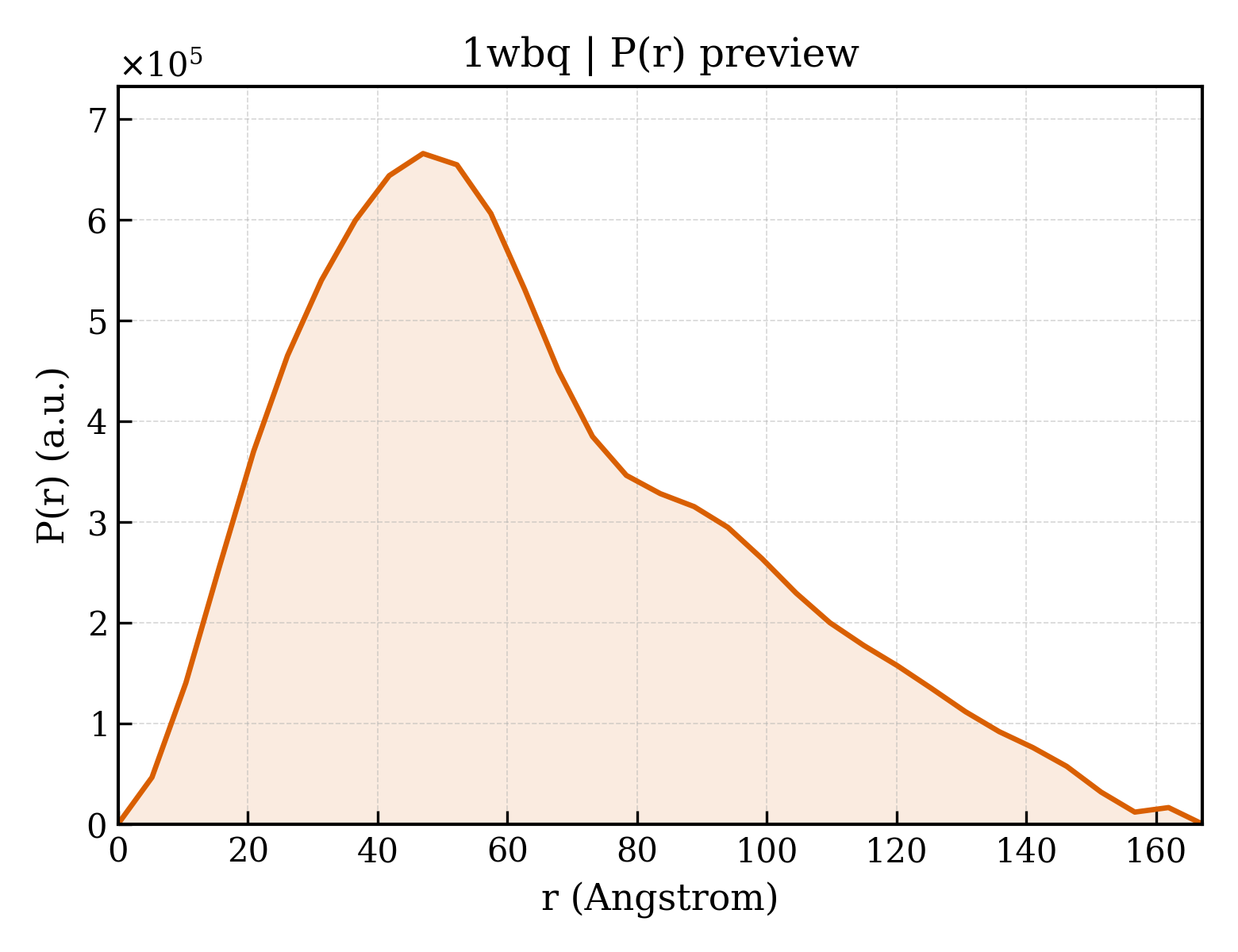

1wbq__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	40.66 Å
Rg (electron density)	40.24 Å
Total Rg	40.78 Å
Atom count	13982
Residues	1754
Excluded volume	247060 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1wbq__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1wbq__assembly_2__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	XAA-PRO AMINOPEPTIDASE
Molecular weight formula_weight	49792.1 kDa
EC 编号 ec_number	3.4.11.9
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	14814

SEISRQEFQRRRQALVEQMQPGSAALIFAAPEVTRSADSEYPYRQNSDFWYFTGFNEPEAVLVLIKSDDTHNHSVLFNRVRDLTAEIWFGRRLGQDAAPEKLGVDRALAFSEINQQLYQLLNGLDVVYHAQGEYAYADVIVNSALEKLRKGSRQNLTAPATMIDWRPVVHEMRLFKSPEEIAVLRRAGEITAMAHTRAMEKCRPGMFEYHLEGEIHHEFNRHGARYPSYNTIVGSGENGCILHYTENECEMRDGDLVLIDAGCEYKGYAGDITRTFPVNGKFTQAQREIYDIVLESLETSLRLYRPGTSILEVTGEVVRIMVSGLVKLGILKGDVDELIAQNAHRPFFMHGLSHWLGLDVHDVGVYGQDRSRILEPGMVLTVEPGLYIAPDAEVPEQYRGIGIRIEDDIVITETGNENLTASVVKKPEEIEALMVAARKQ

Source Source

Source organism organism	ESCHERICHIA COLI
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 4 Entity 4 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	832

▼

6. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d1wbqa1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.55 — Ribonuclease H-like motif
Superfamily Superfamily superfamily	c.55.2 — Creatinase/prolidase N-terminal domain
Family Family family	c.55.2.1 — Creatinase/prolidase N-terminal domain

Domain ID domain_id	d1wbqa2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.127 — Creatinase/aminopeptidase
Superfamily Superfamily superfamily	d.127.1 — Creatinase/aminopeptidase
Family Family family	d.127.1.1 — Creatinase/aminopeptidase

Domain ID domain_id	d1wbqb1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.55 — Ribonuclease H-like motif
Superfamily Superfamily superfamily	c.55.2 — Creatinase/prolidase N-terminal domain
Family Family family	c.55.2.1 — Creatinase/prolidase N-terminal domain

Domain ID domain_id	d1wbqb2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.127 — Creatinase/aminopeptidase
Superfamily Superfamily superfamily	d.127.1 — Creatinase/aminopeptidase
Family Family family	d.127.1.1 — Creatinase/aminopeptidase

Domain ID domain_id	d1wbqc1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.55 — Ribonuclease H-like motif
Superfamily Superfamily superfamily	c.55.2 — Creatinase/prolidase N-terminal domain
Family Family family	c.55.2.1 — Creatinase/prolidase N-terminal domain

Domain ID domain_id	d1wbqc2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.127 — Creatinase/aminopeptidase
Superfamily Superfamily superfamily	d.127.1 — Creatinase/aminopeptidase
Family Family family	d.127.1.1 — Creatinase/aminopeptidase

Domain ID domain_id	d1wbqd1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.55 — Ribonuclease H-like motif
Superfamily Superfamily superfamily	c.55.2 — Creatinase/prolidase N-terminal domain
Family Family family	c.55.2.1 — Creatinase/prolidase N-terminal domain

Domain ID domain_id	d1wbqd2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.127 — Creatinase/aminopeptidase
Superfamily Superfamily superfamily	d.127.1 — Creatinase/aminopeptidase
Family Family family	d.127.1.1 — Creatinase/aminopeptidase

CATH v4.4 (8 domains)

Domain ID domain_id	1wbqA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	350 — Creatine Amidinohydrolase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Creatinase/prolidase N-terminal domain

Domain ID domain_id	1wbqA02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	230 — Creatine Amidinohydrolase
Homologous superfamily homologous superfamily	10 — Creatinase/methionine aminopeptidase superfamily

Domain ID domain_id	1wbqB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	350 — Creatine Amidinohydrolase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Creatinase/prolidase N-terminal domain

Domain ID domain_id	1wbqB02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	230 — Creatine Amidinohydrolase
Homologous superfamily homologous superfamily	10 — Creatinase/methionine aminopeptidase superfamily

Domain ID domain_id	1wbqC01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	350 — Creatine Amidinohydrolase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Creatinase/prolidase N-terminal domain

Domain ID domain_id	1wbqC02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	230 — Creatine Amidinohydrolase
Homologous superfamily homologous superfamily	10 — Creatinase/methionine aminopeptidase superfamily

Domain ID domain_id	1wbqD01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	350 — Creatine Amidinohydrolase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Creatinase/prolidase N-terminal domain

Domain ID domain_id	1wbqD02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	230 — Creatine Amidinohydrolase
Homologous superfamily homologous superfamily	10 — Creatinase/methionine aminopeptidase superfamily

▶

Unit-cell length a length_a	111.974 Å
Unit-cell length b length_b	236.703 Å
Unit-cell length c length_c	137.637 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	106.14 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	29.970 Å
R factor r_factor	0.1680
R_work r_work	0.1670
R_free r_free	0.1970
