SAXSdb — 2bh3

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

XAA-PRO AMINOPEPTIDASE

ESCHERICHIA COLI

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	PROLINE × 4 LEUCINE × 4 ZINC ION × 16 MAGNESIUM ION × 4 CITRATE ANION × 4 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	AMPP_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–440； UniProt 1–440

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2bh3
Deposition date deposition_date	2005-01-07
Structure title title	Zn substituted E. coli Aminopeptidase P in complex with product
Keywords keywords	HYDROLASE, PROLINE-SPECIFIC PEPTIDASE, PRODUCT COMPLEX, METALLOENZYME, PITA-BREAD FOLD, DINUCLEAR HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2bh3__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2bh3__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

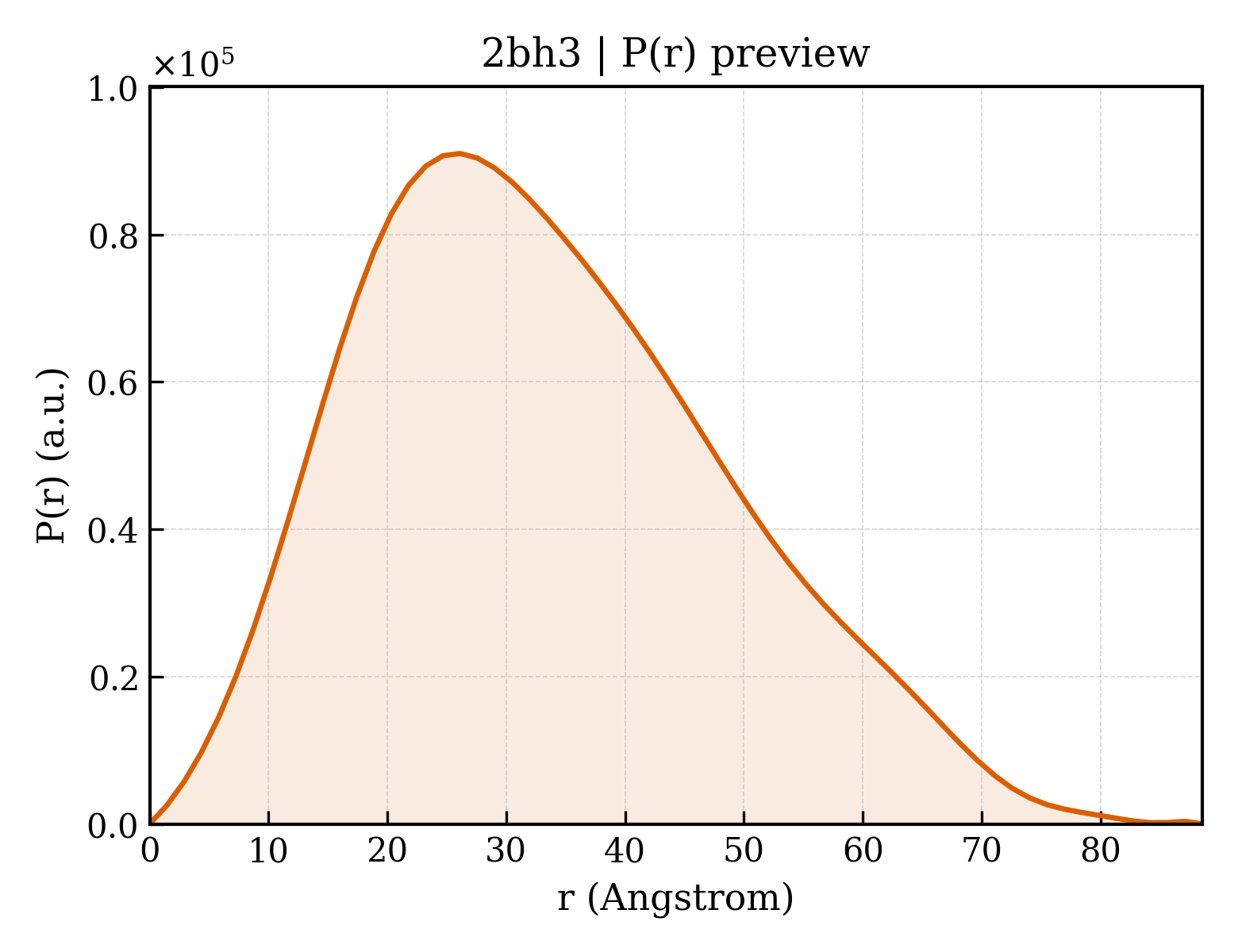

2bh3__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	40.53 Å
Rg (electron density)	40.04 Å
Total Rg	40.56 Å
Atom count	14084
Residues	1760
Excluded volume	249000 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2bh3__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	XAA-PRO AMINOPEPTIDASE
Molecular weight formula_weight	49744.1 kDa
EC 编号 ec_number	3.4.11.9
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	3688

SEISRQEFQRRRQALVEQMQPGSAALIFAAPEVTRSADSEYPYRQNSDFWYFTGFNEPEAVLVLIKSDDTHNHSVLFNRVRDLTAEIWFGRRLGQDAAPEKLGVDRALAFSEINQQLYQLLNGLDVVYHAQGEYAYADVIVNSALEKLRKGSRQNLTAPATMIDWRPVVHEMRLFKSPEEIAVLRRAGEITAMAHTRAMEKCRPGMFEYHLEGEIHHEFNRHGARYPSYNTIVGSGENGCILHYTENECEMRDGDLVLIDAGCEYKGYAGDITRTFPVNGKFTQAQREIYDIVLESLETSLRLYRPGTSILEVTGEVVRIMVSGLVKLGILKGDVDELIAQNAHRPFFMHGLSHWLGLDVHDVGVYGQDRSRILEPGMVLTVEPGLYIAPDAEVPEQYRGIGIRIEDDIVITETGNENLTASVVKKPEEIEALMVAARKQ

Source Source

Source organism organism	ESCHERICHIA COLI
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	PROLINE
Molecular weight formula_weight	115.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	LEUCINE
Molecular weight formula_weight	131.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 5 Entity 5 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	CITRATE ANION
Molecular weight formula_weight	189.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	146

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d2bh3a1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.55 — Ribonuclease H-like motif
Superfamily Superfamily superfamily	c.55.2 — Creatinase/prolidase N-terminal domain
Family Family family	c.55.2.1 — Creatinase/prolidase N-terminal domain

Domain ID domain_id	d2bh3a2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.127 — Creatinase/aminopeptidase
Superfamily Superfamily superfamily	d.127.1 — Creatinase/aminopeptidase
Family Family family	d.127.1.1 — Creatinase/aminopeptidase

CATH v4.4 (2 domains)

Domain ID domain_id	2bh3A01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	350 — Creatine Amidinohydrolase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Creatinase/prolidase N-terminal domain

Domain ID domain_id	2bh3A02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	230 — Creatine Amidinohydrolase
Homologous superfamily homologous superfamily	10 — Creatinase/methionine aminopeptidase superfamily

▶

Unit-cell length a length_a	138.012 Å
Unit-cell length b length_b	138.012 Å
Unit-cell length c length_c	230.734 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	I 41 2 2
Space-group number int_tables_number	98
Crystal system crystal_system	—

Resolution resolution	2.400 Å
Low-resolution limit resolution_low	60.190 Å
R factor r_factor	0.1750
R_work r_work	0.1740
R_free r_free	0.2010

Zn substituted E. coli Aminopeptidase P in complex with product
