SAXSdb — 1wtv

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DNA-binding proteins 7a/7b/7d

Sulfolobus acidocaldarius

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Monomer	Protein 1 DNA 2	5'-D(GPTPAPAPTPTPAPC)-3' × 2 water × 3	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DN71_SULAC
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain A； PDBConstruct 1–66； UniProt 0–65

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1wtv
Deposition date deposition_date	2004-11-29
Structure title title	Hyperthermophile chromosomal protein SAC7D single mutant M29A in complex with DNA GTAATTAC
Keywords keywords	;COMPLEX CHROMATIN PROTEIN-DNA, MINOR-GROOVE DNA BINDING, ARCHEA, KINKED-DNA, INTERCALATION, Sac7d mutant, DNA BINDING PROTEIN-DNA COMPLEX ;; DNA BINDING PROTEIN/DNA
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1wtv__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1wtv__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

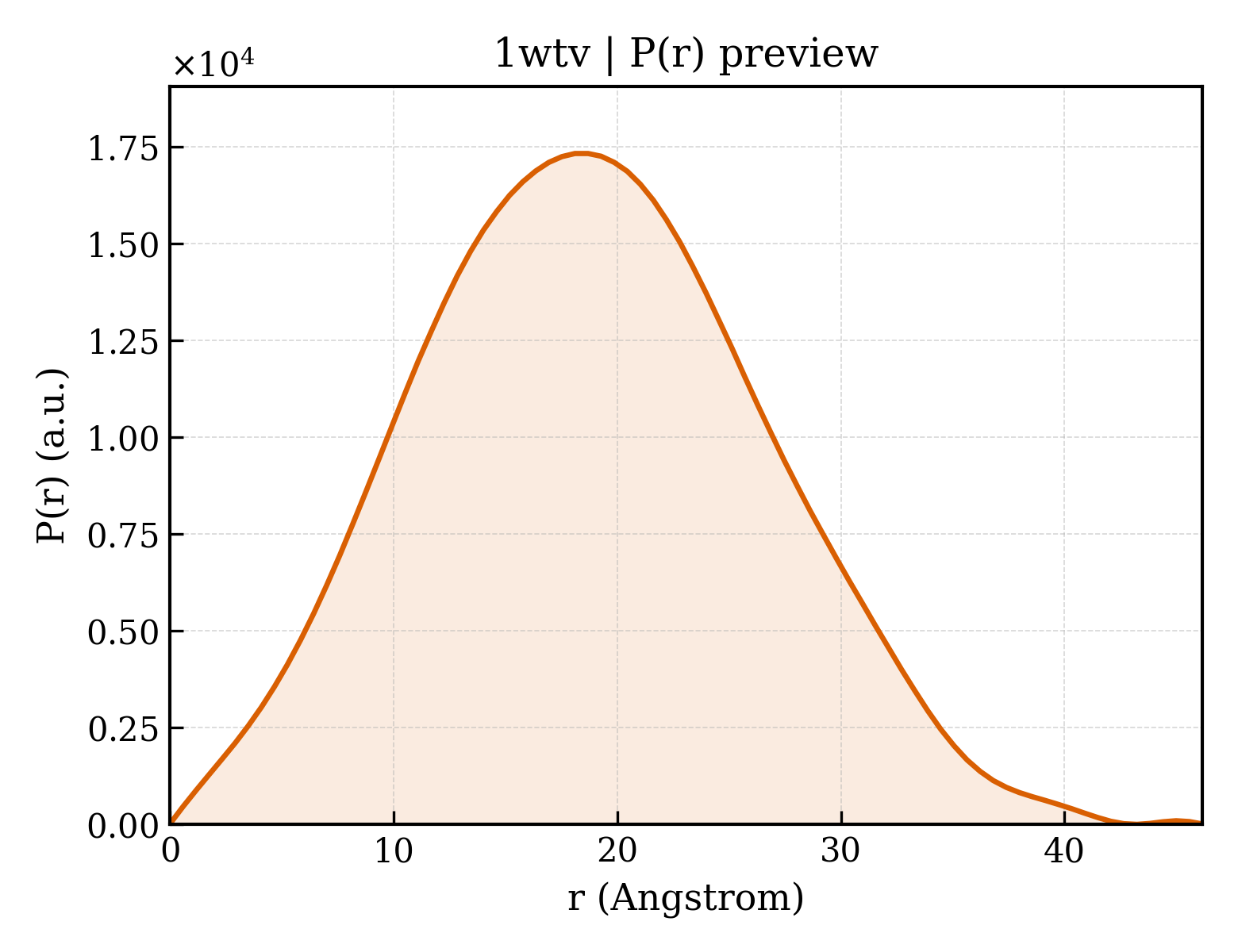

1wtv__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	14.44 Å
Rg (electron density)	13.36 Å
Total Rg	14.54 Å
Atom count	834
Residues	80
Excluded volume	13955 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1wtv__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	5'-D(GPTPAPAPTPTPAPC)-3'
Molecular weight formula_weight	2425.6 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	B,C
Atom count atom_count	973

GTAATTAC

Entity 2 Entity 2 polymer

Description description	DNA-binding proteins 7a/7b/7d
Molecular weight formula_weight	7566.8 kDa
Mutation mutation	M29A
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

MVKVKFKYKGEEKEVDTSKIKKVWRVGKAVSFTYDDNGKTGRGAVSEKDAPKELLDMLARAEREKK

Source Source

Source organism organism	Sulfolobus acidocaldarius
NCBI taxonomy ID ncbi_taxonomy_id	2285
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	139

▼

6. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1wtva_
Class class	b — All beta proteins
Fold Fold fold	b.34 — SH3-like barrel
Superfamily Superfamily superfamily	b.34.13 — Chromo domain-like
Family Family family	b.34.13.1 — Histone-like proteins from archaea

CATH v4.4 (1 domains)

Domain ID domain_id	1wtvA00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	40 —

▶

Unit-cell length a length_a	35.923 Å
Unit-cell length b length_b	47.968 Å
Unit-cell length c length_c	77.777 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.600 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	0.2132
R_work r_work	0.2100
R_free r_free	0.2380
