SAXSdb — 1xff

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Glucosamine--fructose-6-phosphate aminotransferase [isomerizing]

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	SODIUM ION × 2 ACETATE ION × 1 GLUTAMIC ACID × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GLMS_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–240； UniProt 1–240 Author chain B； PDBConstruct 1–240； UniProt 1–240

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1xff
Deposition date deposition_date	2004-09-14
Structure title title	Glutaminase domain of glucosamine 6-phosphate synthase complexed with glutamate
Keywords keywords	COMPLEX (TRANSFERASE-INHIBITOR); GLUTAMINE AMIDOTRANSFERASE, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1xff__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

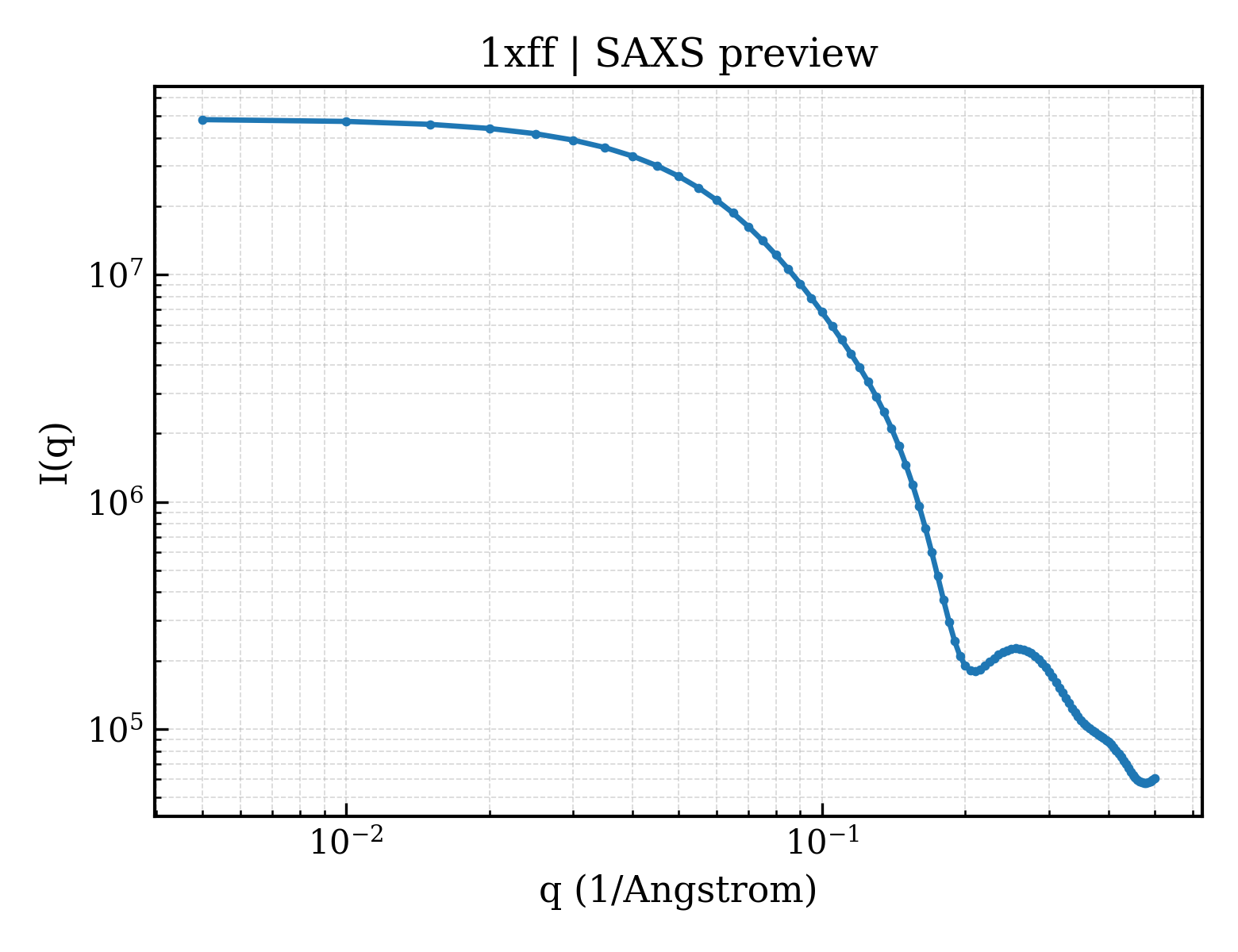

1xff__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

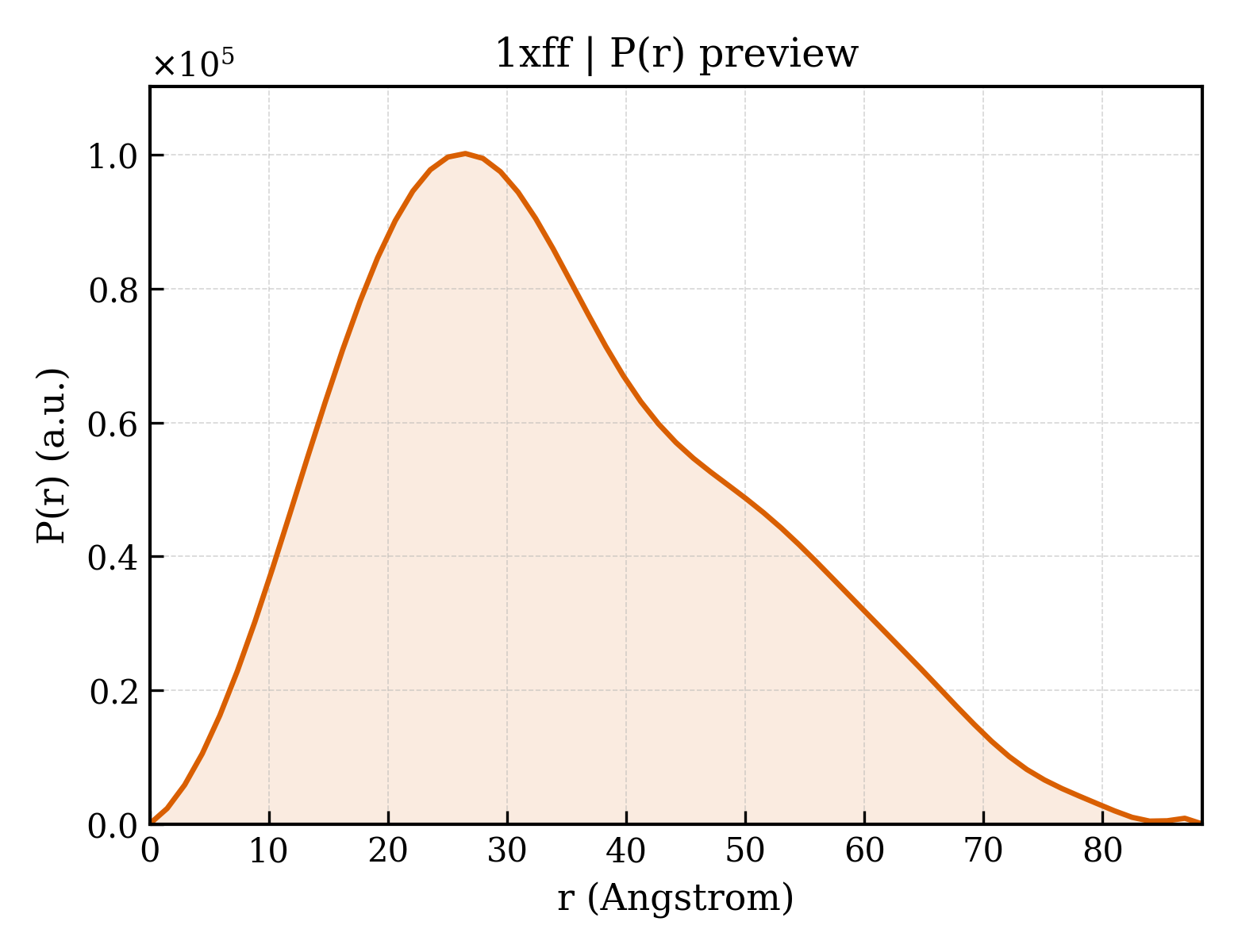

1xff__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	26.60 Å
Rg (electron density)	25.99 Å
Total Rg	26.51 Å
Atom count	3721
Residues	477
Excluded volume	65688 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1xff__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Glucosamine--fructose-6-phosphate aminotransferase [isomerizing]
Molecular weight formula_weight	26507.1 kDa
EC 编号 ec_number	2.6.1.16
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	4055

CGIVGAIAQRDVAEILLEGLRRLEYRGYDSAGLAVVDAEGHMTRLRRLGKVQMLAQAAEEHPLHGGTGIAHTRWATHGEPSEVNAHPHVSEHIVVVHNGIIENHEPLREELKARGYTFVSETDTEVIAHLVNWELKQGGTLREAVLRAIPQLRGAYGTVIMDSRHPDTLLAARSGSPLVIGLGMGENFIASDQLALLPVTRRFIFLEEGDIAEITRRSVNIFDKTGAEVKRQDIESNLQY

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	SODIUM ION
Molecular weight formula_weight	23.0 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	ACETATE ION
Molecular weight formula_weight	59.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	GLUTAMIC ACID
Molecular weight formula_weight	147.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	283

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1xffa_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.153 — Ntn hydrolase-like
Superfamily Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
Family Family family	d.153.1.1 — Class II glutamine amidotransferases

Domain ID domain_id	d1xffb_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.153 — Ntn hydrolase-like
Superfamily Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
Family Family family	d.153.1.1 — Class II glutamine amidotransferases

CATH v4.4 (2 domains)

Domain ID domain_id	1xffA00
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
Homologous superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

Domain ID domain_id	1xffB00
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
Homologous superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

▶

Unit-cell length a length_a	70.380 Å
Unit-cell length b length_b	82.520 Å
Unit-cell length c length_c	86.050 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.800 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.1611
R_work r_work	0.1610
R_free r_free	—
