1xhx

Phi29 DNA Polymerase, orthorhombic crystal form

Method: X-RAY DIFFRACTION D_max: 185.1 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

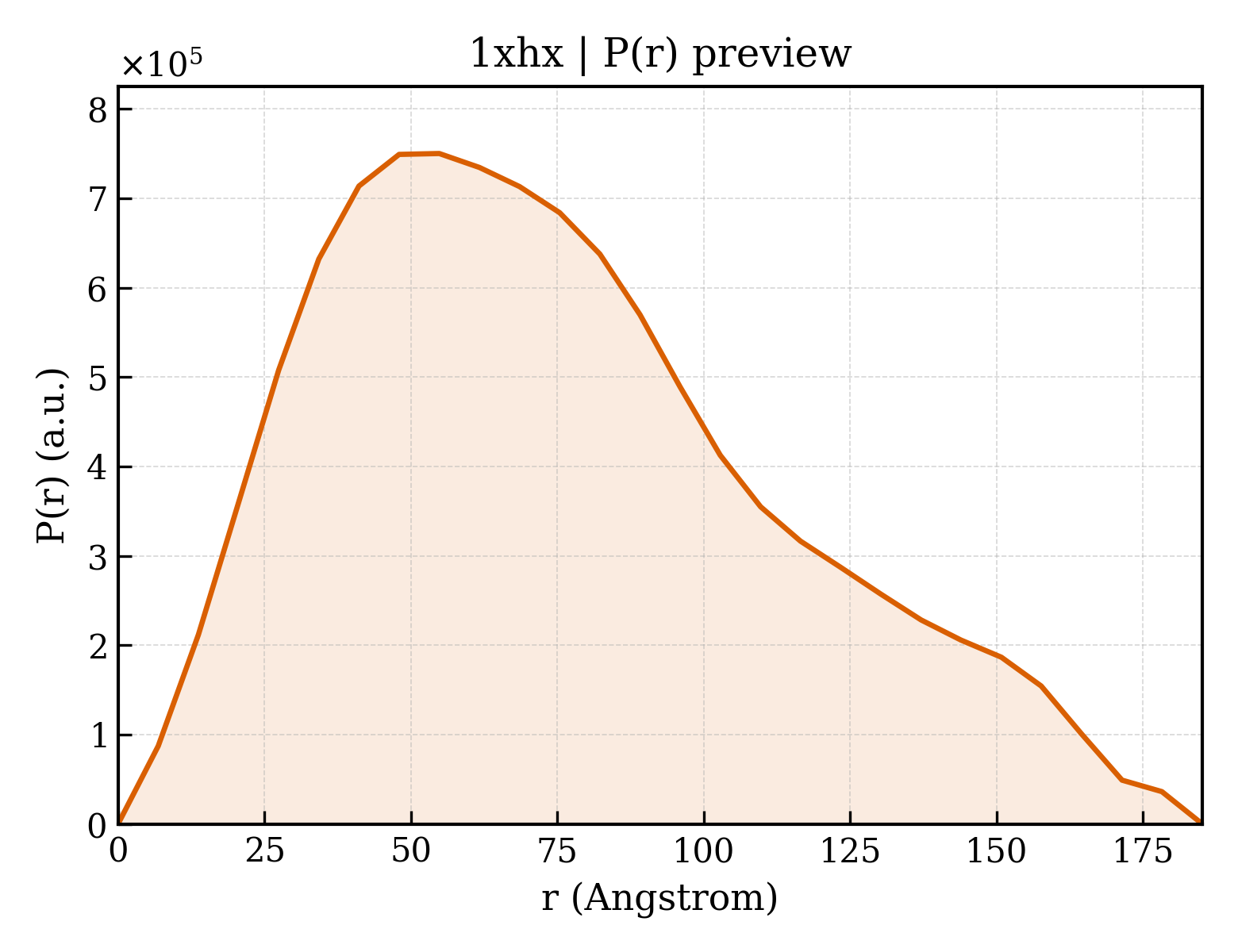

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1xhx
沉积日期 deposition_date	2004-09-21
结构标题 title	Phi29 DNA Polymerase, orthorhombic crystal form
关键词 keywords	DNA polymerase, protein-primed, strand displacement, processivity, replication, TRANSFERASE; TRANSFERASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	58.77 Å
回转半径 Rg (电子) rg_electron	59.49 Å
零角强度 I(0) i0	898015000.00
分子量 molecular_weight	264670.0 kDa
排除体积 excluded_volume	336990 Å³
包络体积 envelope_volume	533430 Å³
水化壳体积 shell_volume	80698 Å³
包络直径 envelope_diameter	200.6 Å
壳层 Rg shell_rg	55.00 Å
包络 Rg envelope_rg	57.64 Å
形状 Rg shape_rg	59.48 Å
总 Rg total_rg	59.39 Å
总原子数 total_atoms	18684
残基数 n_residues	2284
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	185.1 Å
Rg (实空间) rg_real	59.35 Å
Rg 误差 (实空间) rg_real_error	1.81 Å
I(0) (实空间) i0_real	8.9800e+08
I(0) 误差 (实空间) i0_real_error	1.8120e+07
Rg (倒空间) rg_reciprocal	58.25 Å
I(0) (倒空间) i0_reciprocal	896400000.0000
解质量估计 total_estimate	0.8178
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	54.8 Å
偏度 Skewness skewness	0.523
峰度 Kurtosis kurtosis	-0.417
角度范围 angular_range	— – 0.1350 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	69730000.0000
实空间数据点数 n_real_points	28
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.907; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.905; Smooth: 0.003

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	DNA polymerase
分子量 formula_weight	66720.9 kDa
EC 编号 ec_number	2.7.7.7
突变 mutation	D12A D66A
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	20193

MKHMPRKMYSCAFETTTKVEDCRVWAYGYMNIEDHSEYKIGNSLDEFMAWVLKVQADLYFHNLKFAGAFIINWLERNGFKWSADGLPNTYNTIISRMGQWYMIDICLGYKGKRKIHTVIYDSLKKLPFPVKKIAKDFKLTVLKGDIDYHKERPVGYKITPEEYAYIKNDIQIIAEALLIQFKQGLDRMTAGSDSLKGFKDIITTKKFKKVFPTLSLGLDKEVRYAYRGGFTWLNDRFKEKEIGEGMVFDVNSLYPAQMYSRLLPYGEPIVFEGKYVWDEDYPLHIQHIRCEFELKEGYIPTIQIKRSRFYKGNEYLKSSGGEIADLWLSNVDLELMKEHYDLYNVEYISGLKFKATTGLFKDFIDKWTYIKTTSEGAIKQLAKLMLNSLYGKFASNPDVTGKVPYLKENGALGFRLGEEETKDPVYTPMGVFITAWARYTTITAAQACYDRIIYCDTDSIHLTGTEIPDVIKDIVDPKKLGYWAHESTFKRAKYLRQKTYIQDIYMKEVDGKLVEGSPDDYTDIKFSVKCAGMTDKIKKEVTFENFKVGFSRKMKPKPVQVPGGVVLVDDTFTIK

来源 Source

来源生物 organism	Bacillus phage phi29
NCBI 分类编号 ncbi_taxonomy_id	10756
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 3 non-polymer

描述 description	SULFATE ION
分子量 formula_weight	96.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1509

▼

6. 折叠分类 (SCOP + CATH) 32 domains

SCOP 2.08 (8 domains)

结构域编号 domain_id	d1xhxa1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.55 — Ribonuclease H-like motif
超家族 Superfamily superfamily	c.55.3 — Ribonuclease H-like
家族 Family family	c.55.3.5 — DnaQ-like 3'-5' exonuclease

结构域编号 domain_id	d1xhxa2
类 Class class	e — Multi-domain proteins (alpha and beta)
折叠类型 Fold fold	e.8 — DNA/RNA polymerases
超家族 Superfamily superfamily	e.8.1 — DNA/RNA polymerases
家族 Family family	e.8.1.1 — DNA polymerase I

结构域编号 domain_id	d1xhxb1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.55 — Ribonuclease H-like motif
超家族 Superfamily superfamily	c.55.3 — Ribonuclease H-like
家族 Family family	c.55.3.5 — DnaQ-like 3'-5' exonuclease

结构域编号 domain_id	d1xhxb2
类 Class class	e — Multi-domain proteins (alpha and beta)
折叠类型 Fold fold	e.8 — DNA/RNA polymerases
超家族 Superfamily superfamily	e.8.1 — DNA/RNA polymerases
家族 Family family	e.8.1.1 — DNA polymerase I

结构域编号 domain_id	d1xhxc1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.55 — Ribonuclease H-like motif
超家族 Superfamily superfamily	c.55.3 — Ribonuclease H-like
家族 Family family	c.55.3.5 — DnaQ-like 3'-5' exonuclease

结构域编号 domain_id	d1xhxc2
类 Class class	e — Multi-domain proteins (alpha and beta)
折叠类型 Fold fold	e.8 — DNA/RNA polymerases
超家族 Superfamily superfamily	e.8.1 — DNA/RNA polymerases
家族 Family family	e.8.1.1 — DNA polymerase I

结构域编号 domain_id	d1xhxd1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.55 — Ribonuclease H-like motif
超家族 Superfamily superfamily	c.55.3 — Ribonuclease H-like
家族 Family family	c.55.3.5 — DnaQ-like 3'-5' exonuclease

结构域编号 domain_id	d1xhxd2
类 Class class	e — Multi-domain proteins (alpha and beta)
折叠类型 Fold fold	e.8 — DNA/RNA polymerases
超家族 Superfamily superfamily	e.8.1 — DNA/RNA polymerases
家族 Family family	e.8.1.1 — DNA polymerase I

CATH v4.4 (24 domains)

结构域编号 domain_id	1xhxA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	420 — Nucleotidyltransferase; domain 5
同源超家族 H-superfamily homologous superfamily	10 — Ribonuclease H-like superfamily/Ribonuclease H

结构域编号 domain_id	1xhxA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	1600 — Palm domain of DNA polymerase
同源超家族 H-superfamily homologous superfamily	10 — B family DNA polymerase, palm domain

结构域编号 domain_id	1xhxA03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1770 — TPR 1 domain of DNA polymerase
同源超家族 H-superfamily homologous superfamily	10 — TPR 1 domain of DNA polymerase

结构域编号 domain_id	1xhxA04
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	287 — Helix Hairpins
同源超家族 H-superfamily homologous superfamily	690 — B family DNA polymerase, finger domain

结构域编号 domain_id	1xhxA05
类 Class class	4 — Few Secondary Structures
架构 Architecture architecture	10 — Irregular
拓扑 Topology topology	80 — Rhinovirus 14, subunit 4
同源超家族 H-superfamily homologous superfamily	20 — DNA polymerase; domain 5

结构域编号 domain_id	1xhxA06
类 Class class	4 — Few Secondary Structures
架构 Architecture architecture	10 — Irregular
拓扑 Topology topology	80 — Rhinovirus 14, subunit 4
同源超家族 H-superfamily homologous superfamily	30 — DNA polymerase; domain 6

结构域编号 domain_id	1xhxB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	420 — Nucleotidyltransferase; domain 5
同源超家族 H-superfamily homologous superfamily	10 — Ribonuclease H-like superfamily/Ribonuclease H

结构域编号 domain_id	1xhxB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	1600 — Palm domain of DNA polymerase
同源超家族 H-superfamily homologous superfamily	10 — B family DNA polymerase, palm domain

结构域编号 domain_id	1xhxB03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1770 — TPR 1 domain of DNA polymerase
同源超家族 H-superfamily homologous superfamily	10 — TPR 1 domain of DNA polymerase

结构域编号 domain_id	1xhxB04
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	287 — Helix Hairpins
同源超家族 H-superfamily homologous superfamily	690 — B family DNA polymerase, finger domain

结构域编号 domain_id	1xhxB05
类 Class class	4 — Few Secondary Structures
架构 Architecture architecture	10 — Irregular
拓扑 Topology topology	80 — Rhinovirus 14, subunit 4
同源超家族 H-superfamily homologous superfamily	20 — DNA polymerase; domain 5

结构域编号 domain_id	1xhxB06
类 Class class	4 — Few Secondary Structures
架构 Architecture architecture	10 — Irregular
拓扑 Topology topology	80 — Rhinovirus 14, subunit 4
同源超家族 H-superfamily homologous superfamily	30 — DNA polymerase; domain 6

结构域编号 domain_id	1xhxC01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	420 — Nucleotidyltransferase; domain 5
同源超家族 H-superfamily homologous superfamily	10 — Ribonuclease H-like superfamily/Ribonuclease H

结构域编号 domain_id	1xhxC02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	1600 — Palm domain of DNA polymerase
同源超家族 H-superfamily homologous superfamily	10 — B family DNA polymerase, palm domain

结构域编号 domain_id	1xhxC03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1770 — TPR 1 domain of DNA polymerase
同源超家族 H-superfamily homologous superfamily	10 — TPR 1 domain of DNA polymerase

结构域编号 domain_id	1xhxC04
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	287 — Helix Hairpins
同源超家族 H-superfamily homologous superfamily	690 — B family DNA polymerase, finger domain

结构域编号 domain_id	1xhxC05
类 Class class	4 — Few Secondary Structures
架构 Architecture architecture	10 — Irregular
拓扑 Topology topology	80 — Rhinovirus 14, subunit 4
同源超家族 H-superfamily homologous superfamily	20 — DNA polymerase; domain 5

结构域编号 domain_id	1xhxC06
类 Class class	4 — Few Secondary Structures
架构 Architecture architecture	10 — Irregular
拓扑 Topology topology	80 — Rhinovirus 14, subunit 4
同源超家族 H-superfamily homologous superfamily	30 — DNA polymerase; domain 6

结构域编号 domain_id	1xhxD01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	420 — Nucleotidyltransferase; domain 5
同源超家族 H-superfamily homologous superfamily	10 — Ribonuclease H-like superfamily/Ribonuclease H

结构域编号 domain_id	1xhxD02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	1600 — Palm domain of DNA polymerase
同源超家族 H-superfamily homologous superfamily	10 — B family DNA polymerase, palm domain

结构域编号 domain_id	1xhxD03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1770 — TPR 1 domain of DNA polymerase
同源超家族 H-superfamily homologous superfamily	10 — TPR 1 domain of DNA polymerase

结构域编号 domain_id	1xhxD04
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	287 — Helix Hairpins
同源超家族 H-superfamily homologous superfamily	690 — B family DNA polymerase, finger domain

结构域编号 domain_id	1xhxD05
类 Class class	4 — Few Secondary Structures
架构 Architecture architecture	10 — Irregular
拓扑 Topology topology	80 — Rhinovirus 14, subunit 4
同源超家族 H-superfamily homologous superfamily	20 — DNA polymerase; domain 5

结构域编号 domain_id	1xhxD06
类 Class class	4 — Few Secondary Structures
架构 Architecture architecture	10 — Irregular
拓扑 Topology topology	80 — Rhinovirus 14, subunit 4
同源超家族 H-superfamily homologous superfamily	30 — DNA polymerase; domain 6

▶

7. 引用文献 (2)

▶

晶胞边长 a length_a	96.256 Å
晶胞边长 b length_b	149.911 Å
晶胞边长 c length_c	199.024 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	16

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	2.350 Å
最低分辨率 resolution_low	19.960 Å
R 因子 r_factor	0.2060
R_work r_work	0.2060
R_free r_free	0.2570
