SAXSdb — 1xj3

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Sensor protein fixL

Bradyrhizobium japonicum

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	PROTOPORPHYRIN IX CONTAINING FE × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	FIXL_BRAJA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–116； UniProt 154–269

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1xj3
Deposition date deposition_date	2004-09-22
Structure title title	bjFixLH in unliganded ferrous form
Keywords keywords	PAS domain; heme; oxygen sensor, SIGNALING PROTEIN, TRANSFERASE; SIGNALING PROTEIN, TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1xj3__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1xj3__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

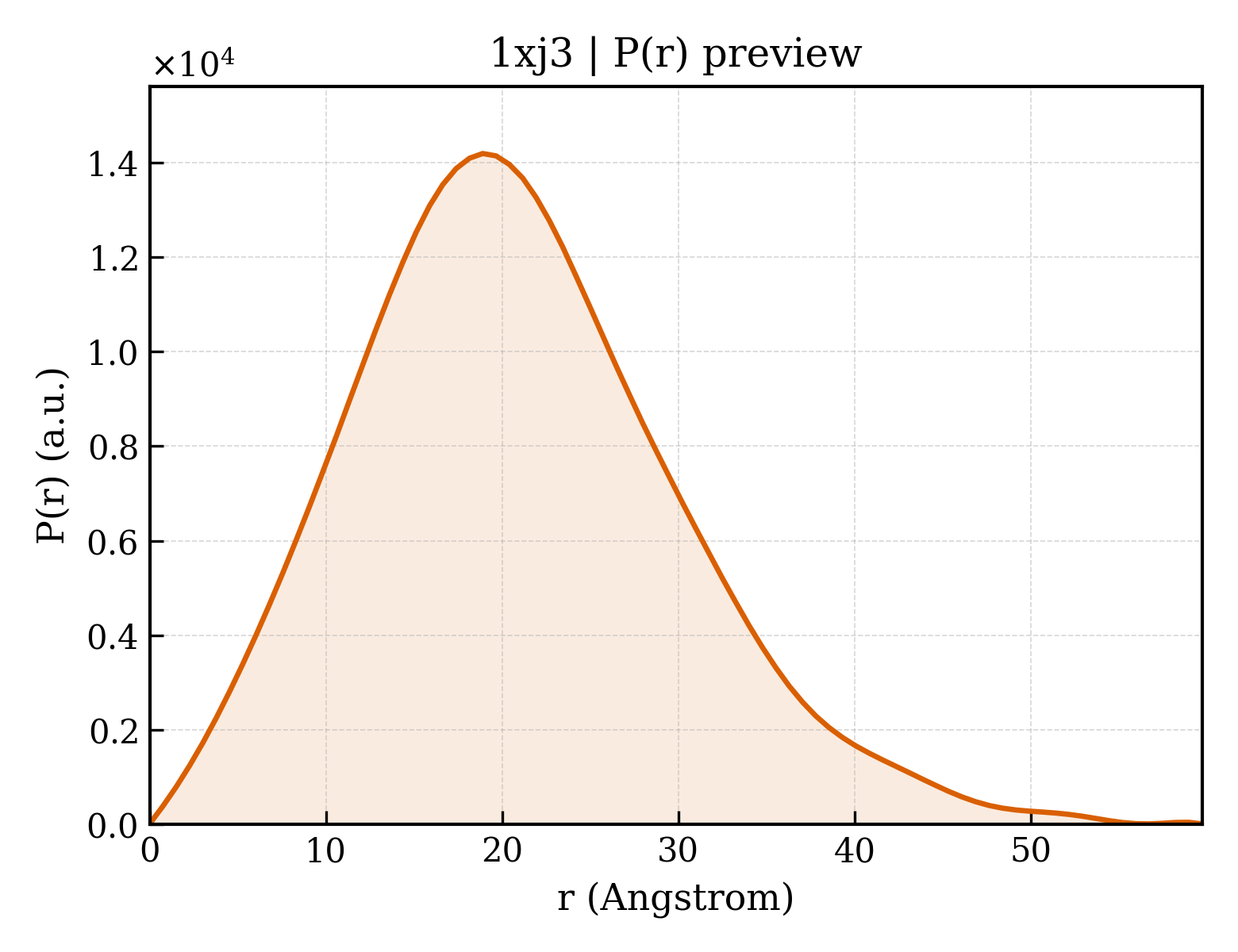

1xj3__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	16.03 Å
Rg (electron density)	14.84 Å
Total Rg	15.91 Å
Atom count	963
Residues	116
Excluded volume	16963 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1xj3__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Sensor protein fixL
Molecular weight formula_weight	13101.7 kDa
EC 编号 ec_number	2.7.3.-
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1044

DAMIVIDGHGIIQLFSTAAERLFGWSELEAIGQNVNILMPEPDRSRHDSYISRYRTTSDPHIIGIGRIVTGKRRDGTTFPMHLSIGEMQSGGEPYFTGFVRDLTEHQQTQARLQEL

Source Source

Source organism organism	Bradyrhizobium japonicum
NCBI taxonomy ID ncbi_taxonomy_id	375
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	PROTOPORPHYRIN IX CONTAINING FE
Molecular weight formula_weight	616.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	81

▼

6. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1xj3a_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.110 — Profilin-like
Superfamily Superfamily superfamily	d.110.3 — PYP-like sensor domain (PAS domain)
Family Family family	d.110.3.2 — Heme-binding PAS domain

CATH v4.4 (1 domains)

Domain ID domain_id	1xj3A00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	450 — Beta-Lactamase
Homologous superfamily homologous superfamily	20 — PAS domain

▶

Unit-cell length a length_a	128.644 Å
Unit-cell length b length_b	128.644 Å
Unit-cell length c length_c	58.695 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	18

Space group space_group	H 3 2
Space-group number int_tables_number	155
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	40.000 Å
R factor r_factor	—
R_work r_work	0.2140
R_free r_free	0.2560
