SAXSdb — 1xjl

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1xjl
沉积日期 deposition_date	2004-09-23
结构标题 title	Structure of human annexin A2 in the presence of calcium ions
关键词 keywords	annexins, calcium-binding protein, lipid-binding protein, LIPID BINDING PROTEIN; LIPID BINDING PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	32.35 Å
回转半径 Rg (电子) rg_electron	32.18 Å
零角强度 I(0) i0	85399300.00
分子量 molecular_weight	73530.0 kDa
排除体积 excluded_volume	92156 Å³
包络体积 envelope_volume	119410 Å³
水化壳体积 shell_volume	32172 Å³
包络直径 envelope_diameter	110.4 Å
壳层 Rg shell_rg	37.64 Å
包络 Rg envelope_rg	31.72 Å
形状 Rg shape_rg	32.17 Å
总 Rg total_rg	32.68 Å
总原子数 total_atoms	5138
残基数 n_residues	638
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	101.9 Å
Rg (实空间) rg_real	32.52 Å
Rg 误差 (实空间) rg_real_error	0.77 Å
I(0) (实空间) i0_real	8.5400e+07
I(0) 误差 (实空间) i0_real_error	1.3140e+06
Rg (倒空间) rg_reciprocal	32.46 Å
I(0) (倒空间) i0_reciprocal	85390000.0000
解质量估计 total_estimate	0.8153
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	99.8 Å
偏度 Skewness skewness	0.367
峰度 Kurtosis kurtosis	-0.636
角度范围 angular_range	— – 0.2450 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	13330000.0000
实空间数据点数 n_real_points	50
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.902; Stabil: 0.994; Sysdev: 1.000; Positv: 1.000; Valcen: 0.908; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	Annexin A2
分子量 formula_weight	36536.6 kDa
突变 mutation	A66E
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	5350

PSAYGSVKAYTNFDAERDALNIETAIKTKGVDEVTIVNILTNRSNEQRQDIAFAYQRRTKKELASALKSALSGHLETVILGLLKTPAQYDASELKASMKGLGTDEDSLIEIICSRTNQELQEINRVYKEMYKTDLEKDIISDTSGDFRKLMVALAKGRRAEDGSVIDYELIDQDARDLYDAGVKRKGTDVPKWISIMTERSVPHLQKVFDRYKSYSPYDMLESIRKEVKGDLENAFLNLVQCIQNKPLYFADRLYDSMKGKGTRDKVLIRIMVSRSEVDMLKIRSEFKRKYGKSLYYYIQQDTKGDYQKALLYLCGGDD

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	CALCIUM ION
分子量 formula_weight	40.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	14

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	212

▼

6. 折叠分类 (SCOP + CATH) 10 domains

SCOP 2.08 (2 domains)

结构域编号 domain_id	d1xjla_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.65 — Annexin
超家族 Superfamily superfamily	a.65.1 — Annexin
家族 Family family	a.65.1.1 — Annexin

结构域编号 domain_id	d1xjlb_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.65 — Annexin
超家族 Superfamily superfamily	a.65.1 — Annexin
家族 Family family	a.65.1.1 — Annexin

CATH v4.4 (8 domains)

结构域编号 domain_id	1xjlA01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	220 — Annexin V; domain 1
同源超家族 H-superfamily homologous superfamily	10 — Annexin

结构域编号 domain_id	1xjlA02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	220 — Annexin V; domain 1
同源超家族 H-superfamily homologous superfamily	10 — Annexin

结构域编号 domain_id	1xjlA03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	220 — Annexin V; domain 1
同源超家族 H-superfamily homologous superfamily	10 — Annexin

结构域编号 domain_id	1xjlA04
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	220 — Annexin V; domain 1
同源超家族 H-superfamily homologous superfamily	10 — Annexin

结构域编号 domain_id	1xjlB01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	220 — Annexin V; domain 1
同源超家族 H-superfamily homologous superfamily	10 — Annexin

结构域编号 domain_id	1xjlB02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	220 — Annexin V; domain 1
同源超家族 H-superfamily homologous superfamily	10 — Annexin

结构域编号 domain_id	1xjlB03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	220 — Annexin V; domain 1
同源超家族 H-superfamily homologous superfamily	10 — Annexin

结构域编号 domain_id	1xjlB04
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	220 — Annexin V; domain 1
同源超家族 H-superfamily homologous superfamily	10 — Annexin

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	61.781 Å
晶胞边长 b length_b	98.105 Å
晶胞边长 c length_c	176.273 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	2.590 Å
最低分辨率 resolution_low	39.060 Å
R 因子 r_factor	0.2160
R_work r_work	0.2160
R_free r_free	0.2640

fit	/app/data/saxs_computation/xj/1xjl/1xjl.fit
pddf	/app/data/pr_computation/xj/1xjl/1xjl.pr.out
profile	/app/data/saxs_computation/xj/1xjl/1xjl.dat

Structure of human annexin A2 in the presence of calcium ions

SAXS 散射曲线 SAXS Profile

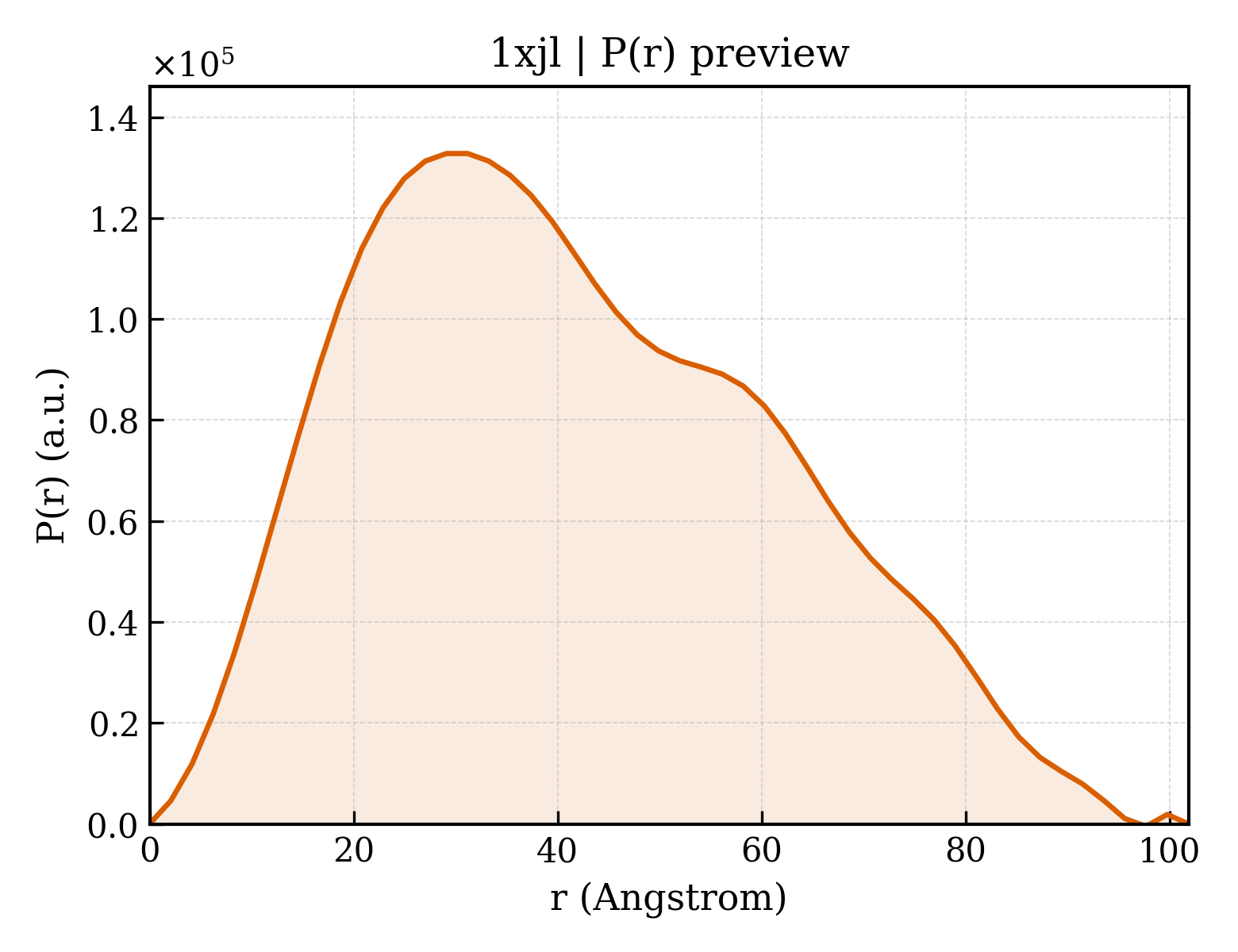

P(r) 距离分布 P(r) Distribution
