SAXSdb — 1xrt

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Dihydroorotase

Aquifex aeolicus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	ZINC ION × 1 water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	ZINC ION × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PYRC_AQUAE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 46–467； UniProt 1–422 Author chain B； PDBConstruct 46–467； UniProt 1–422

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1xrt
Deposition date deposition_date	2004-10-15
Structure title title	The Crystal Structure of a Novel, Latent Dihydroorotase from Aquifex Aeolicus at 1.7 A Resolution
Keywords keywords	Dihydroorotase, Amidohydrolase, Metalloenzyme, Pyrimidine, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1xrt__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1xrt__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

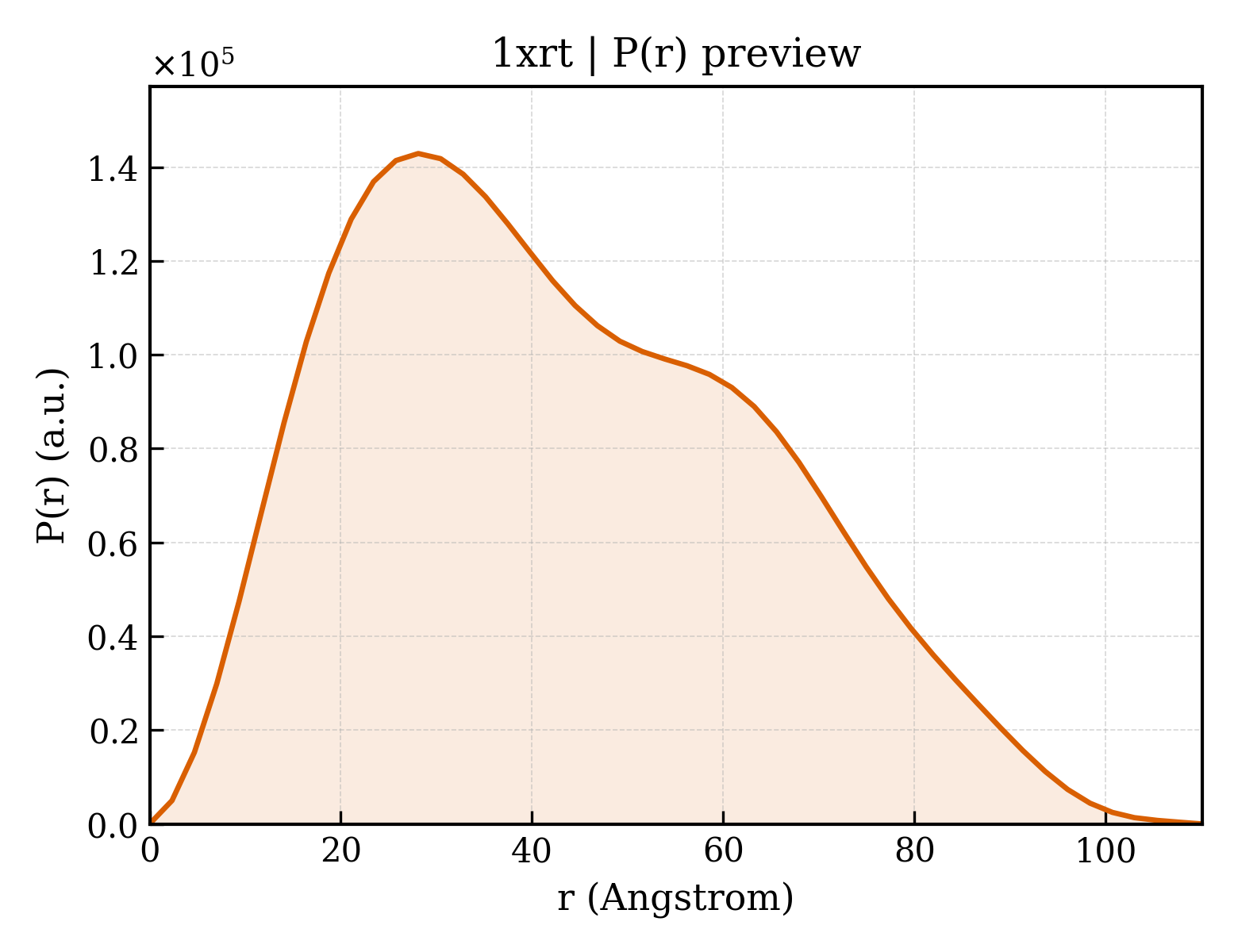

1xrt__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	20.88 Å
Rg (electron density)	20.10 Å
Total Rg	21.08 Å
Atom count	2850
Residues	369
Excluded volume	51492 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1xrt__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1xrt__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Dihydroorotase
Molecular weight formula_weight	51847.6 kDa
EC 编号 ec_number	3.5.2.3
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	6940

MRFWQYINGVDMRGSHHHHHHGMASMTGGQQMGRDLYDDDDKDRWMLKLIVKNGYVIDPSQNLEGEFDILVENGKIKKIDKNILVPEAEIIDAKGLIVCPGFIDIHVHLRDPGQTYKEDIESGSRCAVAGGFTTIVCMPNTNPPIDNTTVVNYILQKSKSVGLCRVLPTGTITKGRKGKEIADFYSLKEAGCVAFTDDGSPVMDSSVMRKALELASQLGVPIMDHCEDDKLAYGVINEGEVSALLGLSSRAPEAEEIQIARDGILAQRTGGHVHIQHVSTKLSLEIIEFFKEKGVKITCEVNPNHLLFTEREVLNSGANARVNPPLRKKEDRLALIEGVKRGIIDCFATDHAPHQTFEKELVEFAMPGIIGLQTALPSALELYRKGIISLKKLIEMFTINPARIIGVDLGTLKLGSPADITIFDPNKEWILNEETNLSKSRNTPLWGKVLKGKVIYTIKDGKMVYKD

Source Source

Source organism organism	Aquifex aeolicus
NCBI taxonomy ID ncbi_taxonomy_id	63363
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	1239

▼

6. Fold Classification (SCOP + CATH) 9 domains

SCOP 2.08 (5 domains)

Domain ID domain_id	d1xrta1
Class class	b — All beta proteins
Fold Fold fold	b.92 — Composite domain of metallo-dependent hydrolases
Superfamily Superfamily superfamily	b.92.1 — Composite domain of metallo-dependent hydrolases
Family Family family	b.92.1.3 — Hydantoinase (dihydropyrimidinase)

Domain ID domain_id	d1xrta2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.9 — Metallo-dependent hydrolases
Family Family family	c.1.9.6 — Hydantoinase (dihydropyrimidinase), catalytic domain

Domain ID domain_id	d1xrtb1
Class class	b — All beta proteins
Fold Fold fold	b.92 — Composite domain of metallo-dependent hydrolases
Superfamily Superfamily superfamily	b.92.1 — Composite domain of metallo-dependent hydrolases
Family Family family	b.92.1.3 — Hydantoinase (dihydropyrimidinase)

Domain ID domain_id	d1xrtb2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.9 — Metallo-dependent hydrolases
Family Family family	c.1.9.6 — Hydantoinase (dihydropyrimidinase), catalytic domain

Domain ID domain_id	d1xrtb3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (4 domains)

Domain ID domain_id	1xrtA01
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	40 — Urease, subunit C; domain 1
Homologous superfamily homologous superfamily	10 — Urease, subunit C, domain 1

Domain ID domain_id	1xrtA02
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	140 — Metal-dependent hydrolases

Domain ID domain_id	1xrtB01
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	40 — Urease, subunit C; domain 1
Homologous superfamily homologous superfamily	10 — Urease, subunit C, domain 1

Domain ID domain_id	1xrtB02
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	140 — Metal-dependent hydrolases

▶

Unit-cell length a length_a	174.201 Å
Unit-cell length b length_b	91.235 Å
Unit-cell length c length_c	61.183 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	93.15 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	1.609 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.1669
R_work r_work	0.1646
R_free r_free	0.2079

The Crystal Structure of a Novel, Latent Dihydroorotase from Aquifex Aeolicus at 1.7 A Resolution
