SAXSdb — 1xxq

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1xxq
沉积日期 deposition_date	2004-11-08
结构标题 title	Structure of a mannose-specific jacalin-related lectin from Morus nigra
关键词 keywords	tetrameric b-prism fold, jacalin-fold, SUGAR BINDING PROTEIN; SUGAR BINDING PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	27.26 Å
回转半径 Rg (电子) rg_electron	26.35 Å
零角强度 I(0) i0	68468500.00
分子量 molecular_weight	66070.0 kDa
排除体积 excluded_volume	83161 Å³
包络体积 envelope_volume	96613 Å³
水化壳体积 shell_volume	30878 Å³
包络直径 envelope_diameter	86.9 Å
壳层 Rg shell_rg	33.34 Å
包络 Rg envelope_rg	26.37 Å
形状 Rg shape_rg	26.33 Å
总 Rg total_rg	27.16 Å
总原子数 total_atoms	4681
残基数 n_residues	616
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	85.2 Å
Rg (实空间) rg_real	27.22 Å
Rg 误差 (实空间) rg_real_error	0.55 Å
I(0) (实空间) i0_real	6.8470e+07
I(0) 误差 (实空间) i0_real_error	9.4130e+05
Rg (倒空间) rg_reciprocal	27.23 Å
I(0) (倒空间) i0_reciprocal	68470000.0000
解质量估计 total_estimate	0.8984
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	33.8 Å
偏度 Skewness skewness	0.304
峰度 Kurtosis kurtosis	-0.382
角度范围 angular_range	— – 0.2900 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	14910000.0000
实空间数据点数 n_real_points	59
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.933; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.877

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	mannose-binding lectin
分子量 formula_weight	17036.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	5256

MAGTSTNTQTTGTSQTIEVGLWGGPGGNAWDDGSYTGIREINLSHGDAIGAFSVIYDLNGQPFTGPTHPGNEPSFKTVKITLDFPNEFLVSVSGYTGVLARLATGKDVIRSLTFKTNKKTYGPYGKEEGTPFSLPIENGLIVGFKGRSGFVVDAIGFHLSL

Entity 2 non-polymer

描述 description	ACETIC ACID
分子量 formula_weight	60.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 3 non-polymer

描述 description	GLYCEROL
分子量 formula_weight	92.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 4 non-polymer

描述 description	SULFATE ION
分子量 formula_weight	96.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	575

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1xxqa_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.77 — beta-Prism I
超家族 Superfamily superfamily	b.77.3 — Mannose-binding lectins
家族 Family family	b.77.3.1 — Mannose-binding lectins

结构域编号 domain_id	d1xxqb_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.77 — beta-Prism I
超家族 Superfamily superfamily	b.77.3 — Mannose-binding lectins
家族 Family family	b.77.3.1 — Mannose-binding lectins

结构域编号 domain_id	d1xxqc_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.77 — beta-Prism I
超家族 Superfamily superfamily	b.77.3 — Mannose-binding lectins
家族 Family family	b.77.3.1 — Mannose-binding lectins

结构域编号 domain_id	d1xxqd_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.77 — beta-Prism I
超家族 Superfamily superfamily	b.77.3 — Mannose-binding lectins
家族 Family family	b.77.3.1 — Mannose-binding lectins

CATH v4.4 (4 domains)

结构域编号 domain_id	1xxqA00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	100 — Aligned Prism
拓扑 Topology topology	10 — Vitelline Membrane Outer Layer Protein I, subunit A
同源超家族 H-superfamily homologous superfamily	30 — Jacalin-like lectin domain

结构域编号 domain_id	1xxqB00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	100 — Aligned Prism
拓扑 Topology topology	10 — Vitelline Membrane Outer Layer Protein I, subunit A
同源超家族 H-superfamily homologous superfamily	30 — Jacalin-like lectin domain

结构域编号 domain_id	1xxqC00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	100 — Aligned Prism
拓扑 Topology topology	10 — Vitelline Membrane Outer Layer Protein I, subunit A
同源超家族 H-superfamily homologous superfamily	30 — Jacalin-like lectin domain

结构域编号 domain_id	1xxqD00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	100 — Aligned Prism
拓扑 Topology topology	10 — Vitelline Membrane Outer Layer Protein I, subunit A
同源超家族 H-superfamily homologous superfamily	30 — Jacalin-like lectin domain

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	110.740 Å
晶胞边长 b length_b	110.740 Å
晶胞边长 c length_c	159.280 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	120.00 °
晶胞分子数 Z z_pdb	24

空间群 space_group	P 65
空间群编号 int_tables_number	170
晶系 crystal_system	—

分辨率 resolution	1.800 Å
最低分辨率 resolution_low	21.850 Å
R 因子 r_factor	0.1900
R_work r_work	0.1900
R_free r_free	0.2100

fit	/app/data/saxs_computation/xx/1xxq/1xxq.fit
pddf	/app/data/pr_computation/xx/1xxq/1xxq.pr.out
profile	/app/data/saxs_computation/xx/1xxq/1xxq.dat

Structure of a mannose-specific jacalin-related lectin from Morus nigra

SAXS 散射曲线 SAXS Profile

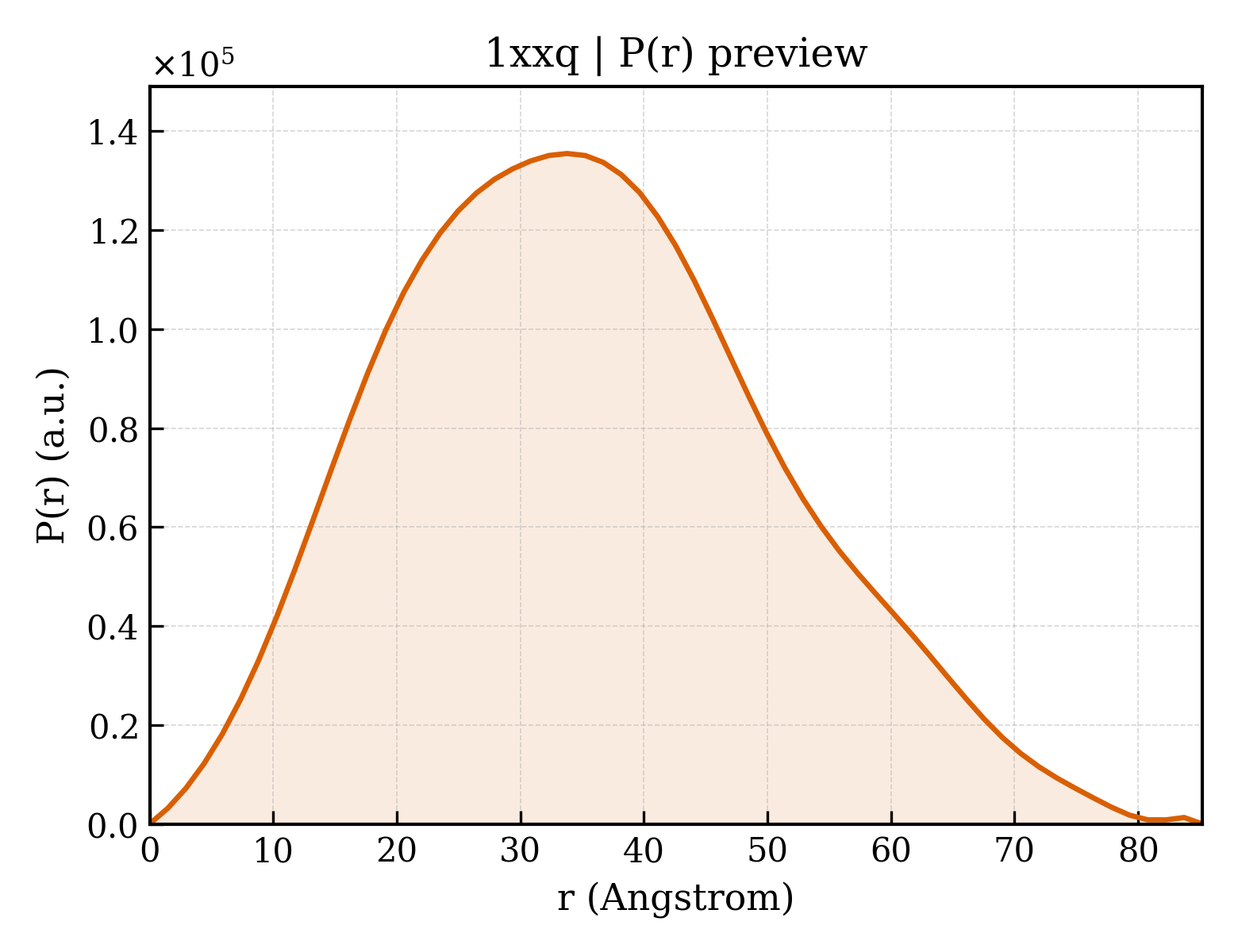

P(r) 距离分布 P(r) Distribution
