SAXSdb — 1xxr

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

mannose-binding lectin

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	ACETIC ACID × 3 GLYCEROL × 1 alpha-D-mannopyranose × 3 SULFATE ION × 1 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q8LGR3_9ROSA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–161； UniProt 1–161 Author chain B； PDBConstruct 1–161； UniProt 1–161 Author chain C； PDBConstruct 1–161； UniProt 1–161 Author chain D； PDBConstruct 1–161； UniProt 1–161

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1xxr
Deposition date deposition_date	2004-11-08
Structure title title	Structure of a mannose-specific jacalin-related lectin from Morus Nigra in complex with mannose
Keywords keywords	tetrameric b-prism fold, SUGAR BINDING PROTEIN; SUGAR BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1xxr__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

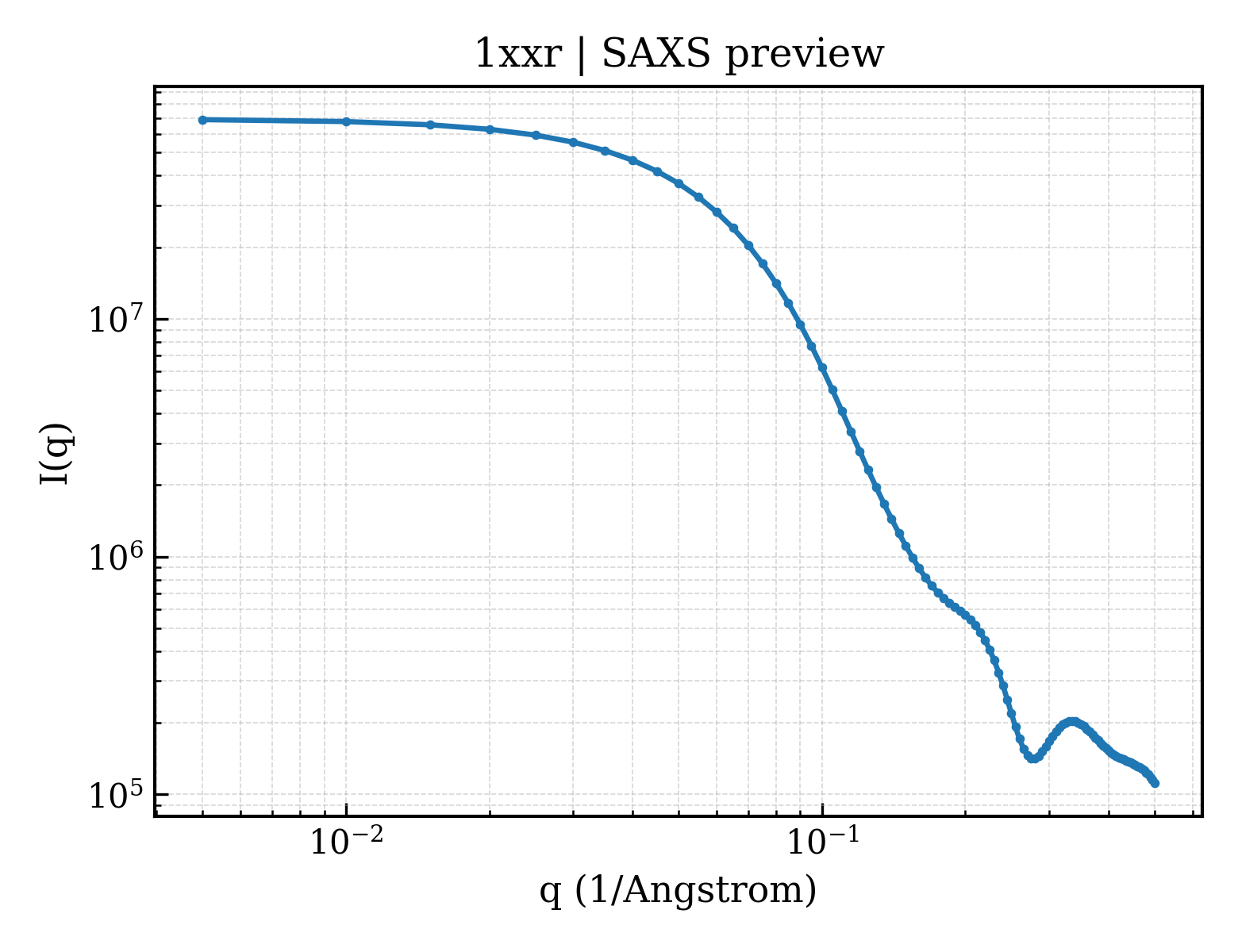

1xxr__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

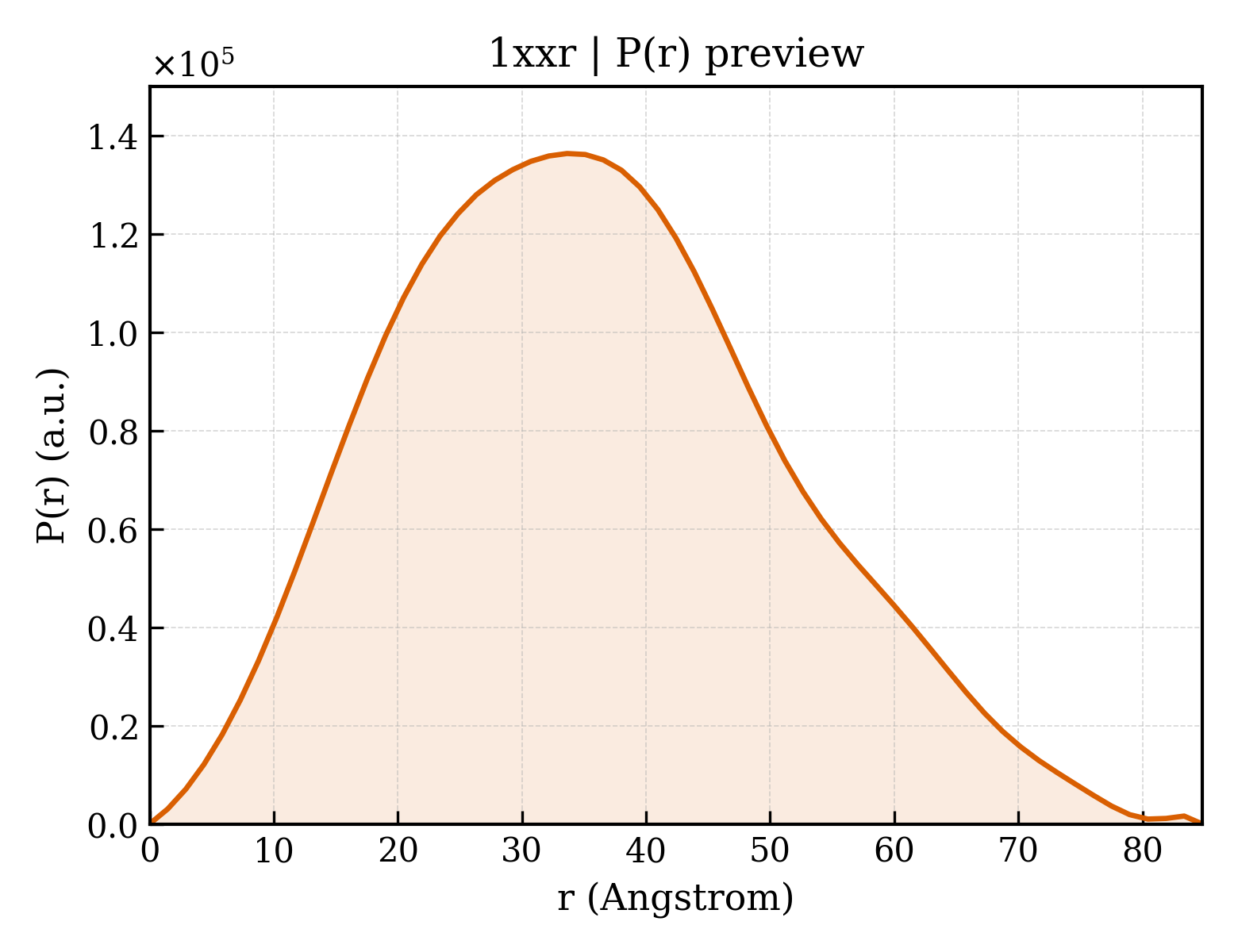

1xxr__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	27.35 Å
Rg (electron density)	26.43 Å
Total Rg	27.25 Å
Atom count	4699
Residues	616
Excluded volume	83454 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1xxr__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	mannose-binding lectin
Molecular weight formula_weight	17036.0 kDa
Source method src_method	nat
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	5223

MAGTSTNTQTTGTSQTIEVGLWGGPGGNAWDDGSYTGIREINLSHGDAIGAFSVIYDLNGQPFTGPTHPGNEPSFKTVKITLDFPNEFLVSVSGYTGVLARLATGKDVIRSLTFKTNKKTYGPYGKEEGTPFSLPIENGLIVGFKGRSGFVVDAIGFHLSL

Entity 2 Entity 2 non-polymer

Description description	ACETIC ACID
Molecular weight formula_weight	60.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 3 Entity 3 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	alpha-D-mannopyranose
Molecular weight formula_weight	180.2 kDa
Source method src_method	man
Copy count entity_count	3

Entity 5 Entity 5 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	524

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1xxra_
Class class	b — All beta proteins
Fold Fold fold	b.77 — beta-Prism I
Superfamily Superfamily superfamily	b.77.3 — Mannose-binding lectins
Family Family family	b.77.3.1 — Mannose-binding lectins

Domain ID domain_id	d1xxrb_
Class class	b — All beta proteins
Fold Fold fold	b.77 — beta-Prism I
Superfamily Superfamily superfamily	b.77.3 — Mannose-binding lectins
Family Family family	b.77.3.1 — Mannose-binding lectins

Domain ID domain_id	d1xxrc_
Class class	b — All beta proteins
Fold Fold fold	b.77 — beta-Prism I
Superfamily Superfamily superfamily	b.77.3 — Mannose-binding lectins
Family Family family	b.77.3.1 — Mannose-binding lectins

Domain ID domain_id	d1xxrd_
Class class	b — All beta proteins
Fold Fold fold	b.77 — beta-Prism I
Superfamily Superfamily superfamily	b.77.3 — Mannose-binding lectins
Family Family family	b.77.3.1 — Mannose-binding lectins

CATH v4.4 (4 domains)

Domain ID domain_id	1xxrA00
Class class	2 — Mainly Beta
Architecture architecture	100 — Aligned Prism
Topology topology	10 — Vitelline Membrane Outer Layer Protein I, subunit A
Homologous superfamily homologous superfamily	30 — Jacalin-like lectin domain

Domain ID domain_id	1xxrB00
Class class	2 — Mainly Beta
Architecture architecture	100 — Aligned Prism
Topology topology	10 — Vitelline Membrane Outer Layer Protein I, subunit A
Homologous superfamily homologous superfamily	30 — Jacalin-like lectin domain

Domain ID domain_id	1xxrC00
Class class	2 — Mainly Beta
Architecture architecture	100 — Aligned Prism
Topology topology	10 — Vitelline Membrane Outer Layer Protein I, subunit A
Homologous superfamily homologous superfamily	30 — Jacalin-like lectin domain

Domain ID domain_id	1xxrD00
Class class	2 — Mainly Beta
Architecture architecture	100 — Aligned Prism
Topology topology	10 — Vitelline Membrane Outer Layer Protein I, subunit A
Homologous superfamily homologous superfamily	30 — Jacalin-like lectin domain

▶

Unit-cell length a length_a	110.908 Å
Unit-cell length b length_b	110.908 Å
Unit-cell length c length_c	160.021 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	P 65
Space-group number int_tables_number	170
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	14.970 Å
R factor r_factor	0.1910
R_work r_work	0.1910
R_free r_free	0.2110
