SAXSdb — 1xyb

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

XYLOSE ISOMERASE

Streptomyces olivochromogenes

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	D-glucose × 4 MAGNESIUM ION × 8 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	XYLA_STROL
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–386； UniProt 1–386 Author chain B； PDBConstruct 1–386； UniProt 1–386

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1xyb
Deposition date deposition_date	1994-01-03
Structure title title	X-RAY CRYSTALLOGRAPHIC STRUCTURES OF D-XYLOSE ISOMERASE-SUBSTRATE COMPLEXES POSITION THE SUBSTRATE AND PROVIDE EVIDENCE FOR METAL MOVEMENT DURING CATALYSIS
Keywords keywords	ISOMERASE(INTRAMOLECULAR OXIDOREDUCTASE); ISOMERASE(INTRAMOLECULAR OXIDOREDUCTASE)
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1xyb__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1xyb__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

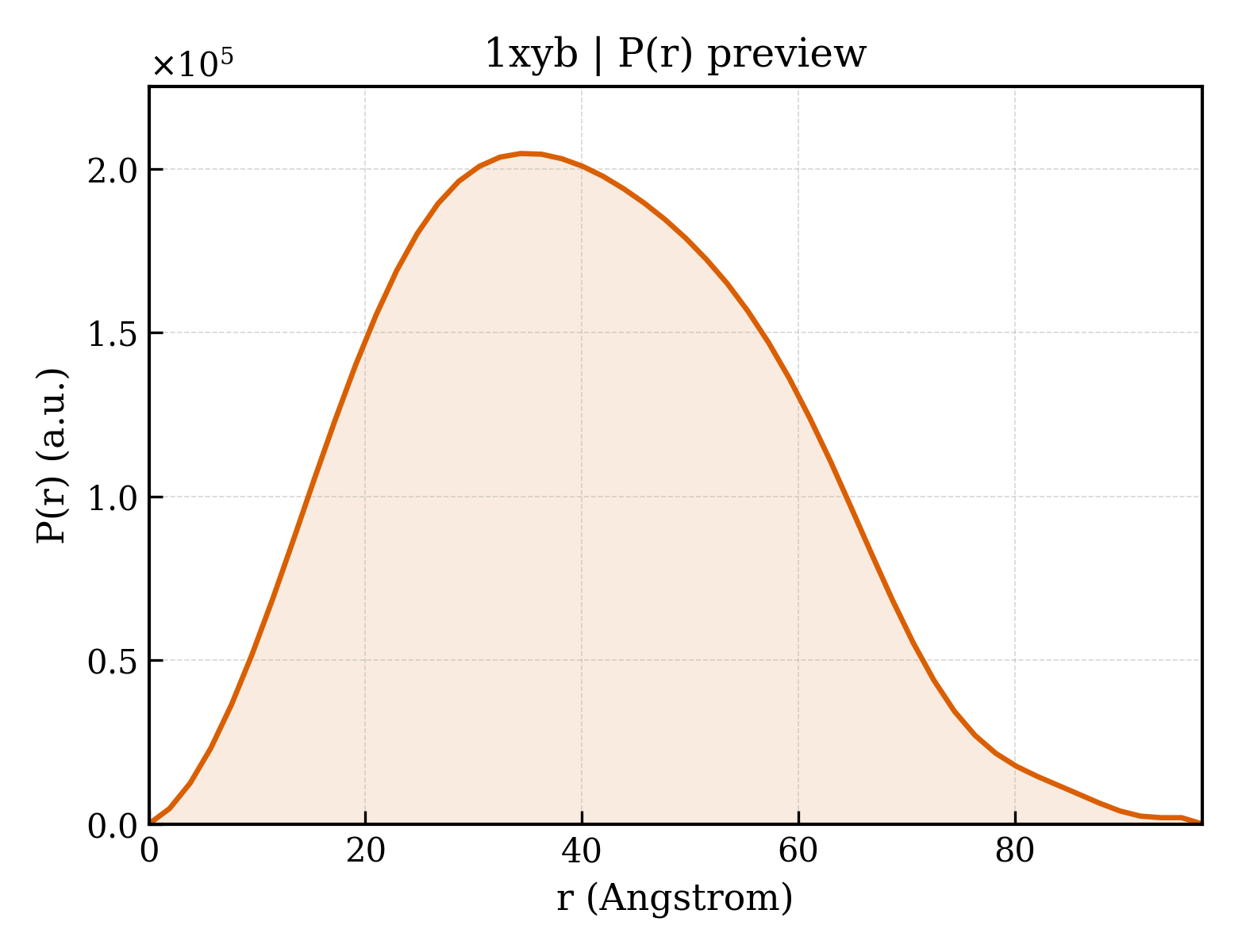

1xyb__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	33.02 Å
Rg (electron density)	31.80 Å
Total Rg	32.53 Å
Atom count	12152
Residues	1544
Excluded volume	213270 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1xyb__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	XYLOSE ISOMERASE
Molecular weight formula_weight	42844.8 kDa
EC 编号 ec_number	5.3.1.5
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	6559

SYQPTPEDRFTFGLWTVGWQGRDPFGDATRPALDPVETVQRLAELGAHGVTFHDDDLIPFGSSDTERESHIKRFRQALDATGMTVPMATTNLFTHPVFKDGGFTANDRDVRRYALRKTIRNIDLAVELGAKTYVAWGGREGAESGAAKDVRVALDRMKEAFDLLGEYVTSQGYDTRFAIEPKPNEPRGDILLPTVGHALAFIERLERPELYGVNPEVGHEQMAGLNFPHGIAQALWAGKLFHIDLNGQSGIKYDQDLRFGAGDLRAAFWLVDLLESAGYEGPRHFDFKPPRTEDIDGVWASAAGCMRNYLILKERAAAFRADPEVQEALRASRLDELAQPTAADGVQELLADRTAFEDFDVDAAAARGMAFERLDQLAMDHLLGAR

Source Source

Source organism organism	Streptomyces olivochromogenes
NCBI taxonomy ID ncbi_taxonomy_id	1963

Entity 2 Entity 2 non-polymer

Description description	D-glucose
Molecular weight formula_weight	180.2 kDa
Source method src_method	man
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	481

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1xyba_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.15 — Xylose isomerase-like
Family Family family	c.1.15.3 — Xylose isomerase

Domain ID domain_id	d1xybb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.15 — Xylose isomerase-like
Family Family family	c.1.15.3 — Xylose isomerase

CATH v4.4 (2 domains)

Domain ID domain_id	1xybA00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	150 — Divalent-metal-dependent TIM barrel enzymes

Domain ID domain_id	1xybB00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	150 — Divalent-metal-dependent TIM barrel enzymes

▶

Unit-cell length a length_a	87.700 Å
Unit-cell length b length_b	99.400 Å
Unit-cell length c length_c	94.200 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	1.960 Å
Low-resolution limit resolution_low	10.000 Å
R factor r_factor	0.1660
R_work r_work	0.1660
R_free r_free	—
