1yc6
Crystallographic Structure of the T=1 Particle of Brome Mosaic Virus
SAXS 散射曲线 SAXS Profile

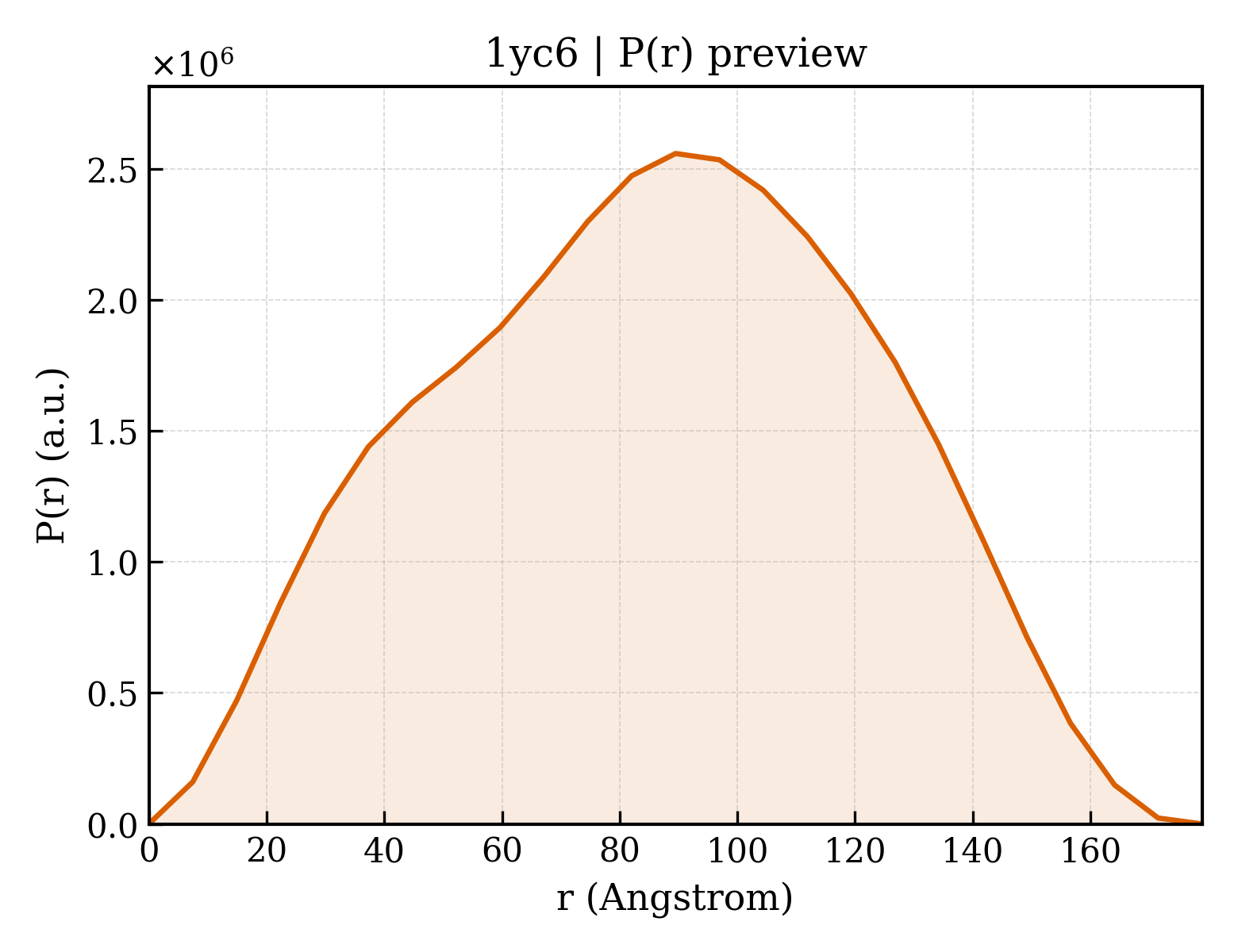

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 1yc6 |
| 沉积日期 deposition_date | 2004-12-22 |
| 结构标题 title | Crystallographic Structure of the T=1 Particle of Brome Mosaic Virus |
| 关键词 keywords | Structural Transition, Proteolysis, BMV, AlMV, Symmetry, Assembly, Icosahedral virus, Virus; VIRUS |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 66.38 Å |
| 回转半径 Rg (电子) rg_electron | 65.65 Å |
| 零角强度 I(0) i0 | 3143780000.00 |
| 分子量 molecular_weight | 493470.0 kDa |
| 排除体积 excluded_volume | 626480 ų |
| 包络体积 envelope_volume | 1133400 ų |
| 水化壳体积 shell_volume | 143030 ų |
| 包络直径 envelope_diameter | 185.5 Å |
| 壳层 Rg shell_rg | 71.48 Å |
| 包络 Rg envelope_rg | 60.67 Å |
| 形状 Rg shape_rg | 65.64 Å |
| 总 Rg total_rg | 65.83 Å |
| 总原子数 total_atoms | 34800 |
| 残基数 n_residues | 4620 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 179.0 Å |
| Rg (实空间) rg_real | 65.85 Å |
| Rg 误差 (实空间) rg_real_error | 1.06 Å |
| I(0) (实空间) i0_real | 3.1440e+09 |
| I(0) 误差 (实空间) i0_real_error | 6.3370e+07 |
| Rg (倒空间) rg_reciprocal | 66.77 Å |
| I(0) (倒空间) i0_reciprocal | 3149000000.0000 |
| 解质量估计 total_estimate | 0.8465 |
| 解质量评级 solution_quality | GOOD a GOOD solution |
| P(r) 峰数 n_peaks | 1 |
| 主峰位置 r_peak_primary | 89.5 Å |
| 偏度 Skewness skewness | -0.068 |
| 峰度 Kurtosis kurtosis | -0.762 |
| 角度范围 angular_range | — – 0.1200 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 197400000.0000 |
| 实空间数据点数 n_real_points | 25 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 1.000; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.000 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (2)
6. 折叠分类 (SCOP + CATH) 60 domains
SCOP 2.08 (30 domains)
| 结构域编号 domain_id | d1yc61_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.121 — Nucleoplasmin-like/VP (viral coat and capsid proteins) |
| 超家族 Superfamily superfamily | b.121.4 — Positive stranded ssRNA viruses |
| 家族 Family family | b.121.4.5 — Bromoviridae-like VP |
| 结构域编号 domain_id | d1yc62_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.121 — Nucleoplasmin-like/VP (viral coat and capsid proteins) |
| 超家族 Superfamily superfamily | b.121.4 — Positive stranded ssRNA viruses |
| 家族 Family family | b.121.4.5 — Bromoviridae-like VP |
| 结构域编号 domain_id | d1yc63_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.121 — Nucleoplasmin-like/VP (viral coat and capsid proteins) |
| 超家族 Superfamily superfamily | b.121.4 — Positive stranded ssRNA viruses |
| 家族 Family family | b.121.4.5 — Bromoviridae-like VP |
| 结构域编号 domain_id | d1yc64_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.121 — Nucleoplasmin-like/VP (viral coat and capsid proteins) |
| 超家族 Superfamily superfamily | b.121.4 — Positive stranded ssRNA viruses |
| 家族 Family family | b.121.4.5 — Bromoviridae-like VP |
| 结构域编号 domain_id | d1yc6a_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.121 — Nucleoplasmin-like/VP (viral coat and capsid proteins) |
| 超家族 Superfamily superfamily | b.121.4 — Positive stranded ssRNA viruses |
| 家族 Family family | b.121.4.5 — Bromoviridae-like VP |
| 结构域编号 domain_id | d1yc6b_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.121 — Nucleoplasmin-like/VP (viral coat and capsid proteins) |
| 超家族 Superfamily superfamily | b.121.4 — Positive stranded ssRNA viruses |
| 家族 Family family | b.121.4.5 — Bromoviridae-like VP |
| 结构域编号 domain_id | d1yc6c_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.121 — Nucleoplasmin-like/VP (viral coat and capsid proteins) |
| 超家族 Superfamily superfamily | b.121.4 — Positive stranded ssRNA viruses |
| 家族 Family family | b.121.4.5 — Bromoviridae-like VP |
| 结构域编号 domain_id | d1yc6d_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.121 — Nucleoplasmin-like/VP (viral coat and capsid proteins) |
| 超家族 Superfamily superfamily | b.121.4 — Positive stranded ssRNA viruses |
| 家族 Family family | b.121.4.5 — Bromoviridae-like VP |
| 结构域编号 domain_id | d1yc6e_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.121 — Nucleoplasmin-like/VP (viral coat and capsid proteins) |
| 超家族 Superfamily superfamily | b.121.4 — Positive stranded ssRNA viruses |
| 家族 Family family | b.121.4.5 — Bromoviridae-like VP |
| 结构域编号 domain_id | d1yc6f_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.121 — Nucleoplasmin-like/VP (viral coat and capsid proteins) |
| 超家族 Superfamily superfamily | b.121.4 — Positive stranded ssRNA viruses |
| 家族 Family family | b.121.4.5 — Bromoviridae-like VP |
| 结构域编号 domain_id | d1yc6g_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.121 — Nucleoplasmin-like/VP (viral coat and capsid proteins) |
| 超家族 Superfamily superfamily | b.121.4 — Positive stranded ssRNA viruses |
| 家族 Family family | b.121.4.5 — Bromoviridae-like VP |
| 结构域编号 domain_id | d1yc6h_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.121 — Nucleoplasmin-like/VP (viral coat and capsid proteins) |
| 超家族 Superfamily superfamily | b.121.4 — Positive stranded ssRNA viruses |
| 家族 Family family | b.121.4.5 — Bromoviridae-like VP |
| 结构域编号 domain_id | d1yc6i_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.121 — Nucleoplasmin-like/VP (viral coat and capsid proteins) |
| 超家族 Superfamily superfamily | b.121.4 — Positive stranded ssRNA viruses |
| 家族 Family family | b.121.4.5 — Bromoviridae-like VP |
| 结构域编号 domain_id | d1yc6j_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.121 — Nucleoplasmin-like/VP (viral coat and capsid proteins) |
| 超家族 Superfamily superfamily | b.121.4 — Positive stranded ssRNA viruses |
| 家族 Family family | b.121.4.5 — Bromoviridae-like VP |
| 结构域编号 domain_id | d1yc6k_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.121 — Nucleoplasmin-like/VP (viral coat and capsid proteins) |
| 超家族 Superfamily superfamily | b.121.4 — Positive stranded ssRNA viruses |
| 家族 Family family | b.121.4.5 — Bromoviridae-like VP |
| 结构域编号 domain_id | d1yc6l_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.121 — Nucleoplasmin-like/VP (viral coat and capsid proteins) |
| 超家族 Superfamily superfamily | b.121.4 — Positive stranded ssRNA viruses |
| 家族 Family family | b.121.4.5 — Bromoviridae-like VP |
| 结构域编号 domain_id | d1yc6m_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.121 — Nucleoplasmin-like/VP (viral coat and capsid proteins) |
| 超家族 Superfamily superfamily | b.121.4 — Positive stranded ssRNA viruses |
| 家族 Family family | b.121.4.5 — Bromoviridae-like VP |
| 结构域编号 domain_id | d1yc6n_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.121 — Nucleoplasmin-like/VP (viral coat and capsid proteins) |
| 超家族 Superfamily superfamily | b.121.4 — Positive stranded ssRNA viruses |
| 家族 Family family | b.121.4.5 — Bromoviridae-like VP |
| 结构域编号 domain_id | d1yc6o_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.121 — Nucleoplasmin-like/VP (viral coat and capsid proteins) |
| 超家族 Superfamily superfamily | b.121.4 — Positive stranded ssRNA viruses |
| 家族 Family family | b.121.4.5 — Bromoviridae-like VP |
| 结构域编号 domain_id | d1yc6p_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.121 — Nucleoplasmin-like/VP (viral coat and capsid proteins) |
| 超家族 Superfamily superfamily | b.121.4 — Positive stranded ssRNA viruses |
| 家族 Family family | b.121.4.5 — Bromoviridae-like VP |
| 结构域编号 domain_id | d1yc6q_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.121 — Nucleoplasmin-like/VP (viral coat and capsid proteins) |
| 超家族 Superfamily superfamily | b.121.4 — Positive stranded ssRNA viruses |
| 家族 Family family | b.121.4.5 — Bromoviridae-like VP |
| 结构域编号 domain_id | d1yc6r_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.121 — Nucleoplasmin-like/VP (viral coat and capsid proteins) |
| 超家族 Superfamily superfamily | b.121.4 — Positive stranded ssRNA viruses |
| 家族 Family family | b.121.4.5 — Bromoviridae-like VP |
| 结构域编号 domain_id | d1yc6s_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.121 — Nucleoplasmin-like/VP (viral coat and capsid proteins) |
| 超家族 Superfamily superfamily | b.121.4 — Positive stranded ssRNA viruses |
| 家族 Family family | b.121.4.5 — Bromoviridae-like VP |
| 结构域编号 domain_id | d1yc6t_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.121 — Nucleoplasmin-like/VP (viral coat and capsid proteins) |
| 超家族 Superfamily superfamily | b.121.4 — Positive stranded ssRNA viruses |
| 家族 Family family | b.121.4.5 — Bromoviridae-like VP |
| 结构域编号 domain_id | d1yc6u_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.121 — Nucleoplasmin-like/VP (viral coat and capsid proteins) |
| 超家族 Superfamily superfamily | b.121.4 — Positive stranded ssRNA viruses |
| 家族 Family family | b.121.4.5 — Bromoviridae-like VP |
| 结构域编号 domain_id | d1yc6v_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.121 — Nucleoplasmin-like/VP (viral coat and capsid proteins) |
| 超家族 Superfamily superfamily | b.121.4 — Positive stranded ssRNA viruses |
| 家族 Family family | b.121.4.5 — Bromoviridae-like VP |
| 结构域编号 domain_id | d1yc6w_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.121 — Nucleoplasmin-like/VP (viral coat and capsid proteins) |
| 超家族 Superfamily superfamily | b.121.4 — Positive stranded ssRNA viruses |
| 家族 Family family | b.121.4.5 — Bromoviridae-like VP |
| 结构域编号 domain_id | d1yc6x_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.121 — Nucleoplasmin-like/VP (viral coat and capsid proteins) |
| 超家族 Superfamily superfamily | b.121.4 — Positive stranded ssRNA viruses |
| 家族 Family family | b.121.4.5 — Bromoviridae-like VP |
| 结构域编号 domain_id | d1yc6y_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.121 — Nucleoplasmin-like/VP (viral coat and capsid proteins) |
| 超家族 Superfamily superfamily | b.121.4 — Positive stranded ssRNA viruses |
| 家族 Family family | b.121.4.5 — Bromoviridae-like VP |
| 结构域编号 domain_id | d1yc6z_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.121 — Nucleoplasmin-like/VP (viral coat and capsid proteins) |
| 超家族 Superfamily superfamily | b.121.4 — Positive stranded ssRNA viruses |
| 家族 Family family | b.121.4.5 — Bromoviridae-like VP |
CATH v4.4 (30 domains)
| 结构域编号 domain_id | 1yc6100 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 120 — Jelly Rolls |
| 同源超家族 H-superfamily homologous superfamily | 220 — Satellite virus coat domain |
| 结构域编号 domain_id | 1yc6200 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 120 — Jelly Rolls |
| 同源超家族 H-superfamily homologous superfamily | 220 — Satellite virus coat domain |
| 结构域编号 domain_id | 1yc6300 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 120 — Jelly Rolls |
| 同源超家族 H-superfamily homologous superfamily | 220 — Satellite virus coat domain |
| 结构域编号 domain_id | 1yc6400 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 120 — Jelly Rolls |
| 同源超家族 H-superfamily homologous superfamily | 220 — Satellite virus coat domain |
| 结构域编号 domain_id | 1yc6A00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 120 — Jelly Rolls |
| 同源超家族 H-superfamily homologous superfamily | 220 — Satellite virus coat domain |
| 结构域编号 domain_id | 1yc6B00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 120 — Jelly Rolls |
| 同源超家族 H-superfamily homologous superfamily | 220 — Satellite virus coat domain |
| 结构域编号 domain_id | 1yc6C00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 120 — Jelly Rolls |
| 同源超家族 H-superfamily homologous superfamily | 220 — Satellite virus coat domain |
| 结构域编号 domain_id | 1yc6D00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 120 — Jelly Rolls |
| 同源超家族 H-superfamily homologous superfamily | 220 — Satellite virus coat domain |
| 结构域编号 domain_id | 1yc6E00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 120 — Jelly Rolls |
| 同源超家族 H-superfamily homologous superfamily | 220 — Satellite virus coat domain |
| 结构域编号 domain_id | 1yc6F00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 120 — Jelly Rolls |
| 同源超家族 H-superfamily homologous superfamily | 220 — Satellite virus coat domain |
| 结构域编号 domain_id | 1yc6G00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 120 — Jelly Rolls |
| 同源超家族 H-superfamily homologous superfamily | 220 — Satellite virus coat domain |
| 结构域编号 domain_id | 1yc6H00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 120 — Jelly Rolls |
| 同源超家族 H-superfamily homologous superfamily | 220 — Satellite virus coat domain |
| 结构域编号 domain_id | 1yc6I00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 120 — Jelly Rolls |
| 同源超家族 H-superfamily homologous superfamily | 220 — Satellite virus coat domain |
| 结构域编号 domain_id | 1yc6J00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 120 — Jelly Rolls |
| 同源超家族 H-superfamily homologous superfamily | 220 — Satellite virus coat domain |
| 结构域编号 domain_id | 1yc6K00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 120 — Jelly Rolls |
| 同源超家族 H-superfamily homologous superfamily | 220 — Satellite virus coat domain |
| 结构域编号 domain_id | 1yc6L00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 120 — Jelly Rolls |
| 同源超家族 H-superfamily homologous superfamily | 220 — Satellite virus coat domain |
| 结构域编号 domain_id | 1yc6M00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 120 — Jelly Rolls |
| 同源超家族 H-superfamily homologous superfamily | 220 — Satellite virus coat domain |
| 结构域编号 domain_id | 1yc6N00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 120 — Jelly Rolls |
| 同源超家族 H-superfamily homologous superfamily | 220 — Satellite virus coat domain |
| 结构域编号 domain_id | 1yc6O00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 120 — Jelly Rolls |
| 同源超家族 H-superfamily homologous superfamily | 220 — Satellite virus coat domain |
| 结构域编号 domain_id | 1yc6P00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 120 — Jelly Rolls |
| 同源超家族 H-superfamily homologous superfamily | 220 — Satellite virus coat domain |
| 结构域编号 domain_id | 1yc6Q00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 120 — Jelly Rolls |
| 同源超家族 H-superfamily homologous superfamily | 220 — Satellite virus coat domain |
| 结构域编号 domain_id | 1yc6R00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 120 — Jelly Rolls |
| 同源超家族 H-superfamily homologous superfamily | 220 — Satellite virus coat domain |
| 结构域编号 domain_id | 1yc6S00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 120 — Jelly Rolls |
| 同源超家族 H-superfamily homologous superfamily | 220 — Satellite virus coat domain |
| 结构域编号 domain_id | 1yc6T00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 120 — Jelly Rolls |
| 同源超家族 H-superfamily homologous superfamily | 220 — Satellite virus coat domain |
| 结构域编号 domain_id | 1yc6U00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 120 — Jelly Rolls |
| 同源超家族 H-superfamily homologous superfamily | 220 — Satellite virus coat domain |
| 结构域编号 domain_id | 1yc6V00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 120 — Jelly Rolls |
| 同源超家族 H-superfamily homologous superfamily | 220 — Satellite virus coat domain |
| 结构域编号 domain_id | 1yc6W00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 120 — Jelly Rolls |
| 同源超家族 H-superfamily homologous superfamily | 220 — Satellite virus coat domain |
| 结构域编号 domain_id | 1yc6X00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 120 — Jelly Rolls |
| 同源超家族 H-superfamily homologous superfamily | 220 — Satellite virus coat domain |
| 结构域编号 domain_id | 1yc6Y00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 120 — Jelly Rolls |
| 同源超家族 H-superfamily homologous superfamily | 220 — Satellite virus coat domain |
| 结构域编号 domain_id | 1yc6Z00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 120 — Jelly Rolls |
| 同源超家族 H-superfamily homologous superfamily | 220 — Satellite virus coat domain |
