1yhu
Crystal structure of Riftia pachyptila C1 hemoglobin reveals novel assembly of 24 subunits.
SAXS 散射曲线 SAXS Profile
P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 1yhu |
| 沉积日期 deposition_date | 2005-01-10 |
| 结构标题 title | Crystal structure of Riftia pachyptila C1 hemoglobin reveals novel assembly of 24 subunits. |
| 关键词 keywords | hemoglobin, globin fold, OXYGEN STORAGE-TRANSPORT COMPLEX; OXYGEN STORAGE/TRANSPORT |
| 实验方法 method | X-RAY DIFFRACTION |

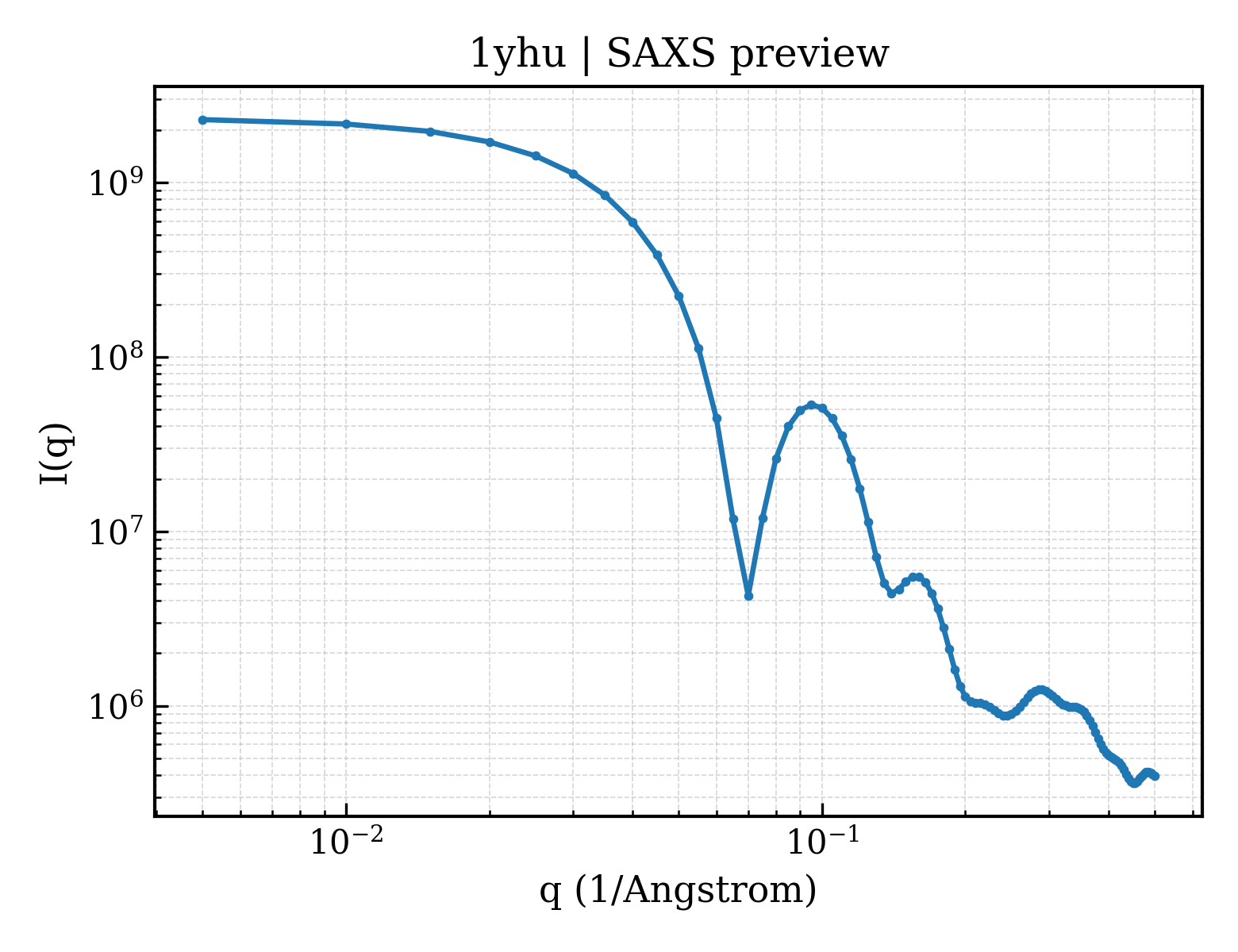

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 48.45 Å |
| 回转半径 Rg (电子) rg_electron | 47.57 Å |
| 零角强度 I(0) i0 | 2331200000.00 |
| 分子量 molecular_weight | 396280.0 kDa |
| 排除体积 excluded_volume | 492260 ų |
| 包络体积 envelope_volume | 701080 ų |
| 水化壳体积 shell_volume | 117870 ų |
| 包络直径 envelope_diameter | 134.6 Å |
| 壳层 Rg shell_rg | 57.64 Å |
| 包络 Rg envelope_rg | 44.62 Å |
| 形状 Rg shape_rg | 47.58 Å |
| 总 Rg total_rg | 47.87 Å |
| 总原子数 total_atoms | 27804 |
| 残基数 n_residues | 3516 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |

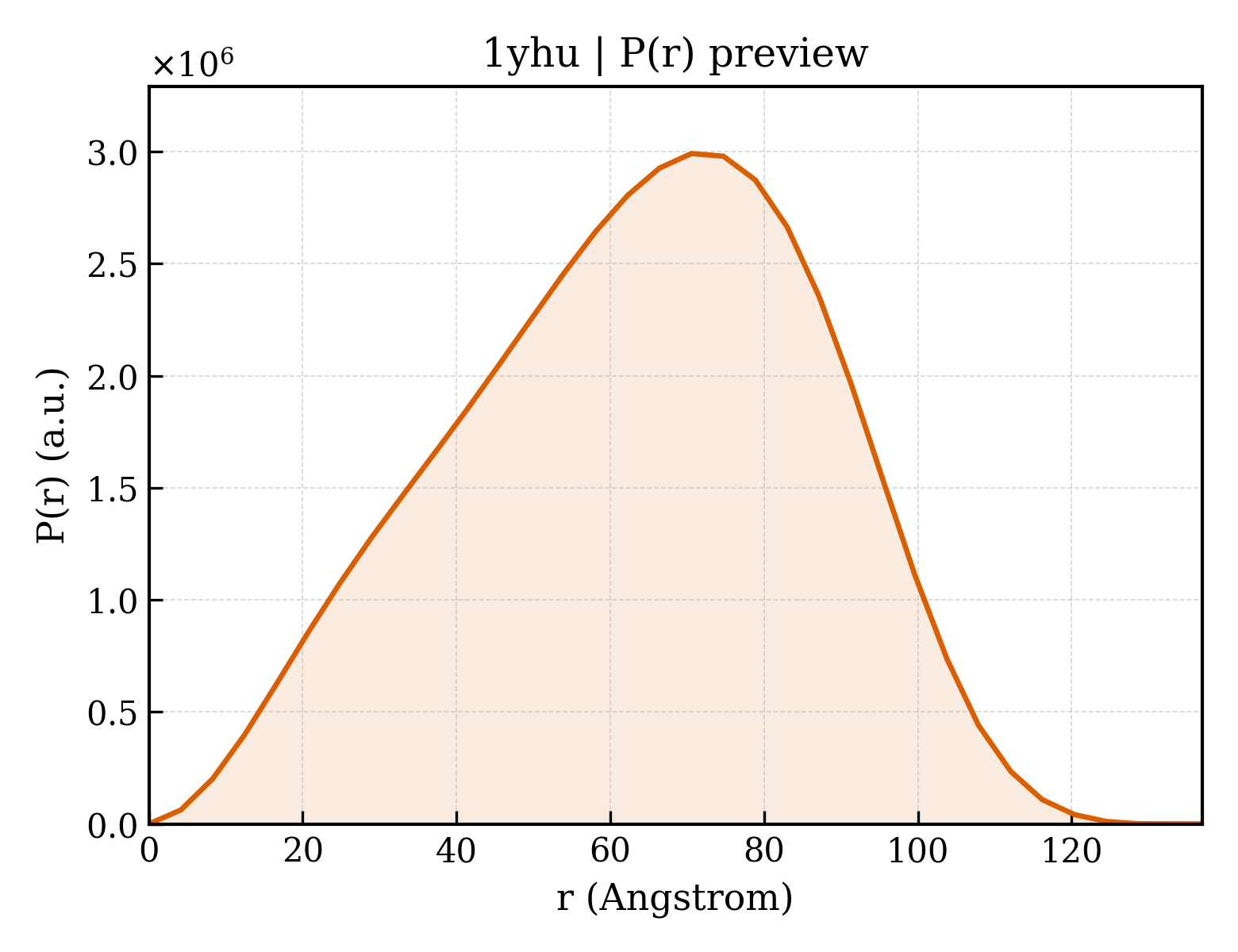

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 137.0 Å |
| Rg (实空间) rg_real | 47.84 Å |
| Rg 误差 (实空间) rg_real_error | 0.46 Å |
| I(0) (实空间) i0_real | 2.3310e+09 |
| I(0) 误差 (实空间) i0_real_error | 3.5520e+07 |
| Rg (倒空间) rg_reciprocal | 48.44 Å |
| I(0) (倒空间) i0_reciprocal | 2333000000.0000 |
| 解质量估计 total_estimate | 0.6573 |
| 解质量评级 solution_quality | REASONABLE a REASONABLE solution |
| P(r) 峰数 n_peaks | 1 |
| 主峰位置 r_peak_primary | 70.6 Å |
| 偏度 Skewness skewness | -0.200 |
| 峰度 Kurtosis kurtosis | -0.604 |
| 角度范围 angular_range | — – 0.1650 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 448200000.0000 |
| 实空间数据点数 n_real_points | 34 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.885; Stabil: 1.000; Sysdev: 0.044; Positv: 1.000; Valcen: 0.952; Smooth: 0.801 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (7)
6. 折叠分类 (SCOP + CATH) 42 domains
SCOP 2.08 (18 domains)
| 结构域编号 domain_id | d1yhua_ |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.1 — Globin-like |
| 超家族 Superfamily superfamily | a.1.1 — Globin-like |
| 家族 Family family | a.1.1.0 — automated matches |
| 结构域编号 domain_id | d1yhub_ |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.1 — Globin-like |
| 超家族 Superfamily superfamily | a.1.1 — Globin-like |
| 家族 Family family | a.1.1.0 — automated matches |
| 结构域编号 domain_id | d1yhud_ |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.1 — Globin-like |
| 超家族 Superfamily superfamily | a.1.1 — Globin-like |
| 家族 Family family | a.1.1.0 — automated matches |
| 结构域编号 domain_id | d1yhue_ |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.1 — Globin-like |
| 超家族 Superfamily superfamily | a.1.1 — Globin-like |
| 家族 Family family | a.1.1.0 — automated matches |
| 结构域编号 domain_id | d1yhuf_ |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.1 — Globin-like |
| 超家族 Superfamily superfamily | a.1.1 — Globin-like |
| 家族 Family family | a.1.1.0 — automated matches |
| 结构域编号 domain_id | d1yhuh_ |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.1 — Globin-like |
| 超家族 Superfamily superfamily | a.1.1 — Globin-like |
| 家族 Family family | a.1.1.0 — automated matches |
| 结构域编号 domain_id | d1yhui_ |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.1 — Globin-like |
| 超家族 Superfamily superfamily | a.1.1 — Globin-like |
| 家族 Family family | a.1.1.0 — automated matches |
| 结构域编号 domain_id | d1yhuj_ |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.1 — Globin-like |
| 超家族 Superfamily superfamily | a.1.1 — Globin-like |
| 家族 Family family | a.1.1.0 — automated matches |
| 结构域编号 domain_id | d1yhul_ |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.1 — Globin-like |
| 超家族 Superfamily superfamily | a.1.1 — Globin-like |
| 家族 Family family | a.1.1.0 — automated matches |
| 结构域编号 domain_id | d1yhum_ |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.1 — Globin-like |
| 超家族 Superfamily superfamily | a.1.1 — Globin-like |
| 家族 Family family | a.1.1.0 — automated matches |
| 结构域编号 domain_id | d1yhun_ |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.1 — Globin-like |
| 超家族 Superfamily superfamily | a.1.1 — Globin-like |
| 家族 Family family | a.1.1.0 — automated matches |
| 结构域编号 domain_id | d1yhup_ |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.1 — Globin-like |
| 超家族 Superfamily superfamily | a.1.1 — Globin-like |
| 家族 Family family | a.1.1.0 — automated matches |
| 结构域编号 domain_id | d1yhuq_ |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.1 — Globin-like |
| 超家族 Superfamily superfamily | a.1.1 — Globin-like |
| 家族 Family family | a.1.1.0 — automated matches |
| 结构域编号 domain_id | d1yhur_ |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.1 — Globin-like |
| 超家族 Superfamily superfamily | a.1.1 — Globin-like |
| 家族 Family family | a.1.1.0 — automated matches |
| 结构域编号 domain_id | d1yhut_ |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.1 — Globin-like |
| 超家族 Superfamily superfamily | a.1.1 — Globin-like |
| 家族 Family family | a.1.1.0 — automated matches |
| 结构域编号 domain_id | d1yhuu_ |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.1 — Globin-like |
| 超家族 Superfamily superfamily | a.1.1 — Globin-like |
| 家族 Family family | a.1.1.0 — automated matches |
| 结构域编号 domain_id | d1yhuv_ |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.1 — Globin-like |
| 超家族 Superfamily superfamily | a.1.1 — Globin-like |
| 家族 Family family | a.1.1.0 — automated matches |
| 结构域编号 domain_id | d1yhux_ |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.1 — Globin-like |
| 超家族 Superfamily superfamily | a.1.1 — Globin-like |
| 家族 Family family | a.1.1.0 — automated matches |
CATH v4.4 (24 domains)
| 结构域编号 domain_id | 1yhuA00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 490 — Globin-like |
| 同源超家族 H-superfamily homologous superfamily | 10 — Globins |
| 结构域编号 domain_id | 1yhuB00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 490 — Globin-like |
| 同源超家族 H-superfamily homologous superfamily | 10 — Globins |
| 结构域编号 domain_id | 1yhuC00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 490 — Globin-like |
| 同源超家族 H-superfamily homologous superfamily | 10 — Globins |
| 结构域编号 domain_id | 1yhuD00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 490 — Globin-like |
| 同源超家族 H-superfamily homologous superfamily | 10 — Globins |
| 结构域编号 domain_id | 1yhuE00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 490 — Globin-like |
| 同源超家族 H-superfamily homologous superfamily | 10 — Globins |
| 结构域编号 domain_id | 1yhuF00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 490 — Globin-like |
| 同源超家族 H-superfamily homologous superfamily | 10 — Globins |
| 结构域编号 domain_id | 1yhuG00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 490 — Globin-like |
| 同源超家族 H-superfamily homologous superfamily | 10 — Globins |
| 结构域编号 domain_id | 1yhuH00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 490 — Globin-like |
| 同源超家族 H-superfamily homologous superfamily | 10 — Globins |
| 结构域编号 domain_id | 1yhuI00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 490 — Globin-like |
| 同源超家族 H-superfamily homologous superfamily | 10 — Globins |
| 结构域编号 domain_id | 1yhuJ00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 490 — Globin-like |
| 同源超家族 H-superfamily homologous superfamily | 10 — Globins |
| 结构域编号 domain_id | 1yhuK00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 490 — Globin-like |
| 同源超家族 H-superfamily homologous superfamily | 10 — Globins |
| 结构域编号 domain_id | 1yhuL00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 490 — Globin-like |
| 同源超家族 H-superfamily homologous superfamily | 10 — Globins |
| 结构域编号 domain_id | 1yhuM00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 490 — Globin-like |
| 同源超家族 H-superfamily homologous superfamily | 10 — Globins |
| 结构域编号 domain_id | 1yhuN00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 490 — Globin-like |
| 同源超家族 H-superfamily homologous superfamily | 10 — Globins |
| 结构域编号 domain_id | 1yhuO00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 490 — Globin-like |
| 同源超家族 H-superfamily homologous superfamily | 10 — Globins |
| 结构域编号 domain_id | 1yhuP00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 490 — Globin-like |
| 同源超家族 H-superfamily homologous superfamily | 10 — Globins |
| 结构域编号 domain_id | 1yhuQ00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 490 — Globin-like |
| 同源超家族 H-superfamily homologous superfamily | 10 — Globins |
| 结构域编号 domain_id | 1yhuR00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 490 — Globin-like |
| 同源超家族 H-superfamily homologous superfamily | 10 — Globins |
| 结构域编号 domain_id | 1yhuS00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 490 — Globin-like |
| 同源超家族 H-superfamily homologous superfamily | 10 — Globins |
| 结构域编号 domain_id | 1yhuT00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 490 — Globin-like |
| 同源超家族 H-superfamily homologous superfamily | 10 — Globins |
| 结构域编号 domain_id | 1yhuU00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 490 — Globin-like |
| 同源超家族 H-superfamily homologous superfamily | 10 — Globins |
| 结构域编号 domain_id | 1yhuV00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 490 — Globin-like |
| 同源超家族 H-superfamily homologous superfamily | 10 — Globins |
| 结构域编号 domain_id | 1yhuW00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 490 — Globin-like |
| 同源超家族 H-superfamily homologous superfamily | 10 — Globins |
| 结构域编号 domain_id | 1yhuX00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 490 — Globin-like |
| 同源超家族 H-superfamily homologous superfamily | 10 — Globins |
