SAXSdb — 1yi1

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Acetolactate synthase

Arabidopsis thaliana

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	MAGNESIUM ION × 4 METHYL 2-[4-METHOXY-6-METHYL-1,3,5-TRAZIN-2-YL(METHYL)CARBAMOYLSULFAMOYL]BENZOATE × 4 2-[N-CYCLOHEXYLAMINO]ETHANE SULFONIC ACID × 4 ETHYL DIHYDROGEN DIPHOSPHATE × 4 FLAVIN-ADENINE DINUCLEOTIDE × 4 water × 4	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	MAGNESIUM ION × 2 METHYL 2-[4-METHOXY-6-METHYL-1,3,5-TRAZIN-2-YL(METHYL)CARBAMOYLSULFAMOYL]BENZOATE × 2 2-[N-CYCLOHEXYLAMINO]ETHANE SULFONIC ACID × 2 ETHYL DIHYDROGEN DIPHOSPHATE × 2 FLAVIN-ADENINE DINUCLEOTIDE × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ILVB_ARATH
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–582； UniProt 86–667

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1yi1
Deposition date deposition_date	2005-01-10
Structure title title	Crystal structure of Arabidopsis thaliana Acetohydroxyacid synthase In Complex With A Sulfonylurea Herbicide, Tribenuron methyl
Keywords keywords	;Acetohydroxyacid synthase, acetolactate synthase, herbicide, sulfonylurea, thiamin diphosphate, FAD, inhibitor, cysteine-s-dioxide, CHES, tribenuron methyl, Transferase ;; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1yi1__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1yi1__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

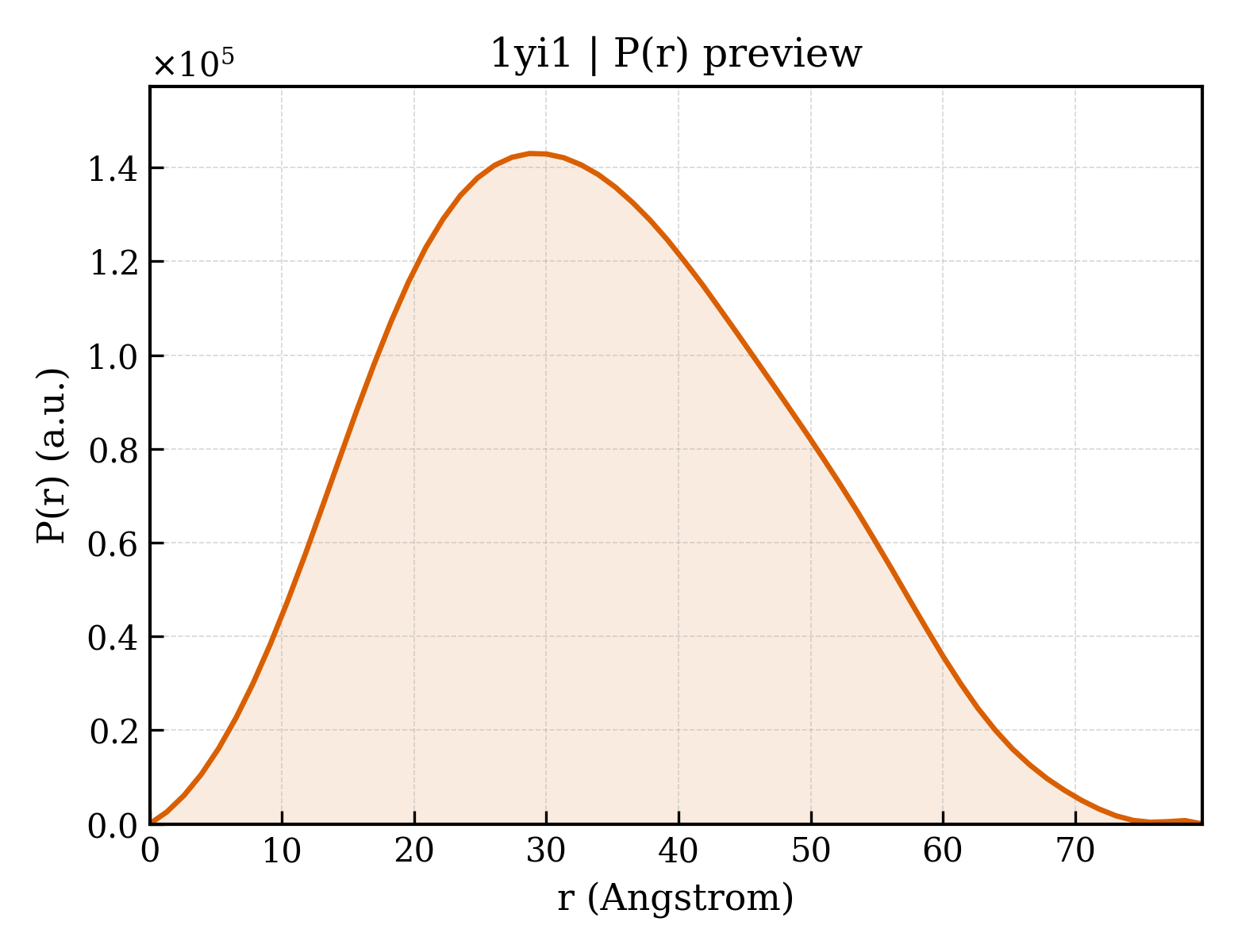

1yi1__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	39.73 Å
Rg (electron density)	39.16 Å
Total Rg	39.43 Å
Atom count	18092
Residues	2324
Excluded volume	321350 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1yi1__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1yi1__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	Acetolactate synthase
Molecular weight formula_weight	64591.7 kDa
EC 编号 ec_number	2.2.1.6
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4727

TFISRFAPDQPRKGADILVEALERQGVETVFAYPGGASMEIHQALTRSSSIRNVLPRHEQGGVFAAEGYARSSGKPGICIATSGPGATNLVSGLADALLDSVPLVAITGQVPRRMIGTDAFQETPIVEVTRSITKHNYLVMDVEDIPRIIEEAFFLATSGRPGPVLVDVPKDIQQQLAIPNWEQAMRLPGYMSRMPKPPEDSHLEQIVRLISESKKPVLYVGGGCLNSSDELGRFVELTGIPVASTLMGLGSYPCDDELSLHMLGMHGTVYANYAVEHSDLLLAFGVRFDDRVTGKLEAFASRAKIVHIDIDSAEIGKNKTPHVSVCGDVKLALQGMNKVLENRAEELKLDFGVWRNELNVQKQKFPLSFKTFGEAIPPQYAIKVLDELTDGKAIISTGVGQHQMWAAQFYNYKKPRQWLSSGGLGAMGFGLPAAIGASVANPDAIVVDIDGDGSFIMNVQELATIRVENLPVKVLLLNNQHLGMVMQWEDRFYKANRAHTFLGDPAQEDEIFPNMLLFAAACGIPAARVTKKADLREAIQTMLDTPGPYLLDVICPHQEHVLPMIPSGGTFNDVITEGDGRLEHHHHHH

Source Source

Source organism organism	Arabidopsis thaliana
Common name common_name	thale cress
NCBI taxonomy ID ncbi_taxonomy_id	3702
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	METHYL 2-[4-METHOXY-6-METHYL-1,3,5-TRAZIN-2-YL(METHYL)CARBAMOYLSULFAMOYL]BENZOATE
Molecular weight formula_weight	395.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	2-[N-CYCLOHEXYLAMINO]ETHANE SULFONIC ACID
Molecular weight formula_weight	207.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	ETHYL DIHYDROGEN DIPHOSPHATE
Molecular weight formula_weight	206.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	FLAVIN-ADENINE DINUCLEOTIDE
Molecular weight formula_weight	785.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	204

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d1yi1a1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.31 — DHS-like NAD/FAD-binding domain
Superfamily Superfamily superfamily	c.31.1 — DHS-like NAD/FAD-binding domain
Family Family family	c.31.1.3 — Pyruvate oxidase and decarboxylase, middle domain

Domain ID domain_id	d1yi1a2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.36 — Thiamin diphosphate-binding fold (THDP-binding)
Superfamily Superfamily superfamily	c.36.1 — Thiamin diphosphate-binding fold (THDP-binding)
Family Family family	c.36.1.5 — Pyruvate oxidase and decarboxylase Pyr module

Domain ID domain_id	d1yi1a3
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.36 — Thiamin diphosphate-binding fold (THDP-binding)
Superfamily Superfamily superfamily	c.36.1 — Thiamin diphosphate-binding fold (THDP-binding)
Family Family family	c.36.1.9 — Pyruvate oxidase and decarboxylase PP module

CATH v4.4 (3 domains)

Domain ID domain_id	1yi1A01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	970 — Thiamin diphosphate (ThDP)-binding fold, Pyr/PP domains

Domain ID domain_id	1yi1A02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1220 — TPP-binding domain

Domain ID domain_id	1yi1A03
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	970 — Thiamin diphosphate (ThDP)-binding fold, Pyr/PP domains

▶

Unit-cell length a length_a	179.060 Å
Unit-cell length b length_b	179.060 Å
Unit-cell length c length_c	186.145 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 64 2 2
Space-group number int_tables_number	181
Crystal system crystal_system	—

Resolution resolution	2.900 Å
Low-resolution limit resolution_low	50.000 Å
R factor r_factor	0.1906
R_work r_work	0.1868
R_free r_free	0.2250

Crystal structure of Arabidopsis thaliana Acetohydroxyacid synthase In Complex With A Sulfonylurea Herbicide, Tribenuron methyl
