SAXSdb — 1z8n

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1z8n
沉积日期 deposition_date	2005-03-31
结构标题 title	Crystal structure of Arabidopsis thaliana Acetohydroxyacid synthase In Complex With An Imidazolinone Herbicide, Imazaquin
关键词 keywords	;Acetohydroxyacid synthase, acetolactate synthase, herbicide, imidazolinone, thiamin diphosphate, FAD, inhibitor, cysteine-s-dioxide, CHES, Transferase ;; TRANSFERASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	25.83 Å
回转半径 Rg (电子) rg_electron	24.96 Å
零角强度 I(0) i0	69940800.00
分子量 molecular_weight	65047.0 kDa
排除体积 excluded_volume	81220 Å³
包络体积 envelope_volume	94061 Å³
水化壳体积 shell_volume	30839 Å³
包络直径 envelope_diameter	81.7 Å
壳层 Rg shell_rg	32.90 Å
包络 Rg envelope_rg	25.26 Å
形状 Rg shape_rg	24.98 Å
总 Rg total_rg	25.74 Å
总原子数 total_atoms	4569
残基数 n_residues	581
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	79.3 Å
Rg (实空间) rg_real	25.75 Å
Rg 误差 (实空间) rg_real_error	0.45 Å
I(0) (实空间) i0_real	6.9940e+07
I(0) 误差 (实空间) i0_real_error	9.2140e+05
Rg (倒空间) rg_reciprocal	25.78 Å
I(0) (倒空间) i0_reciprocal	69940000.0000
解质量估计 total_estimate	0.7020
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	28.6 Å
偏度 Skewness skewness	0.223
峰度 Kurtosis kurtosis	-0.561
角度范围 angular_range	— – 0.3050 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	18270000.0000
实空间数据点数 n_real_points	62
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.955; Stabil: 1.000; Sysdev: 0.105; Positv: 1.000; Valcen: 1.000; Smooth: 0.944

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (7)

Entity 1 polymer

描述 description	Acetolactate synthase
分子量 formula_weight	64591.7 kDa
EC 编号 ec_number	2.2.1.6
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	4856

TFISRFAPDQPRKGADILVEALERQGVETVFAYPGGASMEIHQALTRSSSIRNVLPRHEQGGVFAAEGYARSSGKPGICIATSGPGATNLVSGLADALLDSVPLVAITGQVPRRMIGTDAFQETPIVEVTRSITKHNYLVMDVEDIPRIIEEAFFLATSGRPGPVLVDVPKDIQQQLAIPNWEQAMRLPGYMSRMPKPPEDSHLEQIVRLISESKKPVLYVGGGCLNSSDELGRFVELTGIPVASTLMGLGSYPCDDELSLHMLGMHGTVYANYAVEHSDLLLAFGVRFDDRVTGKLEAFASRAKIVHIDIDSAEIGKNKTPHVSVCGDVKLALQGMNKVLENRAEELKLDFGVWRNELNVQKQKFPLSFKTFGEAIPPQYAIKVLDELTDGKAIISTGVGQHQMWAAQFYNYKKPRQWLSSGGLGAMGFGLPAAIGASVANPDAIVVDIDGDGSFIMNVQELATIRVENLPVKVLLLNNQHLGMVMQWEDRFYKANRAHTFLGDPAQEDEIFPNMLLFAAACGIPAARVTKKADLREAIQTMLDTPGPYLLDVICPHQEHVLPMIPSGGTFNDVITEGDGRLEHHHHHH

来源 Source

来源生物 organism	Arabidopsis thaliana
通用名 common_name	thale cress
NCBI 分类编号 ncbi_taxonomy_id	3702
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 3 non-polymer

描述 description	2-(4-ISOPROPYL-4-METHYL-5-OXO-4,5-DIHYDRO-1H-IMIDAZOL-2-YL)QUINOLINE-3-CARBOXYLIC ACID
分子量 formula_weight	311.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 4 non-polymer

描述 description	2-[N-CYCLOHEXYLAMINO]ETHANE SULFONIC ACID
分子量 formula_weight	207.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 5 non-polymer

描述 description	FLAVIN-ADENINE DINUCLEOTIDE
分子量 formula_weight	785.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 6 non-polymer

描述 description	THIAMINE DIPHOSPHATE
分子量 formula_weight	425.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 7 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	287

▼

6. 折叠分类 (SCOP + CATH) 6 domains

SCOP 2.08 (3 domains)

结构域编号 domain_id	d1z8na1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.31 — DHS-like NAD/FAD-binding domain
超家族 Superfamily superfamily	c.31.1 — DHS-like NAD/FAD-binding domain
家族 Family family	c.31.1.3 — Pyruvate oxidase and decarboxylase, middle domain

结构域编号 domain_id	d1z8na2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.36 — Thiamin diphosphate-binding fold (THDP-binding)
超家族 Superfamily superfamily	c.36.1 — Thiamin diphosphate-binding fold (THDP-binding)
家族 Family family	c.36.1.5 — Pyruvate oxidase and decarboxylase Pyr module

结构域编号 domain_id	d1z8na3
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.36 — Thiamin diphosphate-binding fold (THDP-binding)
超家族 Superfamily superfamily	c.36.1 — Thiamin diphosphate-binding fold (THDP-binding)
家族 Family family	c.36.1.9 — Pyruvate oxidase and decarboxylase PP module

CATH v4.4 (3 domains)

结构域编号 domain_id	1z8nA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	970 — Thiamin diphosphate (ThDP)-binding fold, Pyr/PP domains

结构域编号 domain_id	1z8nA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1220 — TPP-binding domain

结构域编号 domain_id	1z8nA03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	970 — Thiamin diphosphate (ThDP)-binding fold, Pyr/PP domains

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	179.081 Å
晶胞边长 b length_b	179.081 Å
晶胞边长 c length_c	186.077 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	120.00 °
晶胞分子数 Z z_pdb	12

空间群 space_group	P 64 2 2
空间群编号 int_tables_number	181
晶系 crystal_system	—

分辨率 resolution	2.800 Å
最低分辨率 resolution_low	50.000 Å
R 因子 r_factor	0.2004
R_work r_work	0.1987
R_free r_free	0.2157

fit	/app/data/saxs_computation/z8/1z8n/1z8n.fit
pddf	/app/data/pr_computation/z8/1z8n/1z8n.pr.out
profile	/app/data/saxs_computation/z8/1z8n/1z8n.dat

Crystal structure of Arabidopsis thaliana Acetohydroxyacid synthase In Complex With An Imidazolinone Herbicide, Imazaquin

SAXS 散射曲线 SAXS Profile

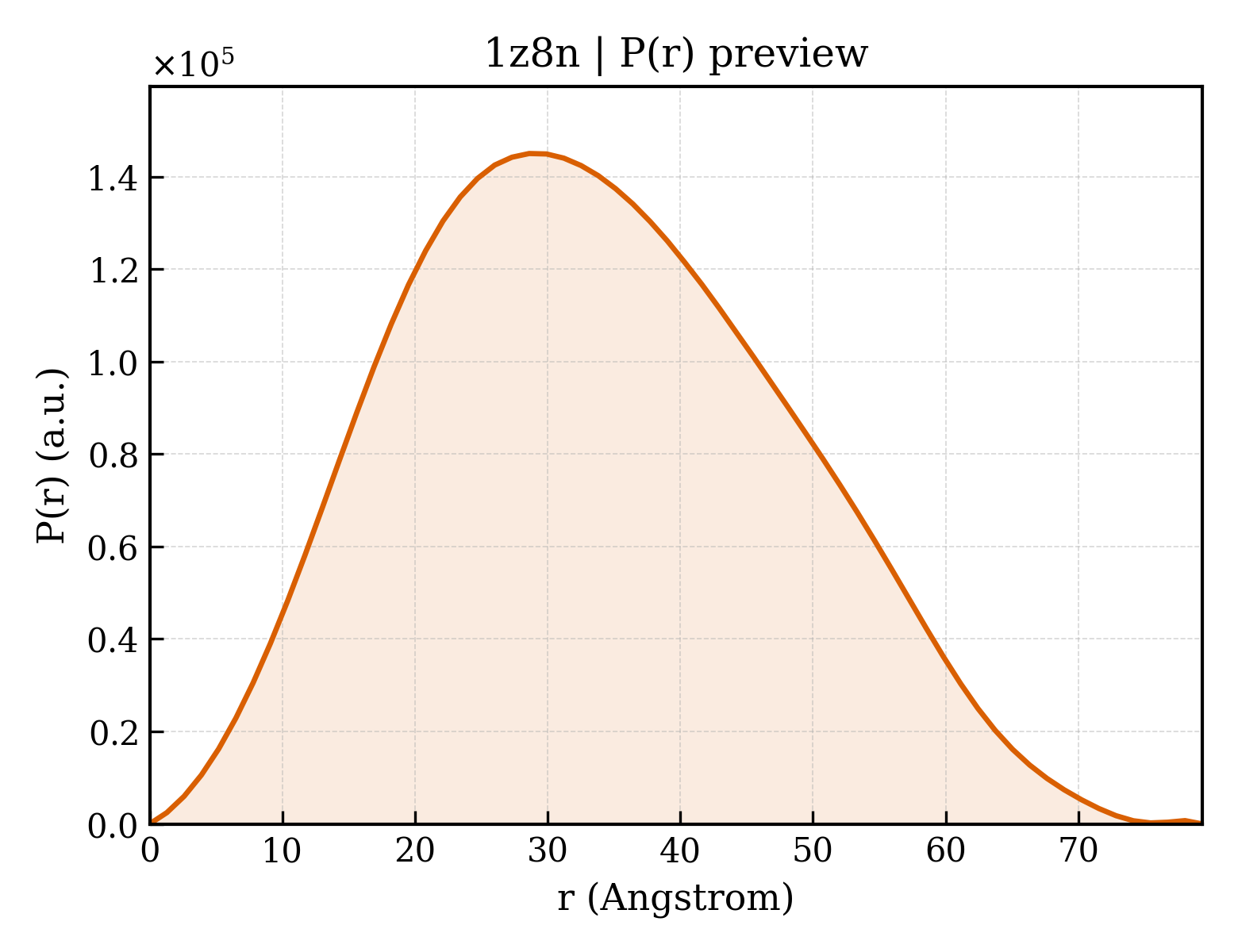

P(r) 距离分布 P(r) Distribution
