1ynn

Taq RNA polymerase-rifampicin complex

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DNA-directed RNA polymerase alpha chain

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	DNA-directed RNA polymerase beta chain × 1 （Q9KWU7） ;DNA-directed RNA polymerase beta' chain ; × 2 （Q9KWU6） DNA-directed RNA polymerase omega chain × 1 （Q9EVV4） RIFAMPICIN × 1 ZINC ION × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RPOA_THEAQ
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–314； UniProt 1–314 Author chain B； PDBConstruct 1–314； UniProt 1–314

DNA-directed RNA polymerase beta chain

OrganismNot specified

UniProt Q9KWU7

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	DNA-directed RNA polymerase alpha chain × 2 （Q9KWU8） ;DNA-directed RNA polymerase beta' chain ; × 2 （Q9KWU6） DNA-directed RNA polymerase omega chain × 1 （Q9EVV4） RIFAMPICIN × 1 ZINC ION × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RPOB_THEAQ
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–1119； UniProt 1–1119

;DNA-directed RNA polymerase beta' chain ;

OrganismNot specified

UniProt Q9KWU6

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	DNA-directed RNA polymerase alpha chain × 2 （Q9KWU8） DNA-directed RNA polymerase beta chain × 1 （Q9KWU7） DNA-directed RNA polymerase omega chain × 1 （Q9EVV4） RIFAMPICIN × 1 ZINC ION × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RPOC_THEAQ
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain D； PDBConstruct 1–1524； UniProt 1–1524 Author chain J； PDBConstruct 1–1524； UniProt 1–1524

DNA-directed RNA polymerase omega chain

OrganismNot specified

UniProt Q9EVV4

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	DNA-directed RNA polymerase alpha chain × 2 （Q9KWU8） DNA-directed RNA polymerase beta chain × 1 （Q9KWU7） ;DNA-directed RNA polymerase beta' chain ; × 2 （Q9KWU6） RIFAMPICIN × 1 ZINC ION × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RPOZ_THEAQ
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain K； PDBConstruct 1–99； UniProt 0–98

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ynn
Deposition date deposition_date	2005-01-24
Structure title title	Taq RNA polymerase-rifampicin complex
Keywords keywords	TRANSFERASE, RNA polymerase, RIFAMPICIN; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1ynn__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1ynn__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

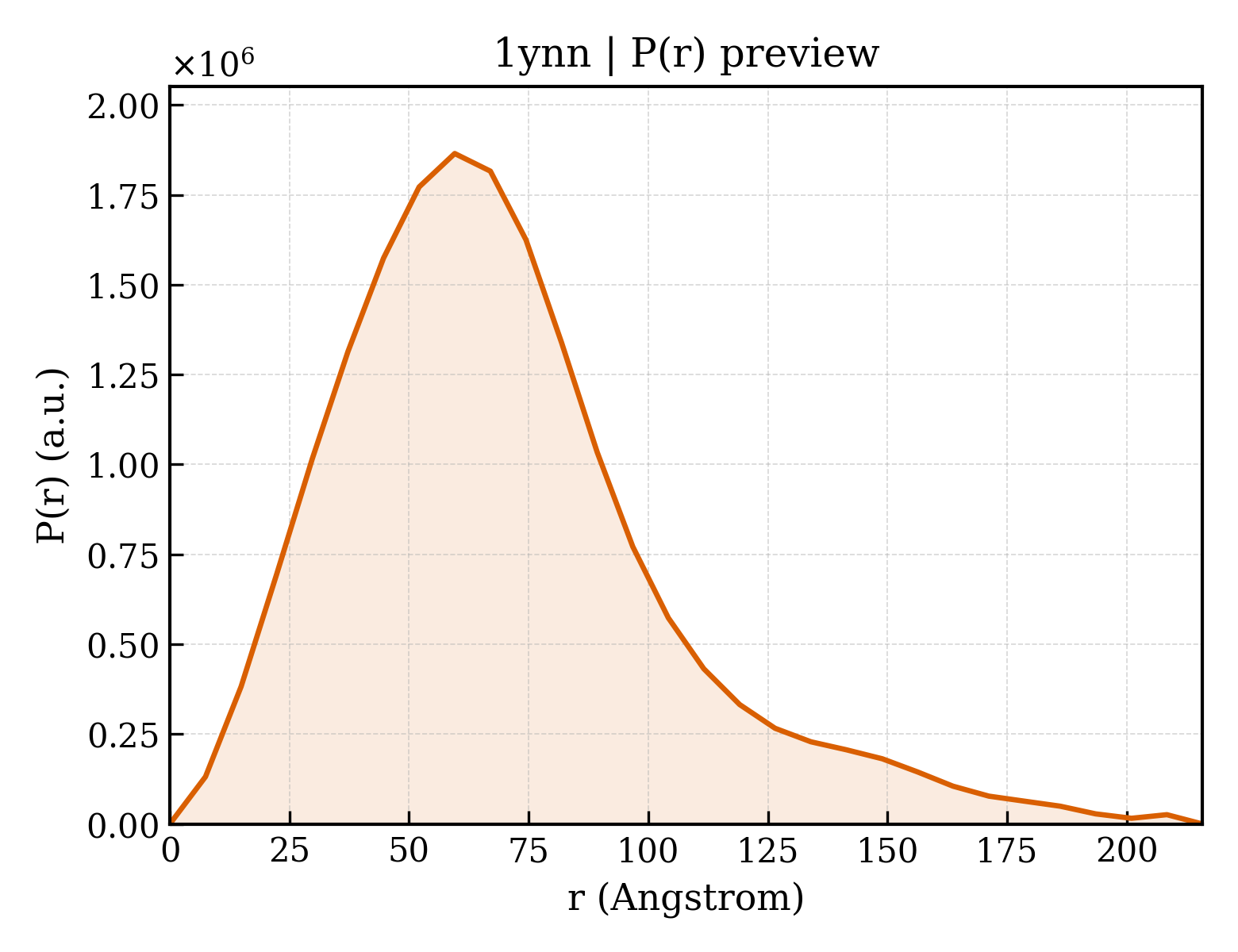

1ynn__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	53.82 Å
Rg (electron density)	54.57 Å
Total Rg	54.50 Å
Atom count	24368
Residues	3151
Excluded volume	434520 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1ynn__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	DNA-directed RNA polymerase alpha chain
Molecular weight formula_weight	34830.9 kDa
EC 编号 ec_number	2.7.7.6
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	24368

MLESKLKAPVFTATTQGDHYGEFVLEPLERGFGVTLGNPLRRILLSSIPGTAVTSVYIEDVLHEFSTIPGVKEDVVEIILNLKELVVRFLDPKMASTTLILRAEGPKEVRAGDFTPSADVEIMNPDLHIATLEEGGKLYMEVRVDRGVGYVPAERHGIKDRINAIPVDAIFSPVRRVAFQVEDTRLGQRTDLDKLTLRIWTDGSVTPLEALNQAVAILKEHLNYFANPEASLLPTPEVSKGEKRESAEEDLDLPLEELGLSTRVLHSLKEEGIESVRALLALNLKDLRNIPGIGERSLEEIRQALAKKGFTLKE

Entity 2 Entity 2 polymer

Description description	DNA-directed RNA polymerase beta chain
Molecular weight formula_weight	124930.0 kDa
EC 编号 ec_number	2.7.7.6
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MEIKRFGRIREVIPLPPLTEIQVESYKKALQADVPPEKRENVGIQAAFKETFPIEEGDKGKGGLVLDFLEYRIGDPPFSQDECREKDLTYQAPLYARLQLIHKDTGLIKEDEVFLGHLPLMTEDGSFIINGADRVIVSQIHRSPGVYFTPDPARPGRYIASIIPLPKRGPWIDLEVEASGVVTMKVNKRKFPLVLLLRVLGYDQETLVRELSAYGDLVQGLLDEAVLAMRPEEAMVRLFTLLRPGDPPKKDKALAYLFGLLADPKRYDLGEAGRYKAEEKLGVGLSGRTLVRFEDGEFKDEVFLPTLRYLFALTAGVPGHEVDDIDHLGNRRIRTVGELMADQFRVGLARLARGVRERMVMGSPDTLTPAKLVNSRPLEAALREFFSRSQLSQFKDETNPLSSLRHKRRISALGPGGLTRERAGFDVRDVHRTHYGRICPVETPEGANIGLITSLAAYARVDALGFIRTPYRRVKNGVVTEEVVYMTASEEDRYTIAQANTPLEGDRIATDRVVARRRGEPVIVAPEEVEFMDVSPKQVFSLNTNLIPFLEHDDANRALMGSNMQTQAVPLIRAQAPVVMTGLEERVVRDSLAALYAEEDGEVVKVDGTRIAVRYEDGRLVEHPLRRYARSNQGTAFDQRPRVRVGQRVKKGDLLADGPASEEGFLALGQNVLVAIMPFDGYNFEDAIVISEELLKRDFYTSIHIERYEIEARDTKLGPERITRDIPHLSEAALRDLDEEGIVRIGAEVKPGDILVGRTSFKGEQEPSPEERLLRSIFGEKARDVKDTSLRVPPGEGGIVVGRLRLRRGDPGVELKPGVREVVRVFVAQKRKLQVGDKLANRHGNKGVVAKILPVEDMPHLPDGTPVDVILNPLGVPSRMNLGQILETHLGLAGYFLGQRYISPVFDGATEPEIKELLAEAFNLYFGKRQGEGFGVDKREKEVLARAEKLGLVSPGKSPEEQLKELFDLGKVVLYDGRTGEPFEGPIVVGQMFIMKLYHMVEDKMHARSTGPYSLITQQPLGGKAQFGGQRFGEMEVWALEAYGAAHTLQEMLTIKSDDIEGRNAAYQAIIKGEDVPEPSVPESFRVLVKELQALALDVQTLDEKDNPVDIFEGLASKR

Entity 3 Entity 3 polymer

Description description	;DNA-directed RNA polymerase beta' chain ;
Molecular weight formula_weight	171187.5 kDa
EC 编号 ec_number	2.7.7.6
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,J

MKKEVRKVRIALASPEKIRSWSYGEVEKPETINYRTLKPERDGLFDERIFGPIKDYECACGKYKRQRFEGKVCERCGVEVTRSIVRRYRMGHIELATPAAHIWFVKDVPSKIGTLLDLSATELEQVLYFNKYIVLDPKGAVLDGVPVEKRQLLTDEEYRELRYGKQETYPLPAGVDALVKDGEEVVKGQELAPGVVSRMDGVALYRFPRRVRVDYLRKERAALRIPLSAWVEKEAYRPGEVLAELSEPYLFRAEESGVVELKDLAEGHLIYLRQEEEVVARYFLPAGMTPLVVEGEIVEVGQPLAEGKGLLRLPRHMTAKEVEAEEEGDSVHLTLFLEWTEPKDYKVAPHMNVIVPEGAKVQAGEKIVAAIDPEEEVIAEAEGVVHLHEPASILVVKARVYPFEDDVEVTTGDRVAPGDVLADGGKVKSEIYGRVEVDLVRNVVRVVESYDIDARMGAEAIQELLKELDLEKLERELLEEMKHPSRARRAKARKRLEVVRAFLDSGNRPEWMILEAVPVLPPDLRPMVQVDGGRFATSDLNDLYRRLINRNNRLKKLLAQGAPEIIIRNEKRMLQEAVDAVIDNGRRGSPVTNPGSERPLRSLTDILSGKQGRFRQNLLGKRVDYSGRSVIVVGPQLKLHQCGLPKRMALELFKPFLLKKMEEKAFAPNVKAARRMLERQRDIKDEVWDALEEVIHGKVVLLNRAPTLHRLGIQAFQPVLVEGQSIQLHPLVCEAFNADFDGDQMAVHVPLSSFAQAEARIQMLSAHNLLSPASGEPLAKPSRDIILGLYYITQVRKEKKGAGMAFATPEEALAAYERGEVALNAPIVVAGRETSVGRLKFVFANPDEALLAVAHGLLDLQDVVTVRYLGRRLETSPGRILFARIVGEAVGDEKVAQELIQMDVPQEKNSLKDLVYQAFLRLGMEKTARLLDALKYYGFTLSTTSGITIGIDDAVIPEEKQRYLEEADRKLRQIEQAYEMGFLTDRERYDQVIQLWTETTEKVTQAVFKNFEENYPFNPLYVMAQSGARGNPQQIRQLCGMRGLMQKPSGETFEVPVRSSFREGLTVLEYFISSHGARKGGADTALRTADSGYLTRKLVDVAHEIVVREADCGTTNYISVPLFQMDEVTRTLRLRKRSDIESGLYGRVLAREVEALGRRLEEGRYLSLEDVHFLIKAAEAGEVREVPVRSPLTCQTRYGVCQKCYGYDLSMARPVSIGEAVGVVAAESIGEPGTQLTMRTFHTGGVAVGTDITQGLPRVIELFEARRPKAKAVISEIDGVVRIEEGEDRLSVFVESEGFSKEYKLPKDARLLVKDGDYVEAGQPLTRGAIDPHQLLEAKGPEAVERYLVDEIQKVYRAQGVKLHDKHIEIVVRQMLKYVEVTDPGDSRLLEGQVLEKWDVEALNERLIAEGKVPVAWKPLLMGVTKSALSTKSWLSAASFQNTTHVLTEAAIAGKKDELIGLKENVILGRLIPAGTGSDFVRFTQVVDQRTLKAIEEARKEAVEAKEKEAPRRPVRREQPGKGL

Entity 4 Entity 4 polymer

Description description	DNA-directed RNA polymerase omega chain
Molecular weight formula_weight	11642.4 kDa
EC 编号 ec_number	2.7.7.6
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	K

MAEPGIDKLFGMVDSKYRLTVVVAKRAQQLLRHRFKNTVLEPEERPKMRTLEGLYDDPNAVTWAMKELLTGRLFFGENLVPEDRLQKEMERLYPTEEEA

Entity 5 Entity 5 non-polymer

Description description	RIFAMPICIN
Molecular weight formula_weight	822.9 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	2

▼

6. Fold Classification (SCOP + CATH) 25 domains

SCOP 2.08 (7 domains)

Domain ID domain_id	d1ynna1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.74 — DCoH-like
Superfamily Superfamily superfamily	d.74.3 — RBP11-like subunits of RNA polymerase
Family Family family	d.74.3.1 — RNA polymerase alpha subunit dimerisation domain

Domain ID domain_id	d1ynna2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.181 — Insert subdomain of RNA polymerase alpha subunit
Superfamily Superfamily superfamily	d.181.1 — Insert subdomain of RNA polymerase alpha subunit
Family Family family	d.181.1.1 — Insert subdomain of RNA polymerase alpha subunit

Domain ID domain_id	d1ynnb1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.74 — DCoH-like
Superfamily Superfamily superfamily	d.74.3 — RBP11-like subunits of RNA polymerase
Family Family family	d.74.3.1 — RNA polymerase alpha subunit dimerisation domain

Domain ID domain_id	d1ynnb2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.181 — Insert subdomain of RNA polymerase alpha subunit
Superfamily Superfamily superfamily	d.181.1 — Insert subdomain of RNA polymerase alpha subunit
Family Family family	d.181.1.1 — Insert subdomain of RNA polymerase alpha subunit

Domain ID domain_id	d1ynnc1
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.29 — beta and beta-prime subunits of DNA dependent RNA-polymerase
Superfamily Superfamily superfamily	e.29.1 — beta and beta-prime subunits of DNA dependent RNA-polymerase
Family Family family	e.29.1.1 — RNA-polymerase beta

Domain ID domain_id	d1ynnd1
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.29 — beta and beta-prime subunits of DNA dependent RNA-polymerase
Superfamily Superfamily superfamily	e.29.1 — beta and beta-prime subunits of DNA dependent RNA-polymerase
Family Family family	e.29.1.2 — RNA-polymerase beta-prime

Domain ID domain_id	d1ynnk1
Class class	a — All alpha proteins
Fold Fold fold	a.143 — RPB6/omega subunit-like
Superfamily Superfamily superfamily	a.143.1 — RPB6/omega subunit-like
Family Family family	a.143.1.1 — RNA polymerase omega subunit

CATH v4.4 (18 domains)

Domain ID domain_id	1ynnA01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1360 — Gyrase A; domain 2
Homologous superfamily homologous superfamily	10 — RNA polymerase, RBP11-like subunit

Domain ID domain_id	1ynnA02
Class class	2 — Mainly Beta
Architecture architecture	170 — Beta Complex
Topology topology	120 — RNA Polymerase Alpha Subunit; Chain A, domain 2
Homologous superfamily homologous superfamily	12 — DNA-directed RNA polymerase, insert domain

Domain ID domain_id	1ynnB01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1360 — Gyrase A; domain 2
Homologous superfamily homologous superfamily	10 — RNA polymerase, RBP11-like subunit

Domain ID domain_id	1ynnB02
Class class	2 — Mainly Beta
Architecture architecture	170 — Beta Complex
Topology topology	120 — RNA Polymerase Alpha Subunit; Chain A, domain 2
Homologous superfamily homologous superfamily	12 — DNA-directed RNA polymerase, insert domain

Domain ID domain_id	1ynnC01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	270 — Dna-directed Rna Polymerase Ii 140kd Polypeptide; Chain: B; Domain 6
Homologous superfamily homologous superfamily	10 — DNA-directed RNA polymerase, subunit 2, domain 6

Domain ID domain_id	1ynnC02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1100 — Rna Polymerase Beta Subunit; Chain: C,domain 2
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1ynnC03
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1110 — Dna-directed Rna Polymerase Ii 140kd Polypeptide; Chain: B; domain 3
Homologous superfamily homologous superfamily	10 — RNA polymerase Rpb2, domain 2

Domain ID domain_id	1ynnC04
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	150 — Rna Polymerase Beta Subunit; Chain: C, domain 4
Homologous superfamily homologous superfamily	10 — DNA-directed RNA polymerase, beta subunit, external 1 domain

Domain ID domain_id	1ynnC05
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	100 — RNA polymerase II/Efflux pump adaptor protein, barrel-sandwich hybrid domain

Domain ID domain_id	1ynnC06
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	150 — RNA polymerase II, Rpb2 subunit, wall domain

Domain ID domain_id	1ynnD03
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	100 — RNA polymerase II/Efflux pump adaptor protein, barrel-sandwich hybrid domain

Domain ID domain_id	1ynnD04
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	40 — Barwin-like endoglucanases
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	1ynnD05
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	274 — Enzyme I; Chain A, domain 2
Homologous superfamily homologous superfamily	100 — RNA polymerase Rpb1, domain 3

Domain ID domain_id	1ynnD06
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	132 — Topoisomerase I; Chain A, domain 4
Homologous superfamily homologous superfamily	30 — RNA polymerase Rpb1 funnel domain

Domain ID domain_id	1ynnJ01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1790 — PTS-regulatory domain, PRD
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	1ynnJ02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	100 — RNA polymerase II/Efflux pump adaptor protein, barrel-sandwich hybrid domain

Domain ID domain_id	1ynnJ03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	150 — DNA polymerase; domain 1
Homologous superfamily homologous superfamily	390 —

Domain ID domain_id	1ynnK00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	940 — Eukaryotic RPB6 RNA polymerase subunit
Homologous superfamily homologous superfamily	10 — RNA polymerase subunit, RPB6/omega

▶

Unit-cell length a length_a	200.760 Å
Unit-cell length b length_b	200.760 Å
Unit-cell length c length_c	292.938 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 41 21 2
Space-group number int_tables_number	92
Crystal system crystal_system	—

Resolution resolution	3.300 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	0.2744
R_work r_work	0.2714
R_free r_free	0.3305

Taq RNA polymerase-rifampicin complex

1. Protein Identity and Related Structures Protein Identity & Related Structures

DNA-directed RNA polymerase alpha chain

State in the Current Structure

Other States of the Same Protein in the Database

DNA-directed RNA polymerase beta chain

State in the Current Structure

Other States of the Same Protein in the Database

;DNA-directed RNA polymerase beta' chain ;

State in the Current Structure

Other States of the Same Protein in the Database

DNA-directed RNA polymerase omega chain

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1ynn__assembly_1__model_1

1ynn__assembly_1__model_1 | I(q)

1ynn__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 polymer

Polymer Polymer

Entity 3 Entity 3 polymer

Polymer Polymer

Entity 4 Entity 4 polymer

Polymer Polymer

Entity 5 Entity 5 non-polymer

Entity 6 Entity 6 non-polymer

6. Fold Classification (SCOP + CATH) 25 domains

SCOP 2.08 (7 domains)

CATH v4.4 (18 domains)

7. Citations (2)

Taq RNA polymerase-rifampicin complex

1. Protein Identity and Related Structures Protein Identity & Related Structures

DNA-directed RNA polymerase alpha chain

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

DNA-directed RNA polymerase beta chain

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

;DNA-directed RNA polymerase beta' chain ;

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

DNA-directed RNA polymerase omega chain

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1ynn__assembly_1__model_1

1ynn__assembly_1__model_1 | I(q)

1ynn__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 polymer

Polymer Polymer

Entity 3 Entity 3 polymer

Polymer Polymer

Entity 4 Entity 4 polymer

Polymer Polymer

Entity 5 Entity 5 non-polymer

Entity 6 Entity 6 non-polymer

6. Fold Classification (SCOP + CATH) 25 domains

SCOP 2.08 (7 domains)

CATH v4.4 (18 domains)

7. Citations (2)
