1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1yo8
沉积日期 deposition_date	2005-01-26
结构标题 title	Structure of the C-terminal domain of human thrombospondin-2
关键词 keywords	EGF; Ca(2+)-binding domains; lectin domain; disulfide, Cell adhesion; CELL ADHESION
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	32.15 Å
回转半径 Rg (电子) rg_electron	32.75 Å
零角强度 I(0) i0	101150000.00
分子量 molecular_weight	71886.0 kDa
排除体积 excluded_volume	86164 Å³
包络体积 envelope_volume	115160 Å³
水化壳体积 shell_volume	32849 Å³
包络直径 envelope_diameter	136.8 Å
壳层 Rg shell_rg	35.14 Å
包络 Rg envelope_rg	33.98 Å
形状 Rg shape_rg	32.73 Å
总 Rg total_rg	32.99 Å
总原子数 total_atoms	4969
残基数 n_residues	616
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	126.3 Å
Rg (实空间) rg_real	32.94 Å
Rg 误差 (实空间) rg_real_error	1.64 Å
I(0) (实空间) i0_real	1.0110e+08
I(0) 误差 (实空间) i0_real_error	1.9900e+06
Rg (倒空间) rg_reciprocal	32.59 Å
I(0) (倒空间) i0_reciprocal	101100000.0000
解质量估计 total_estimate	0.7194
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	36.1 Å
偏度 Skewness skewness	0.989
峰度 Kurtosis kurtosis	0.994
角度范围 angular_range	— – 0.2450 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	5640000.0000
实空间数据点数 n_real_points	50
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.297; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.637; Smooth: 0.820

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (6)

Entity 1 polymer

描述 description	thrombospondin-2
分子量 formula_weight	70872.4 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	5085

ADPDGCLSNPCFPGAQCSSFPDGSWSCGFCPVGFLGNGTHCEDLDECALVPDICFSTSKVPRCVNTQPGFHCLPCPPRYRGNQPVGVGLEAAKTEKQVCEPENPCKDKTHNCHKHAECIYLGHFSDPMYKCECQTGYAGDGLICGEDSDLDGWPNLNLVCATNATYHCIKDNCPHLPNSGQEDFDKDGIGDACDDDDDNDGVTDEKDNCQLLFNPRQADYDKDEVGDRCDNCPYVHNPAQIDTDNNGEGDACSVDIDGDDVFNERDNCPYVYNTDQRDTDGDGVGDHCDNCPLVHNPDQTDVDNDLVGDQCDNNEDIDDDGHQNNQDNCPYISNANQADHDRDGQGDACDPDDDNDGVPDDRDNCRLVFNPDQEDLDGDGRGDICKDDFDNDNIPDIDDVCPENNAISETDFRNFQMVPLDPKGTTQIDPNWVIRHQGKELVQTANSDPGIAVGFDEFGSVDFSGTFYVNTDRDDDYAGFVFGYQSSSRFYVVMWKQVTQTYWEDQPTRAYGYSGVSLKVVNSTTGTGEHLRNALWHTGNTPGQVRTLWHDPRNIGWKDYTAYRWHLTHRPKTGYIRVLVHEGKQVMADSGPIYDQTYAGGRLGLFVFSQEMVYFSDLKYECRDIAAGHHHHHH

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 2 branched

描述 description	alpha-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	586.5 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 3 branched

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	424.4 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 4 non-polymer

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	221.2 kDa
来源方法 src_method	man
拷贝数 entity_count	2

Entity 5 non-polymer

描述 description	CALCIUM ION
分子量 formula_weight	40.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	30

Entity 6 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	116

▼

6. 折叠分类 (SCOP + CATH) 4 domains

CATH v4.4 (4 domains)

结构域编号 domain_id	1yo8A01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	10 — Ribbon
拓扑 Topology topology	25 — Laminin
同源超家族 H-superfamily homologous superfamily	10 — Laminin

结构域编号 domain_id	1yo8A02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	10 — Ribbon
拓扑 Topology topology	25 — Laminin
同源超家族 H-superfamily homologous superfamily	10 — Laminin

结构域编号 domain_id	1yo8A03
类 Class class	2 — Mainly Beta
架构 Architecture architecture	10 — Ribbon
拓扑 Topology topology	25 — Laminin
同源超家族 H-superfamily homologous superfamily	10 — Laminin

结构域编号 domain_id	1yo8A05
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	120 — Jelly Rolls
同源超家族 H-superfamily homologous superfamily	200 —

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	93.437 Å
晶胞边长 b length_b	121.588 Å
晶胞边长 c length_c	155.330 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	I 2 2 2
空间群编号 int_tables_number	23
晶系 crystal_system	—

分辨率 resolution	2.600 Å
最低分辨率 resolution_low	20.000 Å
R 因子 r_factor	0.2240
R_work r_work	0.2180
R_free r_free	0.2840

fit	/app/data/saxs_computation/yo/1yo8/1yo8.fit
pddf	/app/data/pr_computation/yo/1yo8/1yo8.pr.out
profile	/app/data/saxs_computation/yo/1yo8/1yo8.dat

Structure of the C-terminal domain of human thrombospondin-2

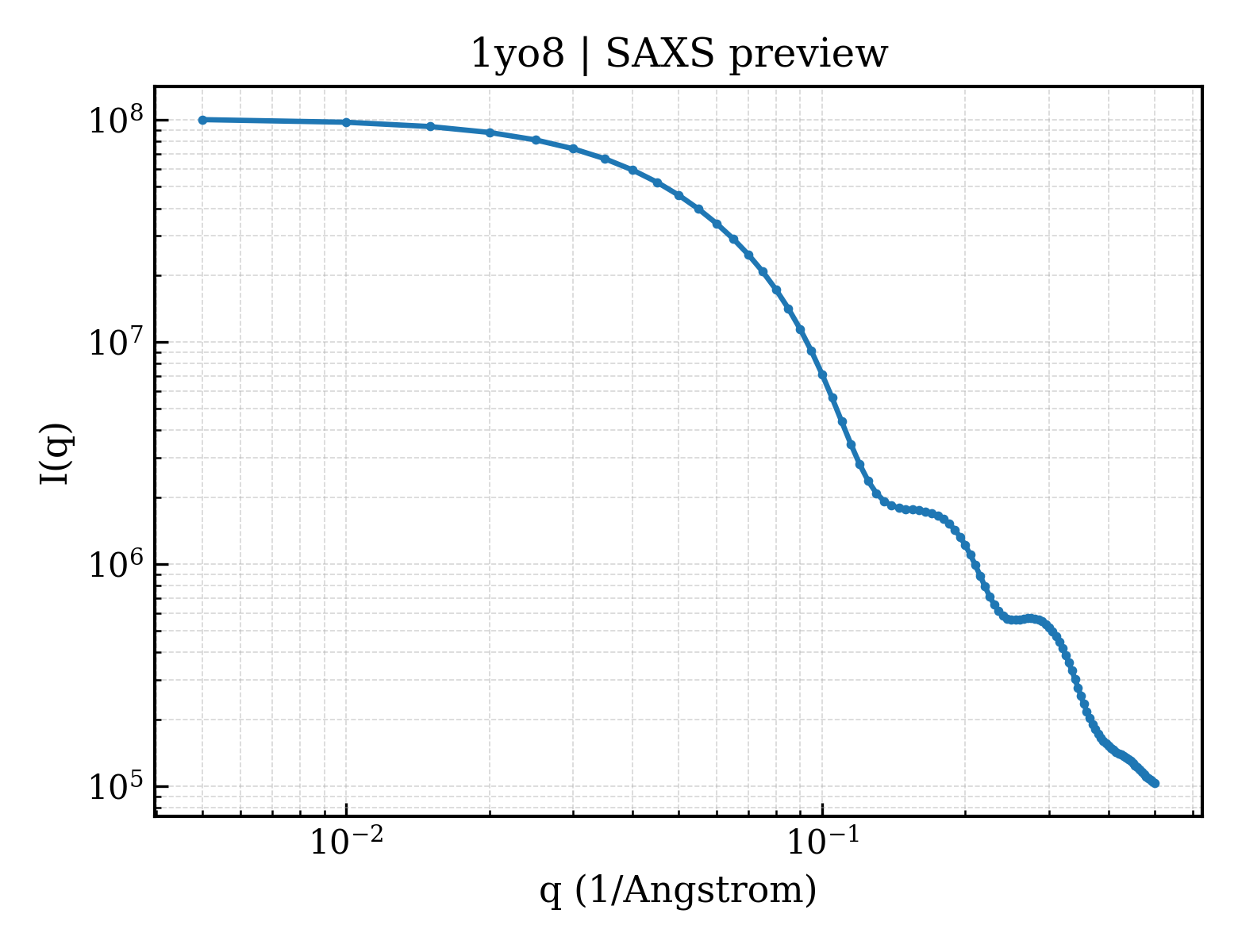

SAXS 散射曲线 SAXS Profile

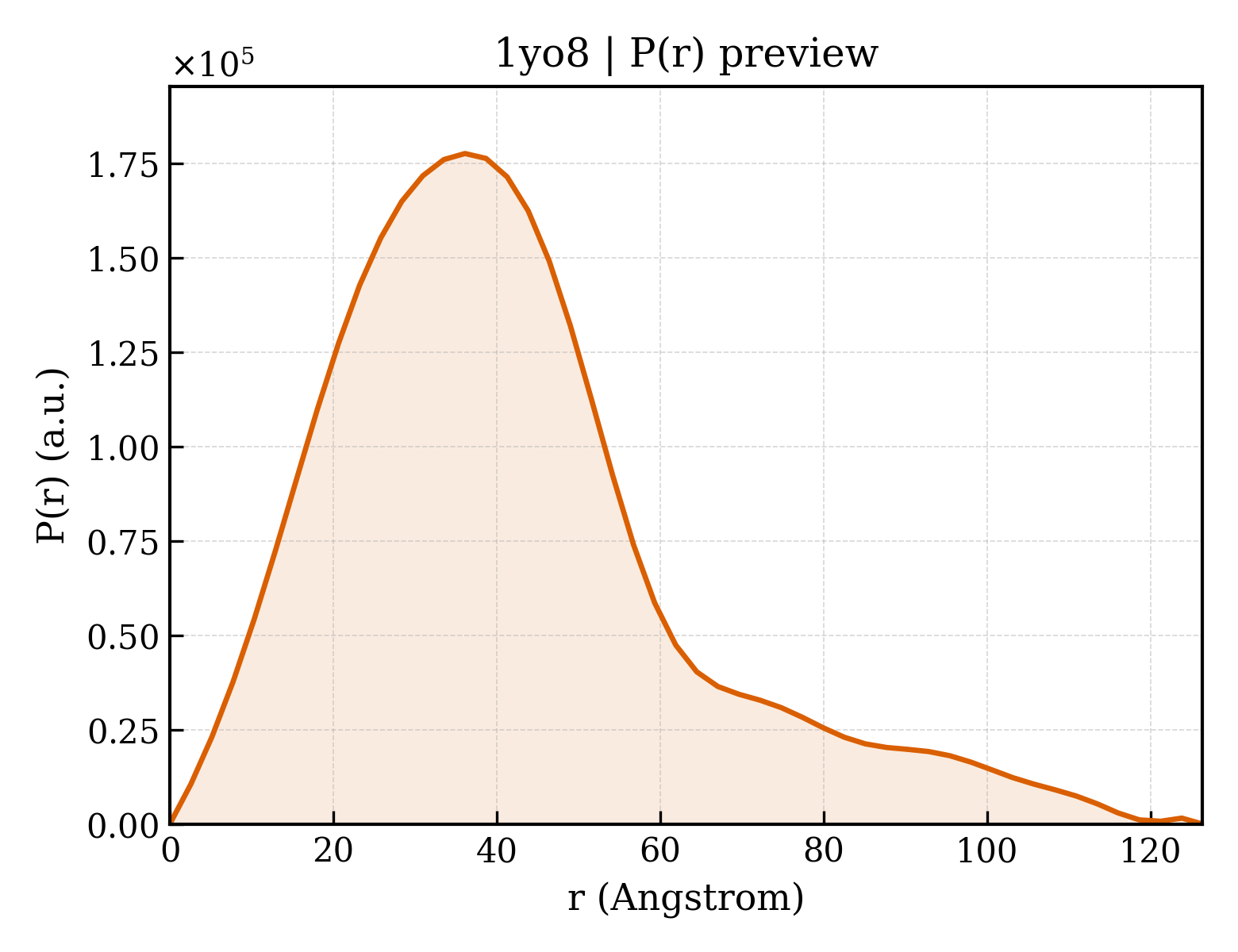

P(r) 距离分布 P(r) Distribution
