SAXSdb — 1z6i

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Peptidoglycan-recognition protein-LC

Drosophila melanogaster

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	2-acetamido-2-deoxy-beta-D-glucopyranose × 1 SULFATE ION × 2 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PGPLC_DROME
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–167； UniProt 354–520

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1z6i
Deposition date deposition_date	2005-03-22
Structure title title	Crystal structure of the ectodomain of Drosophila transmembrane receptor PGRP-LCa
Keywords keywords	MIXED BETA-SHEET, 3/10 helix, MEMBRANE PROTEIN, IMMUNE SYSTEM; MEMBRANE PROTEIN,IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1z6i__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1z6i__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

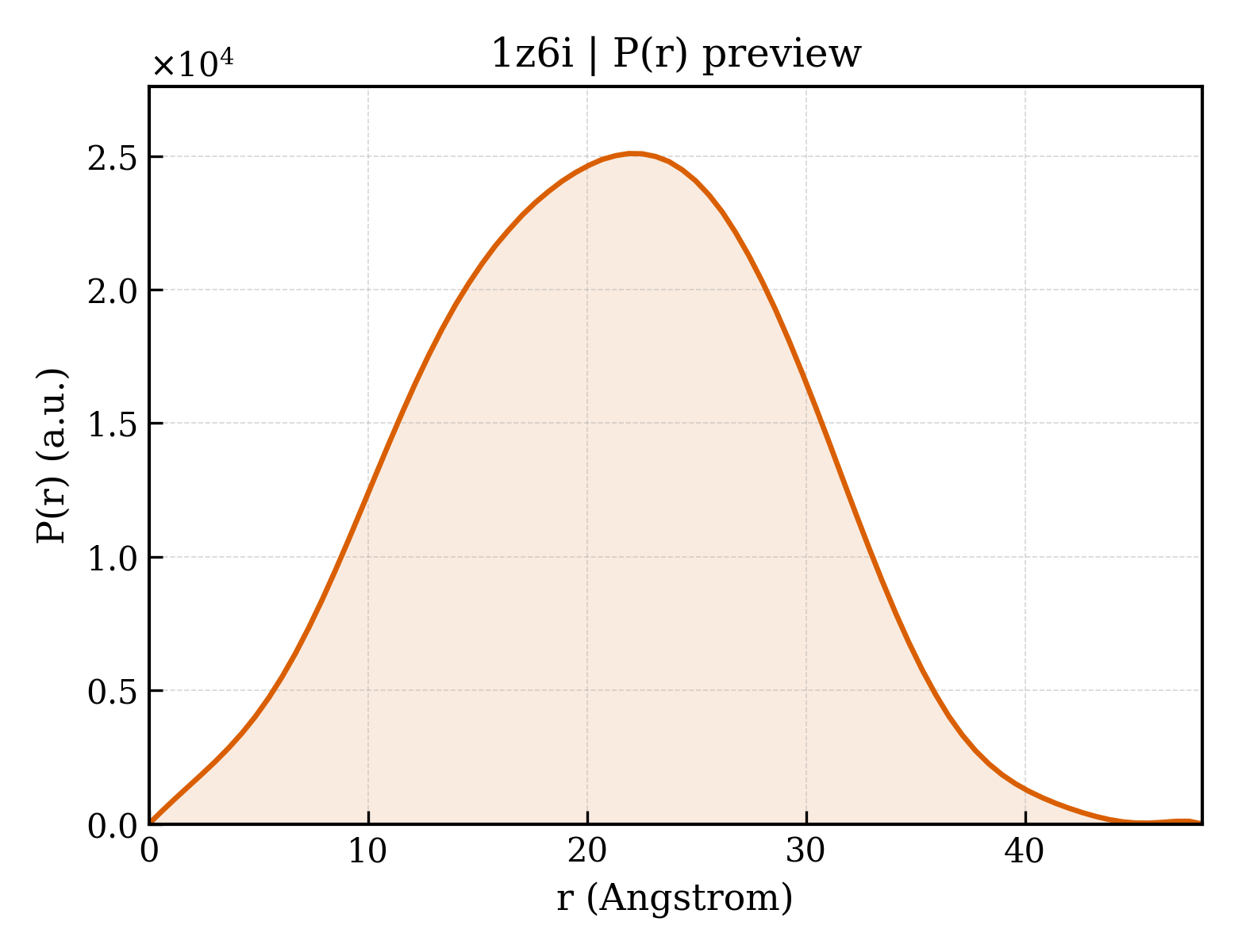

1z6i__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	16.03 Å
Rg (electron density)	14.65 Å
Total Rg	15.98 Å
Atom count	1340
Residues	167
Excluded volume	23854 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1z6i__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Peptidoglycan-recognition protein-LC
Molecular weight formula_weight	18701.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1365

DFVERQQWLAQPPQKEIPDLELPVGLVIALPTNSENCSTQAICVLRVRLLQTYDIESSQKCDIAYNFLIGGDGNVYVGRGWNKMGAHMNNINYDSQSLSFAYIGSFKTIQPSAKQLSVTRLLLERGVKLGKIAPSYRFTASSKLMPSVTDFKADALYASFANWTHWS

Source Source

Source organism organism	Drosophila melanogaster
Common name common_name	fruit fly
NCBI taxonomy ID ncbi_taxonomy_id	7227
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	25

▼

6. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1z6ia1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.118 — N-acetylmuramoyl-L-alanine amidase-like
Superfamily Superfamily superfamily	d.118.1 — N-acetylmuramoyl-L-alanine amidase-like
Family Family family	d.118.1.1 — N-acetylmuramoyl-L-alanine amidase-like

Domain ID domain_id	d1z6ia2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (1 domains)

Domain ID domain_id	1z6iA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	80 — Lysozyme-like
Homologous superfamily homologous superfamily	10 — Peptidoglycan recognition protein-like

▶

Unit-cell length a length_a	105.799 Å
Unit-cell length b length_b	105.799 Å
Unit-cell length c length_c	105.799 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	P 41 3 2
Space-group number int_tables_number	213
Crystal system crystal_system	—

Resolution resolution	2.500 Å
Low-resolution limit resolution_low	74.540 Å
R factor r_factor	0.2150
R_work r_work	0.2130
R_free r_free	0.2410

Crystal structure of the ectodomain of Drosophila transmembrane receptor PGRP-LCa
