Crystal structure of tracheal cytotoxin (TCT) bound to the ectodomain complex of peptidoglycan recognition proteins LCa (PGRP-LCa) and LCx (PGRP-LCx)

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Peptidoglycan-recognition protein-LC isoform LCa

Drosophila melanogaster

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Peptidoglycan recognition protein-LC isoform LCx × 1 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 2-acetylamino-2-deoxy-alpha-L-idopyranose × 1 SULFATE ION × 2 GLCNAC(BETA1-4)-MURNAC(1,6-ANHYDRO)-L-ALA-GAMMA-D-GLU-MESO-A2PM-D-ALA × 1 CITRIC ACID × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PGPLC_DROME
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–167； UniProt 355–520

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2f2l
Deposition date deposition_date	2005-11-17
Structure title title	Crystal structure of tracheal cytotoxin (TCT) bound to the ectodomain complex of peptidoglycan recognition proteins LCa (PGRP-LCa) and LCx (PGRP-LCx)
Keywords keywords	Protein-peptidoglycan complex, MEMBRANE PROTEIN, IMMUNE SYSTEM, TOXIN; MEMBRANE PROTEIN, IMMUNE SYSTEM, TOXIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2f2l__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2f2l__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

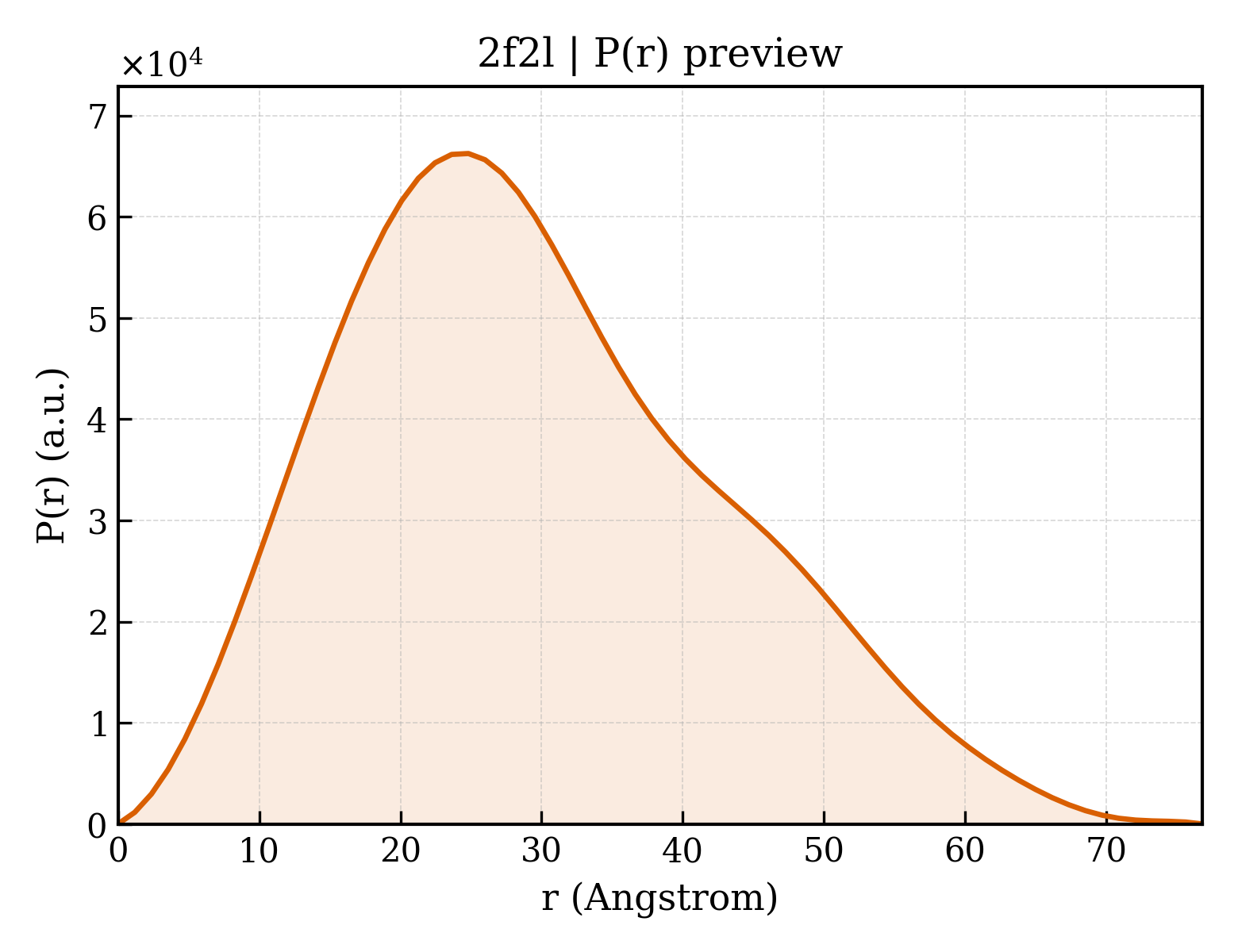

2f2l__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	22.92 Å
Rg (electron density)	22.34 Å
Total Rg	23.20 Å
Atom count	2768
Residues	332
Excluded volume	49001 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2f2l__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	Peptidoglycan-recognition protein-LC isoform LCa
Molecular weight formula_weight	18717.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2991

DFVERQQWLAQPPQKEIPDLELPVGLVIALPTNSENCSTQAICVLRVRLLQTYDIESSQKCDIAYNFLIGGDGNVYVGRGWNKMGAHMNNINYDSQSLSFAYIGSFKTIQPSAKQLSVTRLLLERGVKLGKIAPSYRFTASSKLMPSVTDFKADALYASFANWTHWS

Source Source

Source organism organism	Drosophila melanogaster
Common name common_name	fruit fly
NCBI taxonomy ID ncbi_taxonomy_id	7227
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	Peptidoglycan recognition protein-LC isoform LCx
Molecular weight formula_weight	19072.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	X

MVILKVAEWGGRPAKRMLDAQQLPINRVVISHTAAEGCESREVCSARVNVVQSFHMDSWGWDHIGYNFLVGGDGRVYEGRGWDYVGAHTKGYNRGSIGISFIGTFTTRKPNERQLEACQLLLQEGVRLKKLTTNYRLYGHRQLSATESPGEELYKIIKKWPHWSHEI

Source Source

Source organism organism	Drosophila melanogaster
Common name common_name	fruit fly
NCBI taxonomy ID ncbi_taxonomy_id	7227
Host organism host_organism	Spodoptera frugiperda

Entity 3 Entity 3 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	2-acetylamino-2-deoxy-alpha-L-idopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 non-polymer

Description description	GLCNAC(BETA1-4)-MURNAC(1,6-ANHYDRO)-L-ALA-GAMMA-D-GLU-MESO-A2PM-D-ALA
Molecular weight formula_weight	921.9 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 non-polymer

Description description	CITRIC ACID
Molecular weight formula_weight	192.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 8 Entity 8 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	195

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d2f2la2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.118 — N-acetylmuramoyl-L-alanine amidase-like
Superfamily Superfamily superfamily	d.118.1 — N-acetylmuramoyl-L-alanine amidase-like
Family Family family	d.118.1.0 — automated matches

Domain ID domain_id	d2f2la3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d2f2lx1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.118 — N-acetylmuramoyl-L-alanine amidase-like
Superfamily Superfamily superfamily	d.118.1 — N-acetylmuramoyl-L-alanine amidase-like
Family Family family	d.118.1.1 — N-acetylmuramoyl-L-alanine amidase-like

Domain ID domain_id	d2f2lx2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (2 domains)

Domain ID domain_id	2f2lA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	80 — Lysozyme-like
Homologous superfamily homologous superfamily	10 — Peptidoglycan recognition protein-like

Domain ID domain_id	2f2lX00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	80 — Lysozyme-like
Homologous superfamily homologous superfamily	10 — Peptidoglycan recognition protein-like

▶

Unit-cell length a length_a	41.123 Å
Unit-cell length b length_b	79.695 Å
Unit-cell length c length_c	114.389 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.100 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	0.1687
R_work r_work	0.1663
R_free r_free	0.2138
