SAXSdb — 1z87

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Alpha-1-syntrophin

Mus musculus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 2–264	Fragment：the PHN-PDZ-PHC tandem	No other associated polymer	SOLUTION NMR NMR measurement conditions：pH 7；303 K；Pressure ambient NMR sample composition：1mM PHN-PDZ-PHC tandem of alpha1-syntrophin U-15N, 13C; 100mM potassium phosphate; 90% H2O,10% D2O \| 90% H2O/10% D2O NMR sample composition：1mM PHN-PDZ-PHC tandem of alpha1-syntrophin U-15N; 100mM potassium phosphate; 90% H2O,10% D2O \| 90% H2O/10% D2O NMR sample composition：1mM PHN-PDZ-PHC tandem of alpha1-syntrophin U-15N, 13C; 100mM potassium phosphate; 99.9% D2O \| 99.9% D2O NMR sample composition：1mM PHN-PDZ-PHC tandem of alpha1-syntrophin; 100mM potassium phosphate; 99.9% D2O \| 99.9% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1Z87	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1QAV Unexpected Modes of PDZ Domain Scaffolding Revealed by Structure of NNOS-Syntrophin Complex Deposited 1999-03-30	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 75–164（90 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；298 K；VAPOR DIFFUSION, SITTING DROP, PH 8.5, 298K, 25% PEG4000, 0.2M SODIUM ACETATE, 100MM TRIS	Resolution 1.90 Å R-free 0.259
1Z86 Solution structure of the PDZ domain of alpha-syntrophin Deposited 2005-03-30	Different construct Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 79–165（87 aa） Fragment：PDZ domain	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；303 K；Pressure ambient NMR sample composition 1mM PDZ domain of alpha1-syntrophin U-15N, 13C; 100mM potassium phosphate; 90% H2O,10% D2O \| 90% H2O/10% D2O NMR sample composition 1mM PDZ domain of alpha1-syntrophin U-15N; 100mM potassium phosphate; 90% H2O,10% D2O \| 90% H2O/10% D2O NMR sample composition 1mM PDZ domain of alpha1-syntrophin U-15N, 13C; 100mM potassium phosphate; 99.9% D2O \| 99.9% D2O NMR sample composition 1mM PDZ domain of alpha1-syntrophin; 100mM potassium phosphate; 99.9% D2O \| 99.9% D2O	Resolution not provided
2ADZ solution structure of the joined PH domain of alpha1-syntrophin Deposited 2005-07-21	Different construct Different mutation/modification Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–79（78 aa） Fragment：PH domain Chain A 165–264（100 aa） Fragment：PH domain	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；303 K；Pressure ambient NMR sample composition 1mM protein 15N; 100mM potassium phosphate pH 7.0 \| 90% H2O/10% D2O NMR sample composition 1mM protein 15N, 13C; 100mM potassium phosphate pH 7.0 \| 99.9% D2O NMR sample composition 1mM unlabelled protein; 100mM potassium phosphate pH 7.0 \| 99.9% D2O	Resolution not provided
2PDZ SOLUTION STRUCTURE OF THE SYNTROPHIN PDZ DOMAIN IN COMPLEX WITH THE PEPTIDE GVKESLV, NMR, 15 STRUCTURES Deposited 1997-12-10	Different construct Different oligomeric state Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 79–164（86 aa） Fragment：PDZ DOMAIN	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.2；295 K；Ionic strength (raw mmCIF value) 70mM；Pressure 1 NMR sample composition H2O	Resolution not provided
4HOP Crystal structure of the computationally designed NNOS-Syntrophin complex Deposited 2012-10-22	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 77–162（86 aa） Fragment：PDZ DOMAIN (RESIDUES 77-162)	Mutation：H142F	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.25；293 K；0.1M MES, 0.2M LICL, 21.5% PEG 6000. SYNTROPHIN AT 3.6 MG/ML FINAL. NNOS AT 2.6 MG/ML FINAL. 1:1 MIX OF PROTEIN SOLUTION TO PRECIPITANT, pH 5.25, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.29 Å R-free 0.273
4HOP Crystal structure of the computationally designed NNOS-Syntrophin complex Deposited 2012-10-22	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 77–162（86 aa） Fragment：PDZ DOMAIN (RESIDUES 77-162)	Mutation：H142F	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.25；293 K；0.1M MES, 0.2M LICL, 21.5% PEG 6000. SYNTROPHIN AT 3.6 MG/ML FINAL. NNOS AT 2.6 MG/ML FINAL. 1:1 MIX OF PROTEIN SOLUTION TO PRECIPITANT, pH 5.25, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.29 Å R-free 0.273
4HOP Crystal structure of the computationally designed NNOS-Syntrophin complex Deposited 2012-10-22	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 77–162（86 aa） Fragment：PDZ DOMAIN (RESIDUES 77-162)	Mutation：H142F	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.25；293 K；0.1M MES, 0.2M LICL, 21.5% PEG 6000. SYNTROPHIN AT 3.6 MG/ML FINAL. NNOS AT 2.6 MG/ML FINAL. 1:1 MIX OF PROTEIN SOLUTION TO PRECIPITANT, pH 5.25, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.29 Å R-free 0.273

5 other PDB entries and 7 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SNA1_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–263； UniProt 2–264

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1z87
Deposition date deposition_date	2005-03-30
Structure title title	solution structure of the split PH-PDZ Supramodule of alpha-Syntrophin
Keywords keywords	Alpha-1-syntrophin, PROTEIN BINDING; PROTEIN BINDING
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	27.63 Å
Radius of gyration Rg (electron density) rg_electron	27.21 Å
Forward intensity I(0) i0	2580520000.00
Molecular weight molecular_weight	415250.0 kDa
Excluded volume excluded_volume	515890 Å³
Envelope volume envelope_volume	183050 Å³
Hydration-shell volume shell_volume	47972 Å³
Envelope diameter envelope_diameter	105.4 Å
Shell Rg shell_rg	39.24 Å
Envelope Rg envelope_rg	30.69 Å
Shape Rg shape_rg	27.19 Å
Total Rg total_rg	27.58 Å
Total atoms total_atoms	58590
Residues n_residues	3945
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	91.3 Å
Rg (real space) rg_real	27.70 Å
Rg uncertainty (real space) rg_real_error	0.77 Å
I(0) (real space) i0_real	2.5810e+09
I(0) uncertainty (real space) i0_real_error	3.5980e+07
Rg (reciprocal space) rg_reciprocal	27.68 Å
I(0) (reciprocal space) i0_reciprocal	2580000000.0000
Solution quality estimate total_estimate	0.7975
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	24.0 Å
Skewness Skewness skewness	0.305
Kurtosis Kurtosis kurtosis	-0.622
Angular range angular_range	— – 0.2850 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	180300000.0000
Real-space data points n_real_points	58
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.833; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.869; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▼

7. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	1z87A01
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	29 — PH-domain like
Homologous superfamily homologous superfamily	30 — Pleckstrin-homology domain (PH domain)/Phosphotyrosine-binding domain (PTB)

Domain ID domain_id	1z87A02
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	42 — Pdz3 Domain
Homologous superfamily homologous superfamily	10 — PDZ domain

▶

8. Citations (1)

▶

Description description	Alpha-1-syntrophin
Molecular weight formula_weight	27716.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	58590

来源生物 organism	Mus musculus
通用名 common_name	house mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Escherichia coli

fit	/app/data/saxs_computation/z8/1z87/1z87.fit
pddf	/app/data/pr_computation/z8/1z87/1z87.pr.out
profile	/app/data/saxs_computation/z8/1z87/1z87.dat

solution structure of the split PH-PDZ Supramodule of alpha-Syntrophin

1. Protein Identity and Related Structures Protein Identity & Related Structures

Alpha-1-syntrophin

State in the Current Structure

Other States of the Same Protein in the Database

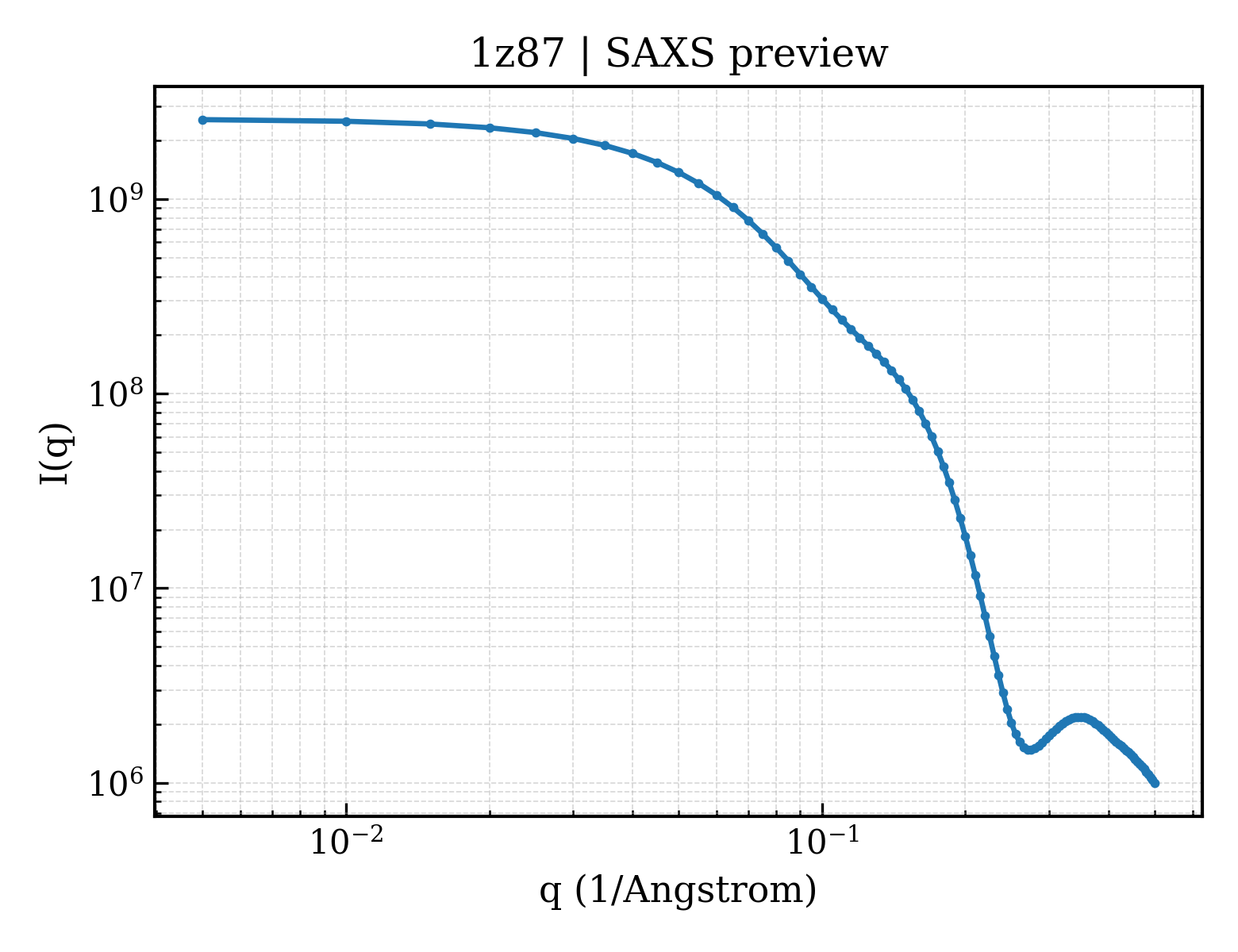

SAXS scattering curve SAXS Profile

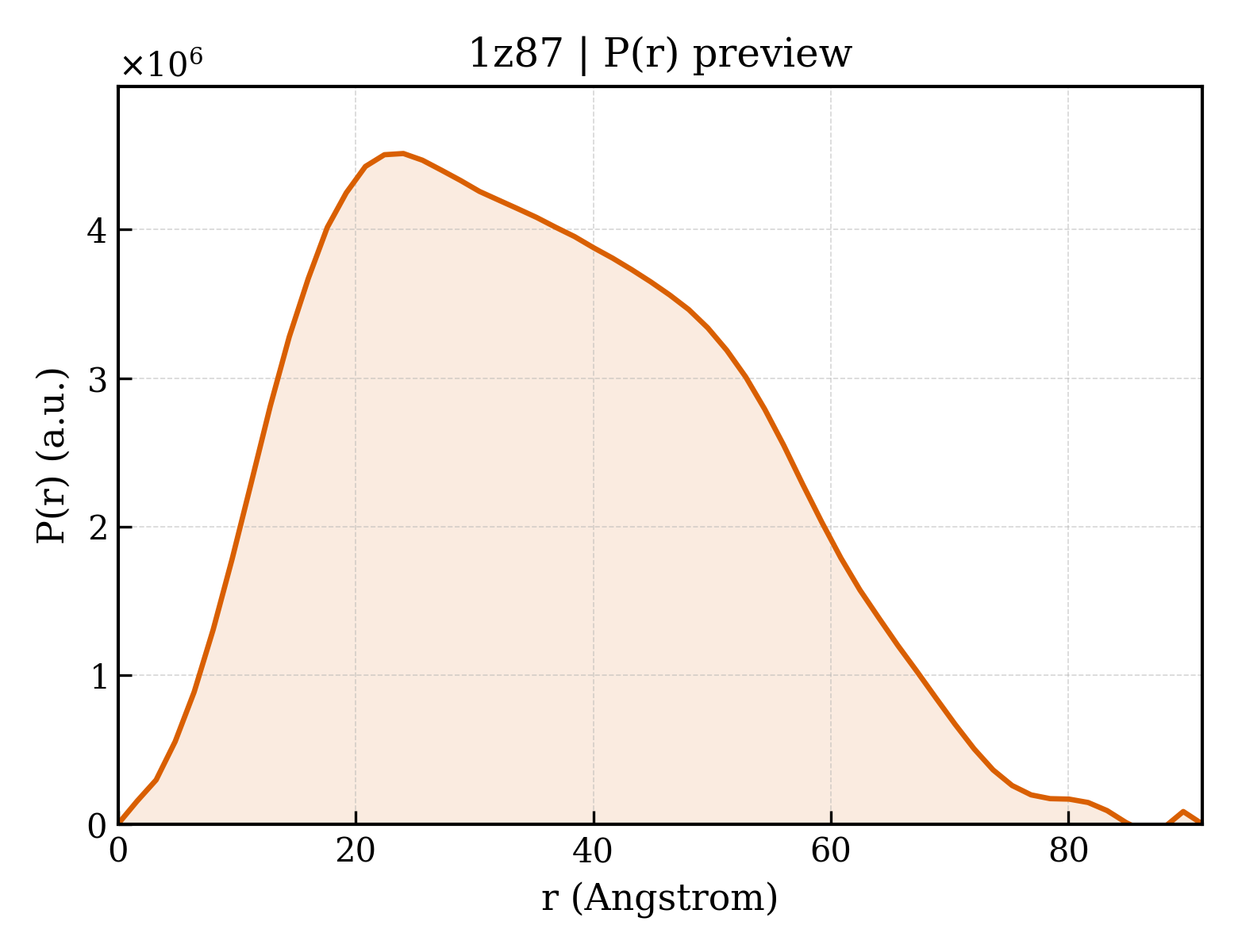

P(r) Distance Distribution P(r) Distribution
