1zgu

Solution structure of the human Mms2-Ubiquitin complex

Method: SOLUTION NMR D_max: 54.6 Å Quality: EXCELLENT

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Ubiquitin-conjugating enzyme E2 variant 2

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 7–145	Not recorded	Ubiquitin × 1 （P61864）	SOLUTION NMR NMR measurement conditions：pH 7.5；293 K；Ionic strength (raw mmCIF value) 150 mM NaCl；Pressure 1 NMR measurement conditions：pH 7.5；303 K；Ionic strength (raw mmCIF value) 150 mM NaCl；Pressure 1 NMR sample composition：[U-15N; U-10% 13C]-hMms2 + Ubiquitin (1:4 ratio) 90% H20 : 10% D20 \| 90% H20 : 10% D20 NMR sample composition：[U-13C; U-15N]-Ubiquitin + hMms2 (4:1 ratio) 90% H20 : 10% D20 \| 90% H20 : 10% D20 NMR sample composition：[U-13C; U-15N]-hMms2 + Ubiquitin (1:4 ratio) 90% H20 : 10% D20 \| 90% H20 : 10% D20	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1ZGU	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1J74 Crystal Structure of Mms2 Deposited 2001-05-15	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–145（145 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；16% PEG 6000, 25mM NaCl, 100mM citrate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.90 Å R-free 0.246
1J7D Crystal Structure of hMms2-hUbc13 Deposited 2001-05-16	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–145（145 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；20% PEG 8000, 100mM Citrate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.85 Å R-free 0.244
3VON Crystalstructure of the ubiquitin protease Deposited 2012-01-30	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 6–143（138 aa） Fragment：UNP residues 6-143	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；90mM Tris-HCl buffer (pH 8.5), 19% PEG 3350, 10mM EDTA sodium salt, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 3.15 Å R-free 0.281
3VON Crystalstructure of the ubiquitin protease Deposited 2012-01-30	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 10 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain W 6–143（138 aa） Fragment：UNP residues 6-143	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；90mM Tris-HCl buffer (pH 8.5), 19% PEG 3350, 10mM EDTA sodium salt, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 3.15 Å R-free 0.281
3VON Crystalstructure of the ubiquitin protease Deposited 2012-01-30	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 11 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain Y 6–143（138 aa） Fragment：UNP residues 6-143	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；90mM Tris-HCl buffer (pH 8.5), 19% PEG 3350, 10mM EDTA sodium salt, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 3.15 Å R-free 0.281
3VON Crystalstructure of the ubiquitin protease Deposited 2012-01-30	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 12 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain a 6–143（138 aa） Fragment：UNP residues 6-143	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；90mM Tris-HCl buffer (pH 8.5), 19% PEG 3350, 10mM EDTA sodium salt, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 3.15 Å R-free 0.281
3VON Crystalstructure of the ubiquitin protease Deposited 2012-01-30	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 13 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain d 6–143（138 aa） Fragment：UNP residues 6-143	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；90mM Tris-HCl buffer (pH 8.5), 19% PEG 3350, 10mM EDTA sodium salt, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 3.15 Å R-free 0.281
3VON Crystalstructure of the ubiquitin protease Deposited 2012-01-30	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 14 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain f 6–143（138 aa） Fragment：UNP residues 6-143	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；90mM Tris-HCl buffer (pH 8.5), 19% PEG 3350, 10mM EDTA sodium salt, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 3.15 Å R-free 0.281
3VON Crystalstructure of the ubiquitin protease Deposited 2012-01-30	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 15 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain h 6–143（138 aa） Fragment：UNP residues 6-143	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；90mM Tris-HCl buffer (pH 8.5), 19% PEG 3350, 10mM EDTA sodium salt, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 3.15 Å R-free 0.281
3VON Crystalstructure of the ubiquitin protease Deposited 2012-01-30	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 16 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain k 6–143（138 aa） Fragment：UNP residues 6-143	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；90mM Tris-HCl buffer (pH 8.5), 19% PEG 3350, 10mM EDTA sodium salt, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 3.15 Å R-free 0.281
3VON Crystalstructure of the ubiquitin protease Deposited 2012-01-30	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 17 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain m 6–143（138 aa） Fragment：UNP residues 6-143	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；90mM Tris-HCl buffer (pH 8.5), 19% PEG 3350, 10mM EDTA sodium salt, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 3.15 Å R-free 0.281
3VON Crystalstructure of the ubiquitin protease Deposited 2012-01-30	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 18 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain o 6–143（138 aa） Fragment：UNP residues 6-143	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；90mM Tris-HCl buffer (pH 8.5), 19% PEG 3350, 10mM EDTA sodium salt, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 3.15 Å R-free 0.281
3VON Crystalstructure of the ubiquitin protease Deposited 2012-01-30	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 6–143（138 aa） Fragment：UNP residues 6-143	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；90mM Tris-HCl buffer (pH 8.5), 19% PEG 3350, 10mM EDTA sodium salt, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 3.15 Å R-free 0.281
3VON Crystalstructure of the ubiquitin protease Deposited 2012-01-30	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 6–143（138 aa） Fragment：UNP residues 6-143	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；90mM Tris-HCl buffer (pH 8.5), 19% PEG 3350, 10mM EDTA sodium salt, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 3.15 Å R-free 0.281
3VON Crystalstructure of the ubiquitin protease Deposited 2012-01-30	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 6–143（138 aa） Fragment：UNP residues 6-143	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；90mM Tris-HCl buffer (pH 8.5), 19% PEG 3350, 10mM EDTA sodium salt, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 3.15 Å R-free 0.281
3VON Crystalstructure of the ubiquitin protease Deposited 2012-01-30	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain K 6–143（138 aa） Fragment：UNP residues 6-143	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；90mM Tris-HCl buffer (pH 8.5), 19% PEG 3350, 10mM EDTA sodium salt, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 3.15 Å R-free 0.281
3VON Crystalstructure of the ubiquitin protease Deposited 2012-01-30	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 6 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain M 6–143（138 aa） Fragment：UNP residues 6-143	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；90mM Tris-HCl buffer (pH 8.5), 19% PEG 3350, 10mM EDTA sodium salt, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 3.15 Å R-free 0.281
3VON Crystalstructure of the ubiquitin protease Deposited 2012-01-30	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 7 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain P 6–143（138 aa） Fragment：UNP residues 6-143	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；90mM Tris-HCl buffer (pH 8.5), 19% PEG 3350, 10mM EDTA sodium salt, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 3.15 Å R-free 0.281
3VON Crystalstructure of the ubiquitin protease Deposited 2012-01-30	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 8 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain R 6–143（138 aa） Fragment：UNP residues 6-143	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；90mM Tris-HCl buffer (pH 8.5), 19% PEG 3350, 10mM EDTA sodium salt, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 3.15 Å R-free 0.281
3VON Crystalstructure of the ubiquitin protease Deposited 2012-01-30	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 9 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain T 6–143（138 aa） Fragment：UNP residues 6-143	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；90mM Tris-HCl buffer (pH 8.5), 19% PEG 3350, 10mM EDTA sodium salt, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 3.15 Å R-free 0.281
4NR3 Crystal Structure of a human Mms2/Ubc13 L121G mutant Deposited 2013-11-26	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 6–145（140 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.8；298 K；20% PEG 8000, 0.1 M sodium citrate, pH 6.8, vapor diffusion, sitting drop, temperature 298K	Resolution 1.80 Å R-free 0.234
4NRG Crystal Structure of a human Mms2/Ubc13 D118G mutant Deposited 2013-11-26	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–145（145 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.8；298 K；20% PEG 8000, 0.1 M sodium citrate, pH 6.8, vapor diffusion, sitting drop, temperature 298K	Resolution 1.95 Å R-free 0.211
4NRI Crystal Structure of a human Mms2/Ubc13 A122G mutant Deposited 2013-11-26	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 6–145（140 aa）	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.8；298 K；20% PEG 8000, 0.1 M sodium citrate, pH 6.8, vapor diffusion, sitting drop, temperature 298K	Resolution 2.30 Å R-free 0.235
4ONL Crystal structure of human Mms2/Ubc13_D81N, R85S, A122V, N123P Deposited 2014-01-28	Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–145（145 aa）	Mutation：R85S, A122V, N123P	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.4；298 K；100 mM sodium citrate, 15% PEG 8000, pH 7.4, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.35 Å R-free 0.199
4ONM Crystal structure of human Mms2/Ubc13 - NSC697923 Deposited 2014-01-28	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–145（145 aa）	Not recorded	GOL GLYCEROL × 1 N2F 2-[(4-methylphenyl)sulfonyl]-5-nitrofuran × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.4；298 K；100 mM sodium citrate, 15% PEG 8000, pH 7.4, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.35 Å R-free 0.192
4ONN Crystal structure of human Mms2/Ubc13 - BAY 11-7082 Deposited 2014-01-28	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–145（145 aa）	Not recorded	GOL GLYCEROL × 3 BY1 3-[(4-methylphenyl)sulfonyl]prop-2-enenitrile × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.4；298 K；100 mM sodium citrate, 15% PEG 8000, pH 7.4, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.50 Å R-free 0.213
4ORH Crystal structure of RNF8 bound to the UBC13/MMS2 heterodimer Deposited 2014-02-11	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain I 1–145（145 aa）	Not recorded	ZN ZINC ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；298 K；75 mM Sodium Acetate, 1.0 M Ammonium Phosphate, pH 4.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 4.80 Å R-free 0.282
4ORH Crystal structure of RNF8 bound to the UBC13/MMS2 heterodimer Deposited 2014-02-11	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain E 1–145（145 aa）	Not recorded	ZN ZINC ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；298 K；75 mM Sodium Acetate, 1.0 M Ammonium Phosphate, pH 4.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 4.80 Å R-free 0.282
4ORH Crystal structure of RNF8 bound to the UBC13/MMS2 heterodimer Deposited 2014-02-11	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–145（145 aa）	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；298 K；75 mM Sodium Acetate, 1.0 M Ammonium Phosphate, pH 4.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 4.80 Å R-free 0.282
5AIT A complex of of RNF4-RING domain, UbeV2, Ubc13-Ub (isopeptide crosslink) Deposited 2015-02-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain D 1–145（145 aa） Fragment：UNP RESIDUES 1-145 Chain G 1–145（145 aa） Fragment：UNP RESIDUES 1-145	Not recorded	ZN ZINC ION × 4	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 3.40 Å R-free 0.286
7BBD Crystal structure of monoubiquitinated TRIM21 RING (Ub-RING) In complex with ubiquitin charged Ube2N (Ube2N~Ub) and Ube2V2 Deposited 2020-12-17	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–145（145 aa）	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；290.15 K；MOPSO, Bis-Tris, PEG 4K, 1,2,6-hexanetriol, Li, Na, K	Resolution 2.20 Å R-free 0.252
7BBF Crystal structure of ubiquitin charged Ube2N (Ube2N~Ub) in complex with Ube2V2 Deposited 2020-12-17	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric	Chain B 1–145（145 aa） Chain E 1–145（145 aa） Chain H 1–145（145 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；290 K；0.1 M bicine Trizma base pH 8.5, 12.5% PEG 1000, 12.5% PEG 3350, 12.5% MPD, 0.2 % of each Anesthetic alkaloids (lidocaine HCl H2O, procaine HCl, proparacaine HCl, tetracaine HCl)	Resolution 2.54 Å R-free 0.253
8WR5 The Crystal Structure of Mms2 from Biortus Deposited 2023-10-13	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–145（145 aa）	Not recorded	SO4 SULFATE ION × 1 EDO 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.2 M Li2SO4,0.1 M NaAC pH5.5,10% PEG 1000,10% PEG 8000	Resolution 1.70 Å R-free 0.210
8WR5 The Crystal Structure of Mms2 from Biortus Deposited 2023-10-13	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–145（145 aa）	Not recorded	SO4 SULFATE ION × 2 EDO 1,2-ETHANEDIOL × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.2 M Li2SO4,0.1 M NaAC pH5.5,10% PEG 1000,10% PEG 8000	Resolution 1.70 Å R-free 0.210
9BIV Crystal Structure of Ubc13 with a New Active Site Loop Conformation Deposited 2024-04-24	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–145（145 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions BATCH MODE；pH 7.5；298 K；Ubc13-Mms2 heterodimer was concentrated to 12 mg/mL and stored in 50 mM Tris pH 7.5, 150 mM NaCl, 1mM TCEP. Complex was left to slowly equilibrate from 277K to 298 overnight	Resolution 1.68 Å R-free 0.177
9LHJ UBE2N/UBE2V2 complexed with a covalent inhibitor Deposited 2025-01-12	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1–145（145 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289.15 K；0.1 M BIS-TRIS pH 6.5, 20% w/v PEG 5,000	Resolution 1.68 Å R-free 0.228
9LHJ UBE2N/UBE2V2 complexed with a covalent inhibitor Deposited 2025-01-12	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–145（145 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289.15 K；0.1 M BIS-TRIS pH 6.5, 20% w/v PEG 5,000	Resolution 1.68 Å R-free 0.228
9N1F Crystal Structure of the Ark2C-Ubc13~Ub-Mms2 complex Deposited 2025-01-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–145（145 aa）	Mutation：S32A	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289.15 K；0.1 M Sodium Malonate and 18% w/v PEG 3350	Resolution 2.10 Å R-free 0.279

17 other PDB entries and 38 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	U2V2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–139； UniProt 7–145

Ubiquitin

Homo sapiens

UniProt P61864

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 1–76	Mutation：K48R	Ubiquitin-conjugating enzyme E2 variant 2 × 1 （Q15819）	SOLUTION NMR NMR measurement conditions：pH 7.5；293 K；Ionic strength (raw mmCIF value) 150 mM NaCl；Pressure 1 NMR measurement conditions：pH 7.5；303 K；Ionic strength (raw mmCIF value) 150 mM NaCl；Pressure 1 NMR sample composition：[U-15N; U-10% 13C]-hMms2 + Ubiquitin (1:4 ratio) 90% H20 : 10% D20 \| 90% H20 : 10% D20 NMR sample composition：[U-13C; U-15N]-Ubiquitin + hMms2 (4:1 ratio) 90% H20 : 10% D20 \| 90% H20 : 10% D20 NMR sample composition：[U-13C; U-15N]-hMms2 + Ubiquitin (1:4 ratio) 90% H20 : 10% D20 \| 90% H20 : 10% D20	Resolution not provided

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 1ZGU	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1OTR Solution Structure of a CUE-Ubiquitin Complex Deposited 2003-03-22	Different mutation/modification Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–76（76 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 20 mM sodium phosphate, pH 7.0, 0.2% NaN3；Pressure 1 NMR sample composition 1 mM U-15N,13C Cue2 + 1 mM Ubiquitin; 20 mM sodium phosphate buffer, pH 7.0, 0.2% NaN3 \| 90% H2O/10% D2O NMR sample composition 1 mM U-15N,13C Cue2 + 1 mM Ubiquitin; 20 mM sodium phosphate buffer, pH 7.0, 0.2% NaN3 \| 99.996% D2O NMR sample composition 1 mM Cue2 + 1 mM U-15N,13C Ubiquitin; 20 mM sodium phosphate buffer, pH 7.0, 0.2% NaN3 \| 90% H2O/10% D2O NMR sample composition 1 mM Cue2 + 1 mM U-15N,13C Ubiquitin; 20 mM sodium phosphate buffer, pH 7.0, 0.2% NaN3 \| 99.996% D2O	Resolution not provided
1Q0W Solution structure of Vps27 amino-terminal UIM-ubiquitin complex Deposited 2003-07-17	Different mutation/modification Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–76（76 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6；298 K；Ionic strength (raw mmCIF value) 20 mM sodium phosphate, pH 6.0, 0.2% NaN3；Pressure 1 NMR sample composition 1 mM U-15N,13C Ubiquitin + 1 mM Vps27 amino-terminal UIM \| 90% H2O/10% D2O NMR sample composition 1 mM U-15N,13C Ubiquitin + 1 mM Vps27 amino-terminal UIM \| 100% D2O	Resolution not provided
1WR1 The complex structure of Dsk2p UBA with ubiquitin Deposited 2004-10-08	Different mutation/modification Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–76（76 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.8；298 K；Ionic strength (raw mmCIF value) 20mM potassium phosphate, 5mM potassium chloride NMR sample composition U-15N, 13C ubiquitin + DSK2-UBA complex (0.9mM) \| 20mM Phosphate buffer (pH 6.8); 5mM potassium chloride; 1mM EDTA; 5% D2O NMR sample composition U-15N, 13C DSK2-UBA + ubiquitin complex (1.0mM) \| 20mM Phosphate buffer (pH 6.8); 5mM potassium chloride; 1mM EDTA; 5% D2O	Resolution not provided
1ZW7 Elimination of the C-cap in Ubiquitin Structure, Dynamics and Thermodynamic Consequences Deposited 2005-06-03	Different mutation/modification Different oligomeric state Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–76（76 aa）	Mutation：R42E, E34P	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 5；298 K；Ionic strength (raw mmCIF value) 30 mM actate；Pressure Ambient NMR sample composition 1-2 mM of appropriately labeled mutant ubiquitin \| 30 mM acetate buffer, pH 5.0	Resolution not provided
2G3Q Solution Structure of Ede1 UBA-ubiquitin complex Deposited 2006-02-20	Different mutation/modification Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–76（76 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6；298 K；Ionic strength (raw mmCIF value) 20mM Sodium Phosphate；Pressure 1 NMR sample composition 1mM 15N,13C-labeled Ede1 UBA; 1mM Ubiquitin; 20mM phosphate buffer (pH 6.0), 2mM DTT, 0.2% NaN3, 90% H2O, 10% D2O \| 90% H2O/10% D2O NMR sample composition 1mM 15N,13C-labeled Ede1 UBA; 1mM Ubiquitin; 20mM phosphate buffer (pH 6.0), 2mM DTT, 0.2% NaN3, 100% D2O \| 100% D2O NMR sample composition 1mM Ede1 UBA; 1mM 15N,13C-labeled Ubiquitin; 20mM phosphate buffer (pH 6.0), 2mM DTT, 0.2% NaN3, 90% H2O, 10% D2O \| 90% H2O/10% D2O NMR sample composition 1mM Ede1 UBA; 1mM 15N,13C-labeled Ubiquitin; 20mM phosphate buffer (pH 6.0), 2mM DTT, 0.2% NaN3, 100% D2O \| 100% D2O	Resolution not provided
2JT4 Solution Structure of the Sla1 SH3-3-Ubiquitin Complex Deposited 2007-07-18	Different construct Different mutation/modification Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–76（76 aa） Fragment：SH3 domain sequence database residues 350-420	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6；318 K；Ionic strength (raw mmCIF value) 20；Pressure ambient NMR sample composition 0.9 mM [U-98% 13C; U-98% 15N] SH3, 0.9 mM ubiquitin, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.9 mM [U-98% 13C; U-98% 15N] ubiquitin, 0.9 mM SH3, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.9 mM [U-98% 13C; U-98% 15N] SH3, 0.9 mM ubiquitin, 100% D2O \| 100% D2O NMR sample composition 0.9 mM [U-98% 13C; U-98% 15N] ubiquitin, 0.9 mM SH3, 100% D2O \| 100% D2O	Resolution not provided
2JWZ Mutations in the hydrophobic core of ubiquitin differentially affect its recognition by receptor proteins Deposited 2007-10-31	Different mutation/modification Different oligomeric state Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–76（76 aa）	Mutation：L69S	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.8；296 K；Ionic strength (raw mmCIF value) 20 mM；Pressure AMBIENT NMR sample composition 2 mM [U-100% 15N] L69S UBIQUITIN, 2 mM L69S UBIQUITIN, 93% H2O/7% D2O \| 93% H2O/7% D2O	Resolution not provided
2L00 Solution structure of the non-covalent complex of the ZNF216 A20 domain with ubiquitin Deposited 2010-06-29	Different construct Different mutation/modification Different ligand/ion Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–76（76 aa） Fragment：ubiquitin core domain	Not recorded	ZN ZINC ION × 1	SOLUTION NMR NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 0.1；Pressure ambient NMR sample composition 4 mM ZNF216-A20-1, 50 uM Zinc-2, 0.1 mM DSS-3, 5 mM TRIS-4, 50 mM sodium chloride-5, 1 mM [U-100% 15N] ubiquitin-6, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 1.0 mM [U-100% 15N] ZNF216-A20-7, 50 uM Zinc-8, 4 mM MTSL-9, 5 mM TRIS-10, 50 mM sodium chloride-11, 4 mM ubiquitin-12, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.8 mM [U-100% 13C; U-100% 15N] ZNF216-A20-13, 50 uM Zinc-14, 0.1 mM DSS-15, 5 mM TRIS-16, 50 mM sodium chloride-17, 2 mM ubiquitin-18, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 1.0 mM [U-100% 15N] ZNF216-A20-19, 50 uM Zinc-20, 0.1 mM DSS-21, 5 mM TRIS-22, 50 mM sodium chloride-23, 5 % Polyacrylamide gel-24, 4 mM ubiquitin-25, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 4 mM ZNF216-A20-26, 50 uM Zinc-27, 0.1 mM DSS-28, 5 mM TRIS-29, 50 mM sodium chloride-30, 5 % Polyacrylamide gel-31, 1 mM [U-100% 15N] ubiquitin-32, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 2 mM ZNF216-A20-33, 50 uM Zinc-34, 0.1 mM DSS-35, 5 mM TRIS-36, 50 mM sodium chloride-37, 1 mM [U-100% 13C; U-100% 15N] ubiquitin-38, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 1 mM [U-100% 15N] ZNF216-A20-39, 50 uM Zinc-40, 0.1 mM DSS-41, 5 mM TRIS-42, 50 mM sodium chloride-43, 4 mM ubiquitin-44, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
3CMM Crystal Structure of the Uba1-Ubiquitin Complex Deposited 2008-03-23	Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–76（76 aa）	Not recorded	PRO PROLINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.6；298 K；L-proline, PEG 5000 MME, pH 7.6, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.70 Å R-free 0.247
3CMM Crystal Structure of the Uba1-Ubiquitin Complex Deposited 2008-03-23	Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1–76（76 aa）	Not recorded	PRO PROLINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.6；298 K；L-proline, PEG 5000 MME, pH 7.6, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.70 Å R-free 0.247
3L0W Structure of split monoubiquitinated PCNA with ubiquitin in position two Deposited 2009-12-10	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–76（76 aa） Fragment：ubi-C fragment	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；291 K；2.04 M ammonium sulfate, 0.1 M sodium citrate, 3% ethanol, pH 6.2, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.80 Å R-free 0.314
3L10 Structure of split monoubiquitinated PCNA with ubiquitin in position one Deposited 2009-12-10	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–76（76 aa） Fragment：Ubi-C fragment	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；291 K；2.04M ammonium sulfate, 0.1M sodium citrate, 3% ethanol, pH 6.2, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.80 Å R-free 0.314

11 other PDB entries and 12 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	UBIQ_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–76； UniProt 1–76

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

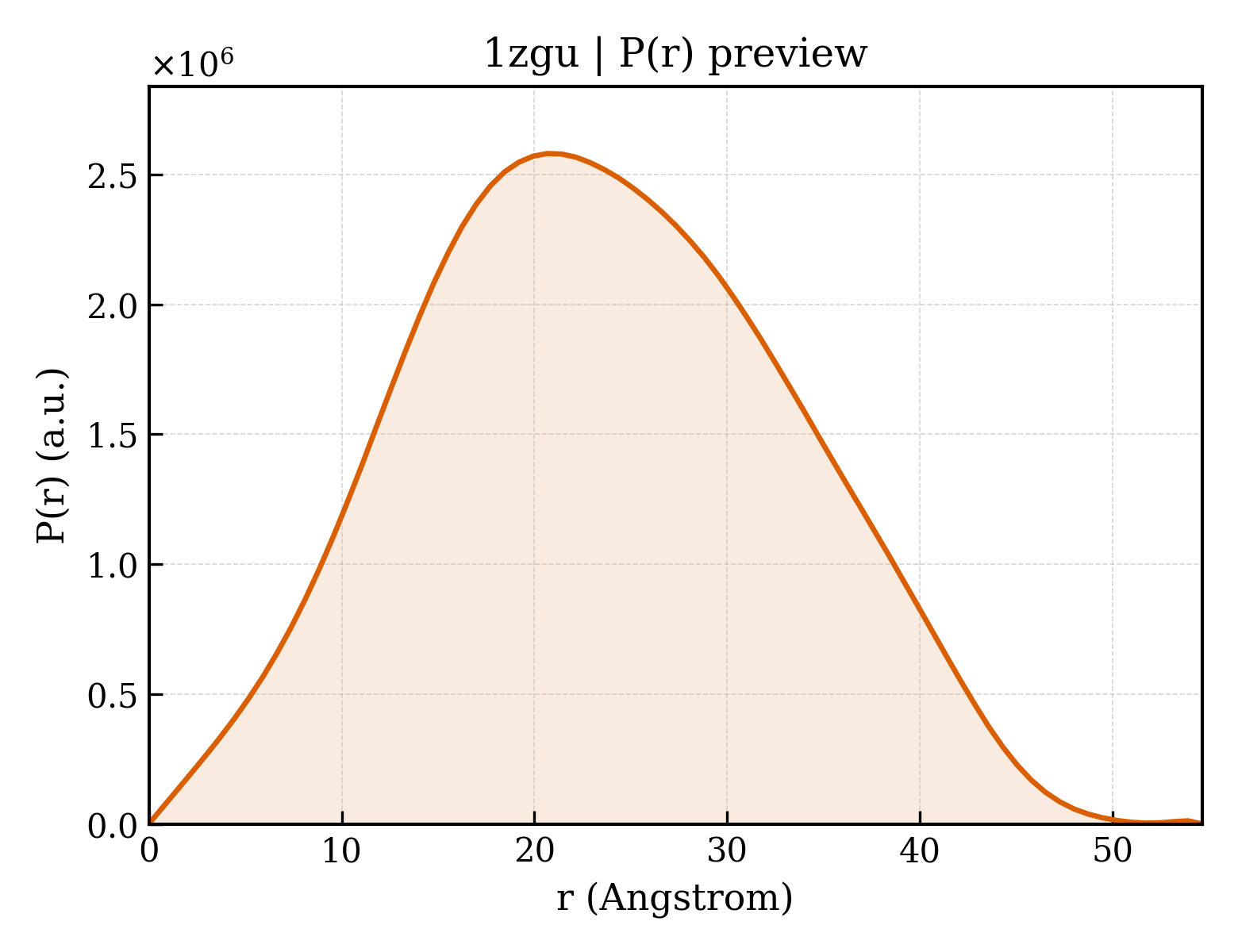

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1zgu
Deposition date deposition_date	2005-04-22
Structure title title	Solution structure of the human Mms2-Ubiquitin complex
Keywords keywords	UEV domain, ubiquitin binding motif, LIGASE-SIGNALING PROTEIN COMPLEX; LIGASE/SIGNALING PROTEIN
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	18.07 Å
Radius of gyration Rg (electron density) rg_electron	17.70 Å
Forward intensity I(0) i0	843745000.00
Molecular weight molecular_weight	244100.0 kDa
Excluded volume excluded_volume	305430 Å³
Envelope volume envelope_volume	43913 Å³
Hydration-shell volume shell_volume	19623 Å³
Envelope diameter envelope_diameter	60.1 Å
Shell Rg shell_rg	24.94 Å
Envelope Rg envelope_rg	18.71 Å
Shape Rg shape_rg	17.68 Å
Total Rg total_rg	17.94 Å
Total atoms total_atoms	34530
Residues n_residues	2150
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	54.6 Å
Rg (real space) rg_real	17.95 Å
Rg uncertainty (real space) rg_real_error	0.28 Å
I(0) (real space) i0_real	8.4370e+08
I(0) uncertainty (real space) i0_real_error	9.6210e+06
Rg (reciprocal space) rg_reciprocal	17.96 Å
I(0) (reciprocal space) i0_reciprocal	843800000.0000
Solution quality estimate total_estimate	0.9094
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	20.7 Å
Skewness Skewness skewness	0.114
Kurtosis Kurtosis kurtosis	-0.563
Angular range angular_range	— – 0.4400 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1196000.0000
Real-space data points n_real_points	75
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.953; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.991; Smooth: 0.967

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Ubiquitin-conjugating enzyme E2 variant 2
Molecular weight formula_weight	15834.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	34530

VKVPRNFRLLEELEEGQKGVGDGTVSWGLEDDEDMTLTRWTGMIIGPPRTNYENRIYSLKVECGPKYPEAPPSVRFVTKINMNGINNSSGMVDARSIPVLAKWQNSYSIKVVLQELRRLMMSKENMKLPQPPEGQTYNN

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Ubiquitin
Molecular weight formula_weight	8604.8 kDa
Mutation mutation	K48R
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MQIFVKTLTGKTITLEVEPSDTIENVKAKIQDKEGIPPDQQRLIFAGRQLEDGRTLSDYNIQKESTLHLVLRLRGG

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

▼

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1zgua_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.20 — UBC-like
Superfamily Superfamily superfamily	d.20.1 — UBC-like
Family Family family	d.20.1.1 — UBC-related

Domain ID domain_id	d1zgub1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.1 — Ubiquitin-like
Family Family family	d.15.1.1 — Ubiquitin-related

CATH v4.4 (2 domains)

Domain ID domain_id	1zguA00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	110 — Ubiquitin Conjugating Enzyme
Homologous superfamily homologous superfamily	10 — Ubiquitin Conjugating Enzyme

Domain ID domain_id	1zguB00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	90 — Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 1

▶
