3l0w

Structure of split monoubiquitinated PCNA with ubiquitin in position two

Method: X-RAY DIFFRACTION D_max: 81.2 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Proliferating cell nuclear antigen

Saccharomyces cerevisiae

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Insufficient information Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–163 Chain B； UniProt 165–255	Fragment：N fragment Fragment：ubi-C fragment	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.2；291 K；2.04 M ammonium sulfate, 0.1 M sodium citrate, 3% ethanol, pH 6.2, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.80 Å R-free 0.314

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3L0W	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1PLQ CRYSTAL STRUCTURE OF THE EUKARYOTIC DNA POLYMERASE PROCESSIVITY FACTOR PCNA Deposited 1995-01-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 1–258（258 aa）	Not recorded	HG MERCURY (II) ION × 6	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.30 Å
1PLR CRYSTAL STRUCTURE OF THE EUKARYOTIC DNA POLYMERASE PROCESSIVITY FACTOR PCNA Deposited 1995-01-02	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 1–258（258 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 3.00 Å
1SXJ Crystal Structure of the Eukaryotic Clamp Loader (Replication Factor C, RFC) Bound to the DNA Sliding Clamp (Proliferating Cell Nuclear Antigen, PCNA) Deposited 2004-03-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain F 1–258（258 aa） Chain G 1–258（258 aa） Chain H 1–258（258 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 4 AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9；292 K；PEG 3350, sodium chloride, CHES, pH 9.0, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 2.85 Å R-free 0.306
2OD8 Structure of a peptide derived from Cdc9 bound to PCNA Deposited 2006-12-21	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–258（258 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；294 K；1.6 M (NH4)2SO4, Sodium citrate, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 2.80 Å R-free 0.285
3F1W Crystal structure of a mutant proliferating cell nuclear antigen that blocks translesion synthesis Deposited 2008-10-28	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–258（258 aa）	Mutation：G178S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.8；291 K；2.06M ammonium sulfate, 0.1M Sodium citrate, pH 5.8, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.90 Å R-free 0.255
3F1W Crystal structure of a mutant proliferating cell nuclear antigen that blocks translesion synthesis Deposited 2008-10-28	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 1–258（258 aa）	Mutation：G178S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.8；291 K；2.06M ammonium sulfate, 0.1M Sodium citrate, pH 5.8, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.90 Å R-free 0.255
3GPM Structure of the trimeric form of the E113G PCNA mutant protein Deposited 2009-03-23	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 1–258（258 aa）	Mutation：E113G	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.8；298 K；2.0 M ammonium sulfate and 0.1 M sodium citrate, pH 5.8, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 3.80 Å R-free 0.312
3GPN Structure of the non-trimeric form of the E113G PCNA mutant protein Deposited 2009-03-23	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–258（258 aa）	Mutation：E113G	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.8；291 K；1.6 M ammonium sulfate and 0.1 M sodium Citrate, pH 5.8, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.50 Å R-free 0.273
3K4X Eukaryotic Sliding Clamp PCNA Bound to DNA Deposited 2009-10-06	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 1–257（257 aa） Chain A 2–257（256 aa） Chain A 2–258（257 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；293 K；100 mM Na Acetate, 100 mM NaCl, 14% PEG 4000, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.98 Å R-free 0.280
3L0X Structure of split yeast PCNA Deposited 2009-12-10	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–163（163 aa） Fragment：N fragment Chain B 165–258（94 aa） Fragment：C fragment	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；1.9M ammonium sulfate, 0.1M sodium citrate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 3.00 Å R-free 0.267
3L10 Structure of split monoubiquitinated PCNA with ubiquitin in position one Deposited 2009-12-10	Different construct Different experimental conditions	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–163（163 aa） Fragment：N fragment Chain B 165–255（91 aa） Fragment：Ubi-C fragment	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；291 K；2.04M ammonium sulfate, 0.1M sodium citrate, 3% ethanol, pH 6.2, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.80 Å R-free 0.314
3PGE Structure of sumoylated PCNA Deposited 2010-11-01	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 165–258（94 aa） Fragment：sumo-C fragment of PCNA Chain B 1–163（163 aa） Fragment：N fragment of PCNA	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；291 K；2.0M Ammonium Sulfate, 0.1M sodium Citrate, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.80 Å R-free 0.253
3V60 Structure of S. cerevisiae PCNA conjugated to SUMO on lysine 164 Deposited 2011-12-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain B 1–258（258 aa）	Mutation：K127G	SO4 SULFATE ION × 18	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；291 K；4% PEG 8000, 500 mM LiSO4, pH 4.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.60 Å R-free 0.249
3V61 Structure of S. cerevisiae PCNA conjugated to SUMO on lysine 164 Deposited 2011-12-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–258（258 aa）	Mutation：K127G	BA BARIUM ION × 13 NEQ N-ETHYLMALEIMIDE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；21% MPD, 100 mM BaCl2, 100 mM Bis-Tris, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.80 Å R-free 0.254
3V62 Structure of the S. cerevisiae Srs2 C-terminal domain in complex with PCNA conjugated to SUMO on lysine 164 Deposited 2011-12-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–258（258 aa）	Mutation：K127G	NEQ N-ETHYLMALEIMIDE × 2 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；279 K；1.9 M AMMONIUM SULFATE 4% PEG 400 100 mM HEPES, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 279K	Resolution 2.90 Å R-free 0.237
3V62 Structure of the S. cerevisiae Srs2 C-terminal domain in complex with PCNA conjugated to SUMO on lysine 164 Deposited 2011-12-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 1–258（258 aa）	Mutation：K127G	NEQ N-ETHYLMALEIMIDE × 2 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；279 K；1.9 M AMMONIUM SULFATE 4% PEG 400 100 mM HEPES, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 279K	Resolution 2.90 Å R-free 0.237
4L60 Structure of C81R Mutant PCNA Protein Defective in Mismatch Repair Deposited 2013-06-11	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–256（256 aa）	Mutation：C81R	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；291.15 K；20% PEG3000, 0.2M NaCl, and HEPES, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 291.15K	Resolution 3.00 Å R-free 0.254
4L6P Structure of C22Y Mutant PCNA protein defective in DNA mismatch repair Deposited 2013-06-12	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–258（258 aa）	Mutation：C22Y	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291 K；2M AmSO4, 0.2M Lithium Sulfate Monohydrate, 0.1M Sodium Cacodylate Trihydrate, pH 7, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.68 Å R-free 0.280
4L6P Structure of C22Y Mutant PCNA protein defective in DNA mismatch repair Deposited 2013-06-12	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–258（258 aa）	Mutation：C22Y	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291 K；2M AmSO4, 0.2M Lithium Sulfate Monohydrate, 0.1M Sodium Cacodylate Trihydrate, pH 7, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.68 Å R-free 0.280
4L6P Structure of C22Y Mutant PCNA protein defective in DNA mismatch repair Deposited 2013-06-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 1–258（258 aa）	Mutation：C22Y	GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291 K；2M AmSO4, 0.2M Lithium Sulfate Monohydrate, 0.1M Sodium Cacodylate Trihydrate, pH 7, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.68 Å R-free 0.280
4YHR Crystal Structure of Yeast Proliferating Cell Nuclear Antigen Deposited 2015-02-27	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 1–258（258 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；Protein solution: 15 mg/mL protein in 20 mM HEPES and 150 mM NaCL at pH 7.5. Crystallization solution: 2.2M ammonium sulfate, 0.2M ammonium fluoride. Hanging drop was 50% protein solution, 50% crystallization solution	Resolution 2.95 Å R-free 0.273
5JNE E2-SUMO-Siz1 E3-SUMO-PCNA complex Deposited 2016-04-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain D 1–258（258 aa）	Mutation：K77D, C81E, R110D, K127G, K164C	ZN ZINC ION × 1 GOL GLYCEROL × 6 6LN ethane-1,2-dithiol × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；291 K；0.1 M Tris-HCl (pH 8.5), 5% PEG 10,000, 0.2 M NaCl, 10% glycerol, 3% dioxane	Resolution 2.85 Å R-free 0.250
5JNE E2-SUMO-Siz1 E3-SUMO-PCNA complex Deposited 2016-04-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain H 1–258（258 aa）	Mutation：K77D, C81E, R110D, K127G, K164C	ZN ZINC ION × 1 GOL GLYCEROL × 4 6LN ethane-1,2-dithiol × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；291 K；0.1 M Tris-HCl (pH 8.5), 5% PEG 10,000, 0.2 M NaCl, 10% glycerol, 3% dioxane	Resolution 2.85 Å R-free 0.250
5T9D Structure of PCNA acetylated on K20 Deposited 2016-09-09	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 2–258（257 aa） Chain B 2–258（257 aa） Chain C 2–258（257 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；1M NH4SO4, 0.1M citrate	Resolution 3.27 Å R-free 0.231
5V7K PCNA mutant D41A/D42A Protein Defective in Gene Silencing Deposited 2017-03-20	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 1–258（258 aa）	Mutation：D41A, D42A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；0.1M sodium citrate, pH 5.43, 0.529 ammonium sulfate, 0.729M lithium sulfate	Resolution 3.05 Å R-free 0.227
5V7L PCNA mutant R61A/D63A Protein Defective in Gene Silencing Deposited 2017-03-20	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 1–258（258 aa）	Mutation：R61A, D63A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；0.1M sodium citrate, pH 5.57, 0.671M ammonium sulfate, 0.994M lithium sulfate	Resolution 3.20 Å R-free 0.251
5V7M PCNA mutant L126A/I128A Protein Defective in Gene Silencing Deposited 2017-03-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 1–258（258 aa）	Mutation：L126A, I128A	MG MAGNESIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；0.1M sodium cacodylate, pH 6.5, 0.2M magnesium chloride, 20% PEG 1000	Resolution 1.93 Å R-free 0.240
5V7M PCNA mutant L126A/I128A Protein Defective in Gene Silencing Deposited 2017-03-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–258（258 aa）	Mutation：L126A, I128A	MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；0.1M sodium cacodylate, pH 6.5, 0.2M magnesium chloride, 20% PEG 1000	Resolution 1.93 Å R-free 0.240
5ZUT Crystal Structure of Yeast PCNA in Complex with N24 Peptide Deposited 2018-05-08	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–258（258 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；291 K；n-Octyl-b-D-glu, NaCi pH 5.5, PEG 3350	Resolution 2.82 Å R-free 0.397
6CX2 S177G Mutant of Yeast PCNA Deposited 2018-04-02	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 1–258（258 aa）	Mutation：S177G	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291.15 K；2.2M Ammonium sulfate 20% Glycerol	Resolution 3.10 Å R-free 0.244
6CX3 S179T Mutant of Yeast PCNA Deposited 2018-04-02	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 1–258（258 aa）	Mutation：S179T	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；290.15 K；2.2M Ammonium sulfate 0.2 Sodium Formate	Resolution 3.10 Å R-free 0.269
6CX4 V180A Mutant of Yeast PCNA Deposited 2018-04-02	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 1–258（258 aa）	Mutation：V180A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；290.15 K；2.2M Ammonium Sulfate 0.2M Potassium Chloride 20% Glycerol	Resolution 3.08 Å R-free 0.267
6D0Q Structure of a DNA retention-prone PCNA variant Deposited 2018-04-10	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 1–258（258 aa）	Mutation：D21K	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；298 K；50 mM sodium citrate pH 5.6, 2 M (NH4)2SO4	Resolution 2.80 Å R-free 0.269
6D0R Structure of a DNA retention-prone PCNA variant Deposited 2018-04-10	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 1–258（258 aa）	Mutation：D17K	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；50 mM sodium citrate pH 5.3 and 1.7 M (NH4)2SO4	Resolution 2.86 Å R-free 0.276
6E49 Pif1 peptide bound to PCNA trimer Deposited 2018-07-17	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–258（258 aa） Chain B 1–258（258 aa） Chain C 1–258（258 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions MICROBATCH；298 K；100 mM MIB (Qiagen), pH 9.0, 25% PEG1500	Resolution 2.90 Å R-free 0.253
6W9W R80A PCNA mutant defective in BIR Deposited 2020-03-23	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 1–254（254 aa）	Mutation：R80A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；2.2 M ammonium sulfate, 0.2 M ammonium formate	Resolution 2.65 Å R-free 0.243
6WAC FF248-249AA PCNA mutant defective in BIR Deposited 2020-03-25	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 1–253（253 aa）	Mutation：F248A, F249A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291.15 K；magnesium chloride hexahydrate, sodium dimethylarsinic acid, PEG1000	Resolution 2.90 Å R-free 0.270
7TFH Atomic model of the S. cerevisiae clamp-clamp loader complex PCNA-RFC bound to two DNA molecules, one at the 5'-recessed end and the other at the 3'-recessed end Deposited 2022-01-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: dodecameric	Chain F 1–258（258 aa） Chain G 1–258（258 aa） Chain H 1–258（258 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 4 MG MAGNESIUM ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.09 Å
7TFI Atomic model of the S. cerevisiae clamp-clamp loader complex PCNA-RFC bound to DNA with an open clamp Deposited 2022-01-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric	Chain F 1–258（258 aa） Chain G 1–258（258 aa） Chain H 1–258（258 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 4 MG MAGNESIUM ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.41 Å
7TFJ Atomic model of S. cerevisiae clamp-clamp loader complex PCNA-RFC bound to DNA with a closed clamp ring Deposited 2022-01-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric	Chain F 1–258（258 aa） Chain G 1–258（258 aa） Chain H 1–258（258 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 4 MG MAGNESIUM ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
7THJ Structure of the yeast clamp loader (Replication Factor C RFC) bound to the sliding clamp (Proliferating Cell Nuclear Antigen PCNA) in an autoinhibited conformation Deposited 2022-01-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain F 1–258（258 aa） Chain G 1–258（258 aa） Chain H 1–258（258 aa）	Not recorded	AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 4 MG MAGNESIUM ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
7THV Structure of the yeast clamp loader (Replication Factor C RFC) bound to the sliding clamp (Proliferating Cell Nuclear Antigen PCNA) in an autoinhibited conformation Deposited 2022-01-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain F 1–258（258 aa） Chain G 1–258（258 aa） Chain H 1–258（258 aa）	Not recorded	AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 4 MG MAGNESIUM ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
7TI8 Structure of the yeast clamp loader (Replication Factor C RFC) bound to the open sliding clamp (Proliferating Cell Nuclear Antigen PCNA) Deposited 2022-01-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain F 1–258（258 aa） Chain G 1–258（258 aa） Chain H 1–258（258 aa）	Not recorded	AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 4 MG MAGNESIUM ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
7TIB Structure of the yeast clamp loader (Replication Factor C RFC) bound to the open sliding clamp (Proliferating Cell Nuclear Antigen PCNA) and primer-template DNA Deposited 2022-01-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric	Chain F 1–258（258 aa） Chain G 1–258（258 aa） Chain H 1–258（258 aa）	Not recorded	AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 4 MG MAGNESIUM ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
7TIC Structure of the yeast clamp loader (Replication Factor C RFC) bound to the sliding clamp (Proliferating Cell Nuclear Antigen PCNA) in an autoinhibited conformation Deposited 2022-01-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain F 1–258（258 aa） Chain G 1–258（258 aa） Chain H 1–258（258 aa）	Not recorded	AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 4 MG MAGNESIUM ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.90 Å
7TID Structure of the yeast clamp loader (Replication Factor C RFC) bound to the sliding clamp (Proliferating Cell Nuclear Antigen PCNA) and primer-template DNA Deposited 2022-01-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric	Chain F 1–258（258 aa） Chain G 1–258（258 aa） Chain H 1–258（258 aa）	Not recorded	AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 4 MG MAGNESIUM ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
7TKU Structure of the yeast clamp loader (Replication Factor C RFC) bound to the open sliding clamp (Proliferating Cell Nuclear Antigen PCNA) Deposited 2022-01-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain F 1–258（258 aa） Chain G 1–258（258 aa） Chain H 1–258（258 aa）	Not recorded	AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 4 MG MAGNESIUM ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
7U19 RFC:PCNA bound to nicked DNA Deposited 2022-02-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: undecameric	Chain F 1–258（258 aa） Chain G 1–258（258 aa） Chain H 1–258（258 aa）	Not recorded	AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 4 MG MAGNESIUM ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
7U1A RFC:PCNA bound to dsDNA with a ssDNA gap of six nucleotides Deposited 2022-02-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: undecameric	Chain F 1–258（258 aa） Chain G 1–258（258 aa） Chain H 1–258（258 aa）	Not recorded	AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 3 MG MAGNESIUM ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
7U1P RFC:PCNA bound to DNA with a ssDNA gap of five nucleotides Deposited 2022-02-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: undecameric	Chain F 1–258（258 aa） Chain G 1–258（258 aa） Chain H 1–258（258 aa）	Not recorded	AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 3 MG MAGNESIUM ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
8DQX Open state of RFC:PCNA bound to a 3' ss/dsDNA junction Deposited 2022-07-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: undecameric	Chain F 1–258（258 aa） Chain G 1–258（258 aa） Chain H 1–258（258 aa）	Not recorded	AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 4 MG MAGNESIUM ION × 4 GDP GUANOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.10 Å
8DQZ Intermediate state of RFC:PCNA bound to a 3' ss/dsDNA junction Deposited 2022-07-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric	Chain F 1–258（258 aa） Chain G 1–258（258 aa） Chain H 1–258（258 aa）	Not recorded	AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 4 MG MAGNESIUM ION × 4 GDP GUANOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.92 Å
8DR1 Consensus closed state of RFC:PCNA bound to a 3' ss/dsDNA junction (DNA2) Deposited 2022-07-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: dodecameric	Chain F 1–258（258 aa） Chain G 1–258（258 aa） Chain H 1–258（258 aa）	Not recorded	AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 4 MG MAGNESIUM ION × 4 GDP GUANOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.14 Å
8DR3 Closed state of RFC:PCNA bound to a 3' ss/dsDNA junction (DNA2) with NTD Deposited 2022-07-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: dodecameric	Chain F 1–258（258 aa） Chain G 1–258（258 aa） Chain H 1–258（258 aa）	Not recorded	AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 4 MG MAGNESIUM ION × 4 GDP GUANOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.20 Å
8DR4 Open state of RFC:PCNA bound to a 3' ss/dsDNA junction (DNA2) without NTD Deposited 2022-07-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: dodecameric	Chain F 1–258（258 aa） Chain G 1–258（258 aa） Chain H 1–258（258 aa）	Not recorded	AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 4 MG MAGNESIUM ION × 4 GDP GUANOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.45 Å
8DR6 Closed state of RFC:PCNA bound to a nicked dsDNA Deposited 2022-07-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: undecameric	Chain F 1–258（258 aa） Chain G 1–258（258 aa） Chain H 1–258（258 aa）	Not recorded	AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 4 MG MAGNESIUM ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.39 Å
8THW Cac1 PIP motif bound to PCNA Deposited 2023-07-18	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 1–258（258 aa） Chain B 1–258（258 aa） Chain C 1–258（258 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.1M magnesium acetate tetrahydrate (Mg Ac4H) and 11% w/v PEG3350	Resolution 2.60 Å R-free 0.267
8TW7 Cryo-EM structure of S. cerevisiae Ctf18-RFC-PCNA complex in Apo state conformation I Deposited 2023-08-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 1–258（258 aa） Chain B 1–258（258 aa） Chain C 1–258（258 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1 AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 3 MG MAGNESIUM ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
8TW8 Cryo-EM structure of S. cerevisiae Ctf18-RFC-PCNA complex in Apo state conformation I Deposited 2023-08-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 1–258（258 aa） Chain B 1–258（258 aa） Chain C 1–258（258 aa）	Not recorded	AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 3 MG MAGNESIUM ION × 3 ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
8TWA Cryo-EM structure of S. cerevisiae Ctf18-RFC-PCNA-PolE-DNA complex Deposited 2023-08-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: 14-meric	Chain X 1–258（258 aa） Chain Y 1–258（258 aa） Chain Z 1–258（258 aa）	Not recorded	SF4 IRON/SULFUR CLUSTER × 1 AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 3 MG MAGNESIUM ION × 3 ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.10 Å
8TWB Cryo-EM structure of S. cerevisiae Ctf18-RFC-PCNA-DNA complex Deposited 2023-08-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric	Chain A 1–258（258 aa） Chain B 1–258（258 aa） Chain C 1–258（258 aa）	Not recorded	AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 3 MG MAGNESIUM ION × 3 ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å

55 other PDB entries and 61 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PCNA_YEAST
Isoform	—
PDB entities	1, 2
Chains and sequence ranges	Author chain A； PDBConstruct 7–169； UniProt 1–163 Author chain B； PDBConstruct 79–169； UniProt 165–255

Monoubiquitinated Proliferating cell nuclear antigen

Saccharomyces cerevisiae

UniProt P61864

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Insufficient information Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 1–76	Fragment：ubi-C fragment	Proliferating cell nuclear antigen × 1 （P15873）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.2；291 K；2.04 M ammonium sulfate, 0.1 M sodium citrate, 3% ethanol, pH 6.2, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.80 Å R-free 0.314

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 3L0W	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1OTR Solution Structure of a CUE-Ubiquitin Complex Deposited 2003-03-22	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–76（76 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 20 mM sodium phosphate, pH 7.0, 0.2% NaN3；Pressure 1 NMR sample composition 1 mM U-15N,13C Cue2 + 1 mM Ubiquitin; 20 mM sodium phosphate buffer, pH 7.0, 0.2% NaN3 \| 90% H2O/10% D2O NMR sample composition 1 mM U-15N,13C Cue2 + 1 mM Ubiquitin; 20 mM sodium phosphate buffer, pH 7.0, 0.2% NaN3 \| 99.996% D2O NMR sample composition 1 mM Cue2 + 1 mM U-15N,13C Ubiquitin; 20 mM sodium phosphate buffer, pH 7.0, 0.2% NaN3 \| 90% H2O/10% D2O NMR sample composition 1 mM Cue2 + 1 mM U-15N,13C Ubiquitin; 20 mM sodium phosphate buffer, pH 7.0, 0.2% NaN3 \| 99.996% D2O	Resolution not provided
1Q0W Solution structure of Vps27 amino-terminal UIM-ubiquitin complex Deposited 2003-07-17	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–76（76 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6；298 K；Ionic strength (raw mmCIF value) 20 mM sodium phosphate, pH 6.0, 0.2% NaN3；Pressure 1 NMR sample composition 1 mM U-15N,13C Ubiquitin + 1 mM Vps27 amino-terminal UIM \| 90% H2O/10% D2O NMR sample composition 1 mM U-15N,13C Ubiquitin + 1 mM Vps27 amino-terminal UIM \| 100% D2O	Resolution not provided
1WR1 The complex structure of Dsk2p UBA with ubiquitin Deposited 2004-10-08	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–76（76 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.8；298 K；Ionic strength (raw mmCIF value) 20mM potassium phosphate, 5mM potassium chloride NMR sample composition U-15N, 13C ubiquitin + DSK2-UBA complex (0.9mM) \| 20mM Phosphate buffer (pH 6.8); 5mM potassium chloride; 1mM EDTA; 5% D2O NMR sample composition U-15N, 13C DSK2-UBA + ubiquitin complex (1.0mM) \| 20mM Phosphate buffer (pH 6.8); 5mM potassium chloride; 1mM EDTA; 5% D2O	Resolution not provided
1ZGU Solution structure of the human Mms2-Ubiquitin complex Deposited 2005-04-22	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–76（76 aa）	Mutation：K48R	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7.5；293 K；Ionic strength (raw mmCIF value) 150 mM NaCl；Pressure 1 NMR measurement conditions pH 7.5；303 K；Ionic strength (raw mmCIF value) 150 mM NaCl；Pressure 1 NMR sample composition [U-15N; U-10% 13C]-hMms2 + Ubiquitin (1:4 ratio) 90% H20 : 10% D20 \| 90% H20 : 10% D20 NMR sample composition [U-13C; U-15N]-Ubiquitin + hMms2 (4:1 ratio) 90% H20 : 10% D20 \| 90% H20 : 10% D20 NMR sample composition [U-13C; U-15N]-hMms2 + Ubiquitin (1:4 ratio) 90% H20 : 10% D20 \| 90% H20 : 10% D20	Resolution not provided
1ZW7 Elimination of the C-cap in Ubiquitin Structure, Dynamics and Thermodynamic Consequences Deposited 2005-06-03	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–76（76 aa）	Mutation：R42E, E34P	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 5；298 K；Ionic strength (raw mmCIF value) 30 mM actate；Pressure Ambient NMR sample composition 1-2 mM of appropriately labeled mutant ubiquitin \| 30 mM acetate buffer, pH 5.0	Resolution not provided
2G3Q Solution Structure of Ede1 UBA-ubiquitin complex Deposited 2006-02-20	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–76（76 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6；298 K；Ionic strength (raw mmCIF value) 20mM Sodium Phosphate；Pressure 1 NMR sample composition 1mM 15N,13C-labeled Ede1 UBA; 1mM Ubiquitin; 20mM phosphate buffer (pH 6.0), 2mM DTT, 0.2% NaN3, 90% H2O, 10% D2O \| 90% H2O/10% D2O NMR sample composition 1mM 15N,13C-labeled Ede1 UBA; 1mM Ubiquitin; 20mM phosphate buffer (pH 6.0), 2mM DTT, 0.2% NaN3, 100% D2O \| 100% D2O NMR sample composition 1mM Ede1 UBA; 1mM 15N,13C-labeled Ubiquitin; 20mM phosphate buffer (pH 6.0), 2mM DTT, 0.2% NaN3, 90% H2O, 10% D2O \| 90% H2O/10% D2O NMR sample composition 1mM Ede1 UBA; 1mM 15N,13C-labeled Ubiquitin; 20mM phosphate buffer (pH 6.0), 2mM DTT, 0.2% NaN3, 100% D2O \| 100% D2O	Resolution not provided
2JT4 Solution Structure of the Sla1 SH3-3-Ubiquitin Complex Deposited 2007-07-18	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–76（76 aa） Fragment：SH3 domain sequence database residues 350-420	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6；318 K；Ionic strength (raw mmCIF value) 20；Pressure ambient NMR sample composition 0.9 mM [U-98% 13C; U-98% 15N] SH3, 0.9 mM ubiquitin, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.9 mM [U-98% 13C; U-98% 15N] ubiquitin, 0.9 mM SH3, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.9 mM [U-98% 13C; U-98% 15N] SH3, 0.9 mM ubiquitin, 100% D2O \| 100% D2O NMR sample composition 0.9 mM [U-98% 13C; U-98% 15N] ubiquitin, 0.9 mM SH3, 100% D2O \| 100% D2O	Resolution not provided
2JWZ Mutations in the hydrophobic core of ubiquitin differentially affect its recognition by receptor proteins Deposited 2007-10-31	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–76（76 aa）	Mutation：L69S	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.8；296 K；Ionic strength (raw mmCIF value) 20 mM；Pressure AMBIENT NMR sample composition 2 mM [U-100% 15N] L69S UBIQUITIN, 2 mM L69S UBIQUITIN, 93% H2O/7% D2O \| 93% H2O/7% D2O	Resolution not provided
2L00 Solution structure of the non-covalent complex of the ZNF216 A20 domain with ubiquitin Deposited 2010-06-29	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–76（76 aa） Fragment：ubiquitin core domain	Not recorded	ZN ZINC ION × 1	SOLUTION NMR NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 0.1；Pressure ambient NMR sample composition 4 mM ZNF216-A20-1, 50 uM Zinc-2, 0.1 mM DSS-3, 5 mM TRIS-4, 50 mM sodium chloride-5, 1 mM [U-100% 15N] ubiquitin-6, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 1.0 mM [U-100% 15N] ZNF216-A20-7, 50 uM Zinc-8, 4 mM MTSL-9, 5 mM TRIS-10, 50 mM sodium chloride-11, 4 mM ubiquitin-12, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.8 mM [U-100% 13C; U-100% 15N] ZNF216-A20-13, 50 uM Zinc-14, 0.1 mM DSS-15, 5 mM TRIS-16, 50 mM sodium chloride-17, 2 mM ubiquitin-18, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 1.0 mM [U-100% 15N] ZNF216-A20-19, 50 uM Zinc-20, 0.1 mM DSS-21, 5 mM TRIS-22, 50 mM sodium chloride-23, 5 % Polyacrylamide gel-24, 4 mM ubiquitin-25, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 4 mM ZNF216-A20-26, 50 uM Zinc-27, 0.1 mM DSS-28, 5 mM TRIS-29, 50 mM sodium chloride-30, 5 % Polyacrylamide gel-31, 1 mM [U-100% 15N] ubiquitin-32, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 2 mM ZNF216-A20-33, 50 uM Zinc-34, 0.1 mM DSS-35, 5 mM TRIS-36, 50 mM sodium chloride-37, 1 mM [U-100% 13C; U-100% 15N] ubiquitin-38, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 1 mM [U-100% 15N] ZNF216-A20-39, 50 uM Zinc-40, 0.1 mM DSS-41, 5 mM TRIS-42, 50 mM sodium chloride-43, 4 mM ubiquitin-44, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
3CMM Crystal Structure of the Uba1-Ubiquitin Complex Deposited 2008-03-23	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–76（76 aa）	Not recorded	PRO PROLINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.6；298 K；L-proline, PEG 5000 MME, pH 7.6, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.70 Å R-free 0.247
3CMM Crystal Structure of the Uba1-Ubiquitin Complex Deposited 2008-03-23	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1–76（76 aa）	Not recorded	PRO PROLINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.6；298 K；L-proline, PEG 5000 MME, pH 7.6, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.70 Å R-free 0.247
3L10 Structure of split monoubiquitinated PCNA with ubiquitin in position one Deposited 2009-12-10	Different construct Different experimental conditions	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–76（76 aa） Fragment：Ubi-C fragment	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；291 K；2.04M ammonium sulfate, 0.1M sodium citrate, 3% ethanol, pH 6.2, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.80 Å R-free 0.314

11 other PDB entries and 12 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	UBIQ_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–76； UniProt 1–76

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

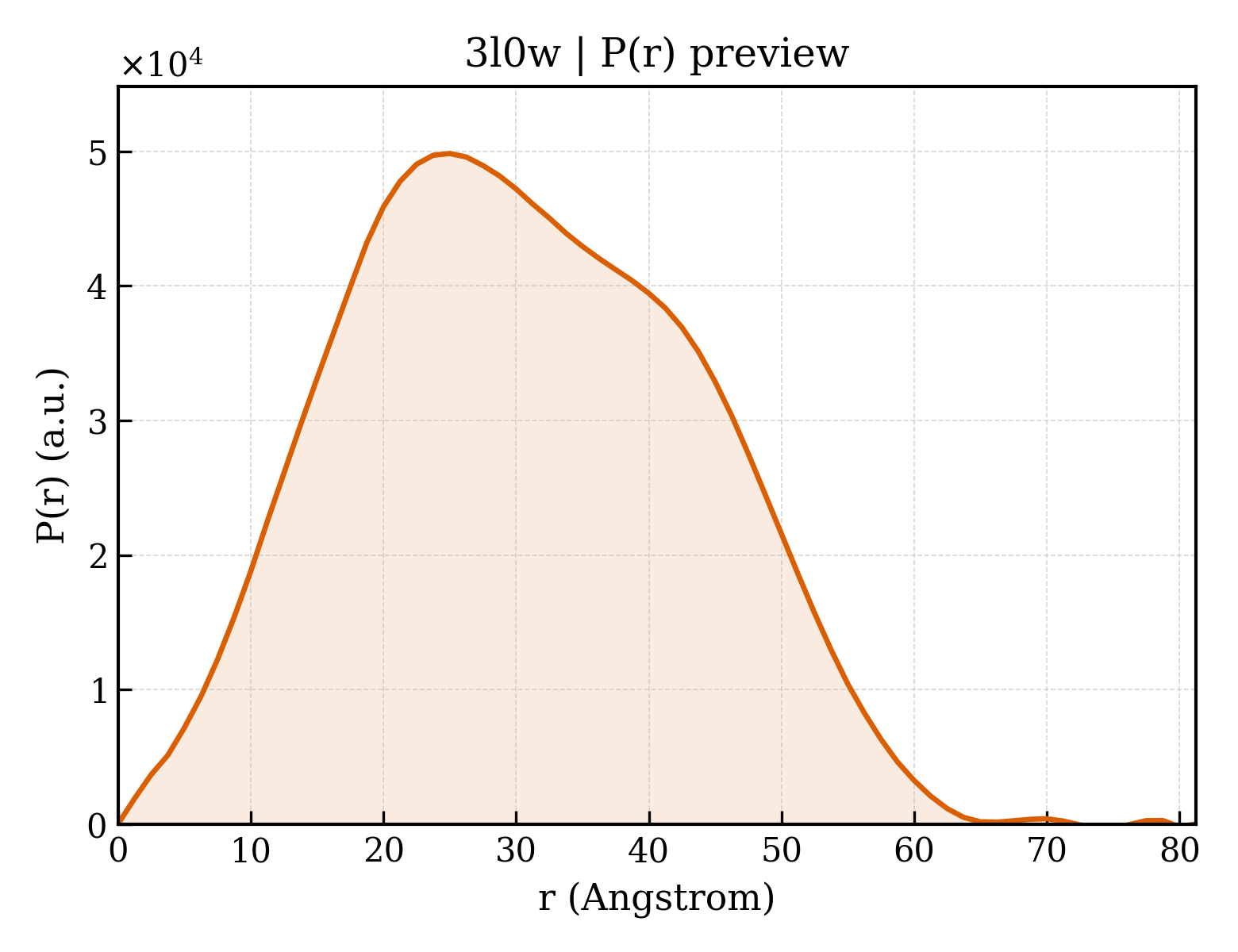

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3l0w
Deposition date deposition_date	2009-12-10
Structure title title	Structure of split monoubiquitinated PCNA with ubiquitin in position two
Keywords keywords	Replication, DNA damage, DNA repair, DNA replication, DNA-binding, Isopeptide bond, Nucleus, Ubl conjugation; REPLICATION
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	23.36 Å
Radius of gyration Rg (electron density) rg_electron	22.00 Å
Forward intensity I(0) i0	22210800.00
Molecular weight molecular_weight	36862.0 kDa
Excluded volume excluded_volume	46624 Å³
Envelope volume envelope_volume	56854 Å³
Hydration-shell volume shell_volume	21828 Å³
Envelope diameter envelope_diameter	70.2 Å
Shell Rg shell_rg	28.45 Å
Envelope Rg envelope_rg	22.04 Å
Shape Rg shape_rg	21.96 Å
Total Rg total_rg	22.98 Å
Total atoms total_atoms	2590
Residues n_residues	329
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	81.2 Å
Rg (real space) rg_real	23.26 Å
Rg uncertainty (real space) rg_real_error	0.75 Å
I(0) (real space) i0_real	2.2210e+07
I(0) uncertainty (real space) i0_real_error	2.8570e+05
Rg (reciprocal space) rg_reciprocal	23.28 Å
I(0) (reciprocal space) i0_reciprocal	22210000.0000
Solution quality estimate total_estimate	0.7919
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	25.0 Å
Skewness Skewness skewness	0.129
Kurtosis Kurtosis kurtosis	-0.677
Angular range angular_range	— – 0.3400 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	4865000.0000
Real-space data points n_real_points	66
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.773; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.978; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Proliferating cell nuclear antigen
Molecular weight formula_weight	19238.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2590

HHHHHHMLEAKFEEASLFKRIIDGFKDCVQLVNFQCKEDGIIAQAVDDSRVLLVSLEIGVEAFQEYRCDHPVTLGMDLTSLSKILRCGNNTDTLTLIADNTPDSIILLFEDTKKDRIAEYSLKLMDIDADFLKIEELQYDSTLSLPSSEFSKIVRDLSQLSDSINIMIT

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;brewer's yeast,lager beer yeast,yeast ;
NCBI Class编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Monoubiquitinated Proliferating cell nuclear antigen
Molecular weight formula_weight	18714.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MQIFVKTLTGKTITLEVESSDTIDNVKSKIQDKEGIPPDQQRLIFAGKQLEDGRTLSDYNIQKESTLHLVLRLRGGGGETIKFVADGDIGSGSVIIKPFVDMEHPETSIKLEMDQPVDLTFGAKYLLDIIKGSSLSDRVGIRLSSEAPALFQFDLKSGFLQFFLAPKFN

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;brewer's yeast,lager beer yeast,yeast ;
NCBI Class编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Escherichia coli

▼

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d3l0wa1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.131 — DNA clamp
Superfamily Superfamily superfamily	d.131.1 — DNA clamp
Family Family family	d.131.1.2 — DNA polymerase processivity factor

CATH v4.4 (3 domains)

Domain ID domain_id	3l0wA00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	150 — DNA Polymerase III; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — DNA Polymerase III, subunit A, domain 2

Domain ID domain_id	3l0wB01
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	90 — Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 1

Domain ID domain_id	3l0wB02
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	150 — DNA Polymerase III; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — DNA Polymerase III, subunit A, domain 2

▶

8. Citations (1)

▶

Unit-cell length a length_a	122.516 Å
Unit-cell length b length_b	122.516 Å
Unit-cell length c length_c	122.516 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 21 3
Space-group number int_tables_number	198
Crystal system crystal_system	—

Resolution resolution	2.800 Å
Low-resolution limit resolution_low	86.000 Å
R factor r_factor	0.2790
R_work r_work	0.2770
R_free r_free	0.3140

fit	/app/data/saxs_computation/l0/3l0w/3l0w.fit
pddf	/app/data/pr_computation/l0/3l0w/3l0w.pr.out
profile	/app/data/saxs_computation/l0/3l0w/3l0w.dat

Structure of split monoubiquitinated PCNA with ubiquitin in position two

1. Protein Identity and Related Structures Protein Identity & Related Structures

Proliferating cell nuclear antigen

State in the Current Structure

Other States of the Same Protein in the Database

Monoubiquitinated Proliferating cell nuclear antigen

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (1 domains)

CATH v4.4 (3 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
