SAXSdb — 1zsz

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Stringent starvation protein B homolog

Haemophilus influenzae

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	MAGNESIUM ION × 2 water × 2	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	MAGNESIUM ION × 2 water × 2	Consistent with protein count
3	Protein homooligomer	Homooligomer	Protein 6	MAGNESIUM ION × 6 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SSPB_HAEIN
Isoform	—
PDB entities	1, 2, 3
Chains and sequence ranges	Author chain A； PDBConstruct 1–110； UniProt 1–110 Author chain B； PDBConstruct 1–111； UniProt 1–111 Author chain C； PDBConstruct 1–129； UniProt 1–129

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1zsz
Deposition date deposition_date	2005-05-25
Structure title title	Crystal structure of a computationally designed SspB heterodimer
Keywords keywords	protein design, AAA, adaptor, specificity, DE NOVO PROTEIN; DE NOVO PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1zsz__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1zsz__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

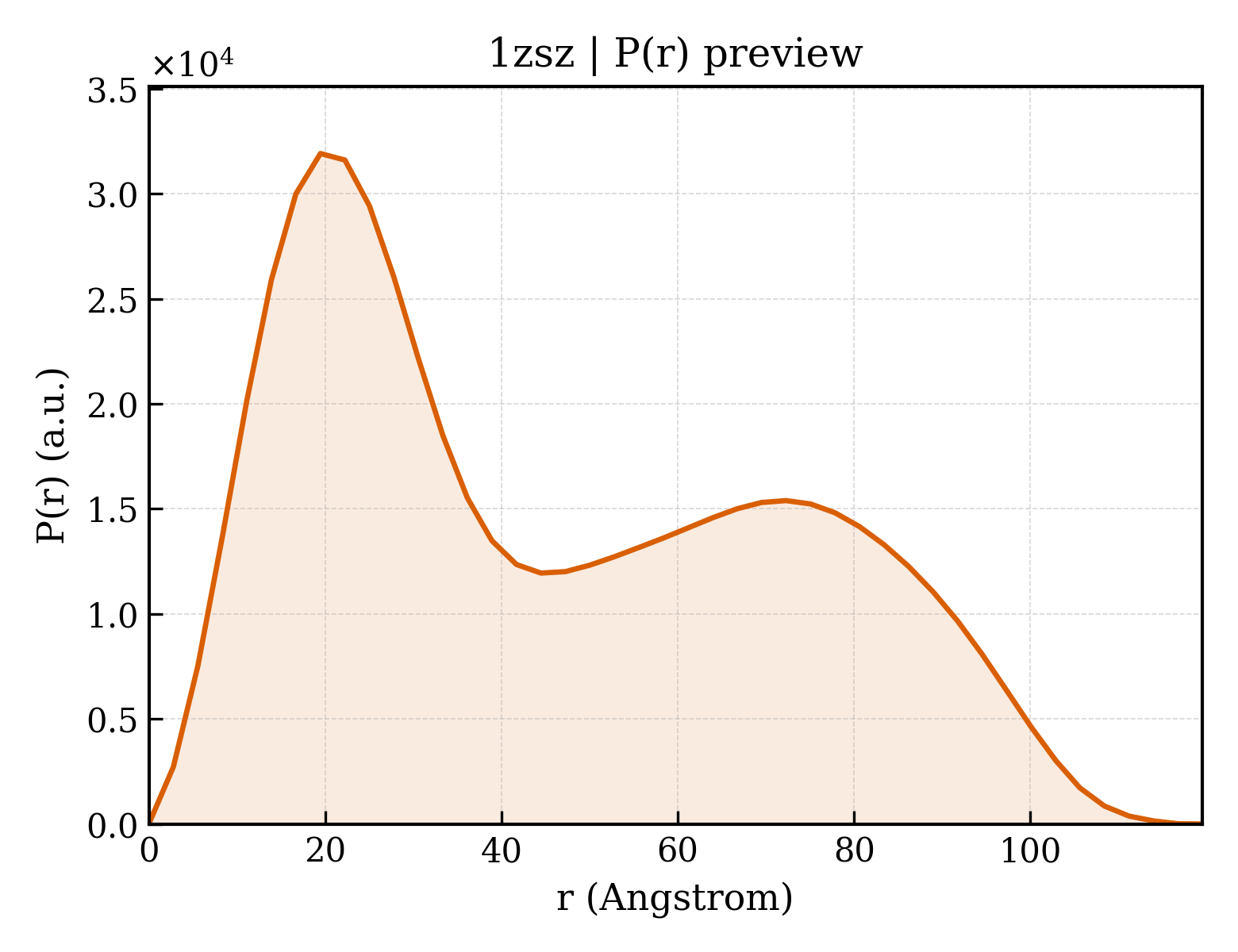

1zsz__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	20.50 Å
Rg (electron density)	19.89 Å
Total Rg	20.78 Å
Atom count	1668
Residues	212
Excluded volume	29608 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1zsz__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1zsz__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`1zsz__assembly_3__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Stringent starvation protein B homolog
Molecular weight formula_weight	12511.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2646

MEYKSSPKRPYLLRAYYDWLVDNSFTPYLVVDATYLGVNVPVEYVKDGQIVLNLSASATGNLQLTNDFIQFNARFKGVSRELYIPMGAALAIYARENGDGVMFEPEEIYD

Source Source

Source organism organism	Haemophilus influenzae
NCBI taxonomy ID ncbi_taxonomy_id	727
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Stringent starvation protein B homolog
Molecular weight formula_weight	12578.1 kDa
Mutation mutation	A15S,Y16L,V101A
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MEYKSSPKRPYLLRSLYDWLVDNSFTPYLVVDATYLGVNVPVEYVKDGQIVLNLSASATGNLQLTNDFIQFNARFKGVSRELYIPMGAALAIYARENGDGAMFEPEEIYDE

Source Source

Source organism organism	Haemophilus influenzae
NCBI taxonomy ID ncbi_taxonomy_id	727
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Stringent starvation protein B homolog
Molecular weight formula_weight	14769.4 kDa
Mutation mutation	L12Y,A15G,Y16F,V101M
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MEYKSSPKRPYYLRGFYDWLVDNSFTPYLVVDATYLGVNVPVEYVKDGQIVLNLSASATGNLQLTNDFIQFNQRFKGVSRELYIPMGAALAIYARENGDGMMFEPEEIYDELNIEPDTEQPTGFYEAVD

Source Source

Source organism organism	Haemophilus influenzae
NCBI taxonomy ID ncbi_taxonomy_id	727
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	93

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d1zsza1
Class class	b — All beta proteins
Fold Fold fold	b.136 — SspB-like
Superfamily Superfamily superfamily	b.136.1 — SspB-like
Family Family family	b.136.1.1 — Stringent starvation protein B, SspB

Domain ID domain_id	d1zszb1
Class class	b — All beta proteins
Fold Fold fold	b.136 — SspB-like
Superfamily Superfamily superfamily	b.136.1 — SspB-like
Family Family family	b.136.1.1 — Stringent starvation protein B, SspB

Domain ID domain_id	d1zszc1
Class class	b — All beta proteins
Fold Fold fold	b.136 — SspB-like
Superfamily Superfamily superfamily	b.136.1 — SspB-like
Family Family family	b.136.1.1 — Stringent starvation protein B, SspB

CATH v4.4 (3 domains)

Domain ID domain_id	1zszA00
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	220 — SspB-like

Domain ID domain_id	1zszB00
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	220 — SspB-like

Domain ID domain_id	1zszC00
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	220 — SspB-like

▶

Unit-cell length a length_a	120.004 Å
Unit-cell length b length_b	61.036 Å
Unit-cell length c length_c	62.385 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	110.87 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	29.150 Å
R factor r_factor	0.2420
R_work r_work	0.2310
R_free r_free	0.2570

Crystal structure of a computationally designed SspB heterodimer
