SAXSdb — 1zuk

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Myosin tail region-interacting protein MTI1

Saccharomyces cerevisiae

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain A； UniProt 1–68 Chain B； UniProt 1–68	Fragment：SH3 domain	Proline-rich protein LAS17 × 1 （Q12446） CL CHLORIDE ION × 1 MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；295 K；VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 1.90 Å R-free 0.226

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1ZUK	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1TG0 0.97-A structure of the SH3 domain of bbc1 Deposited 2004-05-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–68（68 aa） Fragment：sh3 domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；295 K；3.2M ammonium sulfate, pH 7, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 0.97 Å R-free 0.193
1WDX Yeast BBC1 SH3 domain, triclinic crystal form Deposited 2004-05-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–68（68 aa） Fragment：SH3 domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；3.2M ammonium sulfate, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.50 Å R-free 0.326
1WDX Yeast BBC1 SH3 domain, triclinic crystal form Deposited 2004-05-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–68（68 aa） Fragment：SH3 domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；3.2M ammonium sulfate, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.50 Å R-free 0.326
1WDX Yeast BBC1 SH3 domain, triclinic crystal form Deposited 2004-05-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 1–68（68 aa） Fragment：SH3 domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；3.2M ammonium sulfate, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.50 Å R-free 0.326
1WDX Yeast BBC1 SH3 domain, triclinic crystal form Deposited 2004-05-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 1–68（68 aa） Fragment：SH3 domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；3.2M ammonium sulfate, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.50 Å R-free 0.326
2DYF Solution structure of the first WW domain of FBP11 / HYPA (FBP11 WW1) complexed with a PL (PPLP) motif peptide ligand Deposited 2006-09-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 796–802（7 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 5；283 K；Ionic strength (raw mmCIF value) 0.3；Pressure 1 NMR sample composition 1.5MM FBP11 WW1 U-15N, 13C 5.3MM NATURAL ABUNDANCE PL MOTIF PEPTIDE; 50MM PHOSPHATE BUFFER NA; 50MM NACL; 90% H2O, 10% D2O; 1.5MM FBP11 WW1 U- 15N, 13C; 5.3MM NATURAL ABUNDANCE PL MOTIF PEPTIDE; 50MM PHOSPHATE BUFFER NA; 50MM NACL; 100% D2O; 1.6MM FBP11 WW1 NATURAL ABUNDANCE; 4.4MM PL MOTIF PEPTIDE U-15N, 13C; 50MM PHOSPHATE BUFFER NA; 50MM NACL; 90% H2O, 10% D2O; 1.6MM FBP11 WW1 NATURAL ABUNDANCE; 4.4MM PL MOTIF PEPTIDE U-15N, 13C; 50MM PHOSPHATE BUFFER NA; 50MM NACL; 100% D2O; 1.5MM FBP11 WW1 U-15N; 5.3MM NATURAL ABUNDANCE PL MOTIF PEPTIDE; 50MM PHOSPHATE BUFFER NA; 50MM NACL; 90% H2O, 10% D2O	Resolution not provided

3 other PDB entries and 6 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	BBC1_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–68； UniProt 1–68 Author chain B； PDBConstruct 1–68； UniProt 1–68

Proline-rich protein LAS17

OrganismNot specified

UniProt Q12446

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain C； UniProt 350–360	Fragment：PxxP motif	Myosin tail region-interacting protein MTI1 × 2 （P47068） CL CHLORIDE ION × 1 MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；295 K；VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 1.90 Å R-free 0.226

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

No other PDB entry for the same UniProt protein was found.

View Construct and Data Evidence

UniProt name	LAS17_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–11； UniProt 350–360

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1zuk
Deposition date deposition_date	2005-05-31
Structure title title	Yeast BBC1 Sh3 domain complexed with a peptide from Las17
Keywords keywords	SH3 domain, PxxP peptide, CONTRACTILE PROTEIN; CONTRACTILE PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	17.61 Å
Radius of gyration Rg (electron density) rg_electron	16.54 Å
Forward intensity I(0) i0	4940790.00
Molecular weight molecular_weight	16291.0 kDa
Excluded volume excluded_volume	20377 Å³
Envelope volume envelope_volume	24020 Å³
Hydration-shell volume shell_volume	12889 Å³
Envelope diameter envelope_diameter	59.7 Å
Shell Rg shell_rg	21.51 Å
Envelope Rg envelope_rg	16.96 Å
Shape Rg shape_rg	16.49 Å
Total Rg total_rg	17.61 Å
Total atoms total_atoms	1157
Residues n_residues	141
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

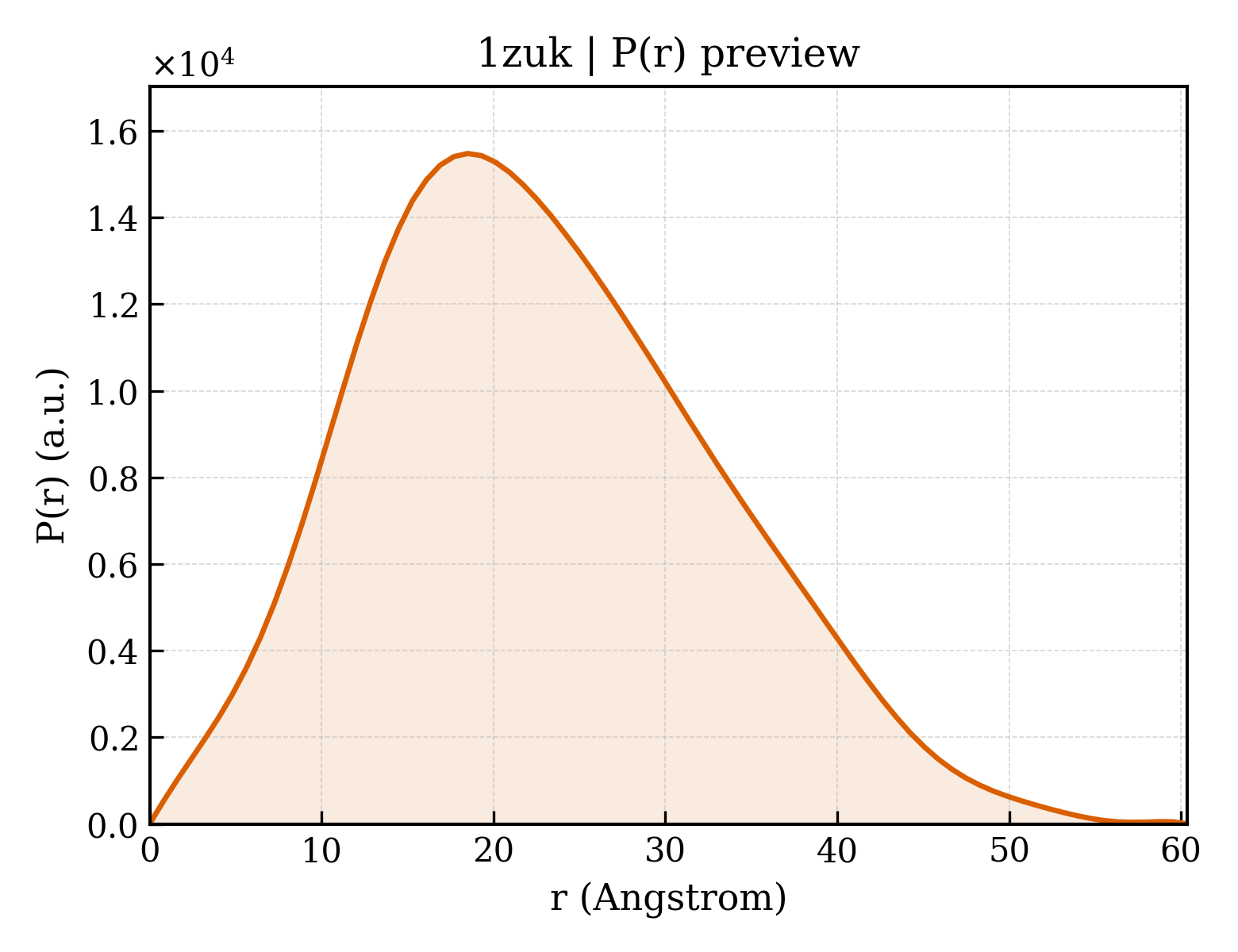

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	60.4 Å
Rg (real space) rg_real	17.63 Å
Rg uncertainty (real space) rg_real_error	0.35 Å
I(0) (real space) i0_real	4.9410e+06
I(0) uncertainty (real space) i0_real_error	5.5330e+04
Rg (reciprocal space) rg_reciprocal	17.63 Å
I(0) (reciprocal space) i0_reciprocal	4941000.0000
Solution quality estimate total_estimate	0.8664
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	18.5 Å
Skewness Skewness skewness	0.377
Kurtosis Kurtosis kurtosis	-0.282
Angular range angular_range	— – 0.4500 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1388000.0000
Real-space data points n_real_points	76
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.778; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.928; Smooth: 0.999

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Myosin tail region-interacting protein MTI1
Molecular weight formula_weight	7821.5 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	1354

MSEPEVPFKVVAQFPYKSDYEDDLNFEKDQEIIVTSVEDAEWYFGEYQDSNGDVIEGIFPKSFVAVQG

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI Class编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Proline-rich protein LAS17
Molecular weight formula_weight	1181.4 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

RGPAPPPPPHR

Entity 3 Entity 3 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	179

▼

7. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	1zukA00
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	40 — SH3 Domains

Domain ID domain_id	1zukB00
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	40 — SH3 Domains

▶

8. Citations (1)

▶

Unit-cell length a length_a	51.770 Å
Unit-cell length b length_b	78.500 Å
Unit-cell length c length_c	35.460 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	15.000 Å
R factor r_factor	0.1764
R_work r_work	0.1739
R_free r_free	0.2260

fit	/app/data/saxs_computation/zu/1zuk/1zuk.fit
pddf	/app/data/pr_computation/zu/1zuk/1zuk.pr.out
profile	/app/data/saxs_computation/zu/1zuk/1zuk.dat
