SAXSdb — 2a2n

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

peptidylprolyl isomerase domain and WD repeat containing 1

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	water × 1	Consistent with protein count
3	Protein monomer	Monomer	Protein 1	GLYCEROL × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q96BP3_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–176； UniProt 473–646 Author chain B； PDBConstruct 3–176； UniProt 473–646 Author chain C； PDBConstruct 3–176； UniProt 473–646

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2a2n
Deposition date deposition_date	2005-06-22
Structure title title	Crystal Structure of the peptidylprolyl isomerase domain of Human PPWD1
Keywords keywords	;CIS-TRANS ISOMERIZATION, PROTEIN-FOLDING, PEPTIDYLPROLYL ISOMERASE, Structural Genomics, Structural Genomics Consortium, SGC, Isomerase ;; ISOMERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2a2n__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2a2n__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

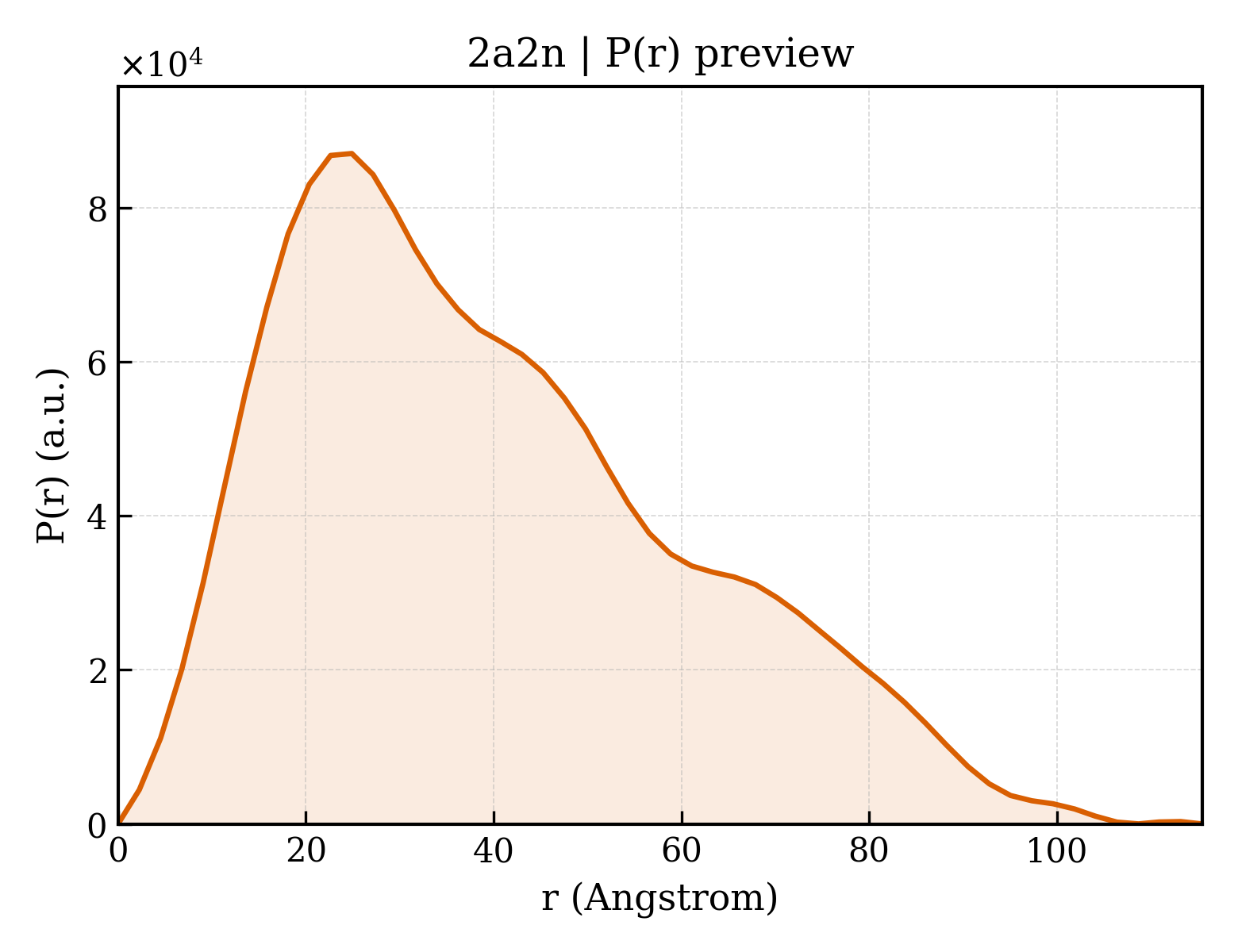

2a2n__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	16.00 Å
Rg (electron density)	14.87 Å
Total Rg	16.08 Å
Atom count	1286
Residues	164
Excluded volume	22665 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2a2n__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2a2n__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`2a2n__assembly_3__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	peptidylprolyl isomerase domain and WD repeat containing 1
Molecular weight formula_weight	19497.9 kDa
EC 编号 ec_number	5.2.1.8
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	4259

GSPSKEEVMAATQAEGPKRVSDSAIIHTSMGDIHTKLFPVECPKTVENFCVHSRNGYYNGHTFHRIIKGFMIQTGDPTGTGMGGESIWGGEFEDEFHSTLRHDRPYTLSMANAGSNTNGSQFFITVVPTPWLDNKHTVFGRVTKGMEVVQRISNVKVNPKTDKPYEDVSIINITVK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	388

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d2a2na1
Class class	b — All beta proteins
Fold Fold fold	b.62 — Cyclophilin-like
Superfamily Superfamily superfamily	b.62.1 — Cyclophilin-like
Family Family family	b.62.1.1 — Cyclophilin (peptidylprolyl isomerase)

Domain ID domain_id	d2a2nb_
Class class	b — All beta proteins
Fold Fold fold	b.62 — Cyclophilin-like
Superfamily Superfamily superfamily	b.62.1 — Cyclophilin-like
Family Family family	b.62.1.1 — Cyclophilin (peptidylprolyl isomerase)

Domain ID domain_id	d2a2nc_
Class class	b — All beta proteins
Fold Fold fold	b.62 — Cyclophilin-like
Superfamily Superfamily superfamily	b.62.1 — Cyclophilin-like
Family Family family	b.62.1.1 — Cyclophilin (peptidylprolyl isomerase)

CATH v4.4 (3 domains)

Domain ID domain_id	2a2nA00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	100 — Cyclophilin
Homologous superfamily homologous superfamily	10 — Cyclophilin-like

Domain ID domain_id	2a2nB00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	100 — Cyclophilin
Homologous superfamily homologous superfamily	10 — Cyclophilin-like

Domain ID domain_id	2a2nC00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	100 — Cyclophilin
Homologous superfamily homologous superfamily	10 — Cyclophilin-like

▶

Unit-cell length a length_a	139.658 Å
Unit-cell length b length_b	39.893 Å
Unit-cell length c length_c	115.638 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	122.33 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	1.650 Å
Low-resolution limit resolution_low	23.200 Å
R factor r_factor	0.2017
R_work r_work	0.1994
R_free r_free	0.2454
