2a6h

Crystal structure of the T. thermophilus RNA polymerase holoenzyme in complex with antibiotic sterptolydigin

Method: X-RAY DIFFRACTION D_max: 334.2 Å Quality: REASONABLE

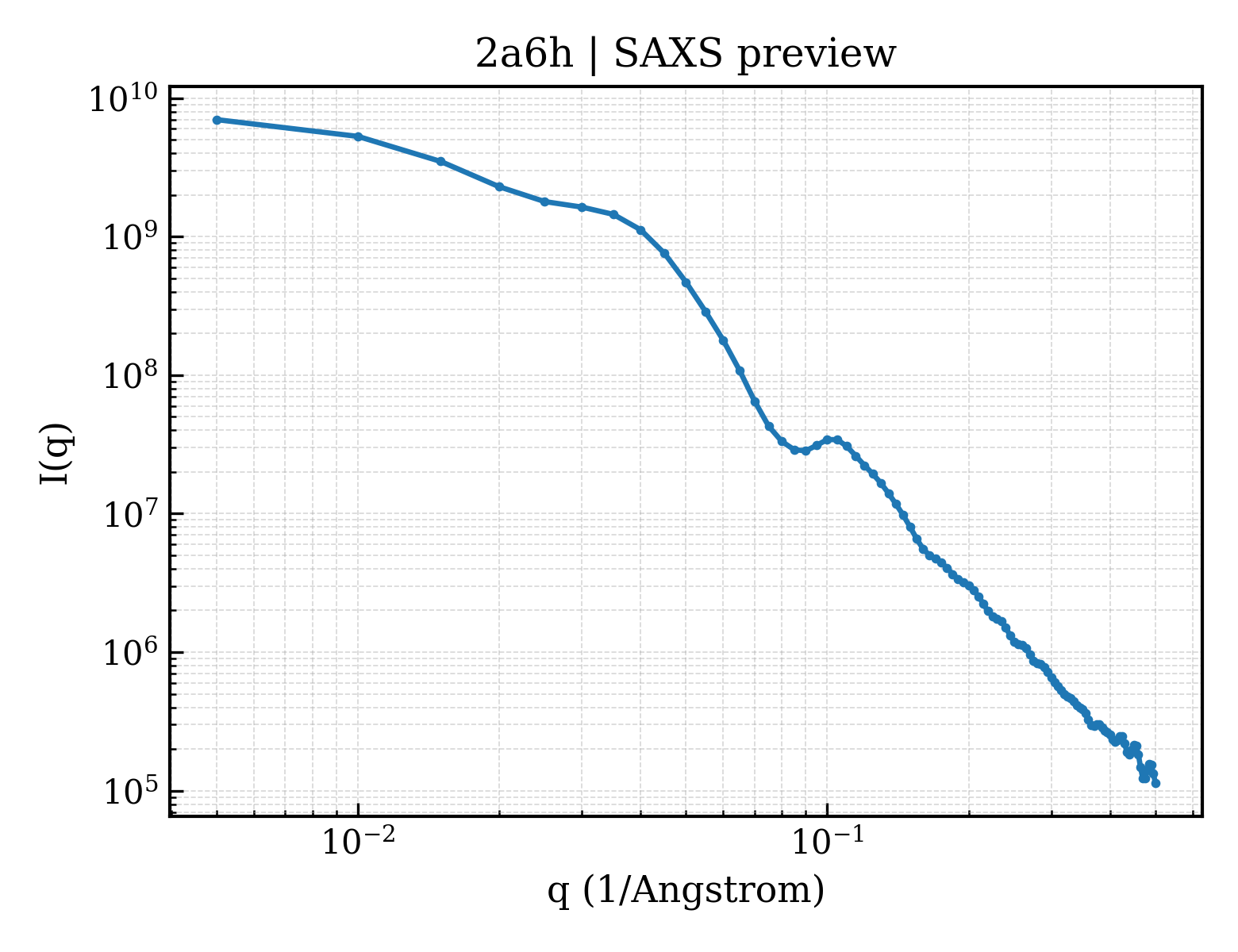

SAXS 散射曲线 SAXS Profile

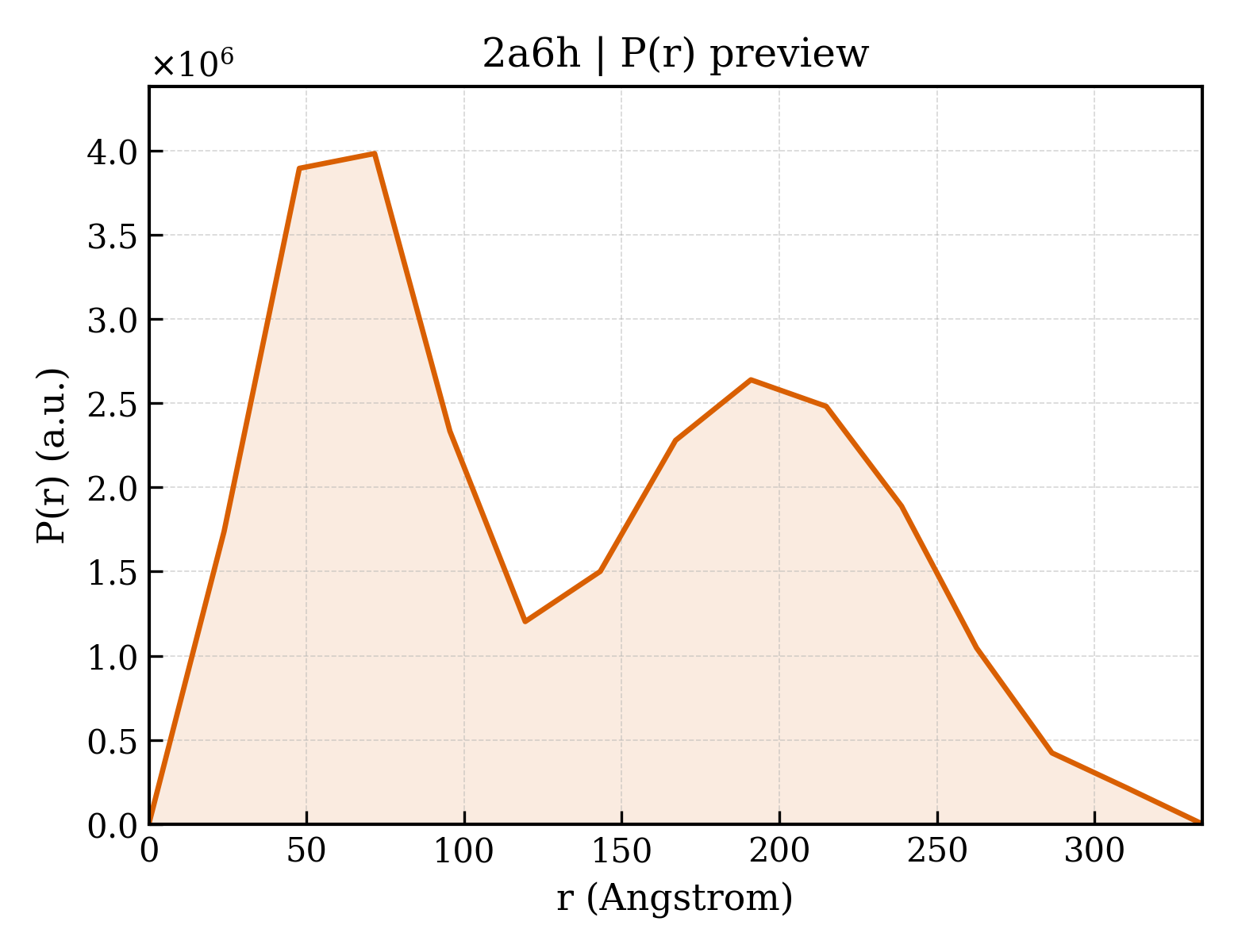

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2a6h
沉积日期 deposition_date	2005-07-02
结构标题 title	Crystal structure of the T. thermophilus RNA polymerase holoenzyme in complex with antibiotic sterptolydigin
关键词 keywords	;RNA POLYMERASE HOLOENZYME, STREPTOLYDIGIN, ANTIBIOTIC, TRANSCRIPTION REGULATION, RIKEN Structural Genomics/Proteomics Initiative, RSGI, Structural Genomics, TRANSFERASE ;; TRANSFERASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	— Å
回转半径 Rg (电子) rg_electron	107.20 Å
零角强度 I(0) i0	7689850000.00
分子量 molecular_weight	759560.0 kDa
排除体积 excluded_volume	955650 Å³
包络体积 envelope_volume	1783600 Å³
水化壳体积 shell_volume	133410 Å³
包络直径 envelope_diameter	353.5 Å
壳层 Rg shell_rg	115.60 Å
包络 Rg envelope_rg	101.70 Å
形状 Rg shape_rg	107.30 Å
总 Rg total_rg	107.20 Å
总原子数 total_atoms	53510
残基数 n_residues	6796
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	334.2 Å
Rg (实空间) rg_real	109.00 Å
Rg 误差 (实空间) rg_real_error	2.44 Å
I(0) (实空间) i0_real	7.6910e+09
I(0) 误差 (实空间) i0_real_error	1.8650e+08
Rg (倒空间) rg_reciprocal	95.62 Å
I(0) (倒空间) i0_reciprocal	7409000000.0000
解质量估计 total_estimate	0.6588
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	71.6 Å
偏度 Skewness skewness	0.273
峰度 Kurtosis kurtosis	-1.177
角度范围 angular_range	— – 0.0700 Å⁻¹
当前正则化参数 α current_alpha	0.4670
最高正则化参数 α highest_alpha	298300000.0000
实空间数据点数 n_real_points	15
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.081; Stabil: 0.855; Sysdev: 1.000; Positv: 1.000; Valcen: 0.765; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (9)

Entity 1 polymer

描述 description	DNA-directed RNA polymerase alpha chain
分子量 formula_weight	35056.2 kDa
EC 编号 ec_number	2.7.7.6
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,K,L
原子数 atom_count	60908

MLDSKLKAPVFTVRTQGREYGEFVLEPLERGFGVTLGNPLRRILLSSIPGTAVTSVYIEDVLHEFSTIPGVKEDVVEIILNLKELVVRFLNPSLQTVTLLLKAEGPKEVKARDFLPVADVEIMNPDLHIATLEEGGRLNMEVRVDRGVGYVPAEKHGIKDRINAIPVDAVFSPVRRVAFQVEDTRLGQRTDLDKLTLRIWTDGSVTPLEALNQAVEILREHLTYFSNPQAAAVAAPEEAKEPEAPPEQEEELDLPLEELGLSTRVLHSLKEEGIESVRALLALNLKDLKNIPGIGERSLEEIKEALEKKGFTLKE

Entity 2 polymer

描述 description	DNA-directed RNA polymerase beta chain
分子量 formula_weight	125436.5 kDa
EC 编号 ec_number	2.7.7.6
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,M

MEIKRFGRIREVIPLPPLTEIQVESYRRALQADVPPEKRENVGIQAAFRETFPIEEEDKGKGGLVLDFLEYRLGEPPFPQDECREKDLTYQAPLYARLQLIHKDTGLIKEDEVFLGHIPLMTEDGSFIINGADRVIVSQIHRSPGVYFTPDPARPGRYIASIIPLPKRGPWIDLEVEPNGVVSMKVNKRKFPLVLLLRVLGYDQETLARELGAYGELVQGLMDESVFAMRPEEALIRLFTLLRPGDPPKRDKAVAYVYGLIADPRRYDLGEAGRYKAEEKLGIRLSGRTLARFEDGEFKDEVFLPTLRYLFALTAGVPGHEVDDIDHLGNRRIRTVGELMTDQFRVGLARLARGVRERMLMGSEDSLTPAKLVNSRPLEAAIREFFSRSQLSQFKDETNPLSSLRHKRRISALGPGGLTRERAGFDVRDVHRTHYGRICPVETPEGANIGLITSLAAYARVDELGFIRTPYRRVVGGVVTDEVVYMTATEEDRYTIAQANTPLEGNRIAAERVVARRKGEPVIVSPEEVEFMDVSPKQVFSVNTNLIPFLEHDDANRALMGSNMQTQAVPLIRAQAPVVMTGLEERVVRDSLAALYAEEDGEVAKVDGNRIVVRYEDGRLVEYPLRRFYRSNQGTALDQRPRVVVGQRVRKGDLLADGPASENGFLALGQNVLVAIMPFDGYNFEDAIVISEELLKRDFYTSIHIERYEIEARDTKLGPERITRDIPHLSEAALRDLDEEGVVRIGAEVKPGDILVGRTSFKGESEPTPEERLLRSIFGEKARDVKDTSLRVPPGEGGIVVRTVRLRRGDPGVELKPGVREVVRVYVAQKRKLQVGDKLANRHGNKGVVAKILPVEDMPHLPDGTPVDVILNPLGVPSRMNLGQILETHLGLAGYFLGQRYISPIFDGAKEPEIKELLAQAFEVYFGKRKGEGFGVDKREVEVLRRAEKLGLVTPGKTPEEQLKELFLQGKVVLYDGRTGEPIEGPIVVGQMFIMKLYHMVEDKMHARSTGPYSLITQQPLGGKAQFGGQRFGEMEVWALEAYGAAHTLQEMLTLKSDDIEGRNAAYEAIIKGEDVPEPSVPESFRVLVKELQALALDVQTLDEKDNPVDIFEGLASKR

Entity 3 polymer

描述 description	;DNA-directed RNA polymerase beta' chain ;
分子量 formula_weight	170997.4 kDa
EC 编号 ec_number	2.7.7.6
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D,N

MKKEVRKVRIALASPEKIRSWSYGEVEKPETINYRTLKPERDGLFDERIFGPIKDYECACGKYKRQRFEGKVCERCGVEVTKSIVRRYRMGHIELATPAAHIWFVKDVPSKIGTLLDLSATELEQVLYFSKYIVLDPKGAILNGVPVEKRQLLTDEEYRELRYGKQETYPLPPGVDALVKDGEEVVKGQELAPGVVSRLDGVALYRFPRRVRVEYVKKERAGLRLPLAAWVEKEAYKPGEILAELPEPYLFRAEEEGVVELKELEEGAFLVLRREDEPVATYFLPVGMTPLVVHGEIVEKGQPLAEAKGLLRMPRQVRAAQVEAEEEGETVYLTLFLEWTEPKDYRVQPHMNVVVPEGARVEAGDKIVAAIDPEEEVIAEAEGVVHLHEPASILVVKARVYPFEDDVEVSTGDRVAPGDVLADGGKVKSDVYGRVEVDLVRNVVRVVESYDIDARMGAEAIQQLLKELDLEALEKELLEEMKHPSRARRAKARKRLEVVRAFLDSGNRPEWMILEAVPVLPPDLRPMVQVDGGRFATSDLNDLYRRLINRNNRLKKLLAQGAPEIIIRNEKRMLQEAVDALLDNGRRGAPVTNPGSDRPLRSLTDILSGKQGRFRQNLLGKRVDYSGRSVIVVGPQLKLHQCGLPKRMALELFKPFLLKKMEEKGIAPNVKAARRMLERQRDIKDEVWDALEEVIHGKVVLLNRAPTLHRLGIQAFQPVLVEGQSIQLHPLVCEAFNADFDGDQMAVHVPLSSFAQAEARIQMLSAHNLLSPASGEPLAKPSRDIILGLYYITQVRKEKKGAGLEFATPEEALAAHERGEVALNAPIKVAGRETSVGRLKYVFANPDEALLAVAHGIVDLQDVVTVRYMGKRLETSPGRILFARIVAEAVEDEKVAWELIQLDVPQEKNSLKDLVYQAFLRLGMEKTARLLDALKYYGFTFSTTSGITIGIDDAVIPEEKKQYLEEADRKLLQIEQAYEMGFLTDRERYDQILQLWTETTEKVTQAVFKNFEENYPFNPLYVMAQSGARGNPQQIRQLCGLRGLMQKPSGETFEVPVRSSFREGLTVLEYFISSHGARKGGADTALRTADSGYLTRKLVDVTHEIVVREADCGTTNYISVPLFQPDEVTRSLRLRKRADIEAGLYGRVLAREVEVLGVRLEEGRYLSMDDVHLLIKAAEAGEIQEVPVRSPLTCQTRYGVCQKCYGYDLSMARPVSIGEAVGIVAAQSIGEPGTQLTMRTFHTGGVAGAADITQGLPRVIELFEARRPKAKAVISEIDGVVRIEETEEKLSVFVESEGFSKEYKLPKEARLLVKDGDYVEAGQPLTRGAIDPHQLLEAKGPEAVERYLVEEIQKVYRAQGVKLHDKHIEIVVRQMMKYVEVTDPGDSRLLEGQVLEKWDVEALNERLIAEGKTPVAWKPLLMGVTKSALSTKSWLSAASFQNTTHVLTEAAIAGKKDELIGLKENVILGRLIPAGTGSDFVRFTQVVDQKTLKAIEEARKEAVEAKERPAARRGVKREQPGKQA

Entity 4 polymer

描述 description	RNA polymerase omega chain
分子量 formula_weight	11521.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E,O

MAEPGIDKLFGMVDSKYRLTVVVAKRAQQLLRHGFKNTVLEPEERPKMQTLEGLFDDPNAETWAMKELLTGRLVFGENLVPEDRLQKEMERIYPGEREE

Entity 5 polymer

描述 description	RNA polymerase sigma factor rpoD
分子量 formula_weight	48568.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F,P

MKKSKRKNAQAQEAQETEVLVQEEAEELPEFPEGEPDPDLEDPDLALEDDLLDLPEEGEGLDLEEEEEDLPIPKISTSDPVRQYLHEIGQVPLLTLEEEVELARKVEEGMEAIKKLSEITGLDPDLIREVVRAKILGSARVRHIPGLKETLDPKTVEEIDQKLKSLPKEHKRYLHIAREGEAARQHLIEANLRLVVSIAKKYTGRGLSFLDLIQEGNQGLIRAVEKFEYKRRFKFSTYATWWIRQAINRAIADQARTIRIPVHMVETINKLSRTARQLQQELGREPTYEEIAEAMGPGWDAKRVEETLKIAQEPVSLETPIGDEKDSFYGDFIPDEHLPSPVDAATQSLLSEELEKALSKLSEREAMVLKLRKGLIDGREHTLEEVGAFFGVTRERIRQIENKALRKLKYHESRTRKLRDFLD

Entity 6 non-polymer

描述 description	STREPTOLYDIGIN
分子量 formula_weight	600.7 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 7 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 8 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 9 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	7398

▼

6. 折叠分类 (SCOP + CATH) 60 domains

SCOP 2.08 (20 domains)

结构域编号 domain_id	d2a6ha1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.74 — DCoH-like
超家族 Superfamily superfamily	d.74.3 — RBP11-like subunits of RNA polymerase
家族 Family family	d.74.3.1 — RNA polymerase alpha subunit dimerisation domain

结构域编号 domain_id	d2a6ha2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.181 — Insert subdomain of RNA polymerase alpha subunit
超家族 Superfamily superfamily	d.181.1 — Insert subdomain of RNA polymerase alpha subunit
家族 Family family	d.181.1.1 — Insert subdomain of RNA polymerase alpha subunit

结构域编号 domain_id	d2a6hb1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.74 — DCoH-like
超家族 Superfamily superfamily	d.74.3 — RBP11-like subunits of RNA polymerase
家族 Family family	d.74.3.1 — RNA polymerase alpha subunit dimerisation domain

结构域编号 domain_id	d2a6hb2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.181 — Insert subdomain of RNA polymerase alpha subunit
超家族 Superfamily superfamily	d.181.1 — Insert subdomain of RNA polymerase alpha subunit
家族 Family family	d.181.1.1 — Insert subdomain of RNA polymerase alpha subunit

结构域编号 domain_id	d2a6hc_
类 Class class	e — Multi-domain proteins (alpha and beta)
折叠类型 Fold fold	e.29 — beta and beta-prime subunits of DNA dependent RNA-polymerase
超家族 Superfamily superfamily	e.29.1 — beta and beta-prime subunits of DNA dependent RNA-polymerase
家族 Family family	e.29.1.1 — RNA-polymerase beta

结构域编号 domain_id	d2a6hd_
类 Class class	e — Multi-domain proteins (alpha and beta)
折叠类型 Fold fold	e.29 — beta and beta-prime subunits of DNA dependent RNA-polymerase
超家族 Superfamily superfamily	e.29.1 — beta and beta-prime subunits of DNA dependent RNA-polymerase
家族 Family family	e.29.1.2 — RNA-polymerase beta-prime

结构域编号 domain_id	d2a6he_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.143 — RPB6/omega subunit-like
超家族 Superfamily superfamily	a.143.1 — RPB6/omega subunit-like
家族 Family family	a.143.1.1 — RNA polymerase omega subunit

结构域编号 domain_id	d2a6hf1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
超家族 Superfamily superfamily	a.4.13 — Sigma3 and sigma4 domains of RNA polymerase sigma factors
家族 Family family	a.4.13.1 — Sigma3 domain

结构域编号 domain_id	d2a6hf2
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
超家族 Superfamily superfamily	a.4.13 — Sigma3 and sigma4 domains of RNA polymerase sigma factors
家族 Family family	a.4.13.2 — Sigma4 domain

结构域编号 domain_id	d2a6hf3
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.177 — Sigma2 domain of RNA polymerase sigma factors
超家族 Superfamily superfamily	a.177.1 — Sigma2 domain of RNA polymerase sigma factors
家族 Family family	a.177.1.1 — Sigma2 domain of RNA polymerase sigma factors

结构域编号 domain_id	d2a6hk1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.74 — DCoH-like
超家族 Superfamily superfamily	d.74.3 — RBP11-like subunits of RNA polymerase
家族 Family family	d.74.3.1 — RNA polymerase alpha subunit dimerisation domain

结构域编号 domain_id	d2a6hk2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.181 — Insert subdomain of RNA polymerase alpha subunit
超家族 Superfamily superfamily	d.181.1 — Insert subdomain of RNA polymerase alpha subunit
家族 Family family	d.181.1.1 — Insert subdomain of RNA polymerase alpha subunit

结构域编号 domain_id	d2a6hl1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.74 — DCoH-like
超家族 Superfamily superfamily	d.74.3 — RBP11-like subunits of RNA polymerase
家族 Family family	d.74.3.1 — RNA polymerase alpha subunit dimerisation domain

结构域编号 domain_id	d2a6hl2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.181 — Insert subdomain of RNA polymerase alpha subunit
超家族 Superfamily superfamily	d.181.1 — Insert subdomain of RNA polymerase alpha subunit
家族 Family family	d.181.1.1 — Insert subdomain of RNA polymerase alpha subunit

结构域编号 domain_id	d2a6hm_
类 Class class	e — Multi-domain proteins (alpha and beta)
折叠类型 Fold fold	e.29 — beta and beta-prime subunits of DNA dependent RNA-polymerase
超家族 Superfamily superfamily	e.29.1 — beta and beta-prime subunits of DNA dependent RNA-polymerase
家族 Family family	e.29.1.1 — RNA-polymerase beta

结构域编号 domain_id	d2a6hn_
类 Class class	e — Multi-domain proteins (alpha and beta)
折叠类型 Fold fold	e.29 — beta and beta-prime subunits of DNA dependent RNA-polymerase
超家族 Superfamily superfamily	e.29.1 — beta and beta-prime subunits of DNA dependent RNA-polymerase
家族 Family family	e.29.1.2 — RNA-polymerase beta-prime

结构域编号 domain_id	d2a6ho_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.143 — RPB6/omega subunit-like
超家族 Superfamily superfamily	a.143.1 — RPB6/omega subunit-like
家族 Family family	a.143.1.1 — RNA polymerase omega subunit

结构域编号 domain_id	d2a6hp1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
超家族 Superfamily superfamily	a.4.13 — Sigma3 and sigma4 domains of RNA polymerase sigma factors
家族 Family family	a.4.13.1 — Sigma3 domain

结构域编号 domain_id	d2a6hp2
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
超家族 Superfamily superfamily	a.4.13 — Sigma3 and sigma4 domains of RNA polymerase sigma factors
家族 Family family	a.4.13.2 — Sigma4 domain

结构域编号 domain_id	d2a6hp3
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.177 — Sigma2 domain of RNA polymerase sigma factors
超家族 Superfamily superfamily	a.177.1 — Sigma2 domain of RNA polymerase sigma factors
家族 Family family	a.177.1.1 — Sigma2 domain of RNA polymerase sigma factors

CATH v4.4 (40 domains)

结构域编号 domain_id	2a6hA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1360 — Gyrase A; domain 2
同源超家族 H-superfamily homologous superfamily	10 — RNA polymerase, RBP11-like subunit

结构域编号 domain_id	2a6hA02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	170 — Beta Complex
拓扑 Topology topology	120 — RNA Polymerase Alpha Subunit; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	12 — DNA-directed RNA polymerase, insert domain

结构域编号 domain_id	2a6hB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1360 — Gyrase A; domain 2
同源超家族 H-superfamily homologous superfamily	10 — RNA polymerase, RBP11-like subunit

结构域编号 domain_id	2a6hB02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	170 — Beta Complex
拓扑 Topology topology	120 — RNA Polymerase Alpha Subunit; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	12 — DNA-directed RNA polymerase, insert domain

结构域编号 domain_id	2a6hC01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	270 — Dna-directed Rna Polymerase Ii 140kd Polypeptide; Chain: B; Domain 6
同源超家族 H-superfamily homologous superfamily	10 — DNA-directed RNA polymerase, subunit 2, domain 6

结构域编号 domain_id	2a6hC02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	1100 — Rna Polymerase Beta Subunit; Chain: C,domain 2
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	2a6hC03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	1110 — Dna-directed Rna Polymerase Ii 140kd Polypeptide; Chain: B; domain 3
同源超家族 H-superfamily homologous superfamily	10 — RNA polymerase Rpb2, domain 2

结构域编号 domain_id	2a6hC04
类 Class class	2 — Mainly Beta
架构 Architecture architecture	30 — Roll
拓扑 Topology topology	150 — Rna Polymerase Beta Subunit; Chain: C, domain 4
同源超家族 H-superfamily homologous superfamily	10 — DNA-directed RNA polymerase, beta subunit, external 1 domain

结构域编号 domain_id	2a6hC05
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
同源超家族 H-superfamily homologous superfamily	100 — RNA polymerase II/Efflux pump adaptor protein, barrel-sandwich hybrid domain

结构域编号 domain_id	2a6hC06
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
同源超家族 H-superfamily homologous superfamily	150 — RNA polymerase II, Rpb2 subunit, wall domain

结构域编号 domain_id	2a6hD03
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
同源超家族 H-superfamily homologous superfamily	100 — RNA polymerase II/Efflux pump adaptor protein, barrel-sandwich hybrid domain

结构域编号 domain_id	2a6hD04
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	40 — Barwin-like endoglucanases
同源超家族 H-superfamily homologous superfamily	20 —

结构域编号 domain_id	2a6hD05
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	274 — Enzyme I; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	100 — RNA polymerase Rpb1, domain 3

结构域编号 domain_id	2a6hD06
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	132 — Topoisomerase I; Chain A, domain 4
同源超家族 H-superfamily homologous superfamily	30 — RNA polymerase Rpb1 funnel domain

结构域编号 domain_id	2a6hD08
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
同源超家族 H-superfamily homologous superfamily	100 — RNA polymerase II/Efflux pump adaptor protein, barrel-sandwich hybrid domain

结构域编号 domain_id	2a6hD09
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	60 — Wheat Germ Agglutinin (Isolectin 2); domain 1
同源超家族 H-superfamily homologous superfamily	280 —

结构域编号 domain_id	2a6hE00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	940 — Eukaryotic RPB6 RNA polymerase subunit
同源超家族 H-superfamily homologous superfamily	10 — RNA polymerase subunit, RPB6/omega

结构域编号 domain_id	2a6hF01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
同源超家族 H-superfamily homologous superfamily	1810 —

结构域编号 domain_id	2a6hF02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	10 — Arc Repressor Mutant, subunit A
同源超家族 H-superfamily homologous superfamily	10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain

结构域编号 domain_id	2a6hF03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	10 — Arc Repressor Mutant, subunit A
同源超家族 H-superfamily homologous superfamily	10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain

结构域编号 domain_id	2a6hK01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1360 — Gyrase A; domain 2
同源超家族 H-superfamily homologous superfamily	10 — RNA polymerase, RBP11-like subunit

结构域编号 domain_id	2a6hK02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	170 — Beta Complex
拓扑 Topology topology	120 — RNA Polymerase Alpha Subunit; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	12 — DNA-directed RNA polymerase, insert domain

结构域编号 domain_id	2a6hL01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1360 — Gyrase A; domain 2
同源超家族 H-superfamily homologous superfamily	10 — RNA polymerase, RBP11-like subunit

结构域编号 domain_id	2a6hL02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	170 — Beta Complex
拓扑 Topology topology	120 — RNA Polymerase Alpha Subunit; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	12 — DNA-directed RNA polymerase, insert domain

结构域编号 domain_id	2a6hM01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	270 — Dna-directed Rna Polymerase Ii 140kd Polypeptide; Chain: B; Domain 6
同源超家族 H-superfamily homologous superfamily	10 — DNA-directed RNA polymerase, subunit 2, domain 6

结构域编号 domain_id	2a6hM02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	1100 — Rna Polymerase Beta Subunit; Chain: C,domain 2
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	2a6hM03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	1110 — Dna-directed Rna Polymerase Ii 140kd Polypeptide; Chain: B; domain 3
同源超家族 H-superfamily homologous superfamily	10 — RNA polymerase Rpb2, domain 2

结构域编号 domain_id	2a6hM04
类 Class class	2 — Mainly Beta
架构 Architecture architecture	30 — Roll
拓扑 Topology topology	150 — Rna Polymerase Beta Subunit; Chain: C, domain 4
同源超家族 H-superfamily homologous superfamily	10 — DNA-directed RNA polymerase, beta subunit, external 1 domain

结构域编号 domain_id	2a6hM05
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
同源超家族 H-superfamily homologous superfamily	100 — RNA polymerase II/Efflux pump adaptor protein, barrel-sandwich hybrid domain

结构域编号 domain_id	2a6hM06
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
同源超家族 H-superfamily homologous superfamily	150 — RNA polymerase II, Rpb2 subunit, wall domain

结构域编号 domain_id	2a6hN03
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
同源超家族 H-superfamily homologous superfamily	100 — RNA polymerase II/Efflux pump adaptor protein, barrel-sandwich hybrid domain

结构域编号 domain_id	2a6hN04
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	40 — Barwin-like endoglucanases
同源超家族 H-superfamily homologous superfamily	20 —

结构域编号 domain_id	2a6hN05
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	274 — Enzyme I; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	100 — RNA polymerase Rpb1, domain 3

结构域编号 domain_id	2a6hN06
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	132 — Topoisomerase I; Chain A, domain 4
同源超家族 H-superfamily homologous superfamily	30 — RNA polymerase Rpb1 funnel domain

结构域编号 domain_id	2a6hN08
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
同源超家族 H-superfamily homologous superfamily	100 — RNA polymerase II/Efflux pump adaptor protein, barrel-sandwich hybrid domain

结构域编号 domain_id	2a6hN09
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	60 — Wheat Germ Agglutinin (Isolectin 2); domain 1
同源超家族 H-superfamily homologous superfamily	280 —

结构域编号 domain_id	2a6hO00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	940 — Eukaryotic RPB6 RNA polymerase subunit
同源超家族 H-superfamily homologous superfamily	10 — RNA polymerase subunit, RPB6/omega

结构域编号 domain_id	2a6hP01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
同源超家族 H-superfamily homologous superfamily	1810 —

结构域编号 domain_id	2a6hP02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	10 — Arc Repressor Mutant, subunit A
同源超家族 H-superfamily homologous superfamily	10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain

结构域编号 domain_id	2a6hP03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	10 — Arc Repressor Mutant, subunit A
同源超家族 H-superfamily homologous superfamily	10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	239.500 Å
晶胞边长 b length_b	239.500 Å
晶胞边长 c length_c	253.100 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	120.00 °
晶胞分子数 Z z_pdb	12

空间群 space_group	P 32
空间群编号 int_tables_number	145
晶系 crystal_system	—

分辨率 resolution	2.400 Å
最低分辨率 resolution_low	25.000 Å
R 因子 r_factor	0.2300
R_work r_work	0.2300
R_free r_free	0.2680

Crystal structure of the T. thermophilus RNA polymerase holoenzyme in complex with antibiotic sterptolydigin

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

1. 结构基本信息 1. Structure Basics

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

4. 晶体学与实验 4. Crystallography & Experiment

晶胞参数 Unit Cell

对称性 Symmetry

精修参数 Refinement

衍射实验 Diffraction

5. 实体与聚合体信息 (9)

Entity 1 polymer

聚合体 Polymer

Entity 2 polymer

聚合体 Polymer

Entity 3 polymer

聚合体 Polymer

Entity 4 polymer

聚合体 Polymer

Entity 5 polymer

聚合体 Polymer

Entity 6 non-polymer

Entity 7 non-polymer

Entity 8 non-polymer

Entity 9 water

6. 折叠分类 (SCOP + CATH) 60 domains

SCOP 2.08 (20 domains)

CATH v4.4 (40 domains)

7. 引用文献 (1)

8. 文件与曲线 (10)

Files (7)

Curves (3)

fit	/app/data/saxs_computation/a6/2a6h/2a6h.fit
pddf	/app/data/pr_computation/a6/2a6h/2a6h.pr.out
profile	/app/data/saxs_computation/a6/2a6h/2a6h.dat
