Crystal Structure of the Acyl-CoA Carboxylase, AccD5, from Mycobacterium tuberculosis

Method: X-RAY DIFFRACTION D_max: 138.9 Å Quality: GOOD

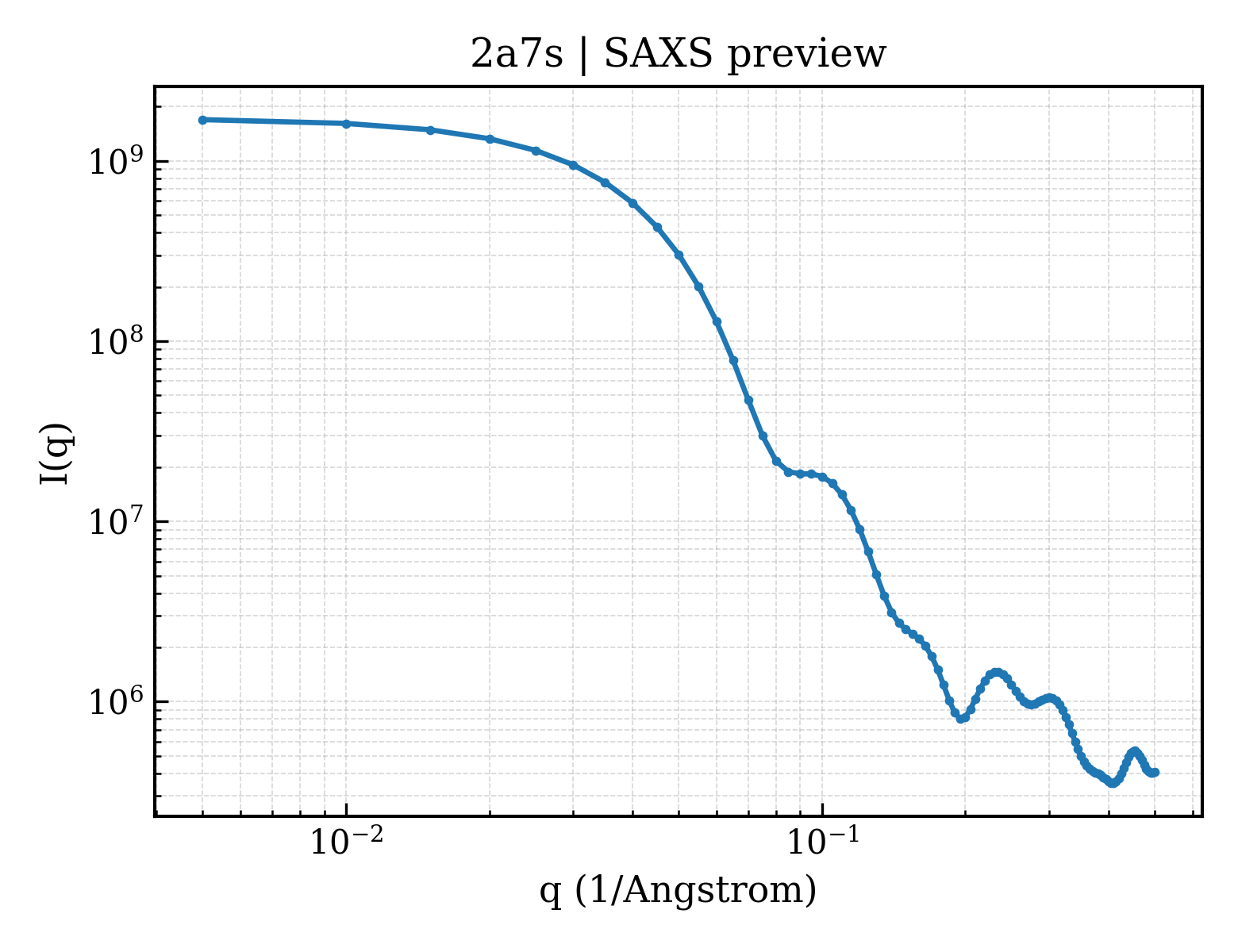

SAXS 散射曲线 SAXS Profile

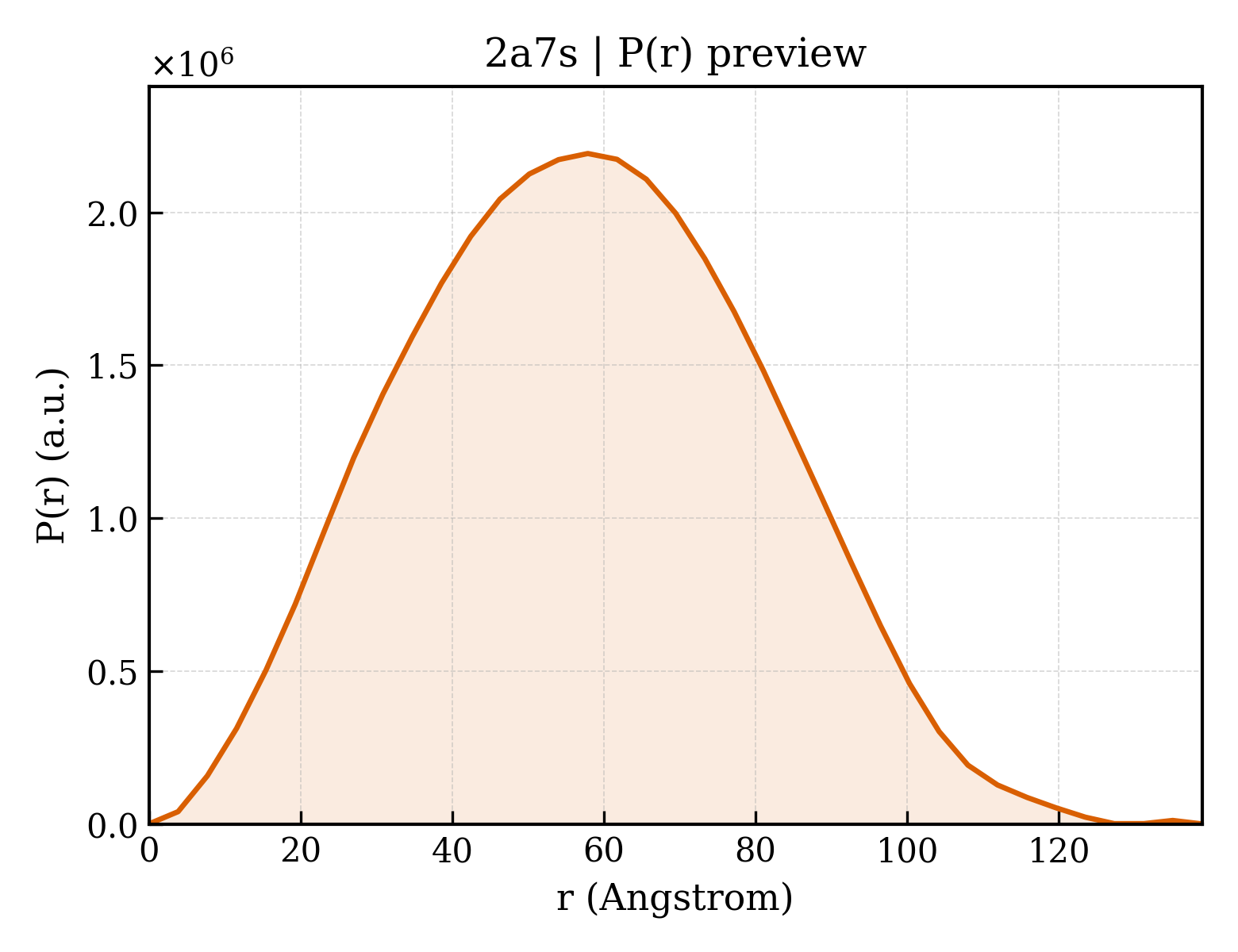

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2a7s
沉积日期 deposition_date	2005-07-06
结构标题 title	Crystal Structure of the Acyl-CoA Carboxylase, AccD5, from Mycobacterium tuberculosis
关键词 keywords	;carboxylase, carboxyltransferase, acetyl-CoA carboxylase, propionyl-CoA carboxylase, Acyl-CoA Carboxylase, mycolic acid, fatty acid, polyketide, Ligase ;; LIGASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	44.11 Å
回转半径 Rg (电子) rg_electron	43.13 Å
零角强度 I(0) i0	1720720000.00
分子量 molecular_weight	343490.0 kDa
排除体积 excluded_volume	429330 Å³
包络体积 envelope_volume	541440 Å³
水化壳体积 shell_volume	96827 Å³
包络直径 envelope_diameter	151.5 Å
壳层 Rg shell_rg	53.72 Å
包络 Rg envelope_rg	42.86 Å
形状 Rg shape_rg	43.15 Å
总 Rg total_rg	43.44 Å
总原子数 total_atoms	24180
残基数 n_residues	3174
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	138.9 Å
Rg (实空间) rg_real	43.83 Å
Rg 误差 (实空间) rg_real_error	1.07 Å
I(0) (实空间) i0_real	1.7210e+09
I(0) 误差 (实空间) i0_real_error	3.0580e+07
Rg (倒空间) rg_reciprocal	44.11 Å
I(0) (倒空间) i0_reciprocal	1721000000.0000
解质量估计 total_estimate	0.8908
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	57.9 Å
偏度 Skewness skewness	0.112
峰度 Kurtosis kurtosis	-0.506
角度范围 angular_range	— – 0.1800 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	773200000.0000
实空间数据点数 n_real_points	37
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.895; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.971; Smooth: 0.923

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

Entity 1 polymer

描述 description	Probable propionyl-CoA carboxylase beta chain 5
分子量 formula_weight	59420.0 kDa
EC 编号 ec_number	6.4.1.3
来源方法 src_method	man
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F
原子数 atom_count	25316

MTSVTDRSAHSAERSTEHTIDIHTTAGKLAELHKRREESLHPVGEDAVEKVHAKGKLTARERIYALLDEDSFVELDALAKHRSTNFNLGEKRPLGDGVVTGYGTIDGRDVCIFSQDATVFGGSLGEVYGEKIVKVQELAIKTGRPLIGINDGAGARIQEGVVSLGLYSRIFRNNILASGVIPQISLIMGAAAGGHVYSPALTDFVIMVDQTSQMFITGPDVIKTVTGEEVTMEELGGAHTHMAKSGTAHYAASGEQDAFDYVRELLSYLPPNNSTDAPRYQAAAPTGPIEENLTDEDLELDTLIPDSPNQPYDMHEVITRLLDDEFLEIQAGYAQNIVVGFGRIDGRPVGIVANQPTHFAGCLDINASEKAARFVRTCDCFNIPIVMLVDVPGFLPGTDQEYNGIIRRGAKLLYAYGEATVPKITVITRKAYGGAYCVMGSKDMGCDVNLAWPTAQIAVMGASGAVGFVYRQQLAEAAANGEDIDKLRLRLQQEYEDTLVNPYVAAERGYVDAVIPPSHTRGYIGTALRLLERKIAQLPPKKHGNVPL

来源 Source

来源生物 organism	Mycobacterium tuberculosis
NCBI 分类编号 ncbi_taxonomy_id	1773
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1136

▼

6. 折叠分类 (SCOP + CATH) 24 domains

SCOP 2.08 (12 domains)

结构域编号 domain_id	d2a7sa1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.14 — ClpP/crotonase
超家族 Superfamily superfamily	c.14.1 — ClpP/crotonase
家族 Family family	c.14.1.4 — Biotin dependent carboxylase carboxyltransferase domain

结构域编号 domain_id	d2a7sa2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.14 — ClpP/crotonase
超家族 Superfamily superfamily	c.14.1 — ClpP/crotonase
家族 Family family	c.14.1.4 — Biotin dependent carboxylase carboxyltransferase domain

结构域编号 domain_id	d2a7sb1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.14 — ClpP/crotonase
超家族 Superfamily superfamily	c.14.1 — ClpP/crotonase
家族 Family family	c.14.1.4 — Biotin dependent carboxylase carboxyltransferase domain

结构域编号 domain_id	d2a7sb2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.14 — ClpP/crotonase
超家族 Superfamily superfamily	c.14.1 — ClpP/crotonase
家族 Family family	c.14.1.4 — Biotin dependent carboxylase carboxyltransferase domain

结构域编号 domain_id	d2a7sc1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.14 — ClpP/crotonase
超家族 Superfamily superfamily	c.14.1 — ClpP/crotonase
家族 Family family	c.14.1.4 — Biotin dependent carboxylase carboxyltransferase domain

结构域编号 domain_id	d2a7sc2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.14 — ClpP/crotonase
超家族 Superfamily superfamily	c.14.1 — ClpP/crotonase
家族 Family family	c.14.1.4 — Biotin dependent carboxylase carboxyltransferase domain

结构域编号 domain_id	d2a7sd1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.14 — ClpP/crotonase
超家族 Superfamily superfamily	c.14.1 — ClpP/crotonase
家族 Family family	c.14.1.4 — Biotin dependent carboxylase carboxyltransferase domain

结构域编号 domain_id	d2a7sd2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.14 — ClpP/crotonase
超家族 Superfamily superfamily	c.14.1 — ClpP/crotonase
家族 Family family	c.14.1.4 — Biotin dependent carboxylase carboxyltransferase domain

结构域编号 domain_id	d2a7se1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.14 — ClpP/crotonase
超家族 Superfamily superfamily	c.14.1 — ClpP/crotonase
家族 Family family	c.14.1.4 — Biotin dependent carboxylase carboxyltransferase domain

结构域编号 domain_id	d2a7se2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.14 — ClpP/crotonase
超家族 Superfamily superfamily	c.14.1 — ClpP/crotonase
家族 Family family	c.14.1.4 — Biotin dependent carboxylase carboxyltransferase domain

结构域编号 domain_id	d2a7sf1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.14 — ClpP/crotonase
超家族 Superfamily superfamily	c.14.1 — ClpP/crotonase
家族 Family family	c.14.1.4 — Biotin dependent carboxylase carboxyltransferase domain

结构域编号 domain_id	d2a7sf2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.14 — ClpP/crotonase
超家族 Superfamily superfamily	c.14.1 — ClpP/crotonase
家族 Family family	c.14.1.4 — Biotin dependent carboxylase carboxyltransferase domain

CATH v4.4 (12 domains)

结构域编号 domain_id	2a7sA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

结构域编号 domain_id	2a7sA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

结构域编号 domain_id	2a7sB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

结构域编号 domain_id	2a7sB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

结构域编号 domain_id	2a7sC01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

结构域编号 domain_id	2a7sC02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

结构域编号 domain_id	2a7sD01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

结构域编号 domain_id	2a7sD02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

结构域编号 domain_id	2a7sE01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

结构域编号 domain_id	2a7sE02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

结构域编号 domain_id	2a7sF01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

结构域编号 domain_id	2a7sF02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	175.252 Å
晶胞边长 b length_b	175.252 Å
晶胞边长 c length_c	342.999 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	48

空间群 space_group	P 41 21 2
空间群编号 int_tables_number	92
晶系 crystal_system	—

分辨率 resolution	2.900 Å
最低分辨率 resolution_low	47.880 Å
R 因子 r_factor	0.1930
R_work r_work	0.1930
R_free r_free	0.2450
