2bzr

Crystal structure of accD5 (Rv3280), an acyl-CoA carboxylase beta- subunit from Mycobacterium tuberculosis

Method: X-RAY DIFFRACTION D_max: 131.4 Å Quality: GOOD

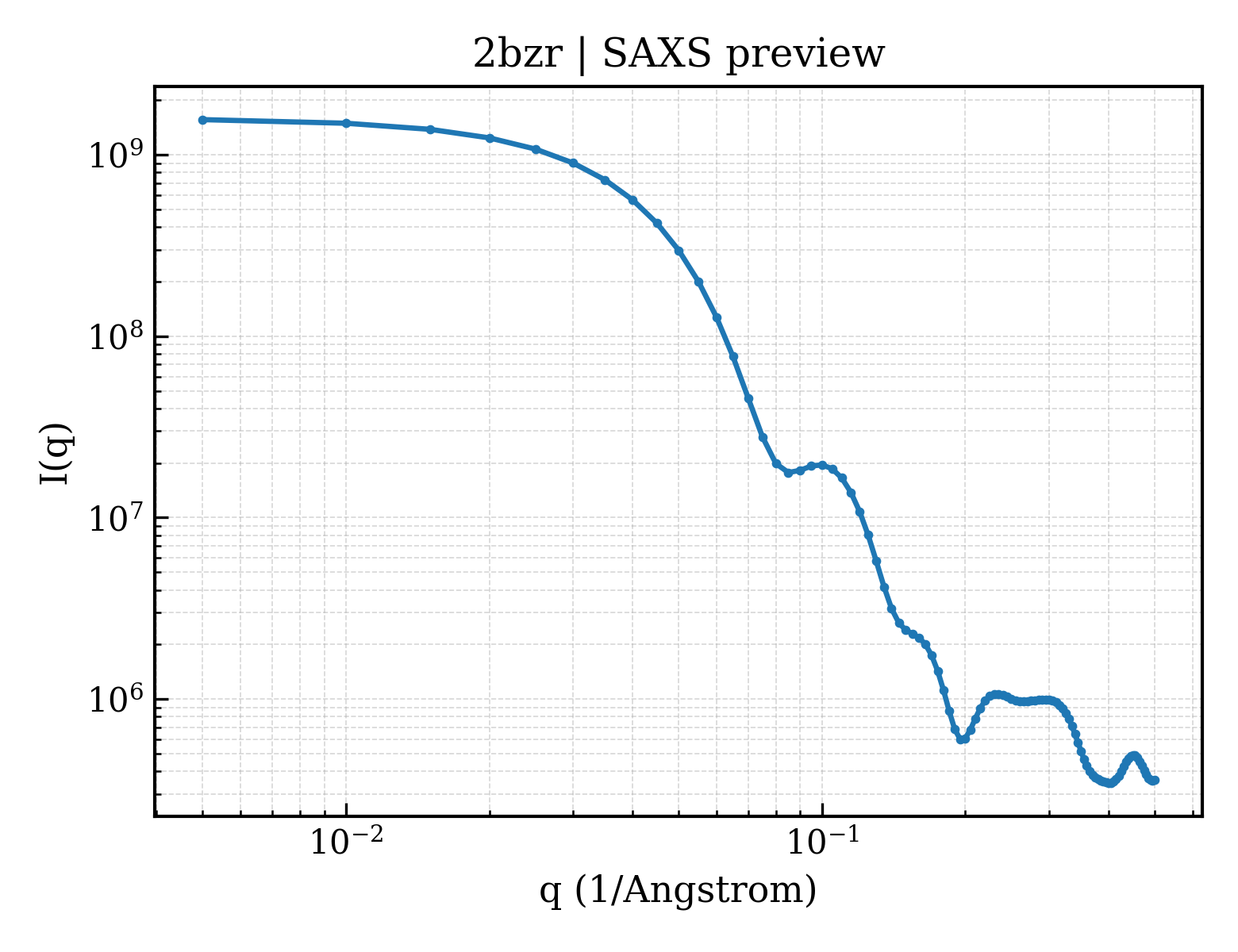

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2bzr
沉积日期 deposition_date	2005-08-22
结构标题 title	Crystal structure of accD5 (Rv3280), an acyl-CoA carboxylase beta- subunit from Mycobacterium tuberculosis
关键词 keywords	;MYCOBACTERIUM TUBERCULOSIS, FATTY ACID BIOSYNTHESIS, ACCASE, LIGASE, TRANSFERASE, MYCOBACTERIUM TUBERCULOSIS STRUCTURAL PROTEOMICS PROJECT, XMTB, STRUCTURAL GENOMICS ;; TRANSFERASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	43.02 Å
回转半径 Rg (电子) rg_electron	42.10 Å
零角强度 I(0) i0	1586360000.00
分子量 molecular_weight	329280.0 kDa
排除体积 excluded_volume	411560 Å³
包络体积 envelope_volume	518160 Å³
水化壳体积 shell_volume	94866 Å³
包络直径 envelope_diameter	138.1 Å
壳层 Rg shell_rg	52.90 Å
包络 Rg envelope_rg	41.54 Å
形状 Rg shape_rg	42.12 Å
总 Rg total_rg	42.44 Å
总原子数 total_atoms	23178
残基数 n_residues	3041
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	131.4 Å
Rg (实空间) rg_real	42.72 Å
Rg 误差 (实空间) rg_real_error	0.65 Å
I(0) (实空间) i0_real	1.5860e+09
I(0) 误差 (实空间) i0_real_error	2.3220e+07
Rg (倒空间) rg_reciprocal	43.02 Å
I(0) (倒空间) i0_reciprocal	1587000000.0000
解质量估计 total_estimate	0.8999
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	56.8 Å
偏度 Skewness skewness	0.028
峰度 Kurtosis kurtosis	-0.615
角度范围 angular_range	— – 0.1850 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	831800000.0000
实空间数据点数 n_real_points	38
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.925; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.960; Smooth: 0.960

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

Entity 1 polymer

描述 description	PROPIONYL-COA CARBOXYLASE BETA CHAIN 5
分子量 formula_weight	59361.9 kDa
EC 编号 ec_number	6.4.1.3
来源方法 src_method	man
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F
原子数 atom_count	24961

MTSVTDRSAHSAERSTEHTIDIHTTAGKLAELHKRREESLHPVGEDAVEKVHAKGKLTARERIYALLDEDSFVELDALAKHRSTNFNLGEKRPLGDGVVTGYGTIDGRDVCIFSQDATVFGGSLGEVYGEKIVKVQELAIKTGRPLIGINDGAGARIQEGVVSLGLYSRIFRNNILASGVIPQISLIMGAAAGGHVYSPALTDFVIMVDQTSQMFITGPDVIKTVTGEEVTMEELGGAHTHMAKSGTAHYAASGEQDAFDYVRELLSYLPPNNSTDAPRYQAAAPTGPIEENLTDEDLELDTLIPDSPNQPYDMHEVITRLLDDEFLEIQAGYAQNIVVGFGRIDGRPVGIVANQPTHFAGCLDINASEKAARFVRTCDCFNIPIVMLVDVPGFLPGTDQEYNGIIRRGAKLLYAYGEATVPKITVITRKAYGGAYCVMGSKDMGCDVNLAWPTAQIAVMGASGAVGFVYRQQLAEAAANGEDIDKLRLRLQQEYEDTLVNPYVAAERGYVGAVIPPSHTRGYIGTALRLLERKIAQLPPKKHGNVPL

来源 Source

来源生物 organism	MYCOBACTERIUM TUBERCULOSIS
NCBI 分类编号 ncbi_taxonomy_id	83332
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1690

▼

6. 折叠分类 (SCOP + CATH) 23 domains

SCOP 2.08 (11 domains)

结构域编号 domain_id	d2bzra1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.14 — ClpP/crotonase
超家族 Superfamily superfamily	c.14.1 — ClpP/crotonase
家族 Family family	c.14.1.4 — Biotin dependent carboxylase carboxyltransferase domain

结构域编号 domain_id	d2bzrb1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.14 — ClpP/crotonase
超家族 Superfamily superfamily	c.14.1 — ClpP/crotonase
家族 Family family	c.14.1.4 — Biotin dependent carboxylase carboxyltransferase domain

结构域编号 domain_id	d2bzrb2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.14 — ClpP/crotonase
超家族 Superfamily superfamily	c.14.1 — ClpP/crotonase
家族 Family family	c.14.1.4 — Biotin dependent carboxylase carboxyltransferase domain

结构域编号 domain_id	d2bzrc1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.14 — ClpP/crotonase
超家族 Superfamily superfamily	c.14.1 — ClpP/crotonase
家族 Family family	c.14.1.4 — Biotin dependent carboxylase carboxyltransferase domain

结构域编号 domain_id	d2bzrc2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.14 — ClpP/crotonase
超家族 Superfamily superfamily	c.14.1 — ClpP/crotonase
家族 Family family	c.14.1.4 — Biotin dependent carboxylase carboxyltransferase domain

结构域编号 domain_id	d2bzrd1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.14 — ClpP/crotonase
超家族 Superfamily superfamily	c.14.1 — ClpP/crotonase
家族 Family family	c.14.1.4 — Biotin dependent carboxylase carboxyltransferase domain

结构域编号 domain_id	d2bzrd2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.14 — ClpP/crotonase
超家族 Superfamily superfamily	c.14.1 — ClpP/crotonase
家族 Family family	c.14.1.4 — Biotin dependent carboxylase carboxyltransferase domain

结构域编号 domain_id	d2bzre1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.14 — ClpP/crotonase
超家族 Superfamily superfamily	c.14.1 — ClpP/crotonase
家族 Family family	c.14.1.4 — Biotin dependent carboxylase carboxyltransferase domain

结构域编号 domain_id	d2bzre2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.14 — ClpP/crotonase
超家族 Superfamily superfamily	c.14.1 — ClpP/crotonase
家族 Family family	c.14.1.4 — Biotin dependent carboxylase carboxyltransferase domain

结构域编号 domain_id	d2bzrf1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.14 — ClpP/crotonase
超家族 Superfamily superfamily	c.14.1 — ClpP/crotonase
家族 Family family	c.14.1.4 — Biotin dependent carboxylase carboxyltransferase domain

结构域编号 domain_id	d2bzrf2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.14 — ClpP/crotonase
超家族 Superfamily superfamily	c.14.1 — ClpP/crotonase
家族 Family family	c.14.1.4 — Biotin dependent carboxylase carboxyltransferase domain

CATH v4.4 (12 domains)

结构域编号 domain_id	2bzrA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

结构域编号 domain_id	2bzrA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

结构域编号 domain_id	2bzrB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

结构域编号 domain_id	2bzrB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

结构域编号 domain_id	2bzrC01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

结构域编号 domain_id	2bzrC02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

结构域编号 domain_id	2bzrD01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

结构域编号 domain_id	2bzrD02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

结构域编号 domain_id	2bzrE01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

结构域编号 domain_id	2bzrE02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

结构域编号 domain_id	2bzrF01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

结构域编号 domain_id	2bzrF02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	173.562 Å
晶胞边长 b length_b	173.562 Å
晶胞边长 c length_c	339.823 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	48

空间群 space_group	P 41 21 2
空间群编号 int_tables_number	92
晶系 crystal_system	—

分辨率 resolution	2.200 Å
最低分辨率 resolution_low	32.090 Å
R 因子 r_factor	0.1780
R_work r_work	0.1760
R_free r_free	0.2110
