SAXSdb — 2aik

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Sulfatase modifying factor 1

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Heteromer Protein × 2 其他Polymer 1 PDB declaration: dimeric（2） Consistent with protein copy count	Chain X； UniProt 86–371	Fragment：residues 86-371 Mutation：C336S	LCTPSRA peptide from Arylsulfatase A × 1 （P15289） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CA CALCIUM ION × 2 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；PEG 4000, Calcium chloride, TRIS, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.73 Å R-free 0.174

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2AIK	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1Y1E human formylglycine generating enzyme Deposited 2004-11-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain X 73–374（302 aa） Fragment：residues 73-383	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；Tris/HCl, CaCl2, PEG4000, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.73 Å R-free 0.242
2AFT Formylglycine generating enzyme C336S mutant Deposited 2005-07-26	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain X 86–371（286 aa） Fragment：residues 86-371	Mutation：C336S	CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；PEG 4000, Calcium chloride, TRIS, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.66 Å R-free 0.187
2AFY Formylglycine generating enzyme C341S mutant Deposited 2005-07-26	Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain X 86–371（286 aa） Fragment：residues 86-371	Mutation：C341S Non-standard monomer：Yes (specific site not provided by mmCIF)	CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；PEG 4000, Calcium chloride, TRIS, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.49 Å R-free 0.171
2AII wild-type Formylglycine generating enzyme reacted with iodoacetamide Deposited 2005-07-29	Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain X 86–371（286 aa） Fragment：residues 86-371	Not recorded	CA CALCIUM ION × 2 ACM ACETAMIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；PEG 4000, Calcium chloride, TRIS, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.54 Å R-free 0.176
2AIJ Formylglycine generating enzyme C336S mutant covalently bound to substrate peptide CTPSR Deposited 2005-07-29	Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain X 86–371（286 aa） Fragment：residues 86-371	Mutation：C336S	CA CALCIUM ION × 2 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；PEG 4000, Calcium chloride, TRIS, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.55 Å R-free 0.178
2HI8 human formylglycine generating enzyme, C336S mutant, bromide co-crystallization Deposited 2006-06-29	Different construct Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain X 86–371（286 aa） Fragment：RESIDUES 86-371	Mutation：C336S	BR BROMIDE ION × 15 CA CALCIUM ION × 2 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；PEG 4000, Calcium chloride, TRIS, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.64 Å R-free 0.191
2HIB human formylglycine generating enzyme, C336S mutant, iodide co-crystallization Deposited 2006-06-29	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain X 86–371（286 aa） Fragment：RESIDUES 86-371	Mutation：C336S	CA CALCIUM ION × 2 IOD IODIDE ION × 11	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；PEG 4000, Calcium iodide, TRIS, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.00 Å R-free 0.238
5SSX Crystal Structure human formylglycine generating enzyme E130D mutant Deposited 2022-08-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 73–374（302 aa）	Mutation：E130D	CU1 COPPER (I) ION × 1 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；9.6 mg/mL protein in 20mM Tris/HCl pH8.0 mixed 1:1 with reservoir 0.1M Tris/HCl pH 8.5, 20-25% PEG4000, 0.2-0.3M CaCl2	Resolution 1.02 Å R-free 0.138
5SSY Crystal Structure of human formylglycine generating enzyme Deposited 2022-08-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 73–374（302 aa）	Not recorded	CU1 COPPER (I) ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CA CALCIUM ION × 2 UG6 methyl N-acetyl-L-cysteinate × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；9.6 mg/mL protein in 20mM Tris/HCl pH8.0 mixed 1:1 with reservoir 0.1M Tris/HCl pH 8.5, 20-25% PEG4000, 0.2-0.3M CaCl2	Resolution 1.29 Å R-free 0.237
5SSZ Crystal Structure of wild-type human formylglycine generating enzyme bound to Cu(I) Deposited 2022-08-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 73–374（302 aa）	Not recorded	CU1 COPPER (I) ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；9.6 mg/mL protein in 20mM Tris/HCl pH8.0 mixed 1:1 with reservoir 0.1M Tris/HCl pH 8.5, 20-25% PEG4000, 0.2-0.3M CaCl2	Resolution 1.02 Å R-free 0.142
8ARU Crystal Structure of human formylglycine generating enzyme Deposited 2022-08-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 73–374（302 aa）	Not recorded	CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；7-8 mg/mL protein in 20mM Tris/HCl pH8.0 mixed 1:1 with reservoir 0.1M Tris/HCl pH 8-9, 20-25% PEG4000, 0.25M CaCl2	Resolution 1.08 Å R-free 0.174

11 other PDB entries and 11 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SUMF1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain X； PDBConstruct 1–286； UniProt 86–371

LCTPSRA peptide from Arylsulfatase A

OrganismNot specified

UniProt P15289

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Heteromer Protein × 2 其他Polymer 1 PDB declaration: dimeric（2） Consistent with protein copy count	Chain P； UniProt 68–74	Not recorded	Sulfatase modifying factor 1 × 1 （Q8NBK3） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CA CALCIUM ION × 2 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；PEG 4000, Calcium chloride, TRIS, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.73 Å R-free 0.174

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2AIK	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1AUK HUMAN ARYLSULFATASE A Deposited 1997-08-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 8 PDB declaration: octameric	Chain A 19–507（489 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.4；291 K；PROTEIN WAS CRYSTALLIZED BY VAPOR DIFFUSION IN HANGING DROPS AT 291 K. SOLUTION CONTAINING 10MG/ML PROTEIN, 10 MM TRIS/HCL (PH 7.4) AND 150 MM NACL WAS MIXED WITH SAME VOLUME OF RESERVOIR SOLUTION, CONTAINING 100 MM NA-ACETATE (PH 5.0 - 5.4) AND 10 - 13 % PEG 6000, vapor diffusion - hanging drop	Resolution 2.10 Å R-free 0.273
1E1Z Crystal structure of an Arylsulfatase A mutant C69S Deposited 2000-05-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain P 19–507（489 aa）	Mutation：C69S	MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.4；291 K；PROTEIN WAS CRYSTALLIZED BY VAPOR DIFFUSION IN HANGING DROPS AT 291 K. SOLUTION CONTAINING 10MG/ML PROTEIN, 10 MM TRIS/HCL (PH 7.4) AND 150 MM NACL WAS MIXED WITH SAME VOLUME OF RESERVOIR SOLUTION, CONTAINING 100 MM NA-ACETATE (PH 5.0 - 5.4) AND 10 - 13 % PEG 6000	Resolution 2.40 Å R-free 0.243
1E2S Crystal structure of an Arylsulfatase A mutant C69A Deposited 2000-05-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain P 19–507（489 aa）	Mutation：C69A	MG MAGNESIUM ION × 2 CSN N,4-DIHYDROXY-N-OXO-3-(SULFOOXY)BENZENAMINIUM × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.4；291 K；PROTEIN WAS CRYSTALLIZED BY VAPOR DIFFUSION IN HANGING DROPS AT 291 K. SOLUTION CONTAINING 10MG/ML PROTEIN, 10 MM TRIS/HCL (PH 7.4) AND 150 MM NACL WAS MIXED WITH SAME VOLUME OF RESERVOIR SOLUTION, CONTAINING 100 MM NA-ACETATE (PH 5.0 - 5.4) AND 10 - 13 % PEG 6000	Resolution 2.35 Å R-free 0.236
1E33 Crystal structure of an Arylsulfatase A mutant P426L Deposited 2000-06-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain P 19–507（489 aa）	Mutation：P426L Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.4；291 K；PROTEIN WAS CRYSTALLIZED BY VAPOR DIFFUSION IN HANGING DROPS AT 291 K. SOLUTION CONTAINING 10MG/ML PROTEIN, 10 MM TRIS/HCL (PH 7.4) AND 150 MM NACL WAS MIXED WITH SAME VOLUME OF RESERVOIR SOLUTION, CONTAINING 100 MM NA-ACETATE (PH 5.0 - 5.4) AND 10 - 13 % PEG 6000	Resolution 2.50 Å R-free 0.250
1E3C Crystal structure of an Arylsulfatase A mutant C69S soaked in synthetic substrate Deposited 2000-06-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain P 19–507（489 aa）	Mutation：C69S	MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.4；291 K；PROTEIN WAS CRYSTALLIZED BY VAPOR DIFFUSION IN HANGING DROPS AT 291 K. SOLUTION CONTAINING 10MG/ML PROTEIN, 10 MM TRIS/HCL (PH 7.4) AND 150 MM NACL WAS MIXED WITH SAME VOLUME OF RESERVOIR SOLUTION, CONTAINING 100 MM NA-ACETATE (PH 5.0 - 5.4) AND 10 - 13 % PEG 6000	Resolution 2.65 Å R-free 0.243
1N2K Crystal structure of a covalent intermediate of endogenous human arylsulfatase A Deposited 2002-10-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 19–507（489 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.6；293 K；cacodylate, sodium fluoride, PEG8000, pH 6.6, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.75 Å R-free 0.239
1N2L Crystal structure of a covalent intermediate of endogenous human arylsulfatase A Deposited 2002-10-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 19–507（489 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；cacodylate, sodium fluoride, PEG8000, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.20 Å R-free 0.223
2AIJ Formylglycine generating enzyme C336S mutant covalently bound to substrate peptide CTPSR Deposited 2005-07-29	Different construct Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain P 69–73（5 aa）	Not recorded	CA CALCIUM ION × 2 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；PEG 4000, Calcium chloride, TRIS, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.55 Å R-free 0.178

8 other PDB entries and 8 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	ARSA_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain P； PDBConstruct 1–7； UniProt 68–74

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2aik
Deposition date deposition_date	2005-07-29
Structure title title	Formylglycine generating enzyme C336S mutant covalently bound to substrate peptide LCTPSRA
Keywords keywords	formylglycine, post-translational modification, endoplasmic reticulum, sulfatase, HYDROLASE ACTIVATOR, PROTEIN BINDING; HYDROLASE ACTIVATOR,PROTEIN BINDING
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	18.41 Å
Radius of gyration Rg (electron density) rg_electron	17.53 Å
Forward intensity I(0) i0	18700200.00
Molecular weight molecular_weight	31941.0 kDa
Excluded volume excluded_volume	39436 Å³
Envelope volume envelope_volume	43617 Å³
Hydration-shell volume shell_volume	20039 Å³
Envelope diameter envelope_diameter	61.2 Å
Shell Rg shell_rg	24.55 Å
Envelope Rg envelope_rg	17.98 Å
Shape Rg shape_rg	17.52 Å
Total Rg total_rg	18.50 Å
Total atoms total_atoms	2253
Residues n_residues	281
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

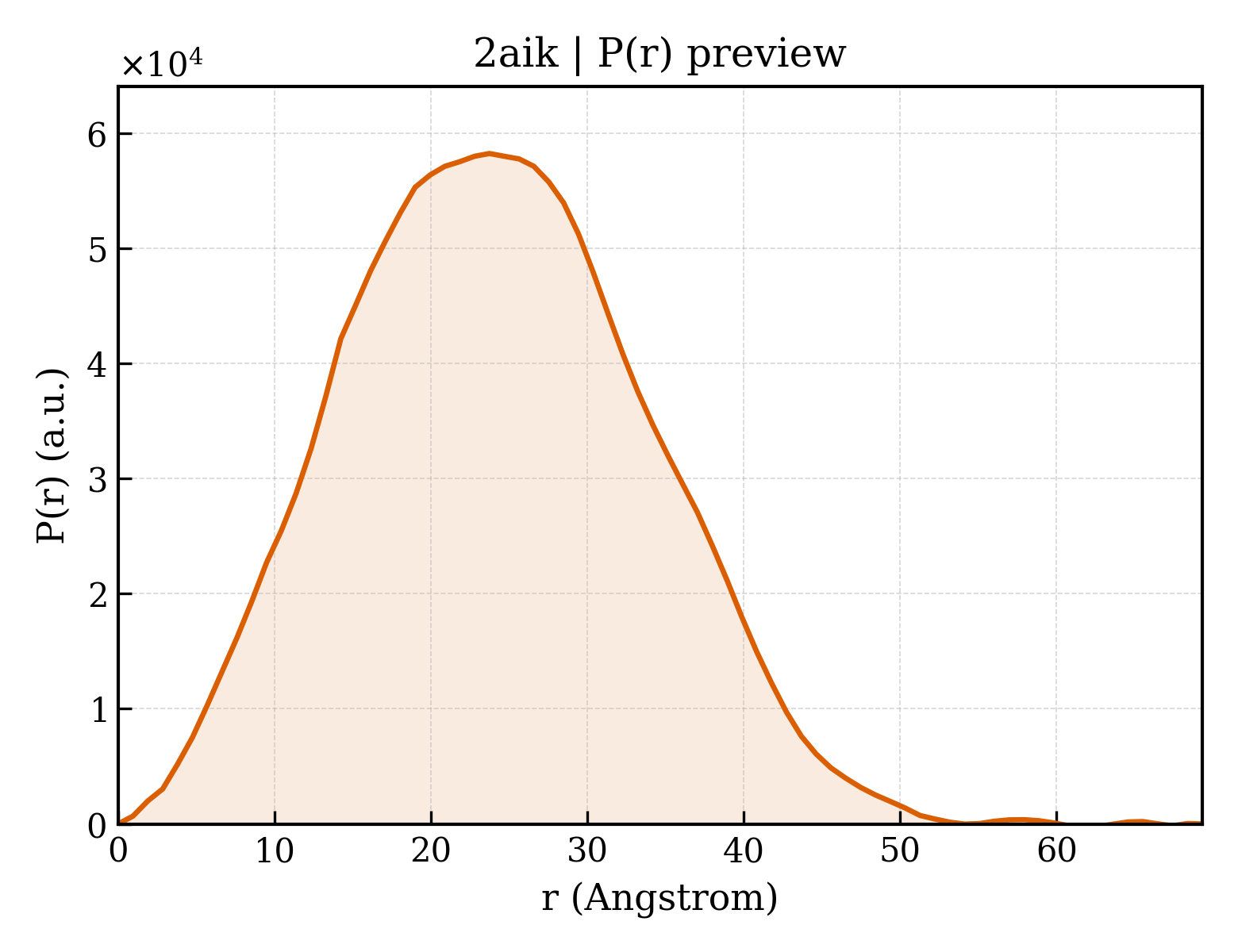

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	69.3 Å
Rg (real space) rg_real	18.29 Å
Rg uncertainty (real space) rg_real_error	0.57 Å
I(0) (real space) i0_real	1.8700e+07
I(0) uncertainty (real space) i0_real_error	2.3960e+05
Rg (reciprocal space) rg_reciprocal	18.31 Å
I(0) (reciprocal space) i0_reciprocal	18700000.0000
Solution quality estimate total_estimate	0.7232
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	4
Primary peak position r_peak_primary	23.7 Å
Skewness Skewness skewness	0.162
Kurtosis Kurtosis kurtosis	-0.395
Angular range angular_range	— – 0.4300 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	8424000.0000
Real-space data points n_real_points	74
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.493; Stabil: 0.982; Sysdev: 1.000; Positv: 1.000; Valcen: 0.972; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Sulfatase modifying factor 1
Molecular weight formula_weight	32110.6 kDa
Mutation mutation	C336S
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	X
Atom count atom_count	2802

LAHSKMVPIPAGVFTMGTDDPQIKQDGEAPARRVTIDAFYMDAYEVSNTEFEKFVNSTGYLTEAEKFGDSFVFEGMLSEQVKTNIQQAVAAAPWWLPVKGANWRHPEGPDSTILHRPDHPVLHVSWNDAVAYCTWAGKRLPTEAEWEYSCRGGLHNRLFPWGNKLQPKGQHYANIWQGEFPVTNTGEDGFQGTAPVDAFPPNGYGLYNIVGNAWEWTSDWWTVHHSVEETLNPKGPPSGKDRVKKGGSYMSHRSYCYRYRCAARSQNTPDSSASNLGFRCAADRLP

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	LCTPSRA peptide from Arylsulfatase A
Molecular weight formula_weight	747.9 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	P

LCTPSRA

Entity 3 Entity 3 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	495

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d2aikx_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.169 — C-type lectin-like
Superfamily Superfamily superfamily	d.169.1 — C-type lectin-like
Family Family family	d.169.1.7 — Sulfatase-modifying factor-like

CATH v4.4 (1 domains)

Domain ID domain_id	2aikX00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1580 — paralog of FGE (formylglycine-generating enzyme)
Homologous superfamily homologous superfamily	10 — paralog of FGE (formylglycine-generating enzyme)

▶

8. Citations (1)

▶

Unit-cell length a length_a	61.719 Å
Unit-cell length b length_b	109.517 Å
Unit-cell length c length_c	43.520 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	1.730 Å
Low-resolution limit resolution_low	29.710 Å
R factor r_factor	0.1423
R_work r_work	0.1407
R_free r_free	0.1743

fit	/app/data/saxs_computation/ai/2aik/2aik.fit
pddf	/app/data/pr_computation/ai/2aik/2aik.pr.out
profile	/app/data/saxs_computation/ai/2aik/2aik.dat

Formylglycine generating enzyme C336S mutant covalently bound to substrate peptide LCTPSRA
