1. Protein Identity and Related Structures Protein Identity & Related Structures

Sulfatase-modifying factor 1

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 2 其他Polymer 1	CTPSR × 1 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 BROMIDE ION × 15 CALCIUM ION × 2 CHLORIDE ION × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SUMF1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain X； PDBConstruct 1–286； UniProt 86–371

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2hi8
Deposition date deposition_date	2006-06-29
Structure title title	human formylglycine generating enzyme, C336S mutant, bromide co-crystallization
Keywords keywords	HYDROLASE ACTIVATOR, PROTEIN BINDING, formylglycin generation, post-translational modification, endoplasmic reticulum, sulfatase; HYDROLASE ACTIVATOR, PROTEIN BINDING
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2hi8__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2hi8__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

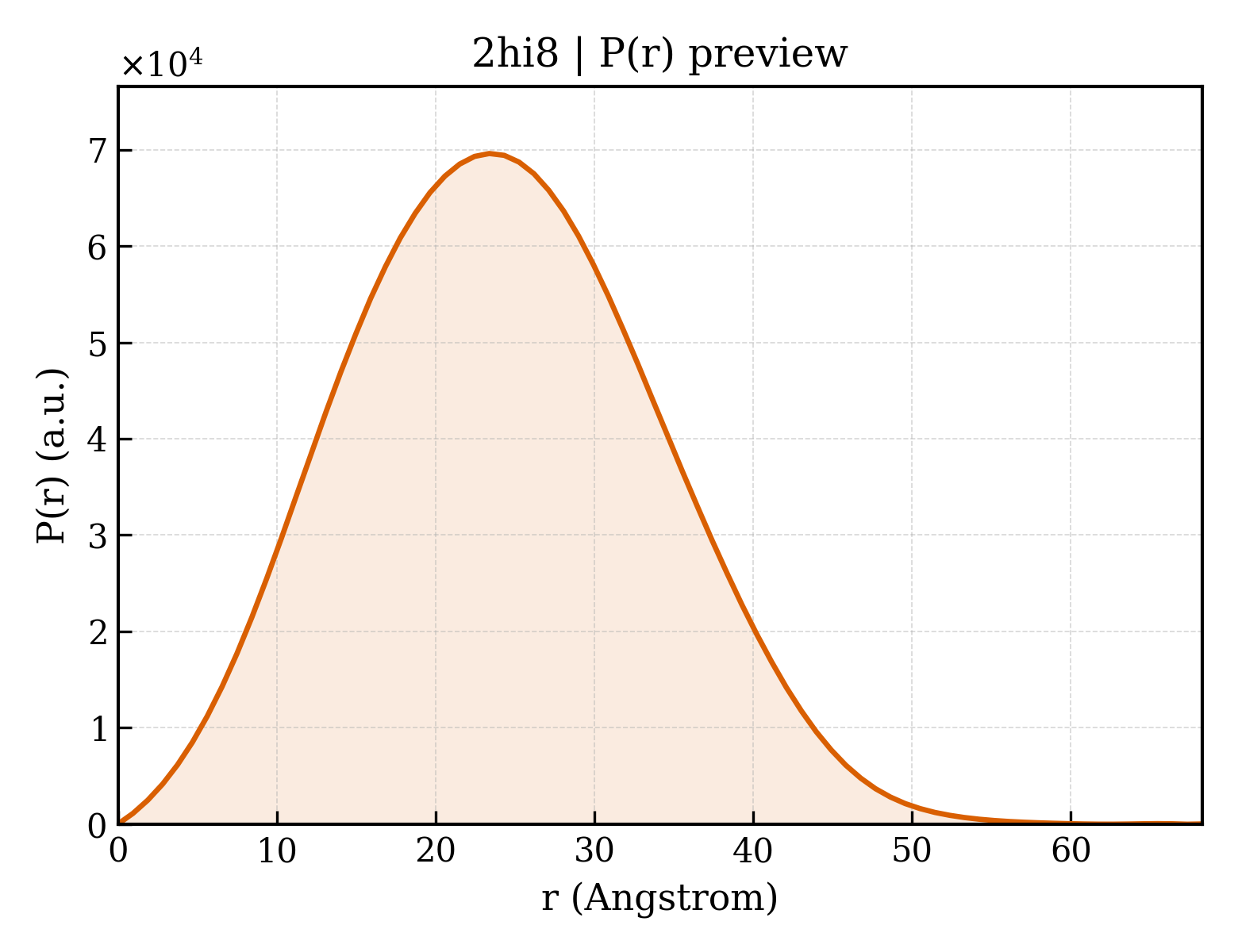

2hi8__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	18.50 Å
Rg (electron density)	17.48 Å
Total Rg	18.61 Å
Atom count	2259
Residues	279
Excluded volume	39650 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2hi8__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	Sulfatase-modifying factor 1
Molecular weight formula_weight	32110.6 kDa
Mutation mutation	C336S
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	X
Atom count atom_count	2792

LAHSKMVPIPAGVFTMGTDDPQIKQDGEAPARRVTIDAFYMDAYEVSNTEFEKFVNSTGYLTEAEKFGDSFVFEGMLSEQVKTNIQQAVAAAPWWLPVKGANWRHPEGPDSTILHRPDHPVLHVSWNDAVAYCTWAGKRLPTEAEWEYSCRGGLHNRLFPWGNKLQPKGQHYANIWQGEFPVTNTGEDGFQGTAPVDAFPPNGYGLYNIVGNAWEWTSDWWTVHHSVEETLNPKGPPSGKDRVKKGGSYMSHRSYCYRYRCAARSQNTPDSSASNLGFRCAADRLP

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	CTPSR
Molecular weight formula_weight	563.6 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	P

CTPSR

Entity 3 Entity 3 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	BROMIDE ION
Molecular weight formula_weight	79.9 kDa
Source method src_method	syn
Copy count entity_count	15

Entity 5 Entity 5 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	436

▼

6. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d2hi8x_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.169 — C-type lectin-like
Superfamily Superfamily superfamily	d.169.1 — C-type lectin-like
Family Family family	d.169.1.7 — Sulfatase-modifying factor-like

CATH v4.4 (1 domains)

Domain ID domain_id	2hi8X00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1580 — paralog of FGE (formylglycine-generating enzyme)
Homologous superfamily homologous superfamily	10 — paralog of FGE (formylglycine-generating enzyme)

▶

Unit-cell length a length_a	61.158 Å
Unit-cell length b length_b	108.792 Å
Unit-cell length c length_c	43.057 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	1.640 Å
Low-resolution limit resolution_low	27.200 Å
R factor r_factor	0.1552
R_work r_work	0.1534
R_free r_free	0.1907

human formylglycine generating enzyme, C336S mutant, bromide co-crystallization
