SAXSdb — 1e33

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Arylsulfatase A

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Homooligomer Protein × 2 其他Polymer 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain P； UniProt 19–507	Mutation：P426L Non-standard monomer：Yes (specific site not provided by mmCIF)	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 2 MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5.4；291 K；PROTEIN WAS CRYSTALLIZED BY VAPOR DIFFUSION IN HANGING DROPS AT 291 K. SOLUTION CONTAINING 10MG/ML PROTEIN, 10 MM TRIS/HCL (PH 7.4) AND 150 MM NACL WAS MIXED WITH SAME VOLUME OF RESERVOIR SOLUTION, CONTAINING 100 MM NA-ACETATE (PH 5.0 - 5.4) AND 10 - 13 % PEG 6000	Resolution 2.50 Å R-free 0.250

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1E33	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1AUK HUMAN ARYLSULFATASE A Deposited 1997-08-29	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 8 PDB declaration: octameric	Chain A 19–507（489 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.4；291 K；PROTEIN WAS CRYSTALLIZED BY VAPOR DIFFUSION IN HANGING DROPS AT 291 K. SOLUTION CONTAINING 10MG/ML PROTEIN, 10 MM TRIS/HCL (PH 7.4) AND 150 MM NACL WAS MIXED WITH SAME VOLUME OF RESERVOIR SOLUTION, CONTAINING 100 MM NA-ACETATE (PH 5.0 - 5.4) AND 10 - 13 % PEG 6000, vapor diffusion - hanging drop	Resolution 2.10 Å R-free 0.273
1E1Z Crystal structure of an Arylsulfatase A mutant C69S Deposited 2000-05-12	Different mutation/modification Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain P 19–507（489 aa）	Mutation：C69S	MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.4；291 K；PROTEIN WAS CRYSTALLIZED BY VAPOR DIFFUSION IN HANGING DROPS AT 291 K. SOLUTION CONTAINING 10MG/ML PROTEIN, 10 MM TRIS/HCL (PH 7.4) AND 150 MM NACL WAS MIXED WITH SAME VOLUME OF RESERVOIR SOLUTION, CONTAINING 100 MM NA-ACETATE (PH 5.0 - 5.4) AND 10 - 13 % PEG 6000	Resolution 2.40 Å R-free 0.243
1E2S Crystal structure of an Arylsulfatase A mutant C69A Deposited 2000-05-24	Different mutation/modification Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain P 19–507（489 aa）	Mutation：C69A	MG MAGNESIUM ION × 2 CSN N,4-DIHYDROXY-N-OXO-3-(SULFOOXY)BENZENAMINIUM × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.4；291 K；PROTEIN WAS CRYSTALLIZED BY VAPOR DIFFUSION IN HANGING DROPS AT 291 K. SOLUTION CONTAINING 10MG/ML PROTEIN, 10 MM TRIS/HCL (PH 7.4) AND 150 MM NACL WAS MIXED WITH SAME VOLUME OF RESERVOIR SOLUTION, CONTAINING 100 MM NA-ACETATE (PH 5.0 - 5.4) AND 10 - 13 % PEG 6000	Resolution 2.35 Å R-free 0.236
1E3C Crystal structure of an Arylsulfatase A mutant C69S soaked in synthetic substrate Deposited 2000-06-13	Different mutation/modification Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain P 19–507（489 aa）	Mutation：C69S	MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.4；291 K；PROTEIN WAS CRYSTALLIZED BY VAPOR DIFFUSION IN HANGING DROPS AT 291 K. SOLUTION CONTAINING 10MG/ML PROTEIN, 10 MM TRIS/HCL (PH 7.4) AND 150 MM NACL WAS MIXED WITH SAME VOLUME OF RESERVOIR SOLUTION, CONTAINING 100 MM NA-ACETATE (PH 5.0 - 5.4) AND 10 - 13 % PEG 6000	Resolution 2.65 Å R-free 0.243
1N2K Crystal structure of a covalent intermediate of endogenous human arylsulfatase A Deposited 2002-10-23	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 19–507（489 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.6；293 K；cacodylate, sodium fluoride, PEG8000, pH 6.6, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.75 Å R-free 0.239
1N2L Crystal structure of a covalent intermediate of endogenous human arylsulfatase A Deposited 2002-10-23	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 19–507（489 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；cacodylate, sodium fluoride, PEG8000, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.20 Å R-free 0.223
2AIJ Formylglycine generating enzyme C336S mutant covalently bound to substrate peptide CTPSR Deposited 2005-07-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain P 69–73（5 aa）	Not recorded	CA CALCIUM ION × 2 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；PEG 4000, Calcium chloride, TRIS, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.55 Å R-free 0.178
2AIK Formylglycine generating enzyme C336S mutant covalently bound to substrate peptide LCTPSRA Deposited 2005-07-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain P 68–74（7 aa）	Not recorded	CA CALCIUM ION × 2 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；PEG 4000, Calcium chloride, TRIS, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.73 Å R-free 0.174

8 other PDB entries and 8 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	ARSA_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain P； PDBConstruct 1–489； UniProt 19–507

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1e33
Deposition date deposition_date	2000-06-06
Structure title title	Crystal structure of an Arylsulfatase A mutant P426L
Keywords keywords	HYDROLASE, CEREBROSIDE-3-SULFATE HYDROLYSIS, LYSOSOMAL ENZYME, FORMYLGLYCINE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	22.29 Å
Radius of gyration Rg (electron density) rg_electron	21.24 Å
Forward intensity I(0) i0	42720000.00
Molecular weight molecular_weight	50912.0 kDa
Excluded volume excluded_volume	63658 Å³
Envelope volume envelope_volume	71077 Å³
Hydration-shell volume shell_volume	27040 Å³
Envelope diameter envelope_diameter	77.0 Å
Shell Rg shell_rg	29.01 Å
Envelope Rg envelope_rg	21.51 Å
Shape Rg shape_rg	21.21 Å
Total Rg total_rg	22.18 Å
Total atoms total_atoms	3584
Residues n_residues	480
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

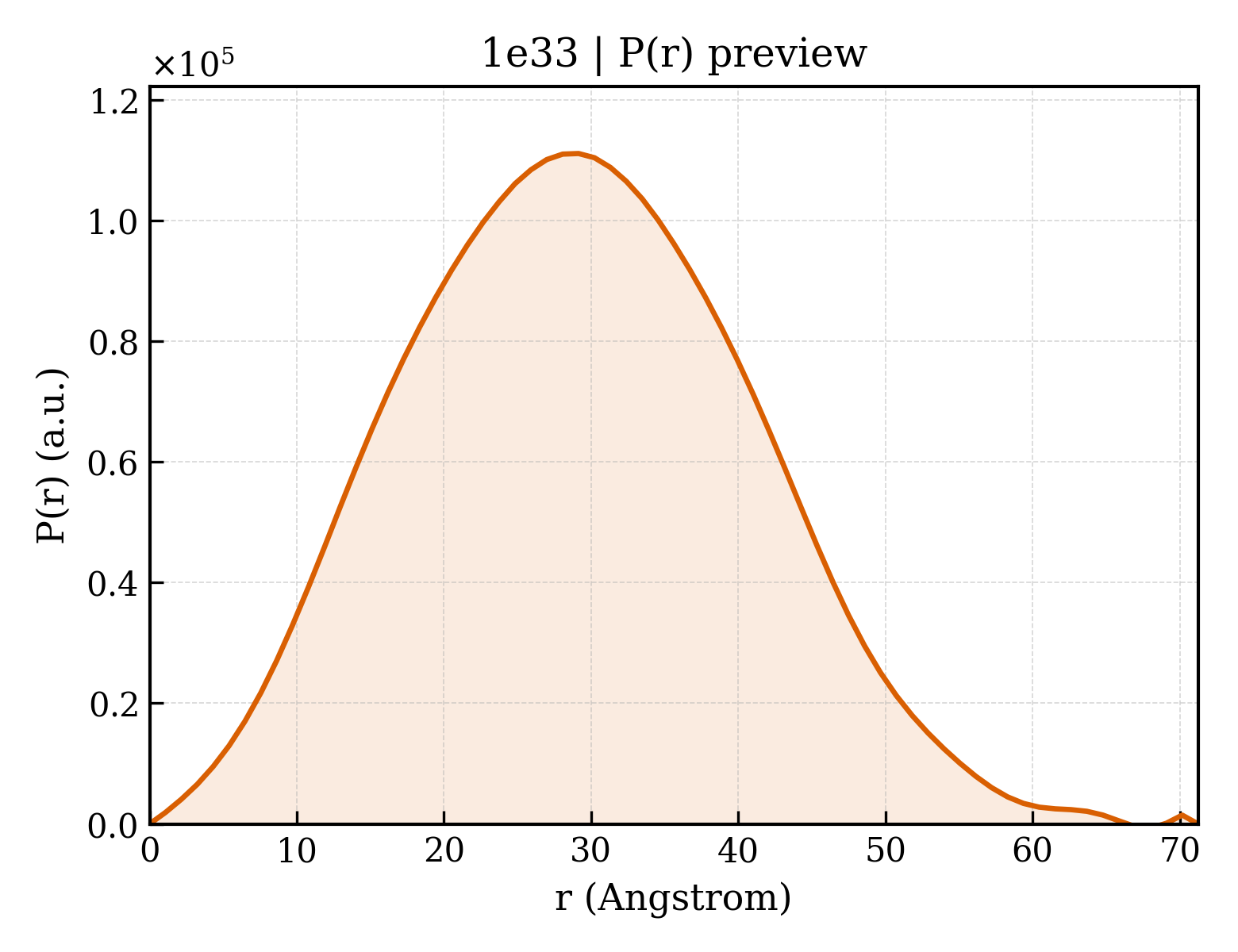

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	71.2 Å
Rg (real space) rg_real	22.16 Å
Rg uncertainty (real space) rg_real_error	0.38 Å
I(0) (real space) i0_real	4.2720e+07
I(0) uncertainty (real space) i0_real_error	5.0210e+05
Rg (reciprocal space) rg_reciprocal	22.19 Å
I(0) (reciprocal space) i0_reciprocal	42720000.0000
Solution quality estimate total_estimate	0.8100
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	29.1 Å
Skewness Skewness skewness	0.158
Kurtosis Kurtosis kurtosis	-0.353
Angular range angular_range	— – 0.3550 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	9667000.0000
Real-space data points n_real_points	67
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.849; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.986; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Arylsulfatase A
Molecular weight formula_weight	51975.8 kDa
EC 编号 ec_number	3.1.6.8
Mutation mutation	P426L
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	P
Atom count atom_count	3754

RPPNIVLIFADDLGYGDLGCYGHPSSTTPNLDQLAAGGLRFTDFYVPVSLATPSRAALLTGRLPVRMGMYPGVLVPSSRGGLPLEEVTVAEVLAARGYLTGMAGKWHLGVGPEGAFLPPHQGFHRFLGIPYSHDQGPCQNLTCFPPATPCDGGCDQGLVPIPLLANLSVEAQPPWLPGLEARYMAFAHDLMADAQREDRPFFLYYASHHTHYPQFSGQSFAERSGRGPFGDSLMELDAAVGTLMTAIGDLGLLEETLVIFTADNGPETMRMSRGGCSGLLRCGKGTTYEGGVREPALAFWPGHIAPGVTHELASSLDLLPTLAALAGAPLPNVTLDGFDLSPLLLGTGKSPRQSLFFYPSYPDEVRGVFAVRTGKYKAHFFTQGSAHSDTTADPACHASSSLTAHEPLLLYDLSKDPGENYNLLGGVAGATPEVLQALKQLQLLKAQLDAAVTFGPSQVARGEDPALQICCHPGCTPRPACCHCPDPHA

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Mus musculus

Entity 2 Entity 2 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	170

▼

7. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1e33p_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.76 — Alkaline phosphatase-like
Superfamily Superfamily superfamily	c.76.1 — Alkaline phosphatase-like
Family Family family	c.76.1.2 — Arylsulfatase

CATH v4.4 (2 domains)

Domain ID domain_id	1e33P01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	720 — Alkaline Phosphatase, subunit A
Homologous superfamily homologous superfamily	10 — Alkaline Phosphatase, subunit A

Domain ID domain_id	1e33P02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1120 — Arylsulfatase, C-terminal domain
Homologous superfamily homologous superfamily	10 —

▶

8. Citations (1)

▶

Unit-cell length a length_a	131.400 Å
Unit-cell length b length_b	131.400 Å
Unit-cell length c length_c	192.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	I 4 2 2
Space-group number int_tables_number	97
Crystal system crystal_system	—

Resolution resolution	2.500 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	0.1870
R_work r_work	0.1850
R_free r_free	0.2500
