SAXSdb — 2au7

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Inorganic pyrophosphatase

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 6	PHOSPHATE ION × 6 MANGANESE (II) ION × 30 SODIUM ION × 6 CHLORIDE ION × 24 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	IPYR_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–175； UniProt 1–175

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2au7
Deposition date deposition_date	2005-08-27
Structure title title	The R43Q active site variant of E.coli inorganic pyrophosphatase
Keywords keywords	hydrolase, mutant, inorganic pyrophosphatase; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2au7__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2au7__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

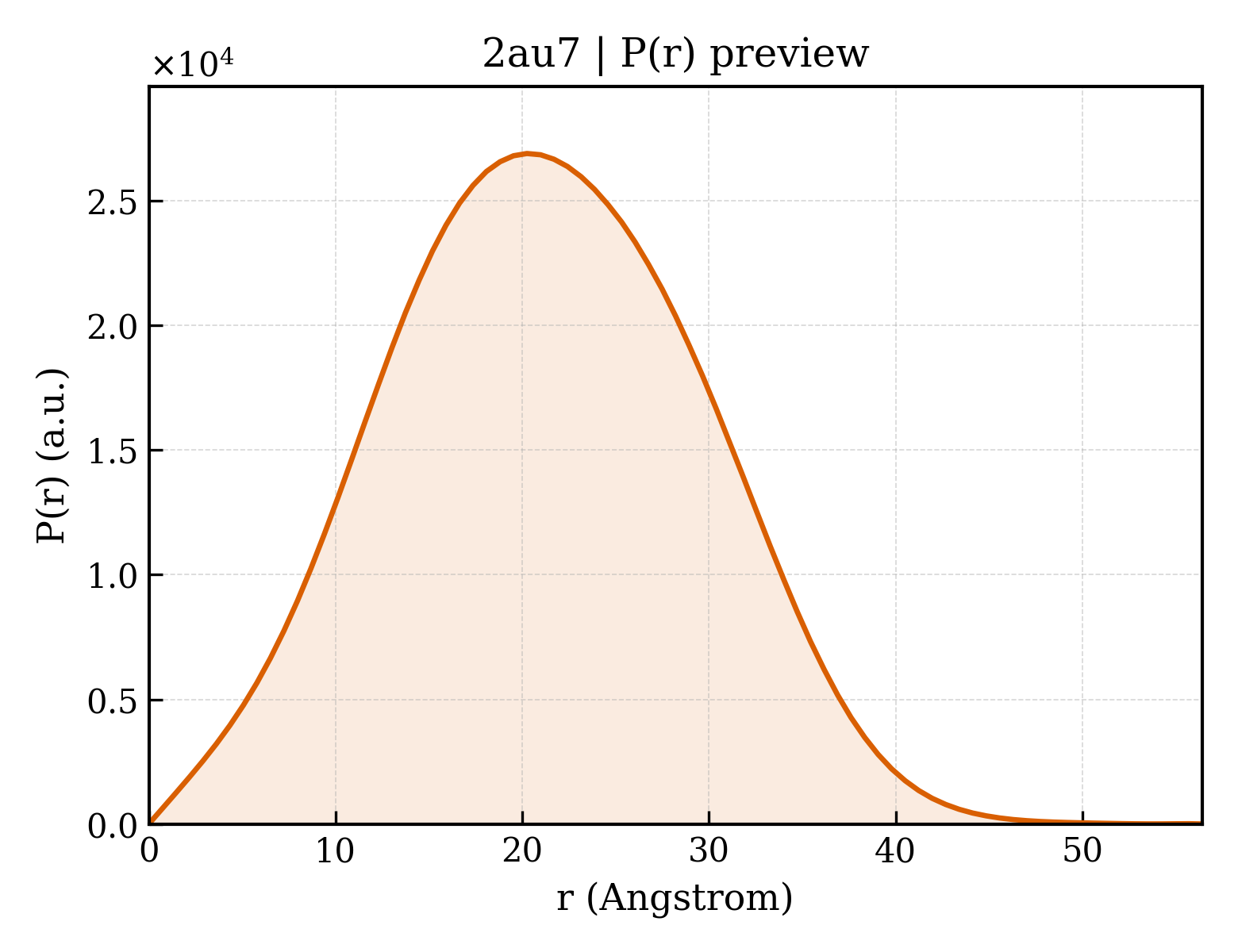

2au7__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	29.81 Å
Rg (electron density)	28.48 Å
Total Rg	29.36 Å
Atom count	8355
Residues	1050
Excluded volume	150010 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2au7__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Inorganic pyrophosphatase
Molecular weight formula_weight	19556.2 kDa
EC 编号 ec_number	3.6.1.1
Mutation mutation	R43Q
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1854

SLLNVPAGKDLPEDIYVVIEIPANADPIKYEIDKESGALFVDQFMSTAMFYPCNYGYINHTLSLDGDPVDVLVPTPYPLQPGSVTRCRPVGVLKMTDEAGEDAKLVAVPHSKLSKEYDHIKDVNDLPELLKAQIAHFFEHYKDLEKGKWVKVEGWENAEAAKAEIVASFERAKNK

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	PHOSPHATE ION
Molecular weight formula_weight	95.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	MANGANESE (II) ION
Molecular weight formula_weight	54.9 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 4 Entity 4 non-polymer

Description description	SODIUM ION
Molecular weight formula_weight	23.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	316

▼

6. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d2au7a_
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.5 — Inorganic pyrophosphatase
Family Family family	b.40.5.1 — Inorganic pyrophosphatase

CATH v4.4 (1 domains)

Domain ID domain_id	2au7A00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	80 — Inorganic Pyrophosphatase
Homologous superfamily homologous superfamily	10 — Inorganic pyrophosphatase

▶

Unit-cell length a length_a	110.985 Å
Unit-cell length b length_b	110.985 Å
Unit-cell length c length_c	73.054 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	18

Space group space_group	H 3 2
Space-group number int_tables_number	155
Crystal system crystal_system	—

Resolution resolution	1.050 Å
Low-resolution limit resolution_low	10.000 Å
R factor r_factor	0.1229
R_work r_work	0.1229
R_free r_free	0.1533
