2axu
Structure of PrgX
SAXS 散射曲线 SAXS Profile

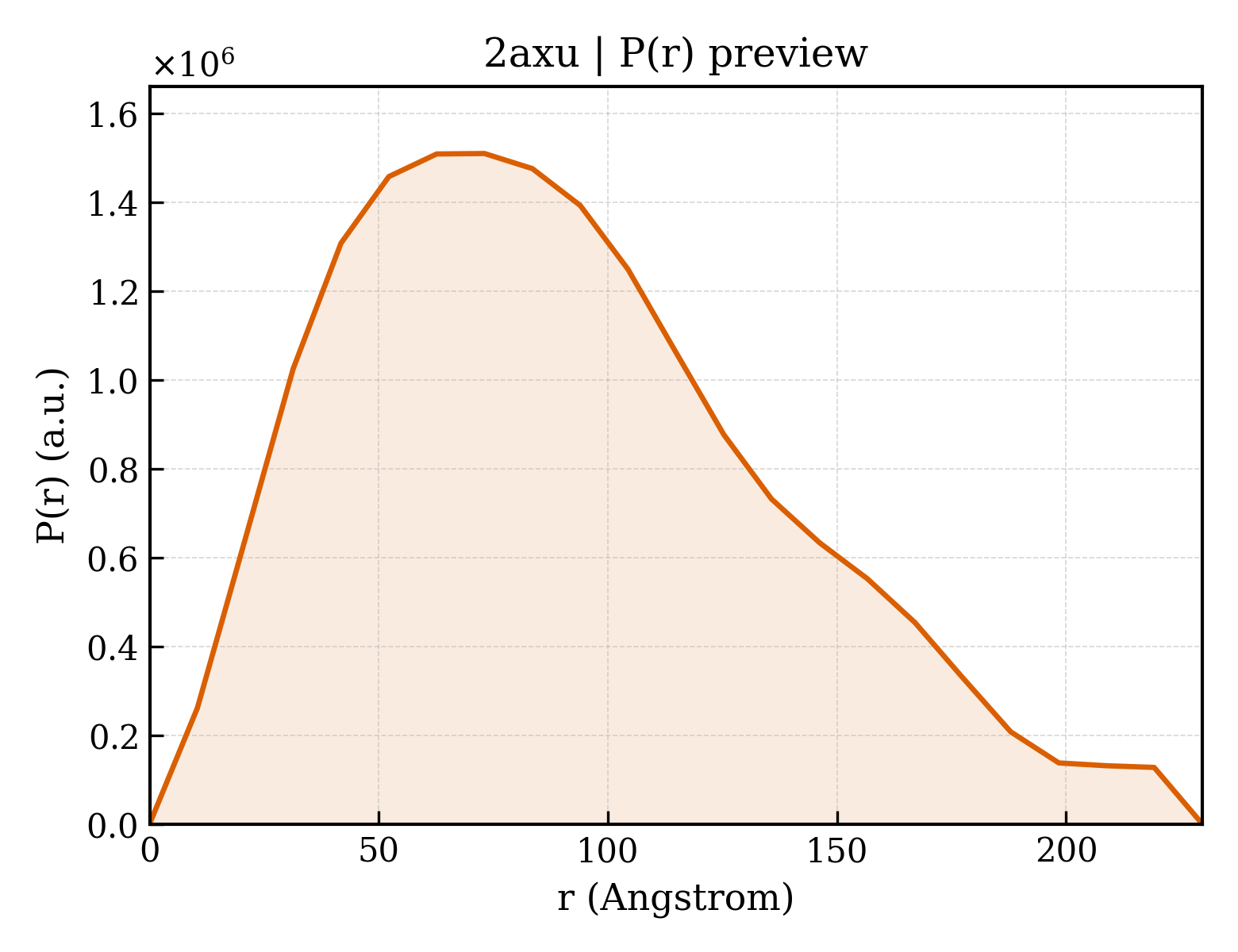

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 2axu |
| 沉积日期 deposition_date | 2005-09-06 |
| 结构标题 title | Structure of PrgX |
| 关键词 keywords | Repressor, pheromone, DNA binding, TRANSCRIPTION; TRANSCRIPTION |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 71.85 Å |
| 回转半径 Rg (电子) rg_electron | 72.65 Å |
| 零角强度 I(0) i0 | 2253510000.00 |
| 分子量 molecular_weight | 423280.0 kDa |
| 排除体积 excluded_volume | 538320 ų |
| 包络体积 envelope_volume | 799240 ų |
| 水化壳体积 shell_volume | 101810 ų |
| 包络直径 envelope_diameter | 273.6 Å |
| 壳层 Rg shell_rg | 60.32 Å |
| 包络 Rg envelope_rg | 71.89 Å |
| 形状 Rg shape_rg | 72.62 Å |
| 总 Rg total_rg | 72.52 Å |
| 总原子数 total_atoms | 29763 |
| 残基数 n_residues | 3547 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 229.7 Å |
| Rg (实空间) rg_real | 71.31 Å |
| Rg 误差 (实空间) rg_real_error | 1.52 Å |
| I(0) (实空间) i0_real | 2.2400e+09 |
| I(0) 误差 (实空间) i0_real_error | 4.7750e+07 |
| Rg (倒空间) rg_reciprocal | 69.71 Å |
| I(0) (倒空间) i0_reciprocal | 2242000000.0000 |
| 解质量估计 total_estimate | 0.8427 |
| 解质量评级 solution_quality | GOOD a GOOD solution |
| P(r) 峰数 n_peaks | 1 |
| 主峰位置 r_peak_primary | 73.1 Å |
| 偏度 Skewness skewness | 0.546 |
| 峰度 Kurtosis kurtosis | -0.257 |
| 角度范围 angular_range | — – 0.1100 Å−1 |
| 当前正则化参数 α current_alpha | 0.0877 |
| 最高正则化参数 α highest_alpha | 107900000.0000 |
| 实空间数据点数 n_real_points | 23 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.893; Stabil: 0.997; Sysdev: 1.000; Positv: 1.000; Valcen: 0.992; Smooth: 0.259 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (2)
6. 折叠分类 (SCOP + CATH) 48 domains
SCOP 2.08 (24 domains)
| 结构域编号 domain_id | d2axua1 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.35 — lambda repressor-like DNA-binding domains |
| 超家族 Superfamily superfamily | a.35.1 — lambda repressor-like DNA-binding domains |
| 家族 Family family | a.35.1.11 — PrgX N-terminal domain-like |
| 结构域编号 domain_id | d2axua2 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.118 — alpha-alpha superhelix |
| 超家族 Superfamily superfamily | a.118.8 — TPR-like |
| 家族 Family family | a.118.8.4 — PrgX C-terminal domain-like |
| 结构域编号 domain_id | d2axub1 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.35 — lambda repressor-like DNA-binding domains |
| 超家族 Superfamily superfamily | a.35.1 — lambda repressor-like DNA-binding domains |
| 家族 Family family | a.35.1.11 — PrgX N-terminal domain-like |
| 结构域编号 domain_id | d2axub2 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.118 — alpha-alpha superhelix |
| 超家族 Superfamily superfamily | a.118.8 — TPR-like |
| 家族 Family family | a.118.8.4 — PrgX C-terminal domain-like |
| 结构域编号 domain_id | d2axuc1 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.35 — lambda repressor-like DNA-binding domains |
| 超家族 Superfamily superfamily | a.35.1 — lambda repressor-like DNA-binding domains |
| 家族 Family family | a.35.1.11 — PrgX N-terminal domain-like |
| 结构域编号 domain_id | d2axuc2 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.118 — alpha-alpha superhelix |
| 超家族 Superfamily superfamily | a.118.8 — TPR-like |
| 家族 Family family | a.118.8.4 — PrgX C-terminal domain-like |
| 结构域编号 domain_id | d2axud1 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.35 — lambda repressor-like DNA-binding domains |
| 超家族 Superfamily superfamily | a.35.1 — lambda repressor-like DNA-binding domains |
| 家族 Family family | a.35.1.11 — PrgX N-terminal domain-like |
| 结构域编号 domain_id | d2axud2 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.118 — alpha-alpha superhelix |
| 超家族 Superfamily superfamily | a.118.8 — TPR-like |
| 家族 Family family | a.118.8.4 — PrgX C-terminal domain-like |
| 结构域编号 domain_id | d2axue1 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.35 — lambda repressor-like DNA-binding domains |
| 超家族 Superfamily superfamily | a.35.1 — lambda repressor-like DNA-binding domains |
| 家族 Family family | a.35.1.11 — PrgX N-terminal domain-like |
| 结构域编号 domain_id | d2axue2 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.118 — alpha-alpha superhelix |
| 超家族 Superfamily superfamily | a.118.8 — TPR-like |
| 家族 Family family | a.118.8.4 — PrgX C-terminal domain-like |
| 结构域编号 domain_id | d2axuf1 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.35 — lambda repressor-like DNA-binding domains |
| 超家族 Superfamily superfamily | a.35.1 — lambda repressor-like DNA-binding domains |
| 家族 Family family | a.35.1.11 — PrgX N-terminal domain-like |
| 结构域编号 domain_id | d2axuf2 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.118 — alpha-alpha superhelix |
| 超家族 Superfamily superfamily | a.118.8 — TPR-like |
| 家族 Family family | a.118.8.4 — PrgX C-terminal domain-like |
| 结构域编号 domain_id | d2axug1 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.35 — lambda repressor-like DNA-binding domains |
| 超家族 Superfamily superfamily | a.35.1 — lambda repressor-like DNA-binding domains |
| 家族 Family family | a.35.1.11 — PrgX N-terminal domain-like |
| 结构域编号 domain_id | d2axug2 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.118 — alpha-alpha superhelix |
| 超家族 Superfamily superfamily | a.118.8 — TPR-like |
| 家族 Family family | a.118.8.4 — PrgX C-terminal domain-like |
| 结构域编号 domain_id | d2axuh1 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.35 — lambda repressor-like DNA-binding domains |
| 超家族 Superfamily superfamily | a.35.1 — lambda repressor-like DNA-binding domains |
| 家族 Family family | a.35.1.11 — PrgX N-terminal domain-like |
| 结构域编号 domain_id | d2axuh2 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.118 — alpha-alpha superhelix |
| 超家族 Superfamily superfamily | a.118.8 — TPR-like |
| 家族 Family family | a.118.8.4 — PrgX C-terminal domain-like |
| 结构域编号 domain_id | d2axui1 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.35 — lambda repressor-like DNA-binding domains |
| 超家族 Superfamily superfamily | a.35.1 — lambda repressor-like DNA-binding domains |
| 家族 Family family | a.35.1.11 — PrgX N-terminal domain-like |
| 结构域编号 domain_id | d2axui2 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.118 — alpha-alpha superhelix |
| 超家族 Superfamily superfamily | a.118.8 — TPR-like |
| 家族 Family family | a.118.8.4 — PrgX C-terminal domain-like |
| 结构域编号 domain_id | d2axuj1 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.35 — lambda repressor-like DNA-binding domains |
| 超家族 Superfamily superfamily | a.35.1 — lambda repressor-like DNA-binding domains |
| 家族 Family family | a.35.1.11 — PrgX N-terminal domain-like |
| 结构域编号 domain_id | d2axuj2 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.118 — alpha-alpha superhelix |
| 超家族 Superfamily superfamily | a.118.8 — TPR-like |
| 家族 Family family | a.118.8.4 — PrgX C-terminal domain-like |
| 结构域编号 domain_id | d2axuk1 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.35 — lambda repressor-like DNA-binding domains |
| 超家族 Superfamily superfamily | a.35.1 — lambda repressor-like DNA-binding domains |
| 家族 Family family | a.35.1.11 — PrgX N-terminal domain-like |
| 结构域编号 domain_id | d2axuk2 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.118 — alpha-alpha superhelix |
| 超家族 Superfamily superfamily | a.118.8 — TPR-like |
| 家族 Family family | a.118.8.4 — PrgX C-terminal domain-like |
| 结构域编号 domain_id | d2axul1 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.35 — lambda repressor-like DNA-binding domains |
| 超家族 Superfamily superfamily | a.35.1 — lambda repressor-like DNA-binding domains |
| 家族 Family family | a.35.1.11 — PrgX N-terminal domain-like |
| 结构域编号 domain_id | d2axul2 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.118 — alpha-alpha superhelix |
| 超家族 Superfamily superfamily | a.118.8 — TPR-like |
| 家族 Family family | a.118.8.4 — PrgX C-terminal domain-like |
CATH v4.4 (24 domains)
| 结构域编号 domain_id | 2axuA01 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 260 — 434 Repressor (Amino-terminal Domain) |
| 同源超家族 H-superfamily homologous superfamily | 40 — lambda repressor-like DNA-binding domains |
| 结构域编号 domain_id | 2axuA02 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 25 — Alpha Horseshoe |
| 拓扑 Topology topology | 40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat |
| 同源超家族 H-superfamily homologous superfamily | 400 — |
| 结构域编号 domain_id | 2axuB01 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 260 — 434 Repressor (Amino-terminal Domain) |
| 同源超家族 H-superfamily homologous superfamily | 40 — lambda repressor-like DNA-binding domains |
| 结构域编号 domain_id | 2axuB02 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 25 — Alpha Horseshoe |
| 拓扑 Topology topology | 40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat |
| 同源超家族 H-superfamily homologous superfamily | 400 — |
| 结构域编号 domain_id | 2axuC01 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 260 — 434 Repressor (Amino-terminal Domain) |
| 同源超家族 H-superfamily homologous superfamily | 40 — lambda repressor-like DNA-binding domains |
| 结构域编号 domain_id | 2axuC02 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 25 — Alpha Horseshoe |
| 拓扑 Topology topology | 40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat |
| 同源超家族 H-superfamily homologous superfamily | 400 — |
| 结构域编号 domain_id | 2axuD01 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 260 — 434 Repressor (Amino-terminal Domain) |
| 同源超家族 H-superfamily homologous superfamily | 40 — lambda repressor-like DNA-binding domains |
| 结构域编号 domain_id | 2axuD02 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 25 — Alpha Horseshoe |
| 拓扑 Topology topology | 40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat |
| 同源超家族 H-superfamily homologous superfamily | 400 — |
| 结构域编号 domain_id | 2axuE01 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 260 — 434 Repressor (Amino-terminal Domain) |
| 同源超家族 H-superfamily homologous superfamily | 40 — lambda repressor-like DNA-binding domains |
| 结构域编号 domain_id | 2axuE02 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 25 — Alpha Horseshoe |
| 拓扑 Topology topology | 40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat |
| 同源超家族 H-superfamily homologous superfamily | 400 — |
| 结构域编号 domain_id | 2axuF01 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 260 — 434 Repressor (Amino-terminal Domain) |
| 同源超家族 H-superfamily homologous superfamily | 40 — lambda repressor-like DNA-binding domains |
| 结构域编号 domain_id | 2axuF02 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 25 — Alpha Horseshoe |
| 拓扑 Topology topology | 40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat |
| 同源超家族 H-superfamily homologous superfamily | 400 — |
| 结构域编号 domain_id | 2axuG01 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 260 — 434 Repressor (Amino-terminal Domain) |
| 同源超家族 H-superfamily homologous superfamily | 40 — lambda repressor-like DNA-binding domains |
| 结构域编号 domain_id | 2axuG02 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 25 — Alpha Horseshoe |
| 拓扑 Topology topology | 40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat |
| 同源超家族 H-superfamily homologous superfamily | 400 — |
| 结构域编号 domain_id | 2axuH01 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 260 — 434 Repressor (Amino-terminal Domain) |
| 同源超家族 H-superfamily homologous superfamily | 40 — lambda repressor-like DNA-binding domains |
| 结构域编号 domain_id | 2axuH02 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 25 — Alpha Horseshoe |
| 拓扑 Topology topology | 40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat |
| 同源超家族 H-superfamily homologous superfamily | 400 — |
| 结构域编号 domain_id | 2axuI01 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 260 — 434 Repressor (Amino-terminal Domain) |
| 同源超家族 H-superfamily homologous superfamily | 40 — lambda repressor-like DNA-binding domains |
| 结构域编号 domain_id | 2axuI02 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 25 — Alpha Horseshoe |
| 拓扑 Topology topology | 40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat |
| 同源超家族 H-superfamily homologous superfamily | 400 — |
| 结构域编号 domain_id | 2axuJ01 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 260 — 434 Repressor (Amino-terminal Domain) |
| 同源超家族 H-superfamily homologous superfamily | 40 — lambda repressor-like DNA-binding domains |
| 结构域编号 domain_id | 2axuJ02 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 25 — Alpha Horseshoe |
| 拓扑 Topology topology | 40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat |
| 同源超家族 H-superfamily homologous superfamily | 400 — |
| 结构域编号 domain_id | 2axuK01 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 260 — 434 Repressor (Amino-terminal Domain) |
| 同源超家族 H-superfamily homologous superfamily | 40 — lambda repressor-like DNA-binding domains |
| 结构域编号 domain_id | 2axuK02 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 25 — Alpha Horseshoe |
| 拓扑 Topology topology | 40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat |
| 同源超家族 H-superfamily homologous superfamily | 400 — |
| 结构域编号 domain_id | 2axuL01 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 260 — 434 Repressor (Amino-terminal Domain) |
| 同源超家族 H-superfamily homologous superfamily | 40 — lambda repressor-like DNA-binding domains |
| 结构域编号 domain_id | 2axuL02 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 25 — Alpha Horseshoe |
| 拓扑 Topology topology | 40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat |
| 同源超家族 H-superfamily homologous superfamily | 400 — |
