2az1

Structure of a halophilic nucleoside diphosphate kinase from Halobacterium salinarum

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Nucleoside diphosphate kinase

Halobacterium salinarum

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 6	CALCIUM ION × 5 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NDK_HALSA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 21–181； UniProt 1–161 Author chain B； PDBConstruct 21–181； UniProt 1–161 Author chain C； PDBConstruct 21–181； UniProt 1–161 Author chain D； PDBConstruct 21–181； UniProt 1–161 Author chain E； PDBConstruct 21–181； UniProt 1–161 Author chain F； PDBConstruct 21–181； UniProt 1–161

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2az1
Deposition date deposition_date	2005-09-09
Structure title title	Structure of a halophilic nucleoside diphosphate kinase from Halobacterium salinarum
Keywords keywords	halophilic, surface charges, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2az1__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2az1__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

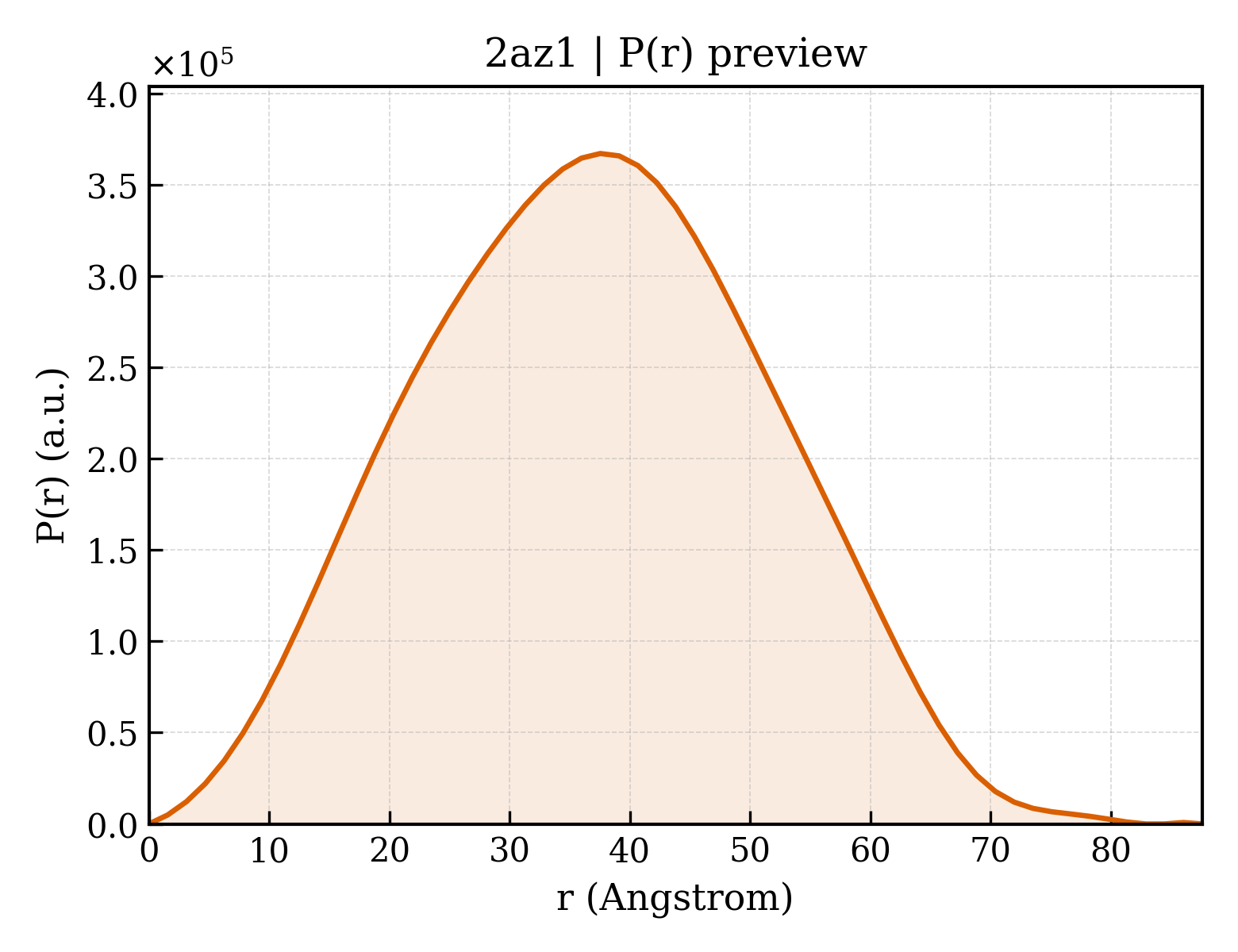

2az1__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	28.30 Å
Rg (electron density)	26.98 Å
Total Rg	27.71 Å
Atom count	7099
Residues	921
Excluded volume	123760 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2az1__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Nucleoside diphosphate kinase
Molecular weight formula_weight	20258.2 kDa
EC 编号 ec_number	2.7.4.6
Source method src_method	man
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F
Atom count atom_count	7204

MGSSHHHHHHSSGLVPRGSHMTDHDERTFVMVKPDGVQRGLIGDIVTRLETKGLKMVGGKFMRIDEELAHEHYAEHEDKPFFDGLVSFITSGPVFAMVWEGADATRQVRQLMGATDAQDAAPGTIRGDYGNDLGHNLIHGSDHEDEGANEREIALFFDDDELVDWDRDASAWVYEDLADHD

Source Source

Source organism organism	Halobacterium salinarum
NCBI taxonomy ID ncbi_taxonomy_id	2242
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	105

▼

6. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d2az1a1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.6 — Nucleoside diphosphate kinase, NDK
Family Family family	d.58.6.1 — Nucleoside diphosphate kinase, NDK

Domain ID domain_id	d2az1b_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.6 — Nucleoside diphosphate kinase, NDK
Family Family family	d.58.6.1 — Nucleoside diphosphate kinase, NDK

Domain ID domain_id	d2az1c_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.6 — Nucleoside diphosphate kinase, NDK
Family Family family	d.58.6.1 — Nucleoside diphosphate kinase, NDK

Domain ID domain_id	d2az1d_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.6 — Nucleoside diphosphate kinase, NDK
Family Family family	d.58.6.1 — Nucleoside diphosphate kinase, NDK

Domain ID domain_id	d2az1e_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.6 — Nucleoside diphosphate kinase, NDK
Family Family family	d.58.6.1 — Nucleoside diphosphate kinase, NDK

Domain ID domain_id	d2az1f_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.6 — Nucleoside diphosphate kinase, NDK
Family Family family	d.58.6.1 — Nucleoside diphosphate kinase, NDK

CATH v4.4 (6 domains)

Domain ID domain_id	2az1A00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	141 — Nucleoside diphosphate kinase-like domain

Domain ID domain_id	2az1B00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	141 — Nucleoside diphosphate kinase-like domain

Domain ID domain_id	2az1C00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	141 — Nucleoside diphosphate kinase-like domain

Domain ID domain_id	2az1D00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	141 — Nucleoside diphosphate kinase-like domain

Domain ID domain_id	2az1E00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	141 — Nucleoside diphosphate kinase-like domain

Domain ID domain_id	2az1F00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	141 — Nucleoside diphosphate kinase-like domain

▶

Unit-cell length a length_a	69.280 Å
Unit-cell length b length_b	108.700 Å
Unit-cell length c length_c	119.650 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.350 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2203
R_work r_work	0.2167
R_free r_free	0.2894
