2az3

Structure of a halophilic nucleoside diphosphate kinase from Halobacterium salinarum in complex with CDP

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Nucleoside diphosphate kinase

Halobacterium salinarum

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 6	MAGNESIUM ION × 4 CYTIDINE-5'-DIPHOSPHATE × 6 water × 6	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 6	CYTIDINE-5'-DIPHOSPHATE × 6 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NDK_HALSA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–164； UniProt 1–161 Author chain B； PDBConstruct 4–164； UniProt 1–161 Author chain C； PDBConstruct 4–164； UniProt 1–161 Author chain D； PDBConstruct 4–164； UniProt 1–161 Author chain E； PDBConstruct 4–164； UniProt 1–161 Author chain F； PDBConstruct 4–164； UniProt 1–161 Author chain G； PDBConstruct 4–164； UniProt 1–161 Author chain H； PDBConstruct 4–164； UniProt 1–161 Author chain I； PDBConstruct 4–164； UniProt 1–161

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2az3
Deposition date deposition_date	2005-09-09
Structure title title	Structure of a halophilic nucleoside diphosphate kinase from Halobacterium salinarum in complex with CDP
Keywords keywords	halophilic, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2az3__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2az3__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

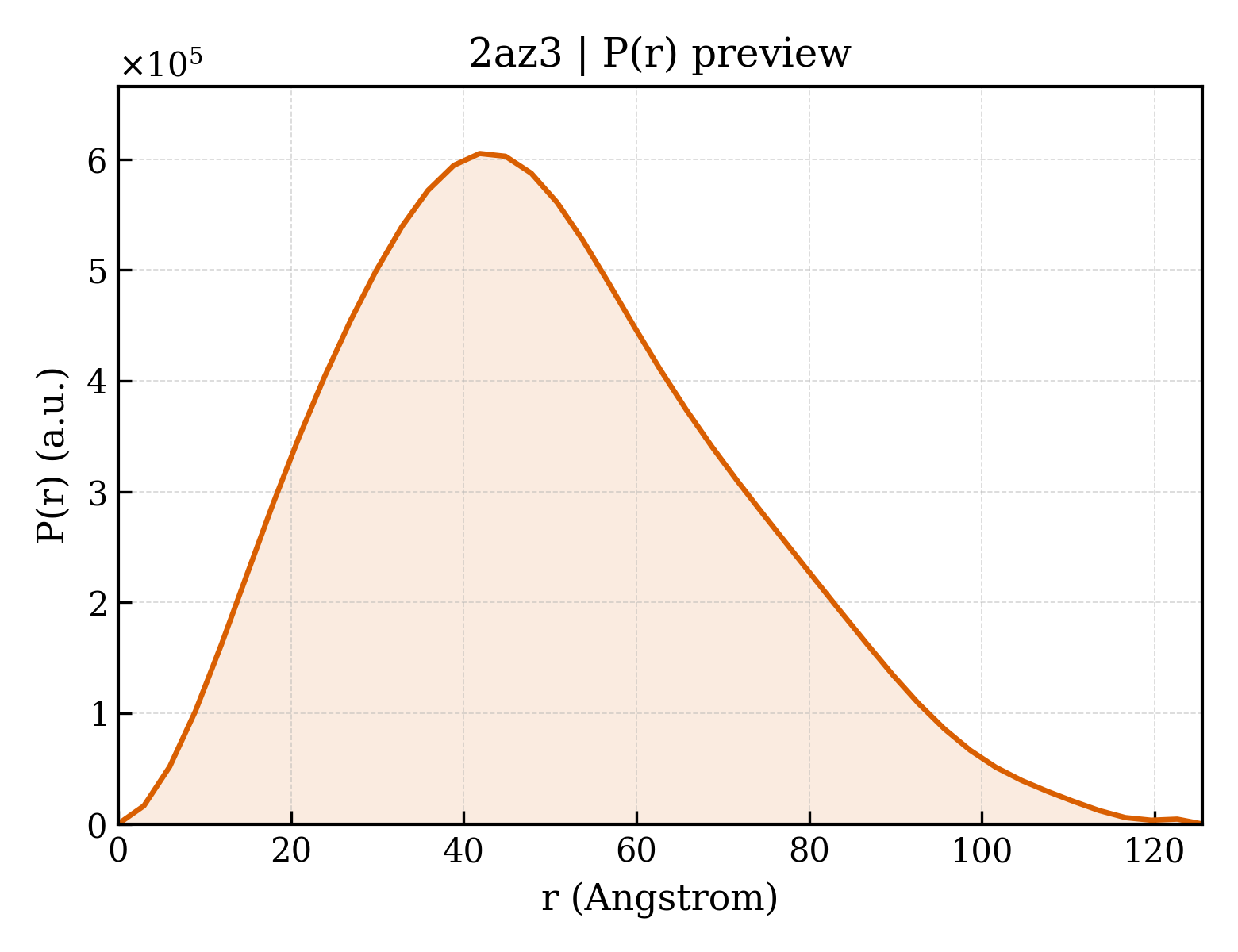

2az3__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	28.67 Å
Rg (electron density)	27.33 Å
Total Rg	27.99 Å
Atom count	7324
Residues	912
Excluded volume	126730 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2az3__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2az3__assembly_2__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Nucleoside diphosphate kinase
Molecular weight formula_weight	18369.1 kDa
EC 编号 ec_number	2.7.4.6
Source method src_method	man
Copy count entity_count	9

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H,I
Atom count atom_count	11117

GSHMTDHDERTFVMVKPDGVQRGLIGDIVTRLETKGLKMVGGKFMRIDEELAHEHYAEHEDKPFFDGLVSFITSGPVFAMVWEGADATRQVRQLMGATDAQDAAPGTIRGDYGNDLGHNLIHGSDHEDEGANEREIALFFDDDELVDWDRDASAWVYEDLADHD

Source Source

Source organism organism	Halobacterium salinarum
NCBI taxonomy ID ncbi_taxonomy_id	2242
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	CYTIDINE-5'-DIPHOSPHATE
Molecular weight formula_weight	403.2 kDa
Source method src_method	syn
Copy count entity_count	9

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	140

▼

6. Fold Classification (SCOP + CATH) 18 domains

SCOP 2.08 (9 domains)

Domain ID domain_id	d2az3a_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.6 — Nucleoside diphosphate kinase, NDK
Family Family family	d.58.6.1 — Nucleoside diphosphate kinase, NDK

Domain ID domain_id	d2az3b_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.6 — Nucleoside diphosphate kinase, NDK
Family Family family	d.58.6.1 — Nucleoside diphosphate kinase, NDK

Domain ID domain_id	d2az3c_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.6 — Nucleoside diphosphate kinase, NDK
Family Family family	d.58.6.1 — Nucleoside diphosphate kinase, NDK

Domain ID domain_id	d2az3d_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.6 — Nucleoside diphosphate kinase, NDK
Family Family family	d.58.6.1 — Nucleoside diphosphate kinase, NDK

Domain ID domain_id	d2az3e_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.6 — Nucleoside diphosphate kinase, NDK
Family Family family	d.58.6.1 — Nucleoside diphosphate kinase, NDK

Domain ID domain_id	d2az3f_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.6 — Nucleoside diphosphate kinase, NDK
Family Family family	d.58.6.1 — Nucleoside diphosphate kinase, NDK

Domain ID domain_id	d2az3g_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.6 — Nucleoside diphosphate kinase, NDK
Family Family family	d.58.6.1 — Nucleoside diphosphate kinase, NDK

Domain ID domain_id	d2az3h_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.6 — Nucleoside diphosphate kinase, NDK
Family Family family	d.58.6.1 — Nucleoside diphosphate kinase, NDK

Domain ID domain_id	d2az3i_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.6 — Nucleoside diphosphate kinase, NDK
Family Family family	d.58.6.1 — Nucleoside diphosphate kinase, NDK

CATH v4.4 (9 domains)

Domain ID domain_id	2az3A00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	141 — Nucleoside diphosphate kinase-like domain

Domain ID domain_id	2az3B00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	141 — Nucleoside diphosphate kinase-like domain

Domain ID domain_id	2az3C00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	141 — Nucleoside diphosphate kinase-like domain

Domain ID domain_id	2az3D00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	141 — Nucleoside diphosphate kinase-like domain

Domain ID domain_id	2az3E00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	141 — Nucleoside diphosphate kinase-like domain

Domain ID domain_id	2az3F00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	141 — Nucleoside diphosphate kinase-like domain

Domain ID domain_id	2az3G00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	141 — Nucleoside diphosphate kinase-like domain

Domain ID domain_id	2az3H00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	141 — Nucleoside diphosphate kinase-like domain

Domain ID domain_id	2az3I00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	141 — Nucleoside diphosphate kinase-like domain

▶

Unit-cell length a length_a	124.370 Å
Unit-cell length b length_b	71.520 Å
Unit-cell length c length_c	157.990 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	95.53 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	36

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.200 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2032
R_work r_work	0.1996
R_free r_free	0.2707
