2b5u

Crystal Structure Of Colicin E3 V206C Mutant In Complex With Its Immunity Protein

Method: X-RAY DIFFRACTION D_max: 182.0 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

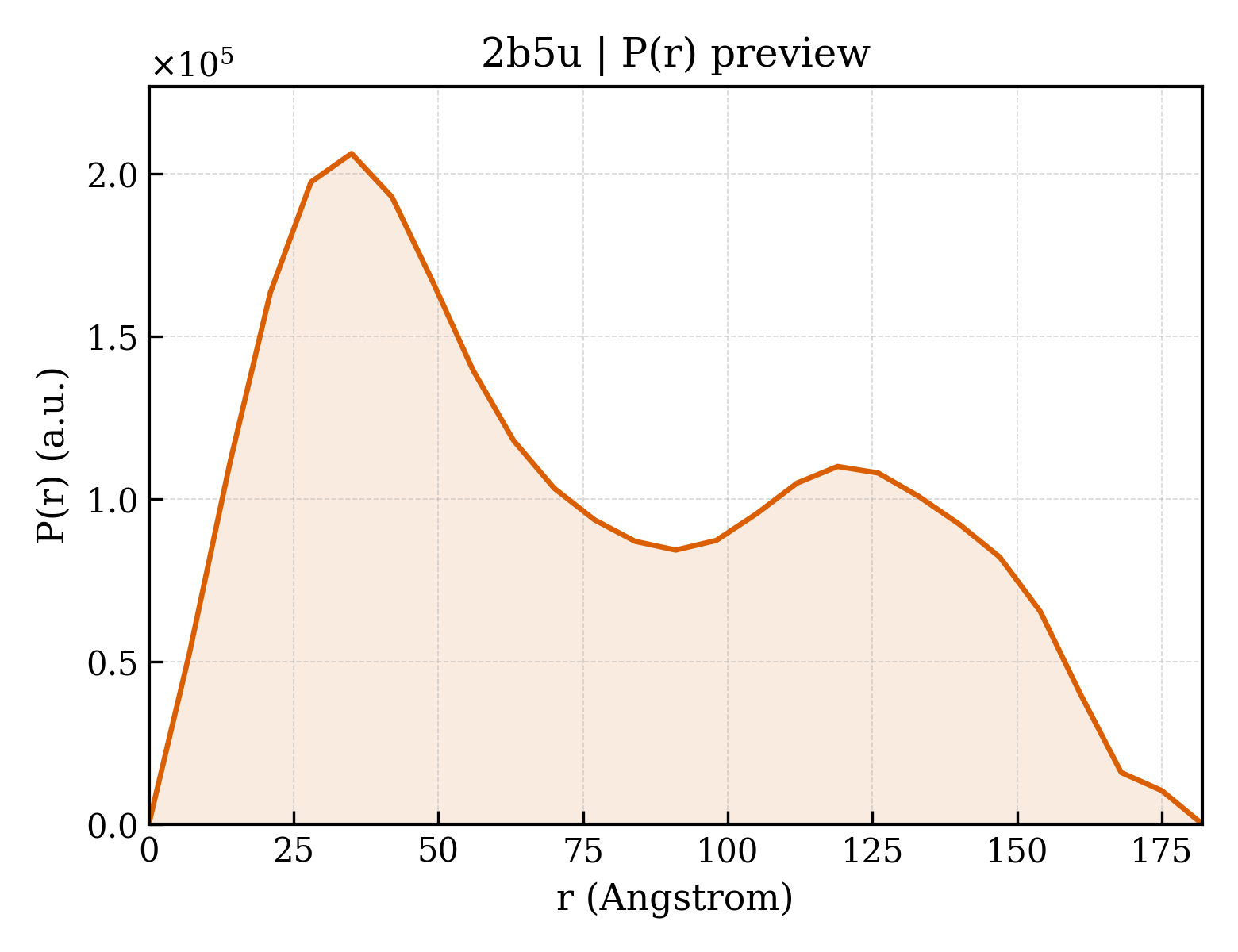

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2b5u
沉积日期 deposition_date	2005-09-29
结构标题 title	Crystal Structure Of Colicin E3 V206C Mutant In Complex With Its Immunity Protein
关键词 keywords	High resolution crystal structure, Colicin E3, Immunity Protein, Ribosome inactivation, RIBOSOME INHIBITOR, HYDROLASE; RIBOSOME INHIBITOR, HYDROLASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	60.20 Å
回转半径 Rg (电子) rg_electron	61.92 Å
零角强度 I(0) i0	231286000.00
分子量 molecular_weight	121620.0 kDa
排除体积 excluded_volume	150220 Å³
包络体积 envelope_volume	250390 Å³
水化壳体积 shell_volume	37568 Å³
包络直径 envelope_diameter	191.4 Å
壳层 Rg shell_rg	51.62 Å
包络 Rg envelope_rg	59.76 Å
形状 Rg shape_rg	61.99 Å
总 Rg total_rg	61.36 Å
总原子数 total_atoms	8572
残基数 n_residues	1108
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	182.0 Å
Rg (实空间) rg_real	61.25 Å
Rg 误差 (实空间) rg_real_error	2.30 Å
I(0) (实空间) i0_real	2.3130e+08
I(0) 误差 (实空间) i0_real_error	4.7270e+06
Rg (倒空间) rg_reciprocal	59.21 Å
I(0) (倒空间) i0_reciprocal	230500000.0000
解质量估计 total_estimate	0.6326
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	35.0 Å
偏度 Skewness skewness	0.379
峰度 Kurtosis kurtosis	-1.098
角度范围 angular_range	— – 0.1300 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	6076000.0000
实空间数据点数 n_real_points	27
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.342; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.193; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Colicin E3
分子量 formula_weight	58047.0 kDa
EC 编号 ec_number	3.1.-.-
突变 mutation	V206C
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,C
原子数 atom_count	8791

MSGGDGRGHNTGAHSTSGNINGGPTGLGVGGGASDGSGWSSENNPWGGGSGSGIHWGGGSGHGNGGGNGNSGGGSGTGGNLSAVAAPVAFGFPALSTPGAGGLAVSISAGALSAAIADIMAALKGPFKFGLWGVALYGVLPSQIAKDDPNMMSKIVTSLPADDITESPVSSLPLDKATVNVNVRVVDDVKDERQNISVVSGVPMSCPVVDAKPTERPGVFTASIPGAPVLNISVNNSTPAVQTLSPGVTNNTDKDVRPAGFTQGGNTRDAVIRFPKDSGHNAVYVSVSDVLSPDQVKQRQDEENRRQQEWDATHPVEAAERNYERARAELNQANEDVARNQERQAKAVQVYNSRKSELDAANKTLADAIAEIKQFNRFAHDPMAGGHRMWQMAGLKAQRAQTDVNNKQAAFDAAAKEKSDADAALSSAMESRKKKEDKKRSAENNLNDEKNKPRKGFKDYGHDYHPAPKTENIKGLGDLKPGIPKTPKQNGGGKRKRWTGDKGRKIYEWDSQHGELEGYRASDGQHLGSFDPKTGNQLKGPDPKRNIKKYL

来源 Source

来源生物 organism	Escherichia coli
NCBI 分类编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli str. K12 substr. W3110

Entity 2 polymer

描述 description	Colicin E3 immunity protein
分子量 formula_weight	9779.6 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,D

GLKLDLTWFDKSTEDFKGEEYSKDFGDDGSVMESLGVPFKDNVNNGCFDVIAEWVPLLQPYFNHQIDISDNEYFVSFDYRDGDW

来源 Source

来源生物 organism	Escherichia coli
NCBI 分类编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli str. K12 substr. W3110

Entity 3 non-polymer

描述 description	CITRIC ACID
分子量 formula_weight	192.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	219

▼

6. 折叠分类 (SCOP + CATH) 14 domains

SCOP 2.08 (8 domains)

结构域编号 domain_id	d2b5ua1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.101 — Ribonuclease domain of colicin E3
超家族 Superfamily superfamily	b.101.1 — Ribonuclease domain of colicin E3
家族 Family family	b.101.1.1 — Ribonuclease domain of colicin E3

结构域编号 domain_id	d2b5ua2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.110 — Cloacin translocation domain
超家族 Superfamily superfamily	b.110.1 — Cloacin translocation domain
家族 Family family	b.110.1.1 — Cloacin translocation domain

结构域编号 domain_id	d2b5ua3
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.4 — Antiparallel coiled-coil
超家族 Superfamily superfamily	h.4.9 — Colicin E3 receptor domain
家族 Family family	h.4.9.1 — Colicin E3 receptor domain

结构域编号 domain_id	d2b5ub_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.26 — FKBP-like
超家族 Superfamily superfamily	d.26.2 — Colicin E3 immunity protein
家族 Family family	d.26.2.1 — Colicin E3 immunity protein

结构域编号 domain_id	d2b5uc1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.101 — Ribonuclease domain of colicin E3
超家族 Superfamily superfamily	b.101.1 — Ribonuclease domain of colicin E3
家族 Family family	b.101.1.1 — Ribonuclease domain of colicin E3

结构域编号 domain_id	d2b5uc2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.110 — Cloacin translocation domain
超家族 Superfamily superfamily	b.110.1 — Cloacin translocation domain
家族 Family family	b.110.1.1 — Cloacin translocation domain

结构域编号 domain_id	d2b5uc3
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.4 — Antiparallel coiled-coil
超家族 Superfamily superfamily	h.4.9 — Colicin E3 receptor domain
家族 Family family	h.4.9.1 — Colicin E3 receptor domain

结构域编号 domain_id	d2b5ud_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.26 — FKBP-like
超家族 Superfamily superfamily	d.26.2 — Colicin E3 immunity protein
家族 Family family	d.26.2.1 — Colicin E3 immunity protein

CATH v4.4 (6 domains)

结构域编号 domain_id	2b5uA02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	287 — Helix Hairpins
同源超家族 H-superfamily homologous superfamily	620 — Helix Hairpins

结构域编号 domain_id	2b5uA03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	380 — Ribonuclease domain of colicin e3 (Residues 456-551)
同源超家族 H-superfamily homologous superfamily	10 — Colicin E3-like ribonuclease domain

结构域编号 domain_id	2b5uB00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	50 — Chitinase A; domain 3
同源超家族 H-superfamily homologous superfamily	20 — Cloacin immunity protein

结构域编号 domain_id	2b5uC02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	287 — Helix Hairpins
同源超家族 H-superfamily homologous superfamily	620 — Helix Hairpins

结构域编号 domain_id	2b5uC03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	380 — Ribonuclease domain of colicin e3 (Residues 456-551)
同源超家族 H-superfamily homologous superfamily	10 — Colicin E3-like ribonuclease domain

结构域编号 domain_id	2b5uD00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	50 — Chitinase A; domain 3
同源超家族 H-superfamily homologous superfamily	20 — Cloacin immunity protein

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	66.730 Å
晶胞边长 b length_b	192.916 Å
晶胞边长 c length_c	85.385 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	112.98 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	2.300 Å
最低分辨率 resolution_low	44.400 Å
R 因子 r_factor	0.2910
R_work r_work	0.2590
R_free r_free	0.2950

fit	/app/data/saxs_computation/b5/2b5u/2b5u.fit
pddf	/app/data/pr_computation/b5/2b5u/2b5u.pr.out
profile	/app/data/saxs_computation/b5/2b5u/2b5u.dat
