1ujw

Structure of the complex between BtuB and Colicin E3 Receptor binding domain

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Vitamin B12 receptor

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Colicin E3 × 1 （P00646） 2-amino-2-deoxy-1-O-phosphono-alpha-D-glucopyranose × 2 3-OXO-PENTADECANOIC ACID × 2 LAURYL DIMETHYLAMINE-N-OXIDE × 7 ACETOACETIC ACID × 1 GLYCEROL × 8 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BTUB_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–594； UniProt 21–614

Colicin E3

Escherichia coli

UniProt P00646

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Vitamin B12 receptor × 1 （P06129） 2-amino-2-deoxy-1-O-phosphono-alpha-D-glucopyranose × 2 3-OXO-PENTADECANOIC ACID × 2 LAURYL DIMETHYLAMINE-N-OXIDE × 7 ACETOACETIC ACID × 1 GLYCEROL × 8 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CEA3_ECOLI
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–135； UniProt 314–448

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ujw
Deposition date deposition_date	2003-08-12
Structure title title	Structure of the complex between BtuB and Colicin E3 Receptor binding domain
Keywords keywords	beta-barrel, coiled-coil, TRANSPORT PROTEIN-HYDROLASE COMPLEX; TRANSPORT PROTEIN/HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1ujw__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1ujw__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

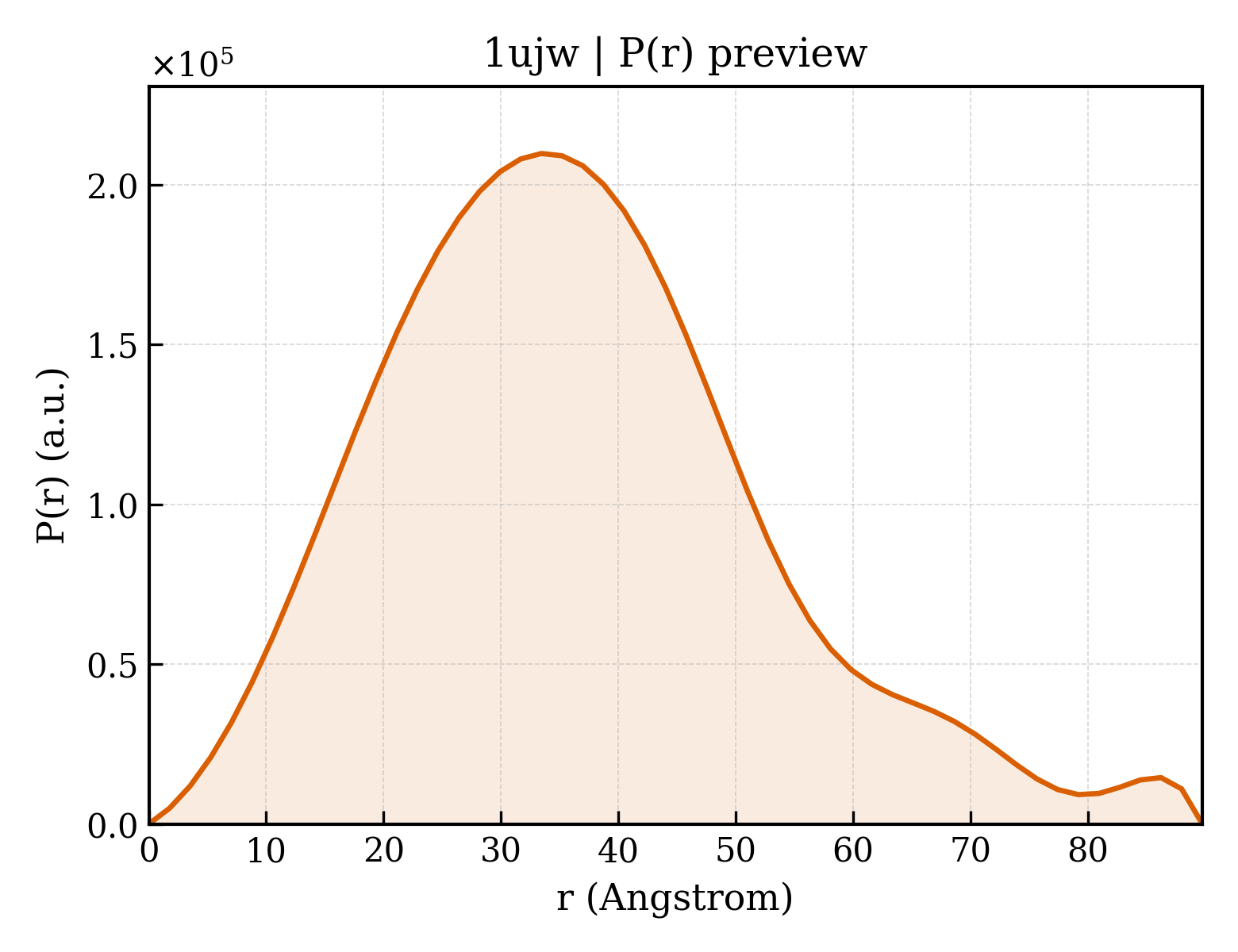

1ujw__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	30.96 Å
Rg (electron density)	31.34 Å
Total Rg	31.79 Å
Atom count	5704
Residues	692
Excluded volume	100590 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1ujw__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	Vitamin B12 receptor
Molecular weight formula_weight	66386.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	5714

QDTSPDTLVVTANRFEQPRSTVLAPTTVVTRQDIDRWQSTSVNDVLRRLPGVDITQNGGSGQLSSIFIRGTNASHVLVLIDGVRLNLAGVSGSADLSQFPIALVQRVEYIRGPRSAVYGSDAIGGVVNIITTRDEPGTEISAGWGSNSYQNYDVSTQQQLGDKTRVTLLGDYAHTHGYDVVAYGNTGTQAQTDNDGFLSKTLYGALEHNFTDAWSGFVRGYGYDNRTNYDAYYSPGSPLLDTRKLYSQSWDAGLRYNGELIKSQLITSYSHSKDYNYDPHYGRYDSSATLDEMKQYTVQWANNVIVGHGSIGAGVDWQKQTTTPGTGYVEDGYDQRNTGIYLTGLQQVGDFTFEGAARSDDNSQFGRHGTWQTSAGWEFIEGYRFIASYGTSYKAPNLGQLYGFYGNPNLDPEKSKQWEGAFEGLTAGVNWRISGYRNDVSDLIDYDDHTLKYYNEGKARIKGVEATANFDTGPLTHTVSYDYVDARNAITDTPLLRRAKQQVKYQLDWQLYDFDWGITYQYLGTRYDKDYSSYPYQTVKMGGVSLWDLAVAYPVTSHLTVRGKIANLFDKDYETVYGYQTAGREYTLSGSYTF

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Colicin E3
Molecular weight formula_weight	15110.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

HPVEAAERNYERARAELNQANEDVARNQERQAKAVQVYNSRKSELDAANKTLADAIAEIKQFNRFAHDPMAGGHRMWQMAGLKAQRAQTDVNNKQAAFDAAAKEKSDADAALSSAMESRKKKEDKKRSAENNLND

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	2-amino-2-deoxy-1-O-phosphono-alpha-D-glucopyranose
Molecular weight formula_weight	259.2 kDa
Source method src_method	man
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	3-OXO-PENTADECANOIC ACID
Molecular weight formula_weight	256.4 kDa
Source method src_method	man
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	LAURYL DIMETHYLAMINE-N-OXIDE
Molecular weight formula_weight	229.4 kDa
Source method src_method	syn
Copy count entity_count	7

Entity 6 Entity 6 non-polymer

Description description	ACETOACETIC ACID
Molecular weight formula_weight	102.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 8 Entity 8 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	10

▼

6. Fold Classification (SCOP + CATH) 5 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1ujwa_
Class class	f — Membrane and cell surface proteins and peptides
Fold Fold fold	f.4 — Transmembrane beta-barrels
Superfamily Superfamily superfamily	f.4.3 — Porins
Family Family family	f.4.3.3 — Ligand-gated protein channel

Domain ID domain_id	d1ujwb_
Class class	h — Coiled coil proteins
Fold Fold fold	h.4 — Antiparallel coiled-coil
Superfamily Superfamily superfamily	h.4.9 — Colicin E3 receptor domain
Family Family family	h.4.9.1 — Colicin E3 receptor domain

CATH v4.4 (3 domains)

Domain ID domain_id	1ujwA01
Class class	2 — Mainly Beta
Architecture architecture	170 — Beta Complex
Topology topology	130 — Ferric Hydroxamate Uptake Protein; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — TonB-dependent receptor, plug domain

Domain ID domain_id	1ujwA02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	170 — Maltoporin; Chain A
Homologous superfamily homologous superfamily	20 — TonB-dependent receptor, beta-barrel domain

Domain ID domain_id	1ujwB00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	620 — Helix Hairpins

▶

Unit-cell length a length_a	76.933 Å
Unit-cell length b length_b	80.098 Å
Unit-cell length c length_c	233.595 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.750 Å
Low-resolution limit resolution_low	37.880 Å
R factor r_factor	0.2470
R_work r_work	0.2440
R_free r_free	0.2930
