SAXSdb — 1nqe

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Vitamin B12 receptor

Escherichia coli

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 21–614	Not recorded	MG MAGNESIUM ION × 1 C8E (HYDROXYETHYLOXY)TRI(ETHYLOXY)OCTANE × 7	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.6；293 K；PEG 3350, magnesium acetate, bis-tris, n-octyl tetraoxyethylene , pH 6.6, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.00 Å R-free 0.232

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1NQE	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1NQF OUTER MEMBRANE COBALAMIN TRANSPORTER (BTUB) FROM E. COLI, METHIONINE SUBSTIUTION CONSTRUCT FOR SE-MET SAD PHASING Deposited 2003-01-21	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 21–614（594 aa）	Mutation：W317M, K319M, T321M, W516M, I518M, Y520M Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 1 C8E (HYDROXYETHYLOXY)TRI(ETHYLOXY)OCTANE × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.6；293 K；PEG3350, MAGNESIUM ACETATE, BIS-TRIS, N-OCTYL TETRAOXYETHELYENE, tris-(2-carboxyethyl)phosphine hydrochloride , pH 6.6, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.70 Å R-free 0.288
1NQG OUTER MEMBRANE COBALAMIN TRANSPORTER (BTUB) FROM E. COLI, WITH BOUND CALCIUM Deposited 2003-01-21	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 21–614（594 aa）	Not recorded	CA CALCIUM ION × 4 C8E (HYDROXYETHYLOXY)TRI(ETHYLOXY)OCTANE × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.6；293 K；PEG 3350, MAGNESIUM ACETATE, BIS-TRIS, N-OCTYL TETRAOXYETHYLENE, pH 6.6, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 3.31 Å R-free 0.259
1NQH OUTER MEMBRANE COBALAMIN TRANSPORTER (BTUB) FROM E. COLI, WITH BOUND CALCIUM AND CYANOCOBALAMIN (VITAMIN B12) SUBSTRATE Deposited 2003-01-21	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 21–614（594 aa）	Not recorded	CA CALCIUM ION × 4 CNC CYANOCOBALAMIN × 1 C8E (HYDROXYETHYLOXY)TRI(ETHYLOXY)OCTANE × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.6；293 K；PEG 3350, MAGNESIUM ACETATE, BIS-TRIS, N-OCTYL TETRAOXYETHYLENE, pH 6.6, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 3.10 Å R-free 0.265
1UJW Structure of the complex between BtuB and Colicin E3 Receptor binding domain Deposited 2003-08-12	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 21–614（594 aa）	Not recorded	GP1 2-amino-2-deoxy-1-O-phosphono-alpha-D-glucopyranose × 2 LIM 3-OXO-PENTADECANOIC ACID × 2 LDA LAURYL DIMETHYLAMINE-N-OXIDE × 7 AAE ACETOACETIC ACID × 1 GOL GLYCEROL × 8	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.75 Å R-free 0.293
2GSK Structure of the BtuB:TonB Complex Deposited 2006-04-26	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 25–614（590 aa）	Not recorded	CA CALCIUM ION × 2 CNC CYANOCOBALAMIN × 1 LDA LAURYL DIMETHYLAMINE-N-OXIDE × 4 OCT N-OCTANE × 3 HEX HEXANE × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.1；288 K；30% (v/v) PEG 300, 0.1M sodium acetate , pH 5.1, VAPOR DIFFUSION, SITTING DROP, temperature 288K, pH 5.10	Resolution 2.10 Å R-free 0.251
2GUF In meso crystal structure of the cobalamin transporter, BtuB Deposited 2006-04-29	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 21–614（594 aa）	Not recorded	MPG [(Z)-octadec-9-enyl] (2R)-2,3-bis(oxidanyl)propanoate × 11 FMT FORMIC ACID × 1 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 4	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.95 Å R-free 0.225
2YSU Structure of the complex between BtuB and Colicin E2 receptor binding domain Deposited 2007-04-04	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 21–614（594 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 3.50 Å R-free 0.315
3M8B Crystal structure of spin-labeled BtuB V10R1 in the apo state Deposited 2010-03-17	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 21–614（594 aa）	Mutation：V10R1A	C8E (HYDROXYETHYLOXY)TRI(ETHYLOXY)OCTANE × 7 MTN S-[(1-oxyl-2,2,5,5-tetramethyl-2,5-dihydro-1H-pyrrol-3-yl)methyl] methanesulfonothioate × 1 MG MAGNESIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.6；290 K；2.5% PEG3350,20 mM Bis Tris, 150 mM Magnesium acetate, 10 mM C8E4, pH 6.6, VAPOR DIFFUSION, HANGING DROP, temperature 290K	Resolution 2.44 Å R-free 0.248
3M8D Crystal structure of spin-labeled BtuB V10R1 with bound calcium and cyanocobalamin Deposited 2010-03-17	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 21–614（594 aa）	Mutation：V10R1A	CNC CYANOCOBALAMIN × 1 C8E (HYDROXYETHYLOXY)TRI(ETHYLOXY)OCTANE × 6 MTN S-[(1-oxyl-2,2,5,5-tetramethyl-2,5-dihydro-1H-pyrrol-3-yl)methyl] methanesulfonothioate × 1 CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.6；290 K；2.5% PEG3350, 150 mM calcium chloride, 20 mM Bis tris, 10 mM C8E4, pH 6.6, VAPOR DIFFUSION, HANGING DROP, temperature 290K	Resolution 2.44 Å R-free 0.275
3RGM Crystal structure of spin-labeled BtuB T156R1 Deposited 2011-04-08	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 21–614（594 aa）	Mutation：T156R1	C8E (HYDROXYETHYLOXY)TRI(ETHYLOXY)OCTANE × 6 MG MAGNESIUM ION × 9 MTN S-[(1-oxyl-2,2,5,5-tetramethyl-2,5-dihydro-1H-pyrrol-3-yl)methyl] methanesulfonothioate × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.6；290 K；3.0% PEG3350, 200 mM magnesium acetate, 10mM C8E4, 20 mM Bis Tris pH 6.6, VAPOR DIFFUSION, HANGING DROP, temperature 290K	Resolution 2.60 Å R-free 0.254
3RGN Crystal structure of spin-labeled BtuB W371R1 Deposited 2011-04-08	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 21–614（594 aa）	Mutation：W371R1	C8E (HYDROXYETHYLOXY)TRI(ETHYLOXY)OCTANE × 7 MG MAGNESIUM ION × 3 MTN S-[(1-oxyl-2,2,5,5-tetramethyl-2,5-dihydro-1H-pyrrol-3-yl)methyl] methanesulfonothioate × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.6；290 K；3.0% PEG3350, 200 mM magnesium acetate, 10 mM C8E4, 20 mM Bis Tris pH 6.6, VAPOR DIFFUSION, HANGING DROP, temperature 290K	Resolution 2.30 Å R-free 0.250
7NSU ColicinE9 intact translocation complex Deposited 2021-03-08	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain F 21–614（594 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE；3 uL of diluted translocon preparation were applied on freshly glow discharged grids coated with graphene oxide (as described in https://doi.org/10.1038/s41594-019-0355-2); after 30sec waiting grids were blotted for 8-10 using -10 force and plunge frozen in liquid ethane	Resolution 4.70 Å

12 other PDB entries and 12 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	BTUB_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–594； UniProt 21–614

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1nqe
Deposition date deposition_date	2003-01-21
Structure title title	OUTER MEMBRANE COBALAMIN TRANSPORTER (BTUB) FROM E. COLI
Keywords keywords	BETA BARREL, cobalamin, VITAMIN B12, OUTER MEMBRANE TRANSPORT, TRANSPORT PROTEIN; TRANSPORT PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	24.25 Å
Radius of gyration Rg (electron density) rg_electron	23.55 Å
Forward intensity I(0) i0	66123800.00
Molecular weight molecular_weight	63519.0 kDa
Excluded volume excluded_volume	79467 Å³
Envelope volume envelope_volume	98543 Å³
Hydration-shell volume shell_volume	33313 Å³
Envelope diameter envelope_diameter	76.5 Å
Shell Rg shell_rg	32.12 Å
Envelope Rg envelope_rg	23.66 Å
Shape Rg shape_rg	23.57 Å
Total Rg total_rg	24.44 Å
Total atoms total_atoms	4498
Residues n_residues	549
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	75.2 Å
Rg (real space) rg_real	24.04 Å
Rg uncertainty (real space) rg_real_error	0.28 Å
I(0) (real space) i0_real	6.6120e+07
I(0) uncertainty (real space) i0_real_error	8.0000e+05
Rg (reciprocal space) rg_reciprocal	24.09 Å
I(0) (reciprocal space) i0_reciprocal	66130000.0000
Solution quality estimate total_estimate	0.8925
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	74.0 Å
Skewness Skewness skewness	0.077
Kurtosis Kurtosis kurtosis	-0.425
Angular range angular_range	— – 0.3250 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	15080000.0000
Real-space data points n_real_points	64
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.872; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.983; Smooth: 0.998

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Vitamin B12 receptor
Molecular weight formula_weight	66386.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4733

QDTSPDTLVVTANRFEQPRSTVLAPTTVVTRQDIDRWQSTSVNDVLRRLPGVDITQNGGSGQLSSIFIRGTNASHVLVLIDGVRLNLAGVSGSADLSQFPIALVQRVEYIRGPRSAVYGSDAIGGVVNIITTRDEPGTEISAGWGSNSYQNYDVSTQQQLGDKTRVTLLGDYAHTHGYDVVAYGNTGTQAQTDNDGFLSKTLYGALEHNFTDAWSGFVRGYGYDNRTNYDAYYSPGSPLLDTRKLYSQSWDAGLRYNGELIKSQLITSYSHSKDYNYDPHYGRYDSSATLDEMKQYTVQWANNVIVGHGSIGAGVDWQKQTTTPGTGYVEDGYDQRNTGIYLTGLQQVGDFTFEGAARSDDNSQFGRHGTWQTSAGWEFIEGYRFIASYGTSYKAPNLGQLYGFYGNPNLDPEKSKQWEGAFEGLTAGVNWRISGYRNDVSDLIDYDDHTLKYYNEGKARIKGVEATANFDTGPLTHTVSYDYVDARNAITDTPLLRRAKQQVKYQLDWQLYDFDWGITYQYLGTRYDKDYSSYPYQTVKMGGVSLWDLAVAYPVTSHLTVRGKIANLFDKDYETVYGYQTAGREYTLSGSYTF

来源 Source

来源生物 organism	Escherichia coli
NCBI Class编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	(HYDROXYETHYLOXY)TRI(ETHYLOXY)OCTANE
Molecular weight formula_weight	306.4 kDa
Source method src_method	syn
Copy count entity_count	7

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	235

▼

7. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1nqea_
Class class	f — Membrane and cell surface proteins and peptides
Fold Fold fold	f.4 — Transmembrane beta-barrels
Superfamily Superfamily superfamily	f.4.3 — Porins
Family Family family	f.4.3.3 — Ligand-gated protein channel

CATH v4.4 (2 domains)

Domain ID domain_id	1nqeA01
Class class	2 — Mainly Beta
Architecture architecture	170 — Beta Complex
Topology topology	130 — Ferric Hydroxamate Uptake Protein; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — TonB-dependent receptor, plug domain

Domain ID domain_id	1nqeA02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	170 — Maltoporin; Chain A
Homologous superfamily homologous superfamily	20 — TonB-dependent receptor, beta-barrel domain

▶

8. Citations (2)

▶

Unit-cell length a length_a	81.590 Å
Unit-cell length b length_b	81.590 Å
Unit-cell length c length_c	210.078 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 31 2 1
Space-group number int_tables_number	152
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	24.920 Å
R factor r_factor	0.1962
R_work r_work	0.1943
R_free r_free	0.2315

fit	/app/data/saxs_computation/nq/1nqe/1nqe.fit
pddf	/app/data/pr_computation/nq/1nqe/1nqe.pr.out
profile	/app/data/saxs_computation/nq/1nqe/1nqe.dat

OUTER MEMBRANE COBALAMIN TRANSPORTER (BTUB) FROM E. COLI

1. Protein Identity and Related Structures Protein Identity & Related Structures

Vitamin B12 receptor

State in the Current Structure

Other States of the Same Protein in the Database

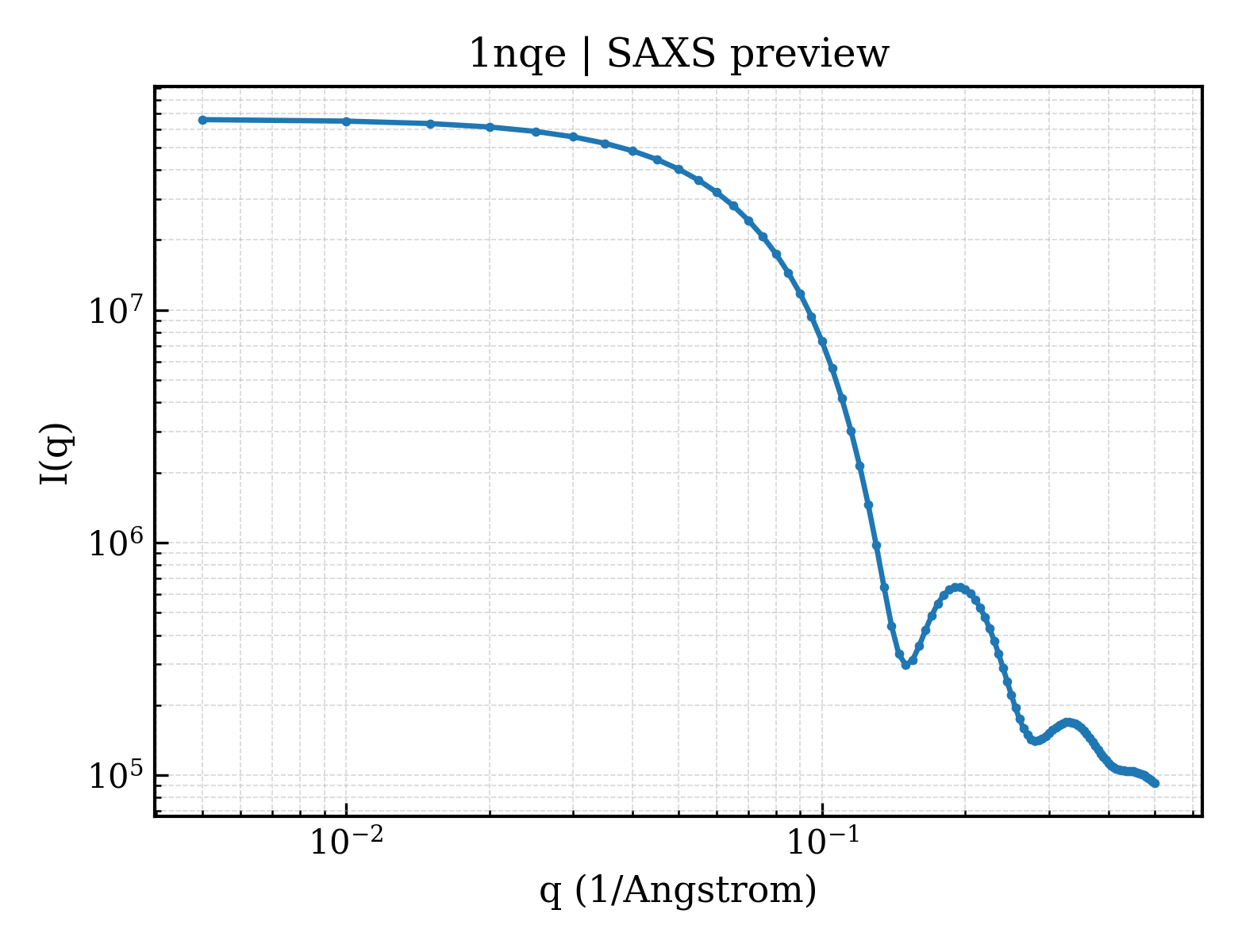

SAXS scattering curve SAXS Profile
