2b7m
Crystal Structure of the S. cerevisiae Exocyst Component Exo70p

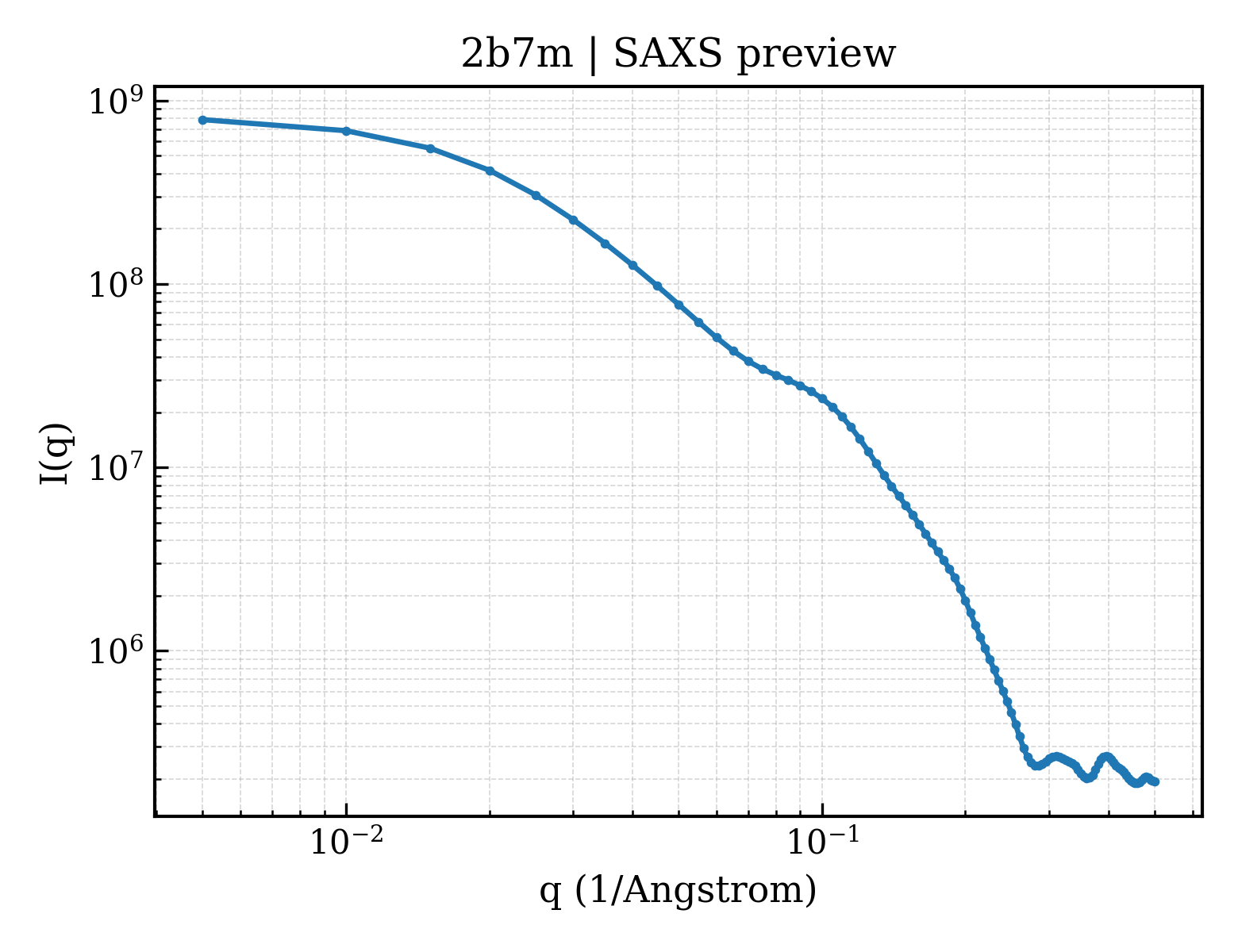

SAXS 散射曲线 SAXS Profile

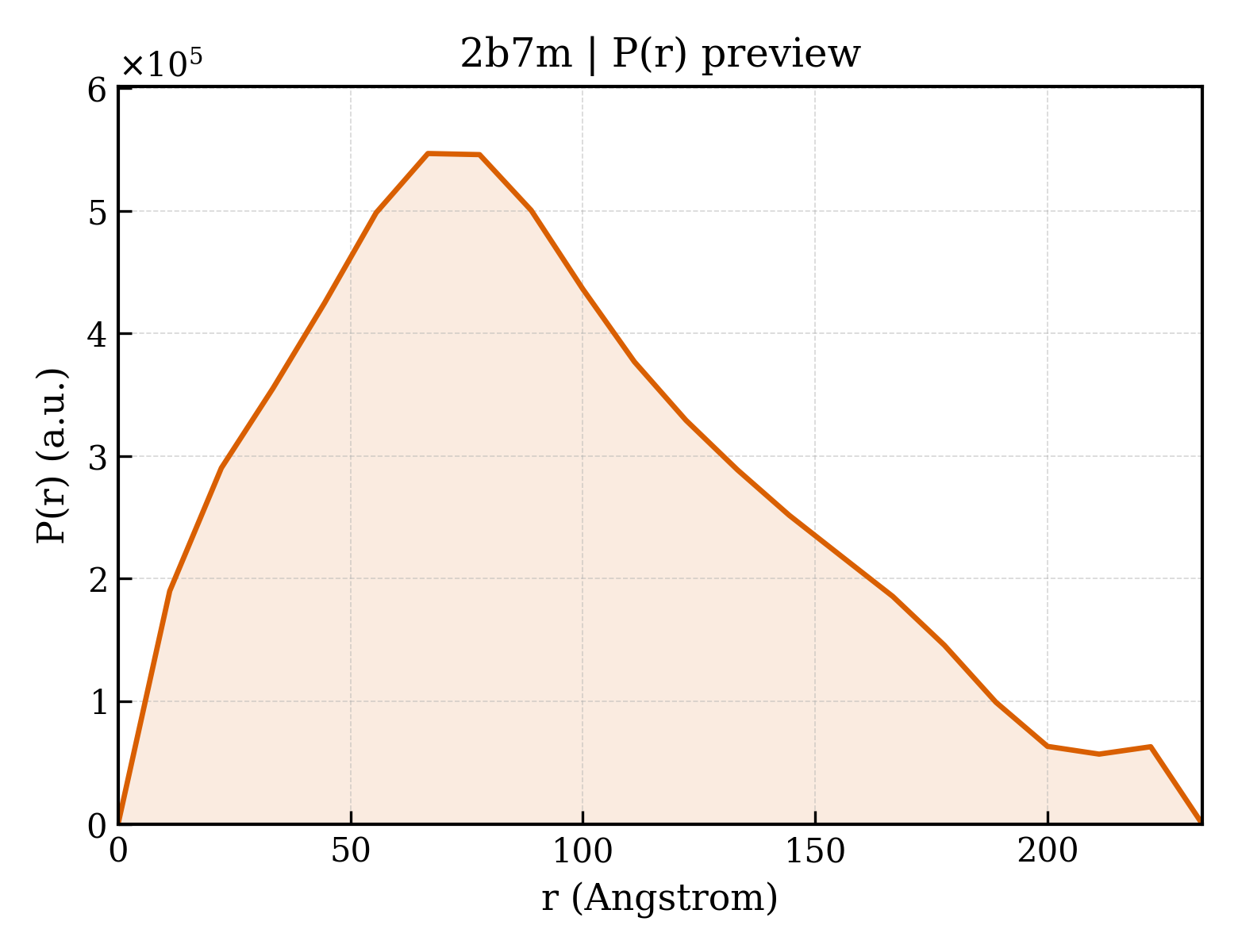

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 2b7m |
| 沉积日期 deposition_date | 2005-10-04 |
| 结构标题 title | Crystal Structure of the S. cerevisiae Exocyst Component Exo70p |
| 关键词 keywords | exocyst, exocytosis, ENDOCYTOSIS-EXOCYTOSIS COMPLEX; ENDOCYTOSIS/EXOCYTOSIS |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 74.78 Å |
| 回转半径 Rg (电子) rg_electron | 75.82 Å |
| 零角强度 I(0) i0 | 825625000.00 |
| 分子量 molecular_weight | 241570.0 kDa |
| 排除体积 excluded_volume | 301910 ų |
| 包络体积 envelope_volume | 482770 ų |
| 水化壳体积 shell_volume | 63083 ų |
| 包络直径 envelope_diameter | 312.5 Å |
| 壳层 Rg shell_rg | 57.42 Å |
| 包络 Rg envelope_rg | 74.68 Å |
| 形状 Rg shape_rg | 75.74 Å |
| 总 Rg total_rg | 75.71 Å |
| 总原子数 total_atoms | 16823 |
| 残基数 n_residues | 2022 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 233.3 Å |
| Rg (实空间) rg_real | 73.68 Å |
| Rg 误差 (实空间) rg_real_error | 1.89 Å |
| I(0) (实空间) i0_real | 8.1890e+08 |
| I(0) 误差 (实空间) i0_real_error | 1.7920e+07 |
| Rg (倒空间) rg_reciprocal | 71.58 Å |
| I(0) (倒空间) i0_reciprocal | 819000000.0000 |
| 解质量估计 total_estimate | 0.8237 |
| 解质量评级 solution_quality | GOOD a GOOD solution |
| P(r) 峰数 n_peaks | 2 |
| 主峰位置 r_peak_primary | 66.7 Å |
| 偏度 Skewness skewness | 0.506 |
| 峰度 Kurtosis kurtosis | -0.369 |
| 角度范围 angular_range | — – 0.1050 Å−1 |
| 当前正则化参数 α current_alpha | 0.0225 |
| 最高正则化参数 α highest_alpha | 22100000.0000 |
| 实空间数据点数 n_real_points | 22 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.001; Oscil: 0.857; Stabil: 0.991; Sysdev: 1.000; Positv: 1.000; Valcen: 0.957; Smooth: 0.170 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (1)
6. 折叠分类 (SCOP + CATH) 5 domains
SCOP 2.08 (1 domains)
| 结构域编号 domain_id | d2b7ma1 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.118 — alpha-alpha superhelix |
| 超家族 Superfamily superfamily | a.118.17 — Cullin repeat-like |
| 家族 Family family | a.118.17.2 — Exocyst complex component |
CATH v4.4 (4 domains)
| 结构域编号 domain_id | 2b7mA00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 20 — Up-down Bundle |
| 拓扑 Topology topology | 1280 — Monooxygenase |
| 同源超家族 H-superfamily homologous superfamily | 170 — Exocyst complex component Exo70 |
| 结构域编号 domain_id | 2b7mB00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 20 — Up-down Bundle |
| 拓扑 Topology topology | 1280 — Monooxygenase |
| 同源超家族 H-superfamily homologous superfamily | 170 — Exocyst complex component Exo70 |
| 结构域编号 domain_id | 2b7mC00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 20 — Up-down Bundle |
| 拓扑 Topology topology | 1280 — Monooxygenase |
| 同源超家族 H-superfamily homologous superfamily | 170 — Exocyst complex component Exo70 |
| 结构域编号 domain_id | 2b7mD00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 20 — Up-down Bundle |
| 拓扑 Topology topology | 1280 — Monooxygenase |
| 同源超家族 H-superfamily homologous superfamily | 170 — Exocyst complex component Exo70 |
