2b9b
Structure of the Parainfluenza Virus 5 F Protein in its Metastable, Pre-fusion Conformation

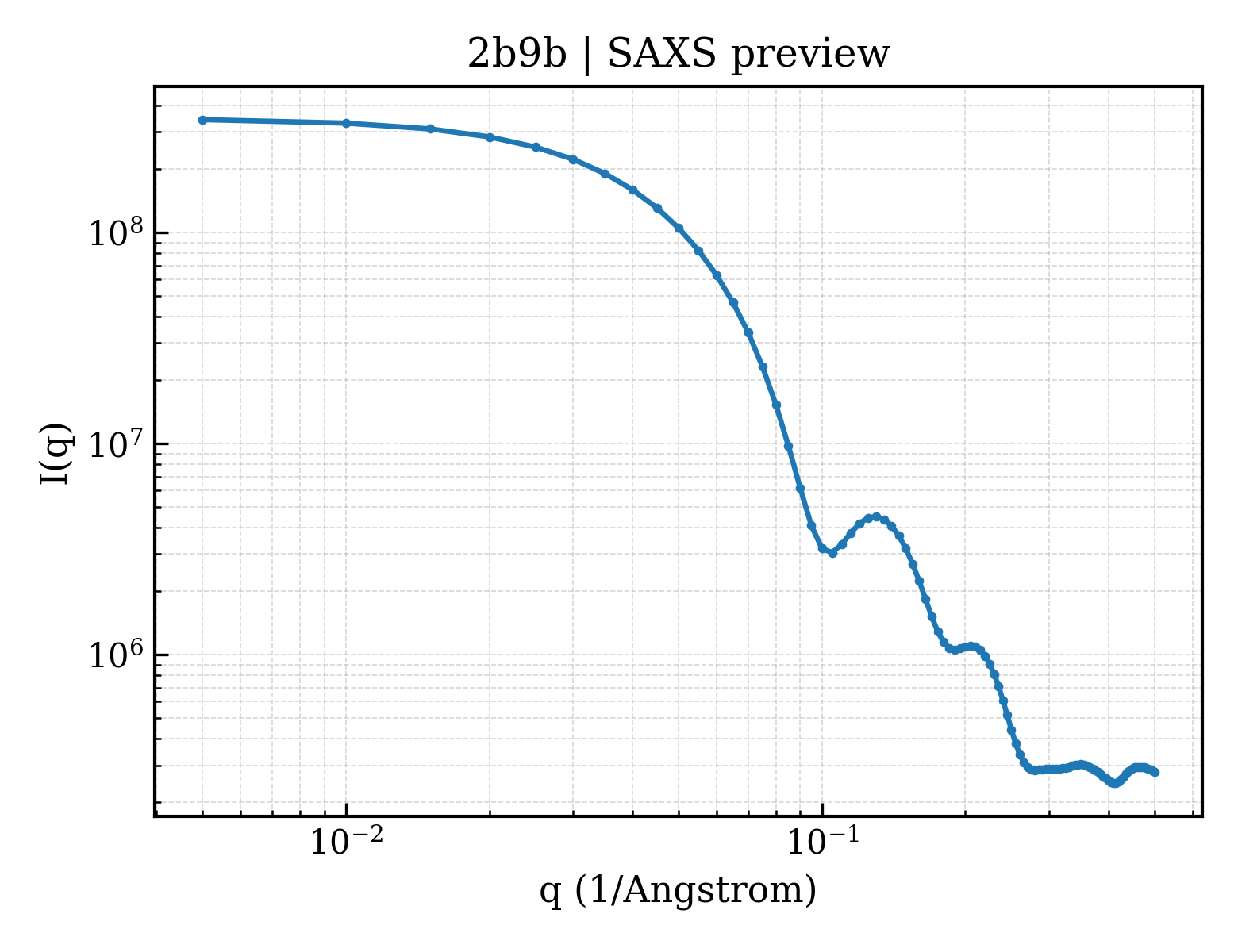

SAXS 散射曲线 SAXS Profile

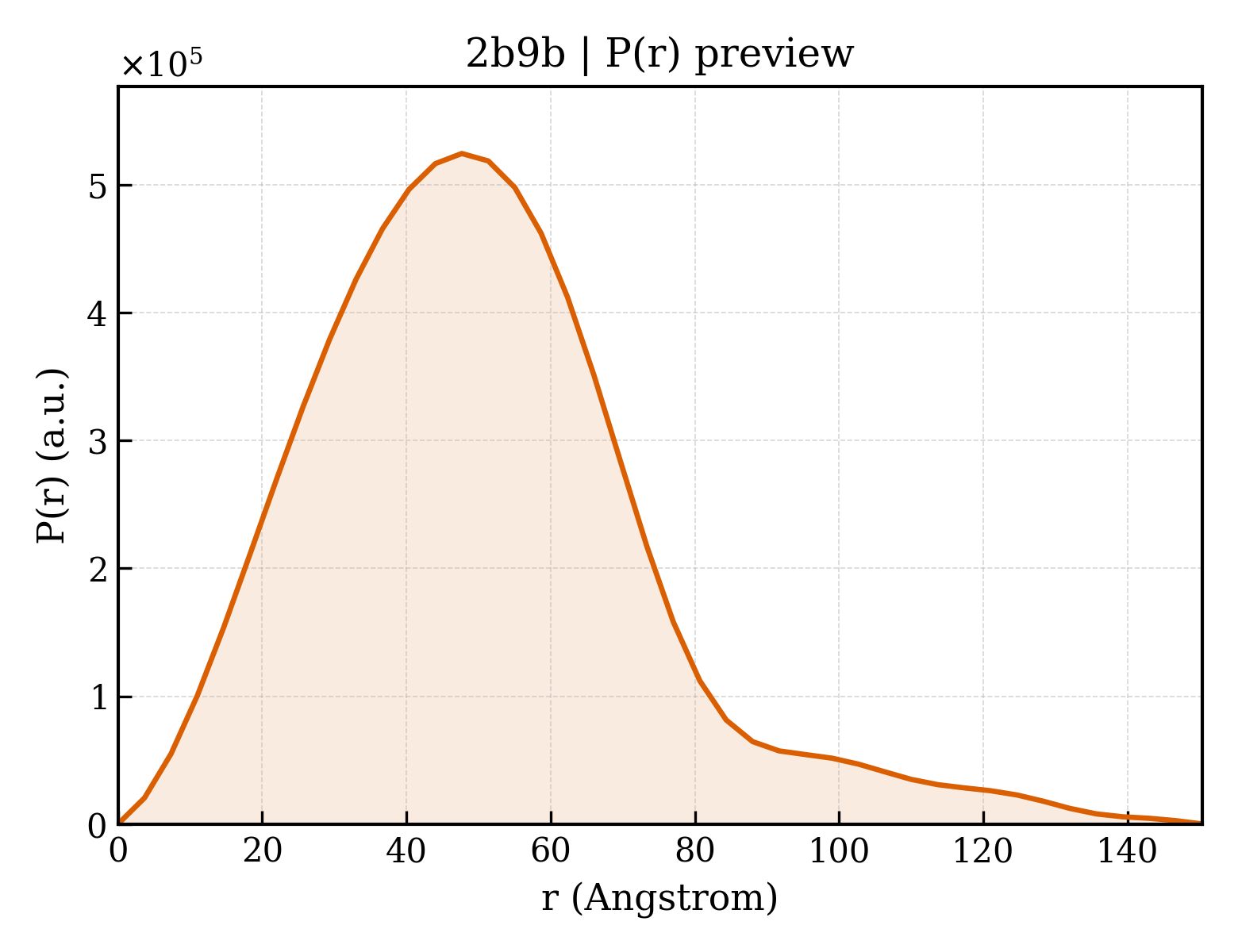

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 2b9b |
| 沉积日期 deposition_date | 2005-10-11 |
| 结构标题 title | Structure of the Parainfluenza Virus 5 F Protein in its Metastable, Pre-fusion Conformation |
| 关键词 keywords | fusion protein, pre-fusion conformation, VIRAL PROTEIN; VIRAL PROTEIN |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 38.69 Å |
| 回转半径 Rg (电子) rg_electron | 38.84 Å |
| 零角强度 I(0) i0 | 348031000.00 |
| 分子量 molecular_weight | 154200.0 kDa |
| 排除体积 excluded_volume | 195090 ų |
| 包络体积 envelope_volume | 268790 ų |
| 水化壳体积 shell_volume | 60822 ų |
| 包络直径 envelope_diameter | 156.4 Å |
| 壳层 Rg shell_rg | 42.68 Å |
| 包络 Rg envelope_rg | 38.99 Å |
| 形状 Rg shape_rg | 38.87 Å |
| 总 Rg total_rg | 39.00 Å |
| 总原子数 total_atoms | 10792 |
| 残基数 n_residues | 1441 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 150.4 Å |
| Rg (实空间) rg_real | 39.08 Å |
| Rg 误差 (实空间) rg_real_error | 1.70 Å |
| I(0) (实空间) i0_real | 3.4800e+08 |
| I(0) 误差 (实空间) i0_real_error | 6.2040e+06 |
| Rg (倒空间) rg_reciprocal | 38.83 Å |
| I(0) (倒空间) i0_reciprocal | 347900000.0000 |
| 解质量估计 total_estimate | 0.7635 |
| 解质量评级 solution_quality | GOOD a GOOD solution |
| P(r) 峰数 n_peaks | 1 |
| 主峰位置 r_peak_primary | 47.7 Å |
| 偏度 Skewness skewness | 0.839 |
| 峰度 Kurtosis kurtosis | 1.219 |
| 角度范围 angular_range | — – 0.2050 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 60050000.0000 |
| 实空间数据点数 n_real_points | 42 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.350; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.955; Smooth: 0.917 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (3)
6. 折叠分类 (SCOP + CATH) 9 domains
CATH v4.4 (9 domains)
| 结构域编号 domain_id | 2b9bA01 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 40 — Beta Barrel |
| 拓扑 Topology topology | 490 — Head and neck region of the ectodomain of NDV fusion glycoprotein |
| 同源超家族 H-superfamily homologous superfamily | 10 — Newcastle disease virus like domain |
| 结构域编号 domain_id | 2b9bA03 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 40 — Immunoglobulin-like |
| 同源超家族 H-superfamily homologous superfamily | 1690 — Head and neck region of the ectodomain of NDV fusion glycoprotein |
| 结构域编号 domain_id | 2b9bA04 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 20 — Up-down Bundle |
| 拓扑 Topology topology | 5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces |
| 同源超家族 H-superfamily homologous superfamily | 1070 — Head and neck region of the ectodomain of NDV fusion glycoprotein |
| 结构域编号 domain_id | 2b9bB01 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 40 — Beta Barrel |
| 拓扑 Topology topology | 490 — Head and neck region of the ectodomain of NDV fusion glycoprotein |
| 同源超家族 H-superfamily homologous superfamily | 10 — Newcastle disease virus like domain |
| 结构域编号 domain_id | 2b9bB03 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 40 — Immunoglobulin-like |
| 同源超家族 H-superfamily homologous superfamily | 1690 — Head and neck region of the ectodomain of NDV fusion glycoprotein |
| 结构域编号 domain_id | 2b9bB04 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 20 — Up-down Bundle |
| 拓扑 Topology topology | 5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces |
| 同源超家族 H-superfamily homologous superfamily | 1070 — Head and neck region of the ectodomain of NDV fusion glycoprotein |
| 结构域编号 domain_id | 2b9bC01 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 40 — Beta Barrel |
| 拓扑 Topology topology | 490 — Head and neck region of the ectodomain of NDV fusion glycoprotein |
| 同源超家族 H-superfamily homologous superfamily | 10 — Newcastle disease virus like domain |
| 结构域编号 domain_id | 2b9bC03 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 40 — Immunoglobulin-like |
| 同源超家族 H-superfamily homologous superfamily | 1690 — Head and neck region of the ectodomain of NDV fusion glycoprotein |
| 结构域编号 domain_id | 2b9bC04 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 160 — Double Stranded RNA Binding Domain |
| 同源超家族 H-superfamily homologous superfamily | 60 — Classic Zinc Finger |
