SAXSdb — 2bhw

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2bhw
沉积日期 deposition_date	2005-01-19
结构标题 title	PEA LIGHT-HARVESTING COMPLEX II AT 2.5 ANGSTROM RESOLUTION
关键词 keywords	;LHC-II, PHOTOSYNTHESIS, LIGHT-HARVESTING, MEMBRANE PROTEIN, CHLOROPHYLL, CHLOROPLAST, CHROMOPHORE, MEMBRANE, PHOSPHORYLATION, PHOTOSYSTEM I, PHOTOSYSTEM II, PLASTID, THYLAKOID, TRANSIT PEPTIDE, TRANSMEMBRANE ;; PHOTOSYNTHESIS
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	30.46 Å
回转半径 Rg (电子) rg_electron	28.22 Å
零角强度 I(0) i0	115548000.00
分子量 molecular_weight	116760.0 kDa
排除体积 excluded_volume	158400 Å³
包络体积 envelope_volume	168910 Å³
水化壳体积 shell_volume	46964 Å³
包络直径 envelope_diameter	90.8 Å
壳层 Rg shell_rg	37.77 Å
包络 Rg envelope_rg	28.27 Å
形状 Rg shape_rg	28.22 Å
总 Rg total_rg	29.35 Å
总原子数 total_atoms	8352
残基数 n_residues	669
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	86.1 Å
Rg (实空间) rg_real	30.18 Å
Rg 误差 (实空间) rg_real_error	0.40 Å
I(0) (实空间) i0_real	1.1550e+08
I(0) 误差 (实空间) i0_real_error	1.7110e+06
Rg (倒空间) rg_reciprocal	30.30 Å
I(0) (倒空间) i0_reciprocal	115600000.0000
解质量估计 total_estimate	0.7122
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	43.1 Å
偏度 Skewness skewness	-0.084
峰度 Kurtosis kurtosis	-0.464
角度范围 angular_range	— – 0.2600 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	8814000.0000
实空间数据点数 n_real_points	53
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.936; Stabil: 1.000; Sysdev: 0.193; Positv: 1.000; Valcen: 0.963; Smooth: 0.904

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (9)

Entity 1 polymer

描述 description	CHLOROPHYLL A-B BINDING PROTEIN AB80
分子量 formula_weight	24920.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C
原子数 atom_count	8373

RKSATTKKVASSGSPWYGPDRVKYLGPFSGESPSYLTGEFPGDYGWDTAGLSADPETFSKNRELEVIHSRWAMLGALGSVFPELLSRNGVKFGEAVWFKAGSQIFSEGGLDYLGNPSLVHAQSILAIWATQVILMGAVEGYRIAGGPLGEVVDPLYPGGSFDPLGLADDPEAFAELKVKELKNGRLAMFSMFGFFVQAIVTGKGPLENLADHLADPVNNNAWSYATNFVPGK

Entity 2 non-polymer

描述 description	;(3R,3'R,6'S,9R,9'R,13R,13'S)-4',5'-DIDEHYDRO-5',6',7',8',9,9',10,10',11,11',12,12',13,13',14,14',15,15'-OCTADECAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL ;
分子量 formula_weight	585.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	6

Entity 3 non-polymer

描述 description	;(1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL ;
分子量 formula_weight	600.9 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 4 non-polymer

描述 description	;(3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL ;
分子量 formula_weight	600.9 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 5 non-polymer

描述 description	CHLOROPHYLL A
分子量 formula_weight	893.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	24

Entity 6 non-polymer

描述 description	CHLOROPHYLL B
分子量 formula_weight	907.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	18

Entity 7 non-polymer

描述 description	1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE
分子量 formula_weight	723.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 8 non-polymer

描述 description	DIGALACTOSYL DIACYL GLYCEROL (DGDG)
分子量 formula_weight	949.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 9 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	21

▼

6. 折叠分类 (SCOP + CATH) 6 domains

SCOP 2.08 (3 domains)

结构域编号 domain_id	d2bhwa_
类 Class class	f — Membrane and cell surface proteins and peptides
折叠类型 Fold fold	f.43 — Chlorophyll a-b binding protein
超家族 Superfamily superfamily	f.43.1 — Chlorophyll a-b binding protein
家族 Family family	f.43.1.1 — Chlorophyll a-b binding protein

结构域编号 domain_id	d2bhwb_
类 Class class	f — Membrane and cell surface proteins and peptides
折叠类型 Fold fold	f.43 — Chlorophyll a-b binding protein
超家族 Superfamily superfamily	f.43.1 — Chlorophyll a-b binding protein
家族 Family family	f.43.1.1 — Chlorophyll a-b binding protein

结构域编号 domain_id	d2bhwc_
类 Class class	f — Membrane and cell surface proteins and peptides
折叠类型 Fold fold	f.43 — Chlorophyll a-b binding protein
超家族 Superfamily superfamily	f.43.1 — Chlorophyll a-b binding protein
家族 Family family	f.43.1.1 — Chlorophyll a-b binding protein

CATH v4.4 (3 domains)

结构域编号 domain_id	2bhwA01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	3460 — Chlorophyll a-b binding protein
同源超家族 H-superfamily homologous superfamily	10 — Chlorophyll a/b binding protein domain

结构域编号 domain_id	2bhwB01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	3460 — Chlorophyll a-b binding protein
同源超家族 H-superfamily homologous superfamily	10 — Chlorophyll a/b binding protein domain

结构域编号 domain_id	2bhwC01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	3460 — Chlorophyll a-b binding protein
同源超家族 H-superfamily homologous superfamily	10 — Chlorophyll a/b binding protein domain

▶

7. 引用文献 (2)

▶

晶胞边长 a length_a	211.400 Å
晶胞边长 b length_b	128.000 Å
晶胞边长 c length_c	62.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	101.80 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	12

空间群 space_group	C 1 2 1
空间群编号 int_tables_number	5
晶系 crystal_system	—

分辨率 resolution	2.500 Å
最低分辨率 resolution_low	50.000 Å
R 因子 r_factor	0.2196
R_work r_work	0.2196
R_free r_free	0.2412

fit	/app/data/saxs_computation/bh/2bhw/2bhw.fit
pddf	/app/data/pr_computation/bh/2bhw/2bhw.pr.out
profile	/app/data/saxs_computation/bh/2bhw/2bhw.dat

PEA LIGHT-HARVESTING COMPLEX II AT 2.5 ANGSTROM RESOLUTION

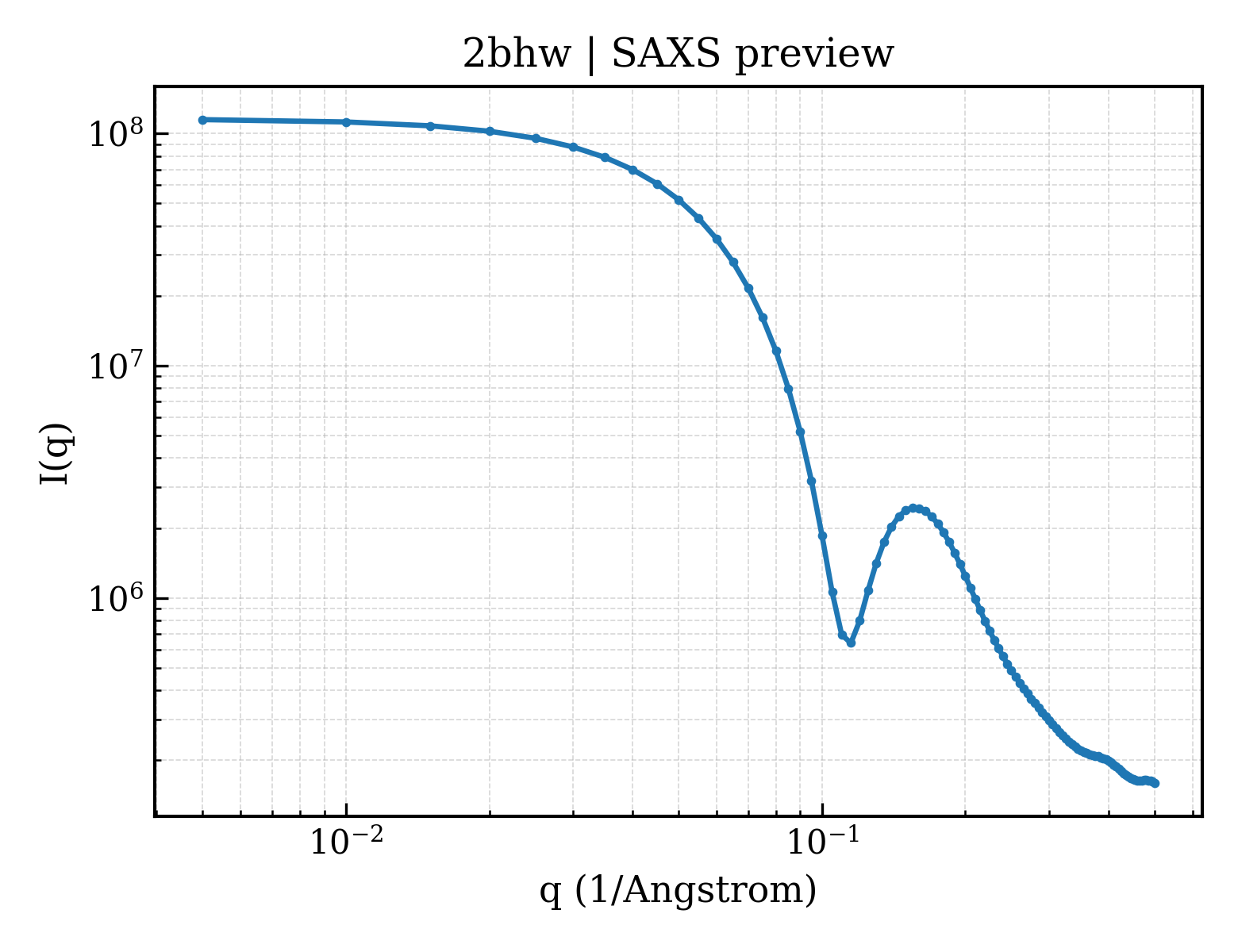

SAXS 散射曲线 SAXS Profile

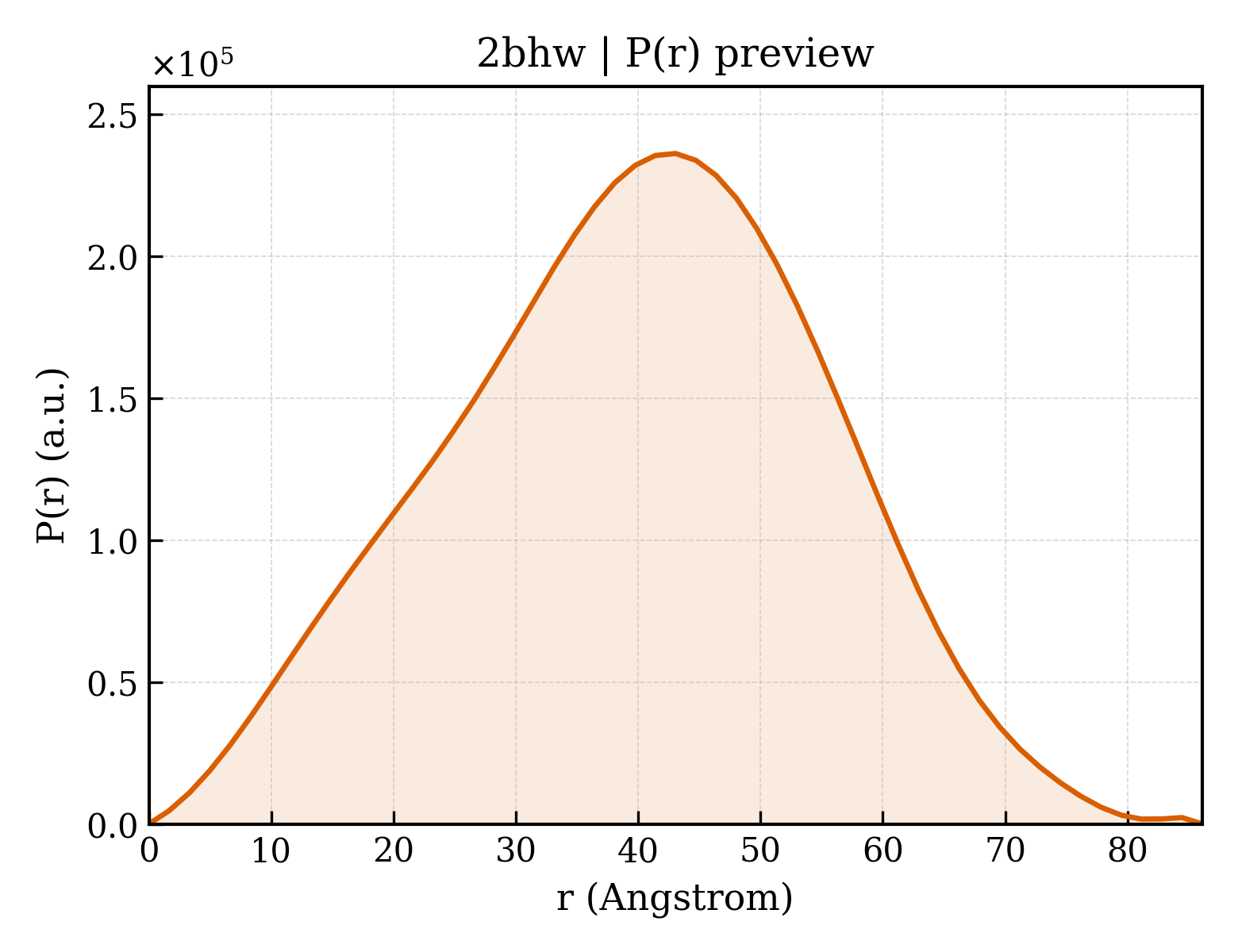

P(r) 距离分布 P(r) Distribution
