SAXSdb — 2bkq

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

SENTRIN-SPECIFIC PROTEASE 8

HOMO SAPIENS

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	water × 1	Consistent with protein count
3	Protein monomer	Monomer	Protein 1	water × 1	Consistent with protein count
4	Protein monomer	Monomer	Protein 1	water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SENP8_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–212； UniProt 1–212 Author chain B； PDBConstruct 1–212； UniProt 1–212 Author chain C； PDBConstruct 1–212； UniProt 1–212 Author chain D； PDBConstruct 1–212； UniProt 1–212

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2bkq
Deposition date deposition_date	2005-02-18
Structure title title	NEDD8 protease
Keywords keywords	UBIQUITIN, HYDROLASE, PROTEASE, THIOL PROTEASE, UBL CONJUGATION PATHWAY, UBIQUITIN-HYDROLASE COMPLEX; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2bkq__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2bkq__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

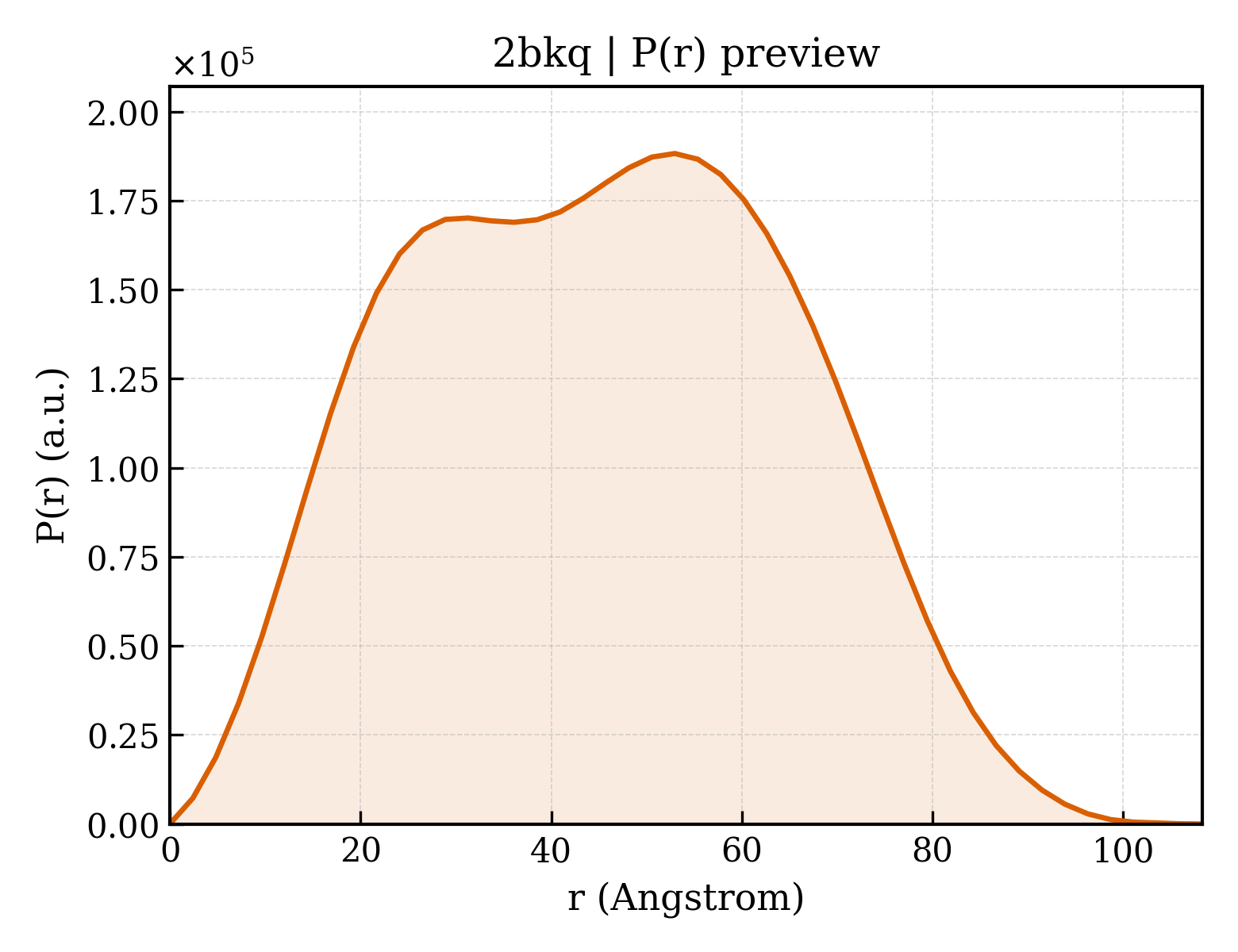

2bkq__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	17.67 Å
Rg (electron density)	16.33 Å
Total Rg	17.44 Å
Atom count	1664
Residues	211
Excluded volume	29436 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2bkq__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2bkq__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`2bkq__assembly_3__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
4	1	`2bkq__assembly_4__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d2bkqa1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.3 — Cysteine proteinases
Superfamily Superfamily superfamily	d.3.1 — Cysteine proteinases
Family Family family	d.3.1.7 — Adenain-like

Domain ID domain_id	d2bkqb_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.3 — Cysteine proteinases
Superfamily Superfamily superfamily	d.3.1 — Cysteine proteinases
Family Family family	d.3.1.7 — Adenain-like

Domain ID domain_id	d2bkqc_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.3 — Cysteine proteinases
Superfamily Superfamily superfamily	d.3.1 — Cysteine proteinases
Family Family family	d.3.1.7 — Adenain-like

Domain ID domain_id	d2bkqd_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.3 — Cysteine proteinases
Superfamily Superfamily superfamily	d.3.1 — Cysteine proteinases
Family Family family	d.3.1.7 — Adenain-like

CATH v4.4 (4 domains)

Domain ID domain_id	2bkqA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	395 — Adenoviral Proteinase; Chain
Homologous superfamily homologous superfamily	10 — Adenoviral Proteinase; Chain A

Domain ID domain_id	2bkqB00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	395 — Adenoviral Proteinase; Chain
Homologous superfamily homologous superfamily	10 — Adenoviral Proteinase; Chain A

Domain ID domain_id	2bkqC00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	395 — Adenoviral Proteinase; Chain
Homologous superfamily homologous superfamily	10 — Adenoviral Proteinase; Chain A

Domain ID domain_id	2bkqD00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	395 — Adenoviral Proteinase; Chain
Homologous superfamily homologous superfamily	10 — Adenoviral Proteinase; Chain A

▶

Unit-cell length a length_a	57.070 Å
Unit-cell length b length_b	57.510 Å
Unit-cell length c length_c	74.996 Å
Unit-cell angle α angle_alpha	99.74 °
Unit-cell angle β angle_beta	110.95 °
Unit-cell angle γ angle_gamma	92.41 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	69.010 Å
R factor r_factor	0.1960
R_work r_work	0.1930
R_free r_free	0.2500

Description description	SENTRIN-SPECIFIC PROTEASE 8
Molecular weight formula_weight	24073.2 kDa
EC 编号 ec_number	3.4.22.-
Source method src_method	man
Copy count entity_count	4

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	7017

NEDD8 protease

1. Protein Identity and Related Structures Protein Identity & Related Structures

SENTRIN-SPECIFIC PROTEASE 8

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

2bkq__assembly_1__model_1

2bkq__assembly_1__model_1 | I(q)

2bkq__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 water

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

CATH v4.4 (4 domains)

7. Citations (1)

Source organism organism	HOMO SAPIENS
Common name common_name	HUMAN
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	ESCHERICHIA COLI

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	386
