SAXSdb — 2bnz

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2bnz
沉积日期 deposition_date	2005-04-06
结构标题 title	Structural basis for cooperative binding of Ribbon-Helix-Helix Omega repressor to inverted DNA heptad repeats
关键词 keywords	DNA BINDING PROTEIN-DNA COMPLEX, RIBBON-HELIX-HELIX, RHH, METJ/ARC SUPERFAMILY, COOPERATIVE DNA BINDING, INC18 FAMILY; DNA BINDING PROTEIN/DNA
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	23.86 Å
回转半径 Rg (电子) rg_electron	23.49 Å
零角强度 I(0) i0	35544800.00
分子量 molecular_weight	37028.0 kDa
排除体积 excluded_volume	42541 Å³
包络体积 envelope_volume	56439 Å³
水化壳体积 shell_volume	21050 Å³
包络直径 envelope_diameter	117.2 Å
壳层 Rg shell_rg	28.57 Å
包络 Rg envelope_rg	26.14 Å
形状 Rg shape_rg	23.46 Å
总 Rg total_rg	24.07 Å
总原子数 total_atoms	2540
残基数 n_residues	244
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	62.6 Å
Rg (实空间) rg_real	22.22 Å
Rg 误差 (实空间) rg_real_error	0.10 Å
I(0) (实空间) i0_real	3.3690e+07
I(0) 误差 (实空间) i0_real_error	3.3210e+05
Rg (倒空间) rg_reciprocal	24.25 Å
I(0) (倒空间) i0_reciprocal	35540000.0000
解质量估计 total_estimate	0.6853
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	25.4 Å
偏度 Skewness skewness	0.330
峰度 Kurtosis kurtosis	-0.505
角度范围 angular_range	— – 0.3350 Å⁻¹
当前正则化参数 α current_alpha	3.3290
最高正则化参数 α highest_alpha	3295000.0000
实空间数据点数 n_real_points	65
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.017; Oscil: 0.994; Stabil: 0.979; Sysdev: 0.000; Positv: 1.000; Valcen: 0.992; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	ORF OMEGA
分子量 formula_weight	6137.2 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	2585

MAKKDIMGDKTVRVRADLHHIIKIETAKNGGNVKEVMDQALEEYIRKYLPDKL

来源 Source

来源生物 organism	STREPTOCOCCUS PYOGENES
NCBI 分类编号 ncbi_taxonomy_id	1314
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 polymer

描述 description	;5'-D(GPAPAPTPCPAPCPAPAPGP TPGPAPTPTPAPGPC)-3' ;
分子量 formula_weight	5548.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	E,G

GAATCACAAGTGATTAGC

Entity 3 polymer

描述 description	;5'-D(CPTPAPAPTPCPAPCPTPTP GPTPGPAPTPTPCPG)-3' ;
分子量 formula_weight	5481.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	F,H

CTAATCACTTGTGATTCG

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	45

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d2bnza_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.43 — Ribbon-helix-helix
超家族 Superfamily superfamily	a.43.1 — Ribbon-helix-helix
家族 Family family	a.43.1.4 — Omega transcriptional repressor

结构域编号 domain_id	d2bnzb_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.43 — Ribbon-helix-helix
超家族 Superfamily superfamily	a.43.1 — Ribbon-helix-helix
家族 Family family	a.43.1.4 — Omega transcriptional repressor

结构域编号 domain_id	d2bnzc_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.43 — Ribbon-helix-helix
超家族 Superfamily superfamily	a.43.1 — Ribbon-helix-helix
家族 Family family	a.43.1.4 — Omega transcriptional repressor

结构域编号 domain_id	d2bnzd_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.43 — Ribbon-helix-helix
超家族 Superfamily superfamily	a.43.1 — Ribbon-helix-helix
家族 Family family	a.43.1.4 — Omega transcriptional repressor

CATH v4.4 (4 domains)

结构域编号 domain_id	2bnzA00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	1220 — Arc Repressor Mutant
同源超家族 H-superfamily homologous superfamily	10 — Met repressor-like

结构域编号 domain_id	2bnzB00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	1220 — Arc Repressor Mutant
同源超家族 H-superfamily homologous superfamily	10 — Met repressor-like

结构域编号 domain_id	2bnzC00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	1220 — Arc Repressor Mutant
同源超家族 H-superfamily homologous superfamily	10 — Met repressor-like

结构域编号 domain_id	2bnzD00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	1220 — Arc Repressor Mutant
同源超家族 H-superfamily homologous superfamily	10 — Met repressor-like

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	75.991 Å
晶胞边长 b length_b	42.505 Å
晶胞边长 c length_c	103.727 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	107.17 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	2.600 Å
最低分辨率 resolution_low	100.000 Å
R 因子 r_factor	0.2270
R_work r_work	0.2250
R_free r_free	0.2580

fit	/app/data/saxs_computation/bn/2bnz/2bnz.fit
pddf	/app/data/pr_computation/bn/2bnz/2bnz.pr.out
profile	/app/data/saxs_computation/bn/2bnz/2bnz.dat

Structural basis for cooperative binding of Ribbon-Helix-Helix Omega repressor to inverted DNA heptad repeats

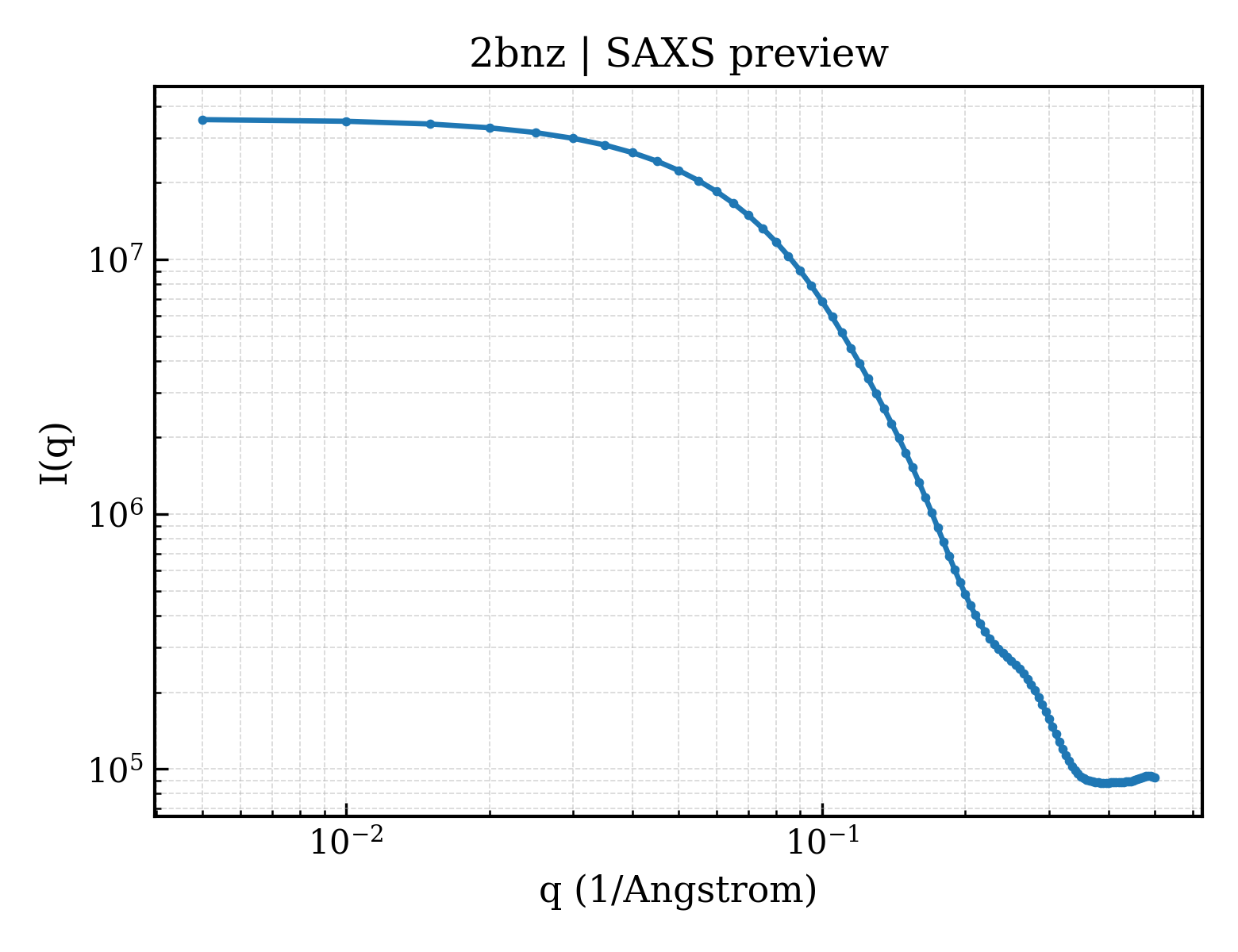

SAXS 散射曲线 SAXS Profile

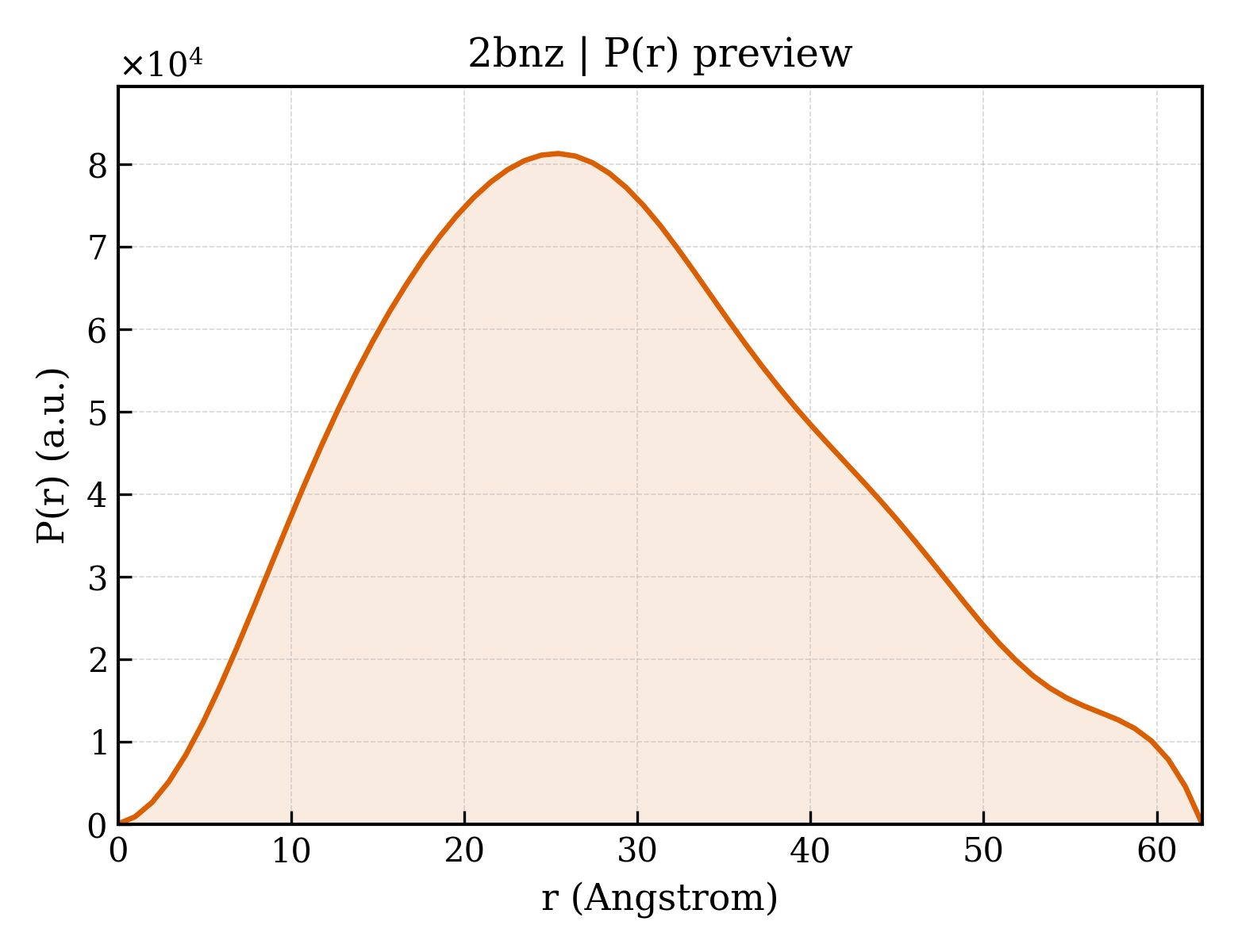

P(r) 距离分布 P(r) Distribution
