2bte

;Thermus thermophilus Leucyl-tRNA synthetase complexed with a tRNAleu transcript in the post-editing conformation and a post- transfer editing substrate analogue ;

Method: X-RAY DIFFRACTION D_max: 162.1 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

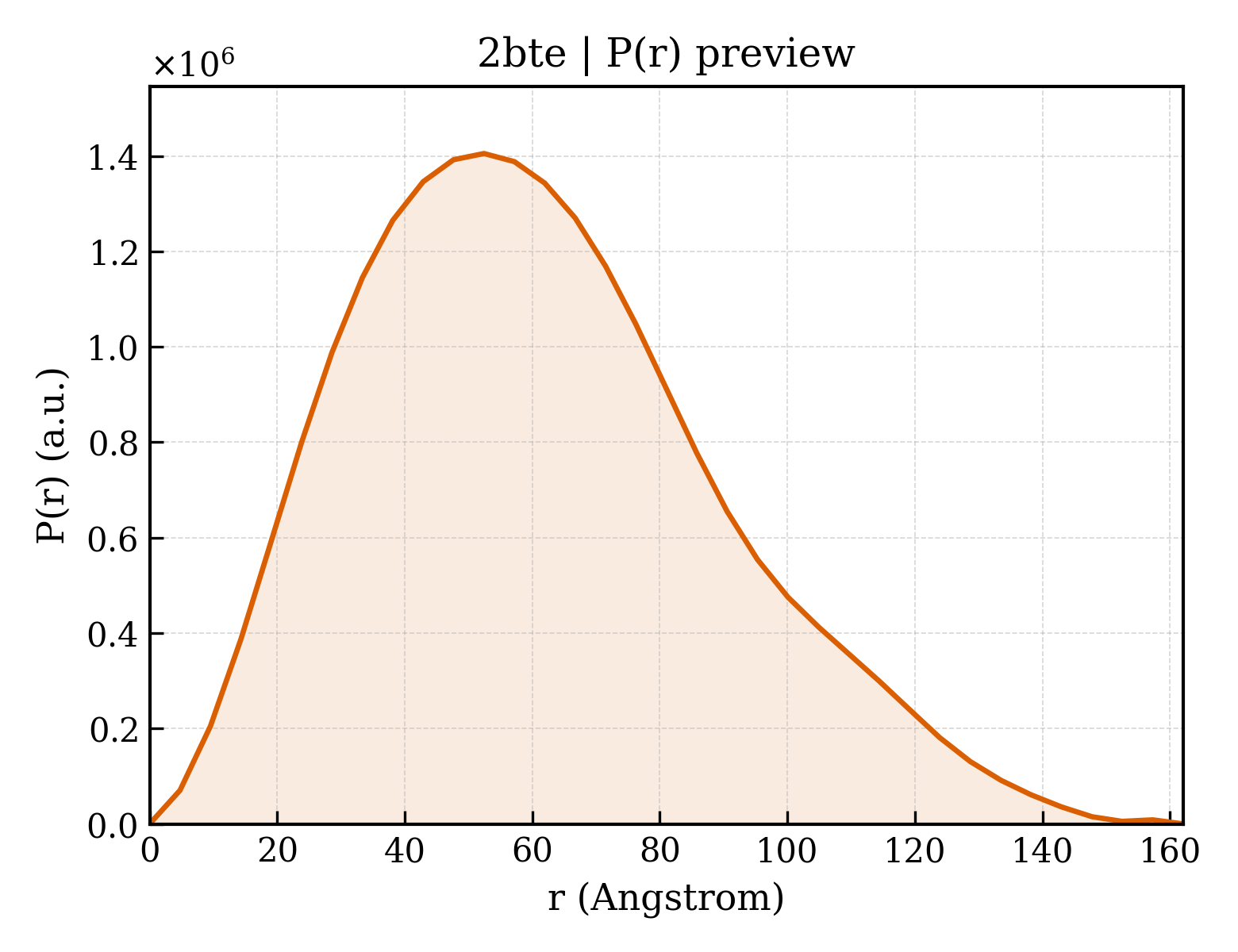

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2bte
沉积日期 deposition_date	2005-05-31
结构标题 title	;Thermus thermophilus Leucyl-tRNA synthetase complexed with a tRNAleu transcript in the post-editing conformation and a post- transfer editing substrate analogue ;
关键词 keywords	LIGASE, CLASS I AMINOACYL-TRNA SYNTHETASE EDITING; LIGASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	47.02 Å
回转半径 Rg (电子) rg_electron	49.55 Å
零角强度 I(0) i0	1259270000.00
分子量 molecular_weight	256440.0 kDa
排除体积 excluded_volume	304410 Å³
包络体积 envelope_volume	443350 Å³
水化壳体积 shell_volume	77291 Å³
包络直径 envelope_diameter	175.0 Å
壳层 Rg shell_rg	50.80 Å
包络 Rg envelope_rg	47.73 Å
形状 Rg shape_rg	49.64 Å
总 Rg total_rg	49.32 Å
总原子数 total_atoms	17797
残基数 n_residues	1894
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	162.1 Å
Rg (实空间) rg_real	47.23 Å
Rg 误差 (实空间) rg_real_error	1.54 Å
I(0) (实空间) i0_real	1.2590e+09
I(0) 误差 (实空间) i0_real_error	2.4540e+07
Rg (倒空间) rg_reciprocal	47.02 Å
I(0) (倒空间) i0_reciprocal	1259000000.0000
解质量估计 total_estimate	0.8587
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	52.4 Å
偏度 Skewness skewness	0.475
峰度 Kurtosis kurtosis	-0.200
角度范围 angular_range	— – 0.1700 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	151900000.0000
实空间数据点数 n_real_points	35
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.807; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.742

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (9)

Entity 1 polymer

描述 description	AMINOACYL-TRNA SYNTHETASE
分子量 formula_weight	101170.1 kDa
EC 编号 ec_number	6.1.1.4
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,D
原子数 atom_count	17815

MEKYNPHAIEAKWQRFWEEKGFMKAKDLPGGRGKQYVLVMFPYPSGDLHMGHLKNYTMGDVLARFRRMQGYEVLHPMGWDAFGLPAENAALKFGVHPKDWTYANIRQAKESLRLMGILYDWDREVTTCEPEYYRWNQWIFLKMWEKGLAYRAKGLVNWCPKCQTVLANEQVVEGRCWRHEDTPVEKRELEQWYLRITAYAERLLKDLEGLNWPEKVKAMQRAWIGRSEGAEILFPVEGKEVRIPVFTTRPDTLFGATFLVLAPEHPLTLELAAPEKREEVLAYVEAAKRKTEIERQAEGREKTGVFLGAYALNPATGERIPIWTADYVLFGYGTGAIMAVPAHDQRDYEFARKFGLPIKKVIERPGEPLPEPLERAYEEPGIMVNSGPFDGTESEEGKRKVIAWLEEKGLGKGRVTYRLRDWLISRQRYWGTPIPMVHCEACGVVPVPEEELPVLLPDLKDVEDIRPKGKSPLEAHPEFYETTCPKCGGPAKRDTDTMDTFFDSSWYYLRYTDPHNDRLPFDPEKANAWMPVDQYIGGVEHAVLHLLYSRFFTKFLHDLGMVKVEEPFQGLFTQGMVLAWTDFGPVEVEGSVVRLPEPTRIRLEIPESALSLEDVRKMGAELRPHEDGTLHLWKPAVMSKSKGNGVMVGPFVKEQGADIARITILFAAPPENEMVWTEEGVQGAWRFLNRIYRRVAEDREALLETSGVFQAEALEGKDRELYGKLHETLKKVTEDLEALRFNTAIAALMEFLNALYEYRKDRPVTPVYRTAIRYYLQMLFPFAPHLAEELWHWFWPDSLFEAGWPELDEKALEKDVVEVAVQVNGRVRGTIHIPKDAPLEVARAEALKVRNVRAHLEGKEVVKEIYVPGKILNLVVRG

来源 Source

来源生物 organism	THERMUS THERMOPHILUS
NCBI 分类编号 ncbi_taxonomy_id	274
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 polymer

描述 description	TRNALEU TRANSCRIPT WITH ANTICODON CAG
分子量 formula_weight	26898.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	B,E

GCCGGGGUGGCGGAAUGGGUAGACGCGCAUGACUCAGGAUCAUGUGCGCAAGCGUGCGGGUUCAAGUCCCGCCCCCGGCACCA

Entity 3 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 4 non-polymer

描述 description	MERCURY (II) ION
分子量 formula_weight	200.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 5 non-polymer

描述 description	SULFATE ION
分子量 formula_weight	96.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	25

Entity 6 non-polymer

描述 description	NORVALINE
分子量 formula_weight	117.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 7 non-polymer

描述 description	2'-AMINO-2'-DEOXYADENOSINE
分子量 formula_weight	266.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 8 non-polymer

描述 description	LEUCINE
分子量 formula_weight	131.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 9 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	18

▼

6. 折叠分类 (SCOP + CATH) 10 domains

CATH v4.4 (10 domains)

结构域编号 domain_id	2bteA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	620 — HUPs

结构域编号 domain_id	2bteA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	740 — Isoleucyl-tRNA Synthetase; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Valyl/Leucyl/Isoleucyl-tRNA synthetase, editing domain

结构域编号 domain_id	2bteA03
类 Class class	2 — Mainly Beta
架构 Architecture architecture	30 — Roll
拓扑 Topology topology	210 — Leucyl-tRNA synthetase, domain 3
同源超家族 H-superfamily homologous superfamily	10 — Leucyl-tRNA synthetase, domain 3

结构域编号 domain_id	2bteA04
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	730 — Isoleucyl-tRNA Synthetase; Domain 1
同源超家族 H-superfamily homologous superfamily	10 — Isoleucyl-tRNA Synthetase; Domain 1

结构域编号 domain_id	2bteA05
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	20 — Ubiquitin-like (UB roll)
同源超家族 H-superfamily homologous superfamily	590 —

结构域编号 domain_id	2bteD01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	620 — HUPs

结构域编号 domain_id	2bteD02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	740 — Isoleucyl-tRNA Synthetase; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Valyl/Leucyl/Isoleucyl-tRNA synthetase, editing domain

结构域编号 domain_id	2bteD03
类 Class class	2 — Mainly Beta
架构 Architecture architecture	30 — Roll
拓扑 Topology topology	210 — Leucyl-tRNA synthetase, domain 3
同源超家族 H-superfamily homologous superfamily	10 — Leucyl-tRNA synthetase, domain 3

结构域编号 domain_id	2bteD04
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	730 — Isoleucyl-tRNA Synthetase; Domain 1
同源超家族 H-superfamily homologous superfamily	10 — Isoleucyl-tRNA Synthetase; Domain 1

结构域编号 domain_id	2bteD05
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	20 — Ubiquitin-like (UB roll)
同源超家族 H-superfamily homologous superfamily	590 —

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	204.121 Å
晶胞边长 b length_b	125.705 Å
晶胞边长 c length_c	175.432 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	120.86 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	C 1 2 1
空间群编号 int_tables_number	5
晶系 crystal_system	—

分辨率 resolution	2.900 Å
最低分辨率 resolution_low	24.890 Å
R 因子 r_factor	0.2170
R_work r_work	0.2170
R_free r_free	0.2530

fit	/app/data/saxs_computation/bt/2bte/2bte.fit
pddf	/app/data/pr_computation/bt/2bte/2bte.pr.out
profile	/app/data/saxs_computation/bt/2bte/2bte.dat
