1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2byt
沉积日期 deposition_date	2005-08-04
结构标题 title	Thermus thermophilus Leucyl-tRNA synthetase complexed with a tRNAleu transcript in the post-editing conformation
关键词 keywords	;SYNTHETASE, AMINOACYL-TRNA SYNTHETASE, ATP + L-LEUCINE + TRNA (LEU) GIVES AMP + PPI L-LEUCYL-TRNA(LEU), CLASS I AMINOACYL-TRNA SYNTHETASE, EDITING ;; SYNTHETASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	46.99 Å
回转半径 Rg (电子) rg_electron	49.51 Å
零角强度 I(0) i0	1231080000.00
分子量 molecular_weight	254780.0 kDa
排除体积 excluded_volume	303020 Å³
包络体积 envelope_volume	449350 Å³
水化壳体积 shell_volume	77836 Å³
包络直径 envelope_diameter	175.3 Å
壳层 Rg shell_rg	51.28 Å
包络 Rg envelope_rg	47.90 Å
形状 Rg shape_rg	49.61 Å
总 Rg total_rg	49.29 Å
总原子数 total_atoms	17697
残基数 n_residues	1894
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	163.3 Å
Rg (实空间) rg_real	47.19 Å
Rg 误差 (实空间) rg_real_error	1.40 Å
I(0) (实空间) i0_real	1.2310e+09
I(0) 误差 (实空间) i0_real_error	2.2760e+07
Rg (倒空间) rg_reciprocal	46.99 Å
I(0) (倒空间) i0_reciprocal	1231000000.0000
解质量估计 total_estimate	0.8598
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	52.9 Å
偏度 Skewness skewness	0.469
峰度 Kurtosis kurtosis	-0.210
角度范围 angular_range	— – 0.1700 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	169400000.0000
实空间数据点数 n_real_points	35
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.793; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.798

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (6)

Entity 1 polymer

描述 description	LEUCYL-TRNA SYNTHETASE
分子量 formula_weight	101170.1 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,D
原子数 atom_count	17697

MEKYNPHAIEAKWQRFWEEKGFMKAKDLPGGRGKQYVLVMFPYPSGDLHMGHLKNYTMGDVLARFRRMQGYEVLHPMGWDAFGLPAENAALKFGVHPKDWTYANIRQAKESLRLMGILYDWDREVTTCEPEYYRWNQWIFLKMWEKGLAYRAKGLVNWCPKCQTVLANEQVVEGRCWRHEDTPVEKRELEQWYLRITAYAERLLKDLEGLNWPEKVKAMQRAWIGRSEGAEILFPVEGKEVRIPVFTTRPDTLFGATFLVLAPEHPLTLELAAPEKREEVLAYVEAAKRKTEIERQAEGREKTGVFLGAYALNPATGERIPIWTADYVLFGYGTGAIMAVPAHDQRDYEFARKFGLPIKKVIERPGEPLPEPLERAYEEPGIMVNSGPFDGTESEEGKRKVIAWLEEKGLGKGRVTYRLRDWLISRQRYWGTPIPMVHCEACGVVPVPEEELPVLLPDLKDVEDIRPKGKSPLEAHPEFYETTCPKCGGPAKRDTDTMDTFFDSSWYYLRYTDPHNDRLPFDPEKANAWMPVDQYIGGVEHAVLHLLYSRFFTKFLHDLGMVKVEEPFQGLFTQGMVLAWTDFGPVEVEGSVVRLPEPTRIRLEIPESALSLEDVRKMGAELRPHEDGTLHLWKPAVMSKSKGNGVMVGPFVKEQGADIARITILFAAPPENEMVWTEEGVQGAWRFLNRIYRRVAEDREALLETSGVFQAEALEGKDRELYGKLHETLKKVTEDLEALRFNTAIAALMEFLNALYEYRKDRPVTPVYRTAIRYYLQMLFPFAPHLAEELWHWFWPDSLFEAGWPELDEKALEKDVVEVAVQVNGRVRGTIHIPKDAPLEVARAEALKVRNVRAHLEGKEVVKEIYVPGKILNLVVRG

来源 Source

来源生物 organism	THERMUS THERMOPHILUS
NCBI 分类编号 ncbi_taxonomy_id	274
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 polymer

描述 description	TRNALEU TRANSCRIPT WITH ANTICODON CAG
分子量 formula_weight	26898.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	B,E

GCCGGGGUGGCGGAAUGGGUAGACGCGCAUGACUCAGGAUCAUGUGCGCAAGCGUGCGGGUUCAAGUCCCGCCCCCGGCACCA

Entity 3 non-polymer

描述 description	LEUCINE
分子量 formula_weight	131.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 4 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 5 non-polymer

描述 description	MERCURY (II) ION
分子量 formula_weight	200.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 6 non-polymer

描述 description	SULFATE ION
分子量 formula_weight	96.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	15

▼

6. 折叠分类 (SCOP + CATH) 10 domains

CATH v4.4 (10 domains)

结构域编号 domain_id	2bytA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	620 — HUPs

结构域编号 domain_id	2bytA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	740 — Isoleucyl-tRNA Synthetase; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Valyl/Leucyl/Isoleucyl-tRNA synthetase, editing domain

结构域编号 domain_id	2bytA03
类 Class class	2 — Mainly Beta
架构 Architecture architecture	30 — Roll
拓扑 Topology topology	210 — Leucyl-tRNA synthetase, domain 3
同源超家族 H-superfamily homologous superfamily	10 — Leucyl-tRNA synthetase, domain 3

结构域编号 domain_id	2bytA04
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	730 — Isoleucyl-tRNA Synthetase; Domain 1
同源超家族 H-superfamily homologous superfamily	10 — Isoleucyl-tRNA Synthetase; Domain 1

结构域编号 domain_id	2bytA05
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	20 — Ubiquitin-like (UB roll)
同源超家族 H-superfamily homologous superfamily	590 —

结构域编号 domain_id	2bytD01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	620 — HUPs

结构域编号 domain_id	2bytD02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	740 — Isoleucyl-tRNA Synthetase; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Valyl/Leucyl/Isoleucyl-tRNA synthetase, editing domain

结构域编号 domain_id	2bytD03
类 Class class	2 — Mainly Beta
架构 Architecture architecture	30 — Roll
拓扑 Topology topology	210 — Leucyl-tRNA synthetase, domain 3
同源超家族 H-superfamily homologous superfamily	10 — Leucyl-tRNA synthetase, domain 3

结构域编号 domain_id	2bytD04
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	730 — Isoleucyl-tRNA Synthetase; Domain 1
同源超家族 H-superfamily homologous superfamily	10 — Isoleucyl-tRNA Synthetase; Domain 1

结构域编号 domain_id	2bytD05
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	20 — Ubiquitin-like (UB roll)
同源超家族 H-superfamily homologous superfamily	590 —

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	203.869 Å
晶胞边长 b length_b	125.578 Å
晶胞边长 c length_c	172.979 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	118.44 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	C 1 2 1
空间群编号 int_tables_number	5
晶系 crystal_system	—

分辨率 resolution	3.300 Å
最低分辨率 resolution_low	24.450 Å
R 因子 r_factor	0.2430
R_work r_work	0.2430
R_free r_free	0.2820

fit	/app/data/saxs_computation/by/2byt/2byt.fit
pddf	/app/data/pr_computation/by/2byt/2byt.pr.out
profile	/app/data/saxs_computation/by/2byt/2byt.dat

Thermus thermophilus Leucyl-tRNA synthetase complexed with a tRNAleu transcript in the post-editing conformation

SAXS 散射曲线 SAXS Profile

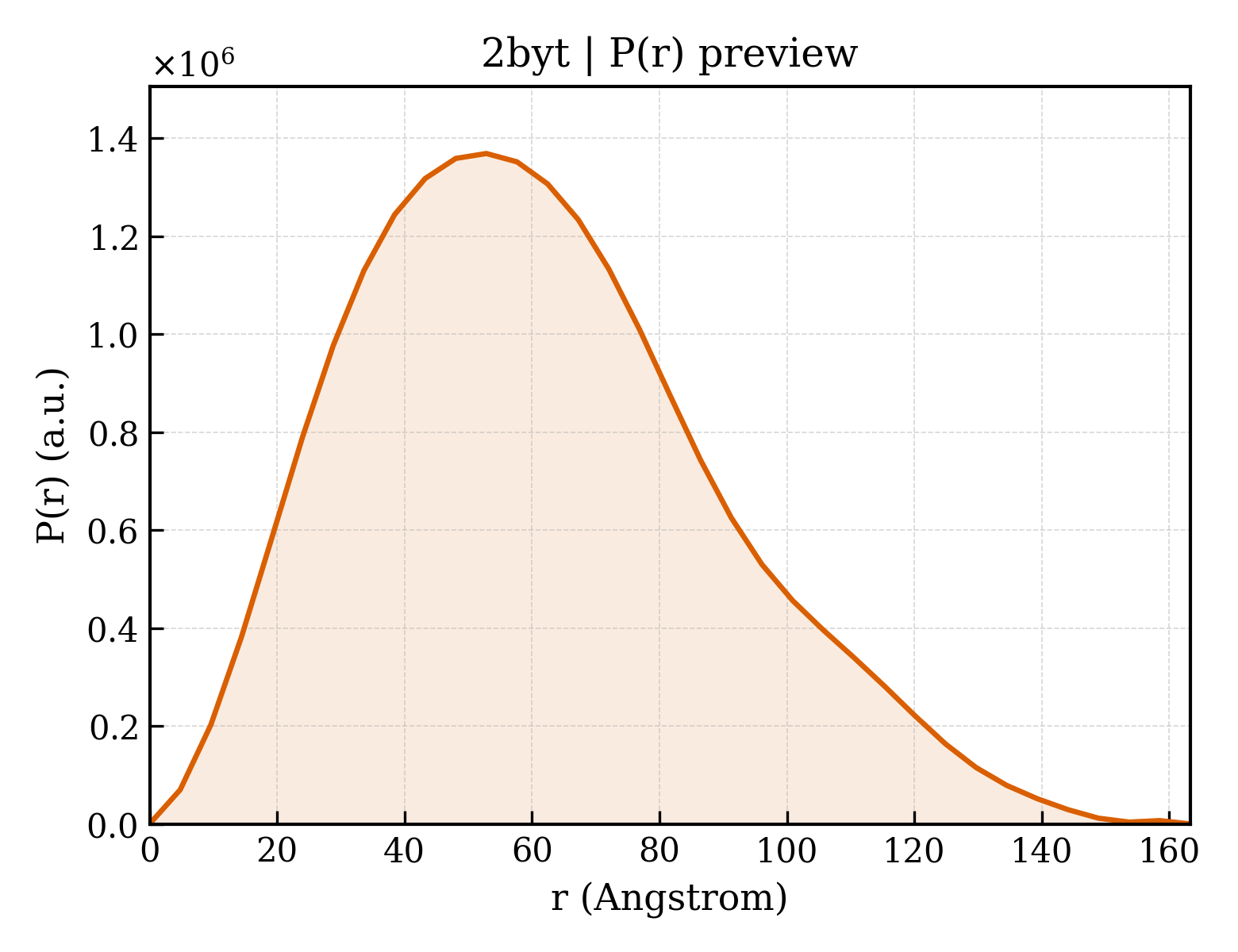

P(r) 距离分布 P(r) Distribution
