2c2l

Crystal structure of the CHIP U-box E3 ubiquitin ligase

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CARBOXY TERMINUS OF HSP70-INTERACTING PROTEIN

MUS MUSCULUS

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	HSP90 × 1 （Q96HX7） SULFATE ION × 3 water × 1	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	HSP90 × 1 （Q96HX7） SULFATE ION × 2 NICKEL (II) ION × 4	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 2	HSP90 × 1 （Q96HX7） SULFATE ION × 1 water × 2	Consistent with protein count
4	Protein heterocomplex	Heteromer	Protein 2	HSP90 × 1 （Q96HX7） SULFATE ION × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q9DCJ0_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–281； UniProt 24–304 Author chain B； PDBConstruct 1–281； UniProt 24–304 Author chain C； PDBConstruct 1–281； UniProt 24–304 Author chain D； PDBConstruct 1–281； UniProt 24–304

HSP90

OrganismNot specified

UniProt Q96HX7

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	CARBOXY TERMINUS OF HSP70-INTERACTING PROTEIN × 1 （Q9DCJ0） SULFATE ION × 3 water × 1	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	CARBOXY TERMINUS OF HSP70-INTERACTING PROTEIN × 1 （Q9DCJ0） SULFATE ION × 2 NICKEL (II) ION × 4	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 2	CARBOXY TERMINUS OF HSP70-INTERACTING PROTEIN × 1 （Q9DCJ0） SULFATE ION × 1 water × 2	Consistent with protein count
4	Protein heterocomplex	Heteromer	Protein 2	CARBOXY TERMINUS OF HSP70-INTERACTING PROTEIN × 1 （Q9DCJ0） SULFATE ION × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q96HX7_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain E； PDBConstruct 1–9； UniProt 414–422 Author chain F； PDBConstruct 1–9； UniProt 414–422 Author chain G； PDBConstruct 1–9； UniProt 414–422 Author chain H； PDBConstruct 1–9； UniProt 414–422

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2c2l
Deposition date deposition_date	2005-09-29
Structure title title	Crystal structure of the CHIP U-box E3 ubiquitin ligase
Keywords keywords	CHAPERONE, E3 LIGASE, UBIQUITINYLATION, TPR, HEAT-SHOCK PROTEIN COMPLEX; CHAPERONE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2c2l__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

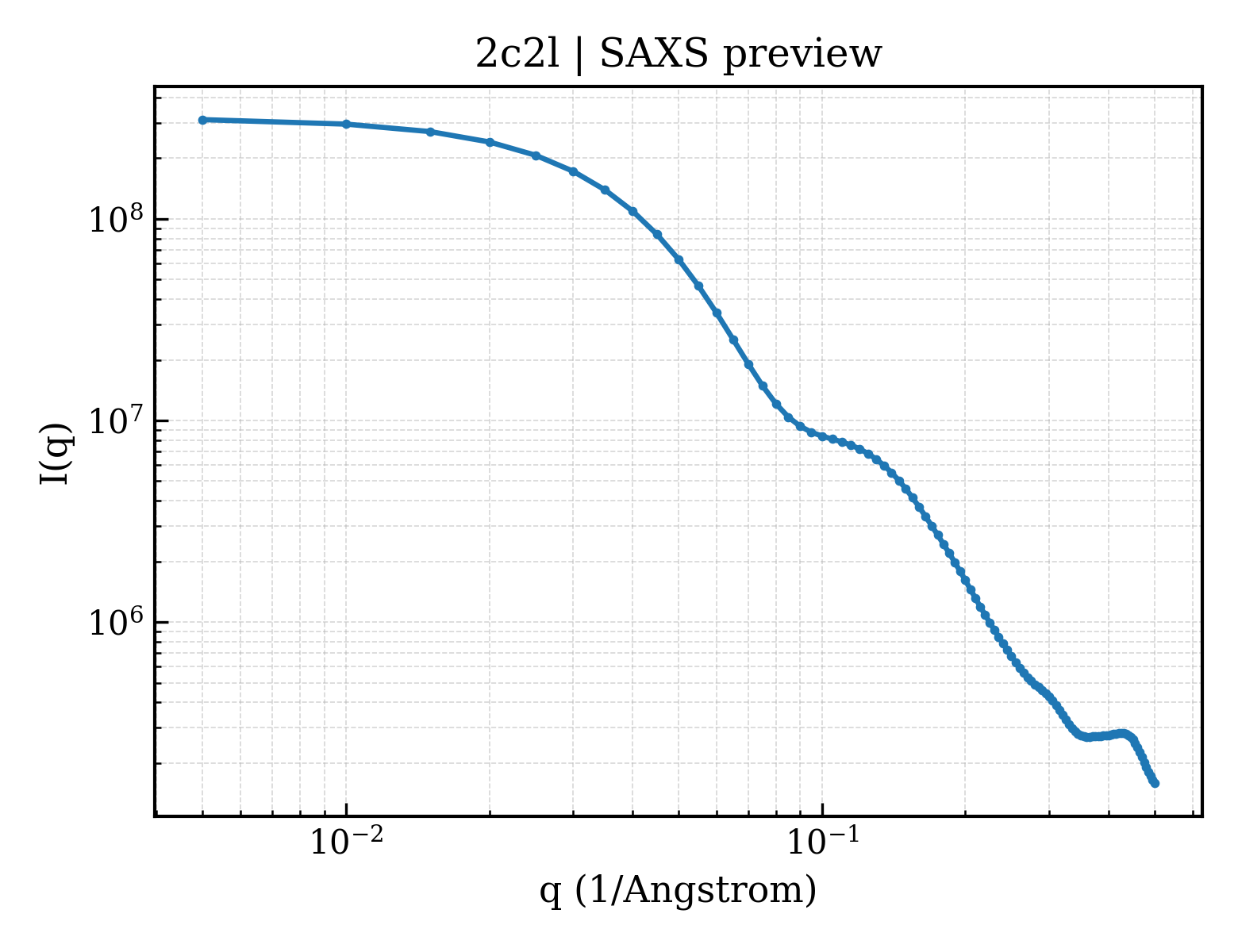

2c2l__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

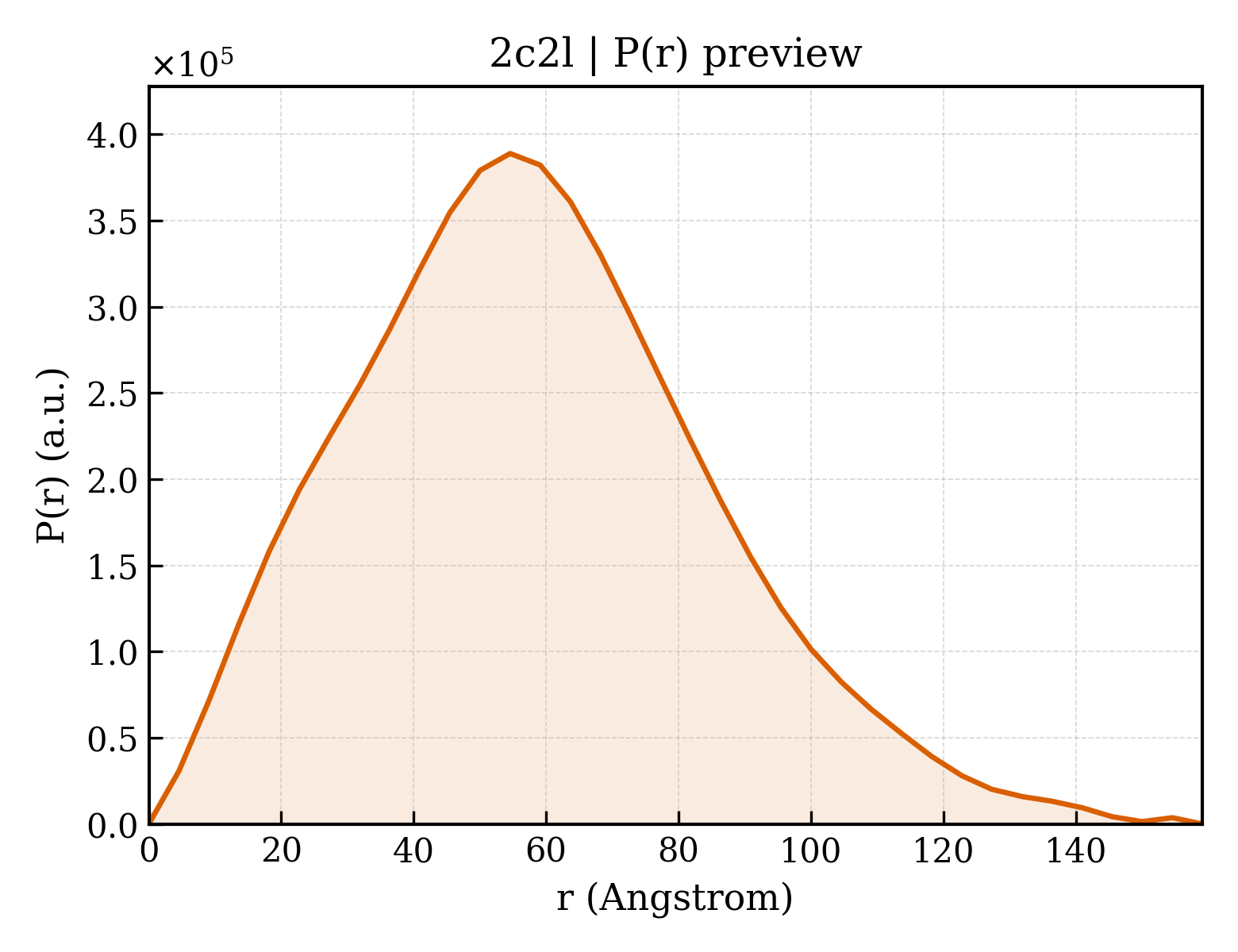

2c2l__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	28.47 Å
Rg (electron density)	27.78 Å
Total Rg	28.23 Å
Atom count	2383
Residues	290
Excluded volume	41684 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2c2l__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2c2l__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`2c2l__assembly_3__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
4	1	`2c2l__assembly_4__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	CARBOXY TERMINUS OF HSP70-INTERACTING PROTEIN
Molecular weight formula_weight	32728.9 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	9521

SPSAQELKEQGNRLFVGRKYPEAAACYGRAITRNPLVAVYYTNRALCYLKMQQPEQALADCRRALELDGQSVKAHFFLGQCQLEMESYDEAIANLQRAYSLAKEQRLNFGDDIPSALRIAKKKRWNSIEERRIHQESELHSYLTRLIAAERERELEECQRNHEGHEDDGHIRAQQACIEAKHDKYMADMDELFSQVDEKRKKRDIPDYLCGKISFELMREPCITPSGITYDRKDIEEHLQRVGHFNPVTRSPLTQEQLIPNLAMKEVIDAFISENGWVEDY

Source Source

Source organism organism	MUS MUSCULUS
Common name common_name	MOUSE
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 polymer

Description description	HSP90
Molecular weight formula_weight	1082.1 kDa
Source method src_method	syn
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,F,G,H

DTSRMEEVD

Entity 3 Entity 3 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	7

Entity 4 Entity 4 non-polymer

Description description	NICKEL (II) ION
Molecular weight formula_weight	58.7 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	10

▼

6. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d2c2la1
Class class	a — All alpha proteins
Fold Fold fold	a.118 — alpha-alpha superhelix
Superfamily Superfamily superfamily	a.118.8 — TPR-like
Family Family family	a.118.8.1 — Tetratricopeptide repeat (TPR)

Domain ID domain_id	d2c2la2
Class class	g — Small proteins
Fold Fold fold	g.44 — RING/U-box
Superfamily Superfamily superfamily	g.44.1 — RING/U-box
Family Family family	g.44.1.2 — U-box

Domain ID domain_id	d2c2lb1
Class class	a — All alpha proteins
Fold Fold fold	a.118 — alpha-alpha superhelix
Superfamily Superfamily superfamily	a.118.8 — TPR-like
Family Family family	a.118.8.1 — Tetratricopeptide repeat (TPR)

Domain ID domain_id	d2c2lb2
Class class	g — Small proteins
Fold Fold fold	g.44 — RING/U-box
Superfamily Superfamily superfamily	g.44.1 — RING/U-box
Family Family family	g.44.1.2 — U-box

Domain ID domain_id	d2c2lc1
Class class	a — All alpha proteins
Fold Fold fold	a.118 — alpha-alpha superhelix
Superfamily Superfamily superfamily	a.118.8 — TPR-like
Family Family family	a.118.8.1 — Tetratricopeptide repeat (TPR)

Domain ID domain_id	d2c2lc2
Class class	g — Small proteins
Fold Fold fold	g.44 — RING/U-box
Superfamily Superfamily superfamily	g.44.1 — RING/U-box
Family Family family	g.44.1.2 — U-box

Domain ID domain_id	d2c2ld1
Class class	a — All alpha proteins
Fold Fold fold	a.118 — alpha-alpha superhelix
Superfamily Superfamily superfamily	a.118.8 — TPR-like
Family Family family	a.118.8.1 — Tetratricopeptide repeat (TPR)

Domain ID domain_id	d2c2ld2
Class class	g — Small proteins
Fold Fold fold	g.44 — RING/U-box
Superfamily Superfamily superfamily	g.44.1 — RING/U-box
Family Family family	g.44.1.2 — U-box

CATH v4.4 (8 domains)

Domain ID domain_id	2c2lA01
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat
Homologous superfamily homologous superfamily	10 — Tetratricopeptide repeat domain

Domain ID domain_id	2c2lA03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	40 — Herpes Virus-1
Homologous superfamily homologous superfamily	10 — Zinc/RING finger domain, C3HC4 (zinc finger)

Domain ID domain_id	2c2lB01
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat
Homologous superfamily homologous superfamily	10 — Tetratricopeptide repeat domain

Domain ID domain_id	2c2lB03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	40 — Herpes Virus-1
Homologous superfamily homologous superfamily	10 — Zinc/RING finger domain, C3HC4 (zinc finger)

Domain ID domain_id	2c2lC01
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat
Homologous superfamily homologous superfamily	10 — Tetratricopeptide repeat domain

Domain ID domain_id	2c2lC03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	40 — Herpes Virus-1
Homologous superfamily homologous superfamily	10 — Zinc/RING finger domain, C3HC4 (zinc finger)

Domain ID domain_id	2c2lD01
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat
Homologous superfamily homologous superfamily	10 — Tetratricopeptide repeat domain

Domain ID domain_id	2c2lD03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	40 — Herpes Virus-1
Homologous superfamily homologous superfamily	10 — Zinc/RING finger domain, C3HC4 (zinc finger)

▶

Unit-cell length a length_a	76.042 Å
Unit-cell length b length_b	204.406 Å
Unit-cell length c length_c	144.709 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.75 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	3.300 Å
Low-resolution limit resolution_low	40.000 Å
R factor r_factor	0.2475
R_work r_work	0.2475
R_free r_free	0.2859
