SAXSdb — 2cjt

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

UNC-13 HOMOLOG A

RATTUS NORVEGICUS

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	1,2-ETHANEDIOL × 11 FORMIC ACID × 7 water × 4	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	1,2-ETHANEDIOL × 12 FORMIC ACID × 4 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	UN13A_RAT
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–131； UniProt 1–128 Author chain B； PDBConstruct 4–131； UniProt 1–128 Author chain C； PDBConstruct 4–131； UniProt 1–128 Author chain D； PDBConstruct 4–131； UniProt 1–128

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2cjt
Deposition date deposition_date	2006-04-06
Structure title title	Structural Basis for a Munc13-1 Homodimer - Munc13-1 - RIM Heterodimer Switch: C2-domains as Versatile Protein-Protein Interaction Modules
Keywords keywords	;PHORBOL-ESTER BINDING, NEUROTRANSMITTER RELEASE, RIM, MUNC13, C2 DOMAINS, EXOCYTOSIS, METAL-BINDING, PROTEIN-PROTEIN INTERACTIONS, ZINC FINGER, SYNAPTOSOME ;; EXOCYTOSIS
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2cjt__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

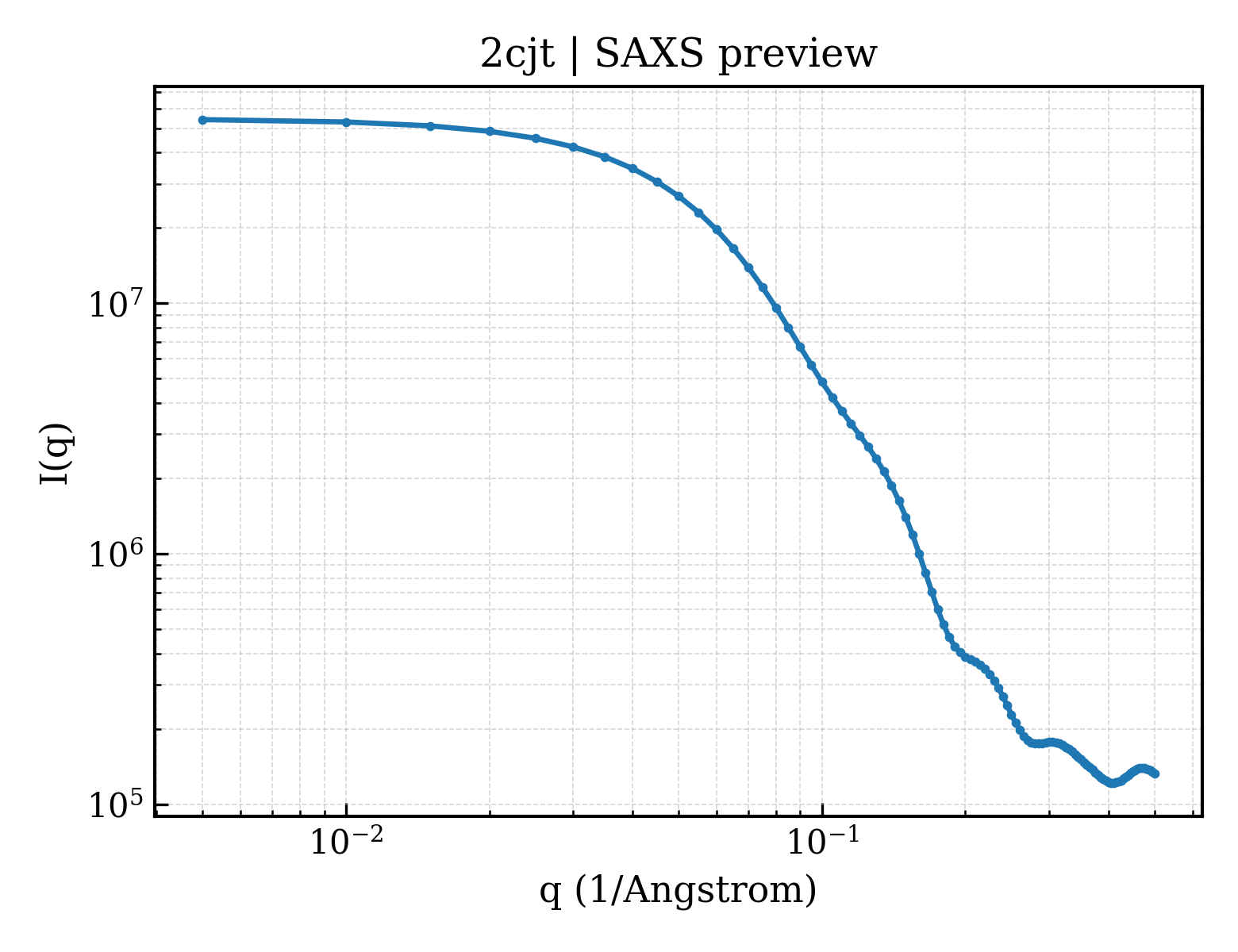

2cjt__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

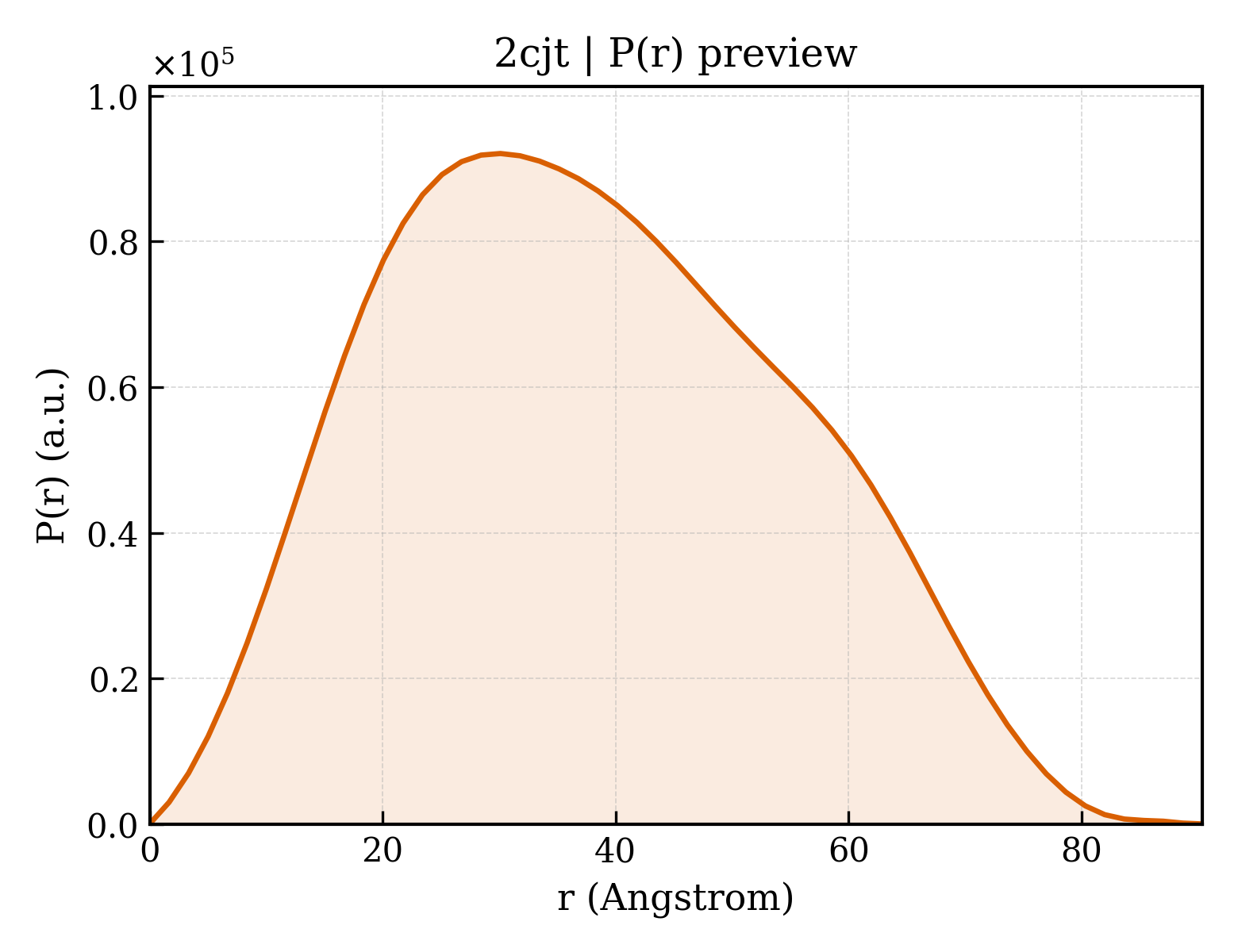

2cjt__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	20.40 Å
Rg (electron density)	19.10 Å
Total Rg	20.11 Å
Atom count	2044
Residues	248
Excluded volume	36572 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2cjt__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2cjt__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	UNC-13 HOMOLOG A
Molecular weight formula_weight	14761.8 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	4906

GGVMSLLCVGVKKAKFDGAQEKFNTYVTLKVQNVKSTTIAVRGSQPSWEQDFMFEINRLDLGLTVEVWNKGLIWDTMVGTVWIPLRTIRQSNEEGPGEWLTLDSQAIMADSEICGTKDPTFHRILLDAHFE

Source Source

Source organism organism	RATTUS NORVEGICUS
Common name common_name	RAT
NCBI taxonomy ID ncbi_taxonomy_id	10116
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	23

Entity 3 Entity 3 non-polymer

Description description	FORMIC ACID
Molecular weight formula_weight	46.0 kDa
Source method src_method	syn
Copy count entity_count	11

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	641

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d2cjta1
Class class	b — All beta proteins
Fold Fold fold	b.7 — C2 domain-like
Superfamily Superfamily superfamily	b.7.1 — C2 domain (Calcium/lipid-binding domain, CaLB)
Family Family family	b.7.1.1 — PLC-like (P variant)

Domain ID domain_id	d2cjtb_
Class class	b — All beta proteins
Fold Fold fold	b.7 — C2 domain-like
Superfamily Superfamily superfamily	b.7.1 — C2 domain (Calcium/lipid-binding domain, CaLB)
Family Family family	b.7.1.1 — PLC-like (P variant)

Domain ID domain_id	d2cjtc_
Class class	b — All beta proteins
Fold Fold fold	b.7 — C2 domain-like
Superfamily Superfamily superfamily	b.7.1 — C2 domain (Calcium/lipid-binding domain, CaLB)
Family Family family	b.7.1.1 — PLC-like (P variant)

Domain ID domain_id	d2cjtd_
Class class	b — All beta proteins
Fold Fold fold	b.7 — C2 domain-like
Superfamily Superfamily superfamily	b.7.1 — C2 domain (Calcium/lipid-binding domain, CaLB)
Family Family family	b.7.1.1 — PLC-like (P variant)

CATH v4.4 (4 domains)

Domain ID domain_id	2cjtA00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	150 — C2 domain

Domain ID domain_id	2cjtB00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	150 — C2 domain

Domain ID domain_id	2cjtC00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	150 — C2 domain

Domain ID domain_id	2cjtD00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	150 — C2 domain

▶

Unit-cell length a length_a	43.558 Å
Unit-cell length b length_b	127.144 Å
Unit-cell length c length_c	50.739 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.27 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.440 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.1600
R_work r_work	0.1600
R_free r_free	0.1880
